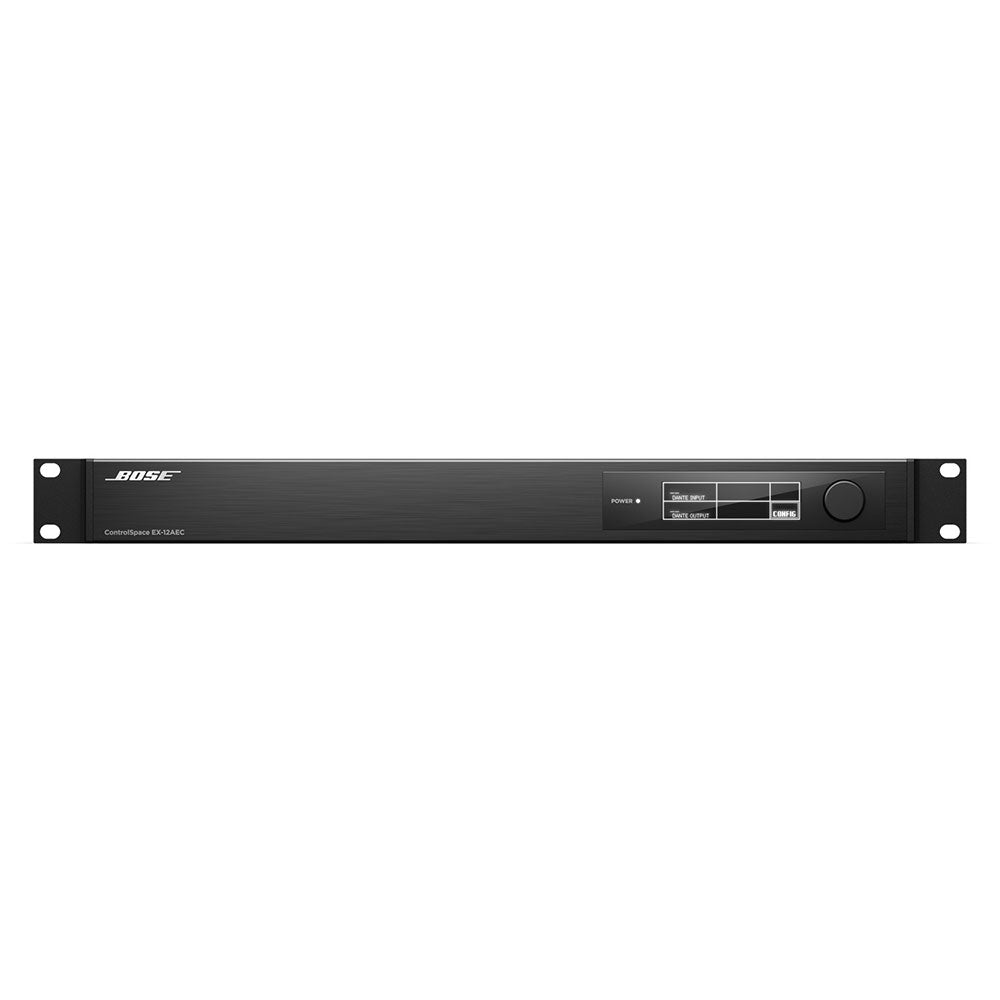

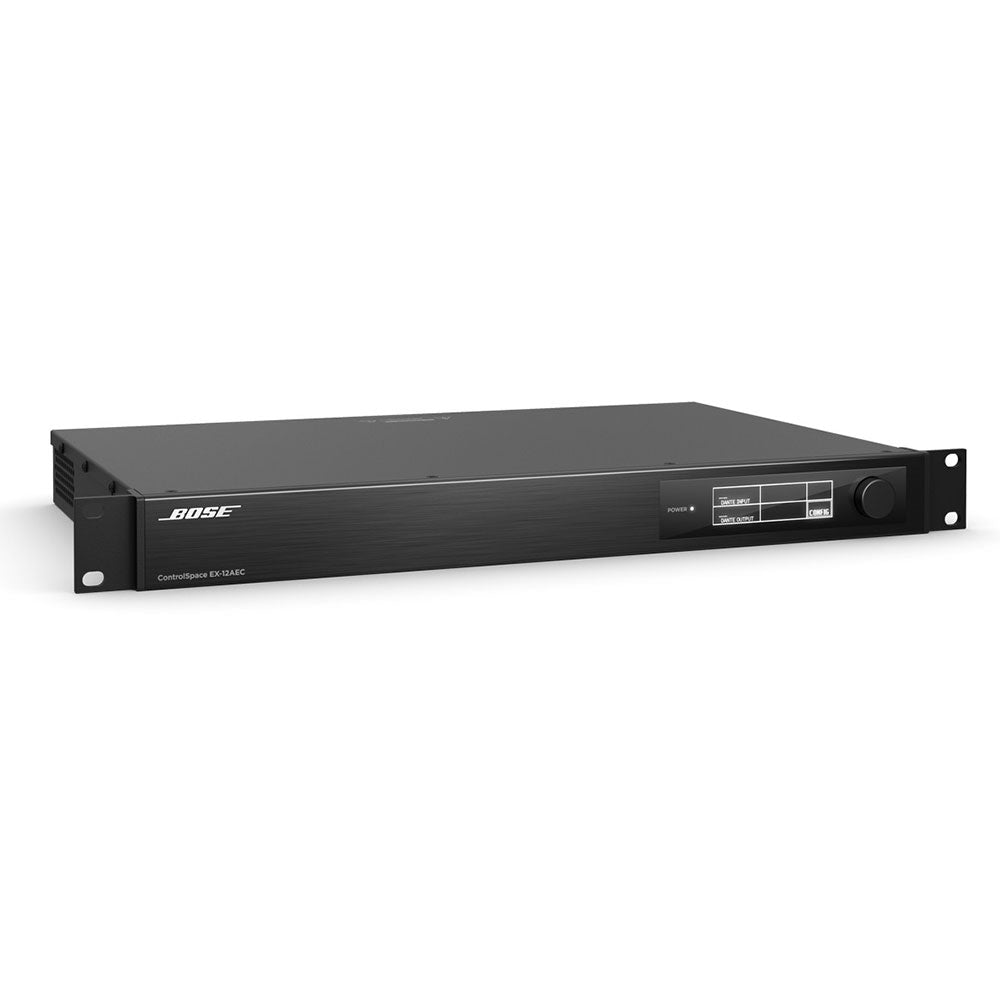

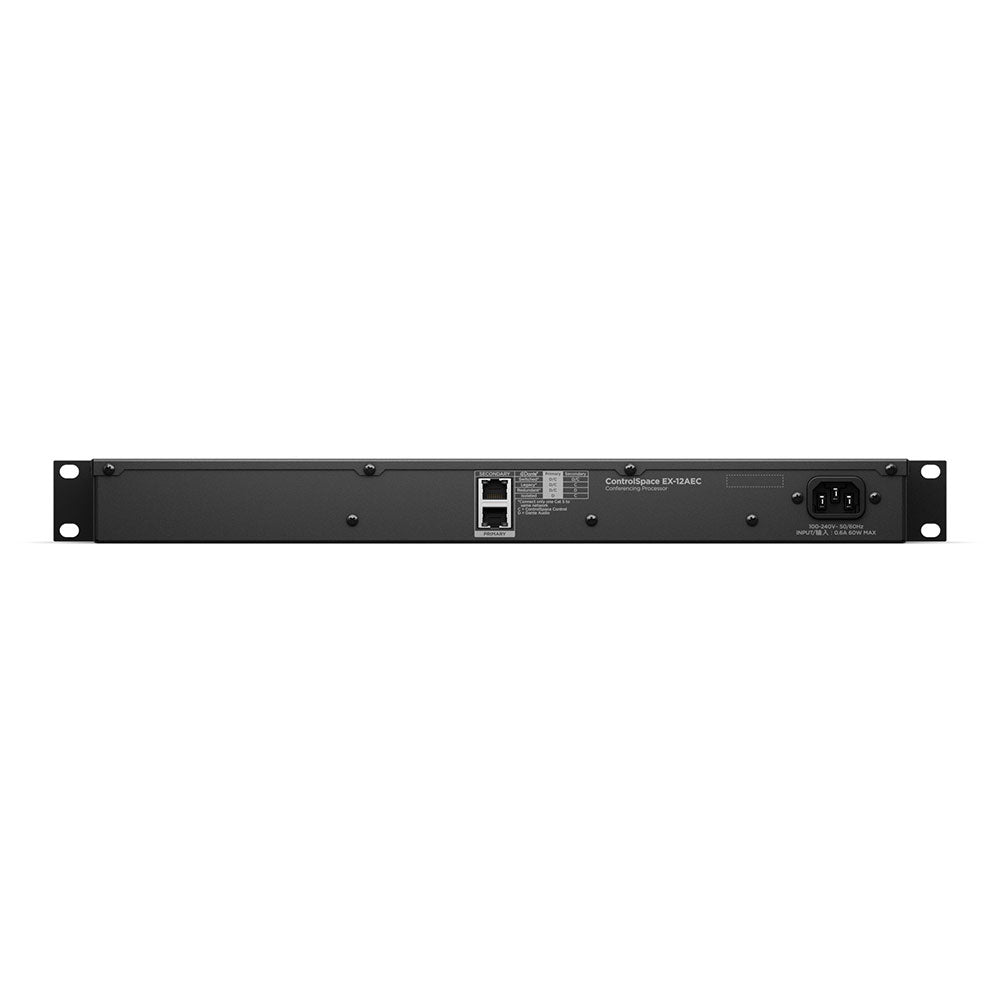

Bose ControlSpace EX-12AEC Conferencing Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose ControlSpace EX-12AEC Conferencing Processor
Sale price$1,386.00
Regular price$2,300.00
Description
With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 x 16 Dante® connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.
Features:
- 12-channel AEC expansion with multiple references to complement ControlSpace EX processors in larger systems
- Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
- Dante audio networking supports 16 x 16 audio channels for connection to EX processors
- Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
| INTEGRATED DSP | |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Delay | 43 s |
| ACOUSTIC ECHO CANCELLING | |
| Tail Length | 480 ms |
| Noise Reduction | 32 dB |
| Latency | 50 ms |
| Channels | 12 |
| References | 4 |
| AUDIO OVER IP | |
| Dante | 16 x 16, primary/secondary, routable to AEC |
| INDICATORS AND CONTROLS | |
| Display | 256 x 64 OLED with rotary encoder |
| LED Status Indicators | Power/Status |
| Audio Signal Indication | On Display |
| ELECTRICAL SPECIFICATIONS | |
| Mains Voltage | 85 VAC-264 VAC 50/60 Hz |
| AC Power Consumption | 35 W typical at 40 ¡C (104 ¡F) ambient |
| Mains Connector | IEC 60320-C14 (Inlet) |
| Power Dissipation | 60 W (205 BTU, 52 kcal) |
| PHYSICAL | |
| Dimensions (H _ W _ D) | 44 _ 483 _ 282 mm (1.7 _ 19.0 _ 11.1 in) |
| Net Weight | 2.4 kg (5.3 lb) |
| Operating Temperature | 0¡C - 40¡C (32¡F - 104¡F) |
| Cooling System | 2 variable-speed fans, side venting |
| GENERAL | |
| PC Configuration Software | ControlSpace Designer software version 5.5 or later |
| Network Control | Ethernet (RJ-45), 1 Gbps |
| COMPLIANCE | |
| Safety | UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition) UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition) |
| EMC | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13 |
With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 x 16 Dante® connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.
Features:
- 12-channel AEC expansion with multiple references to complement ControlSpace EX processors in larger systems
- Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
- Dante audio networking supports 16 x 16 audio channels for connection to EX processors
- Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
| INTEGRATED DSP | |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Delay | 43 s |
| ACOUSTIC ECHO CANCELLING | |
| Tail Length | 480 ms |
| Noise Reduction | 32 dB |
| Latency | 50 ms |
| Channels | 12 |
| References | 4 |
| AUDIO OVER IP | |
| Dante | 16 x 16, primary/secondary, routable to AEC |
| INDICATORS AND CONTROLS | |
| Display | 256 x 64 OLED with rotary encoder |
| LED Status Indicators | Power/Status |
| Audio Signal Indication | On Display |
| ELECTRICAL SPECIFICATIONS | |
| Mains Voltage | 85 VAC-264 VAC 50/60 Hz |
| AC Power Consumption | 35 W typical at 40 ¡C (104 ¡F) ambient |
| Mains Connector | IEC 60320-C14 (Inlet) |
| Power Dissipation | 60 W (205 BTU, 52 kcal) |
| PHYSICAL | |
| Dimensions (H _ W _ D) | 44 _ 483 _ 282 mm (1.7 _ 19.0 _ 11.1 in) |
| Net Weight | 2.4 kg (5.3 lb) |
| Operating Temperature | 0¡C - 40¡C (32¡F - 104¡F) |
| Cooling System | 2 variable-speed fans, side venting |
| GENERAL | |
| PC Configuration Software | ControlSpace Designer software version 5.5 or later |
| Network Control | Ethernet (RJ-45), 1 Gbps |
| COMPLIANCE | |
| Safety | UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition) UL62368-1 (2nd edition), CAN/CSA C22.2 No. 62368-1-14 (2nd edition), IEC/EN 62368-1 (2nd edition) |
| EMC | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 FCC Part 15B Class A, AS/NZS CISPR 32:2015, ICES-003 Class A, CISPR13 |
