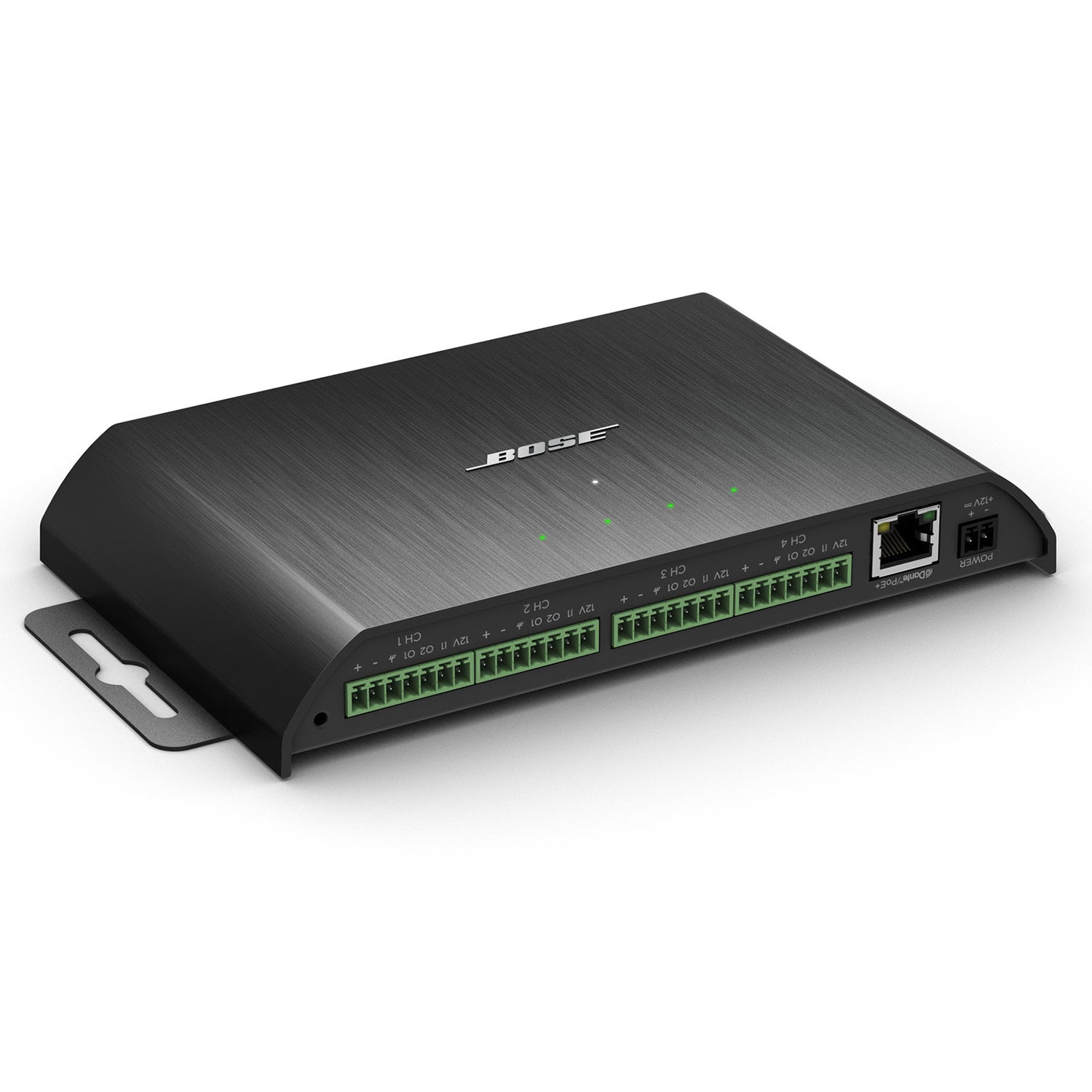

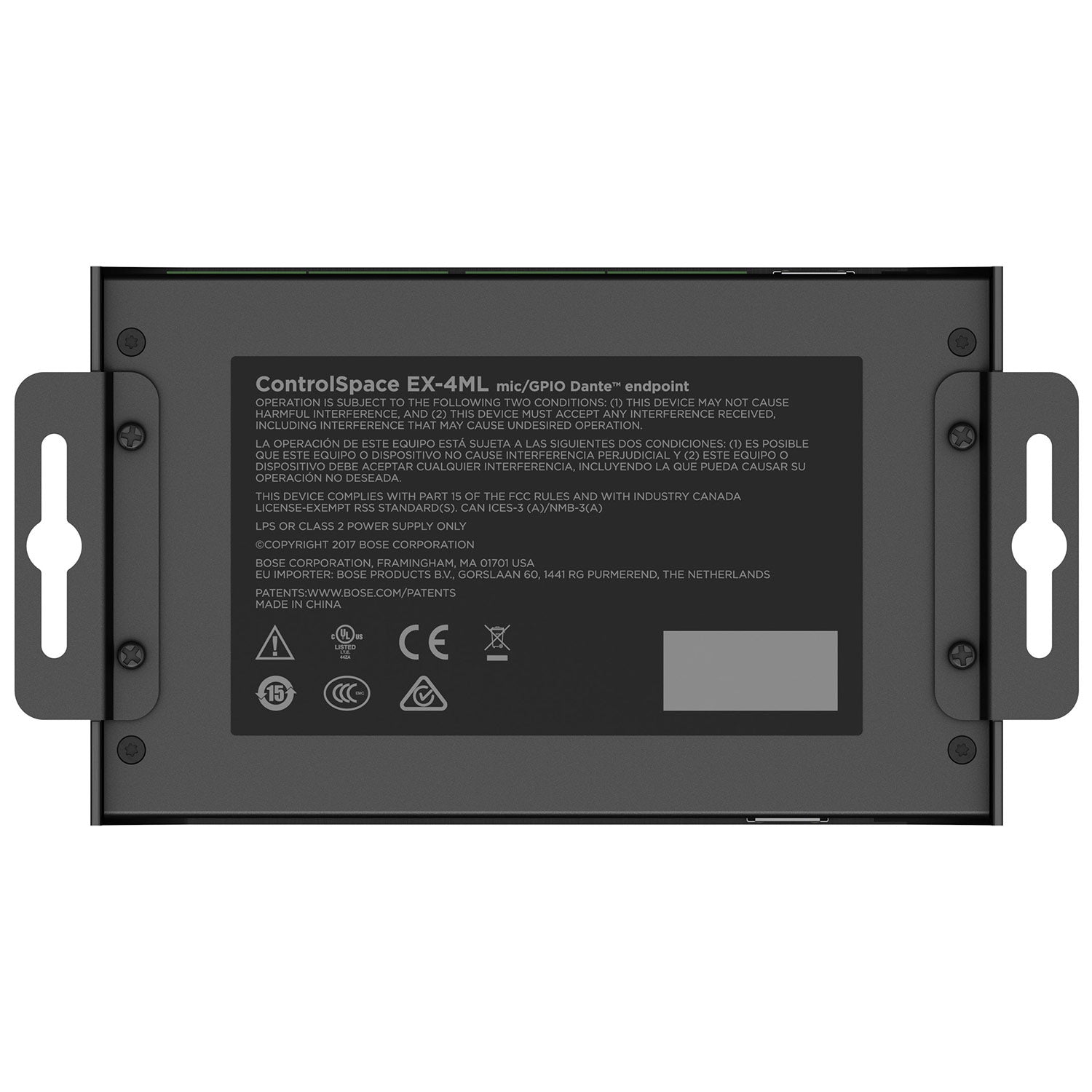

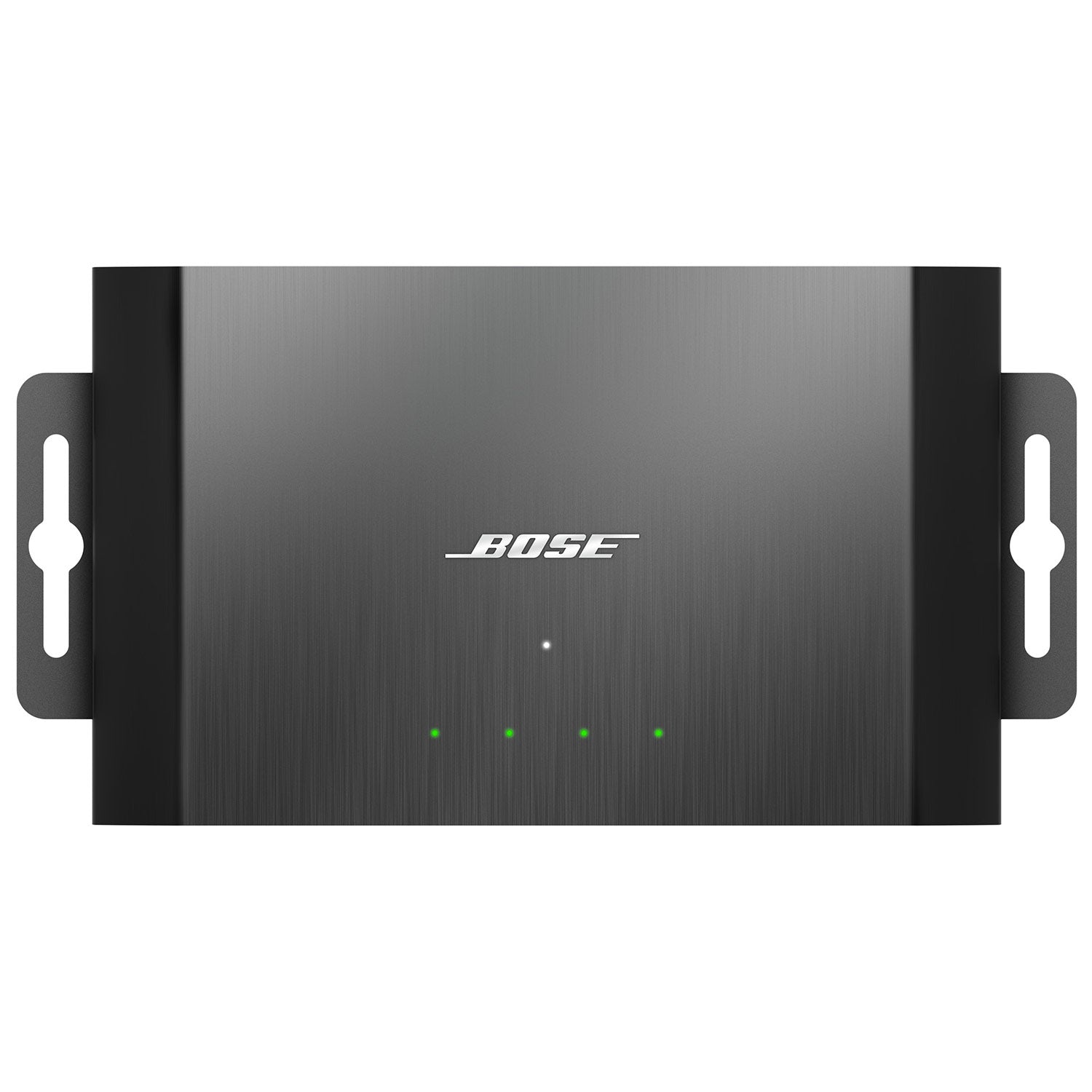

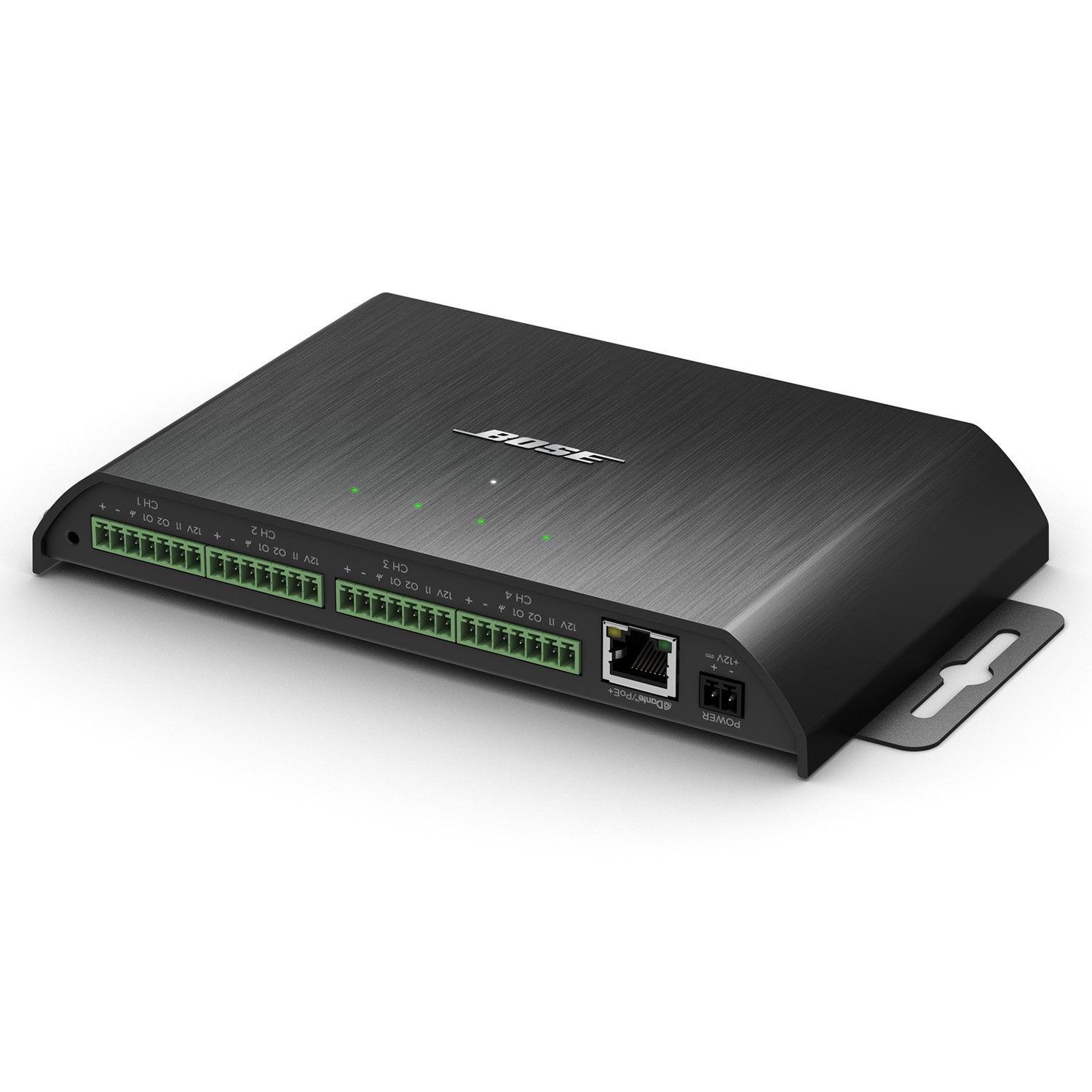

Bose ControlSpace EX-4ML Dante Endpoint
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Optimized for use with the EX-1280C, the EX-4ML Dante™ endpoint, is a convenient, cost effective solution for connecting up to 4 conferencing microphones over a single cat-5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-4ML adds 4 high-quality microphone/line inputs, 4 GPI, and 8 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing, and simplified logic control in ControlSpace® Designer™ make configuring the EX-4ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.
Features:
- One-cable-from-the table connectivity supports PoE+, Dante™ audio networking, logic I/O and LED power to maximize ease of integration
- Broad conference microphone compatibility with 4 high-quality mic/line input channels, each featuring 48V phantom power, 12V LED power, 1 logic input and 2 logic outputs for interfacing with microphone pushbuttons and indicators
- Dante™ audio networking for connection to other Dante-enabled products over Ethernet-based networks
- Dual network and power connectors allow daisy-chaining of multiple EX endpoints
- Rotatable mounting tabs allow for multiple mounting options
- Low-profile aluminum enclosure with integrated LED indicators for unobtrusive under-table mounting
- Simplified software configuration via ControlSpace Designer software. Supports autodiscovery, auto-routing, and logic presets for microphone LEDs and pushbuttons
- Optional installation accessories include a magnetic mounting plate for single-handed under-table mounting, a microphone extension cable, and a 60 W power supply
- Power and signal indicators
| AUDIO INPUTS | |
| Input Channels | Four (4) analog, balanced microphone/line level |
| Connectors | Four (4) 3.81 mm detachable Euroblock connectors, 7-pin |
| Phantom Power | +48VDC, software selectable per input |
| Control GPIO | 2 logic outputs (100mA low, 8V open, 10mA @ 2.5V high), 1 logic input (0 to 5V, threshold = 1.6V, 2K pull-up to 5V) |
| Gain Settings | 0 / +15 / +30 / +45 dB, software selectable |
| Input Impedance | > 1.8 k½ at any gain setting |
| Equivalent Input Noise | Ð115 dBu (+45 dB gain) |
| Maximum Input Level | +20 dBu (using -12 dB gain setting) |
| System THD | < 0.01 % at any gain setting, input signal 3 dB below maximum |
| Frequency Response | 20 Hz Ñ 20 kHz, ± 1 dB |
| NETWORK | |
| Connectors | Two (2) RJ-45, one front (supports PoE+), one rear |
| Audio Over IP | Danteª Ultimo X4 |
| POWER | |
| Microphone LED power | 12 VDC, 200 mA |
| PoE Class | Class 0 802.3at PoE+ PD compliant |
| Connectors | (2) 3.81 mm Euroblock connector, 2-pin |
| External Power Supply | 12 VDC, daisy-chainable |
| Power Consumption | 4.3 watts plus 1 watt for Phantom Power if used |
| SOFTWARE APPLICATION | |
| Software | ControlSpace Designer software version 5.0 or later |
| GENERAL | |
| LED Status Indicators | Power LED, four (4) tri-color signal status for input channels |
| Digital Conversion | 24 kHz / 24-bit |
| Certifications | FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition) |
| Operating Temperature | 0 ¡C - 40 ¡C (32 ¡F - 104 ¡F) |
| Product Code | 771783-0110 |
Optimized for use with the EX-1280C, the EX-4ML Dante™ endpoint, is a convenient, cost effective solution for connecting up to 4 conferencing microphones over a single cat-5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-4ML adds 4 high-quality microphone/line inputs, 4 GPI, and 8 GPO to your networked audio system. Autodiscovery, drag and drop programming, auto-routing, and simplified logic control in ControlSpace® Designer™ make configuring the EX-4ML easy. Tasks such as configuring microphone LED status and microphone mute actions are greatly simplified within ControlSpace Designer without requiring external control system programming.
Features:
- One-cable-from-the table connectivity supports PoE+, Dante™ audio networking, logic I/O and LED power to maximize ease of integration
- Broad conference microphone compatibility with 4 high-quality mic/line input channels, each featuring 48V phantom power, 12V LED power, 1 logic input and 2 logic outputs for interfacing with microphone pushbuttons and indicators
- Dante™ audio networking for connection to other Dante-enabled products over Ethernet-based networks
- Dual network and power connectors allow daisy-chaining of multiple EX endpoints
- Rotatable mounting tabs allow for multiple mounting options
- Low-profile aluminum enclosure with integrated LED indicators for unobtrusive under-table mounting
- Simplified software configuration via ControlSpace Designer software. Supports autodiscovery, auto-routing, and logic presets for microphone LEDs and pushbuttons
- Optional installation accessories include a magnetic mounting plate for single-handed under-table mounting, a microphone extension cable, and a 60 W power supply
- Power and signal indicators
| AUDIO INPUTS | |
| Input Channels | Four (4) analog, balanced microphone/line level |
| Connectors | Four (4) 3.81 mm detachable Euroblock connectors, 7-pin |
| Phantom Power | +48VDC, software selectable per input |
| Control GPIO | 2 logic outputs (100mA low, 8V open, 10mA @ 2.5V high), 1 logic input (0 to 5V, threshold = 1.6V, 2K pull-up to 5V) |
| Gain Settings | 0 / +15 / +30 / +45 dB, software selectable |
| Input Impedance | > 1.8 k½ at any gain setting |
| Equivalent Input Noise | Ð115 dBu (+45 dB gain) |
| Maximum Input Level | +20 dBu (using -12 dB gain setting) |
| System THD | < 0.01 % at any gain setting, input signal 3 dB below maximum |
| Frequency Response | 20 Hz Ñ 20 kHz, ± 1 dB |
| NETWORK | |
| Connectors | Two (2) RJ-45, one front (supports PoE+), one rear |
| Audio Over IP | Danteª Ultimo X4 |
| POWER | |
| Microphone LED power | 12 VDC, 200 mA |
| PoE Class | Class 0 802.3at PoE+ PD compliant |
| Connectors | (2) 3.81 mm Euroblock connector, 2-pin |
| External Power Supply | 12 VDC, daisy-chainable |
| Power Consumption | 4.3 watts plus 1 watt for Phantom Power if used |
| SOFTWARE APPLICATION | |
| Software | ControlSpace Designer software version 5.0 or later |
| GENERAL | |
| LED Status Indicators | Power LED, four (4) tri-color signal status for input channels |
| Digital Conversion | 24 kHz / 24-bit |
| Certifications | FCC Part 15 Class A; UL 60950-1, 2nd edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd edition, 2014-10, IEC 60950-1:2005 (2nd edition) |
| Operating Temperature | 0 ¡C - 40 ¡C (32 ¡F - 104 ¡F) |
| Product Code | 771783-0110 |
