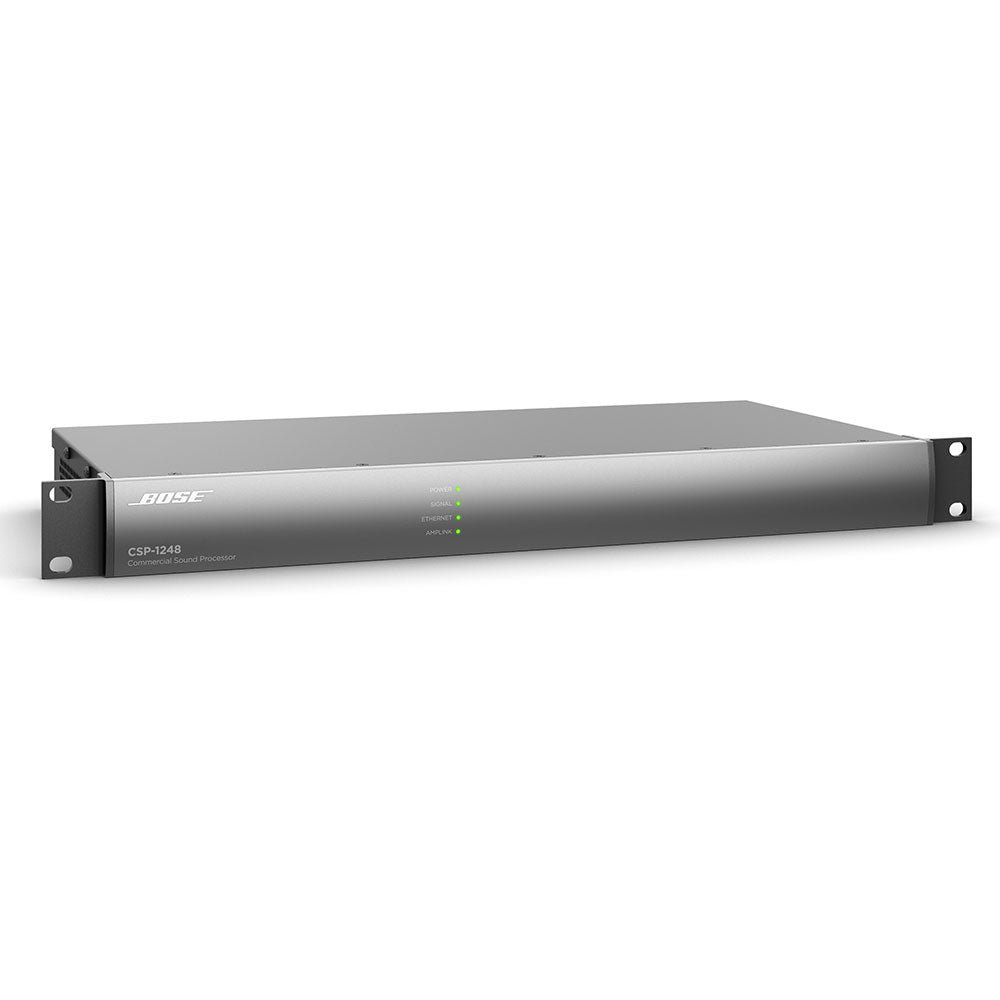

Bose CSP-1248 Commercial Sound Processor
Dale #:
BOSE-8084561110Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Suggested Accessories
Description
The DSP for quick-turn installations — Bose commercial sound processors are part of a comprehensive platform that includes loudspeakers, controls, and software that help installers deliver premium sound systems efficiently. An onboard CSP configuration utility and intuitive browser-based UI provide a quick-setup workflow. Common tasks are presented in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter digital zone controllers and the ControlSpace Remote app — make operation easy for end users.
Features:

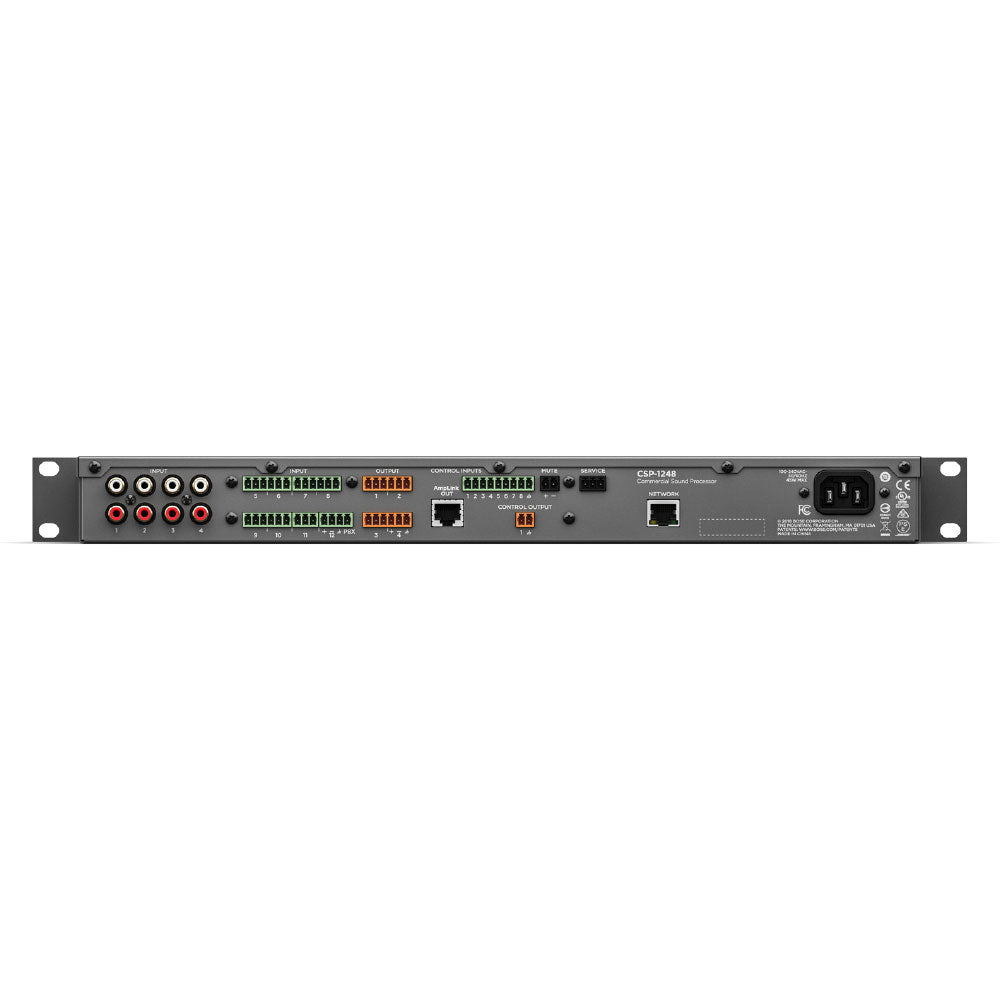

- Right-sized connectivity for cost-effective commercial installation — 8 x 4 balanced analog I/O, 4 pair mono-summed RCA inputs, 8 control inputs, 1 control output, mute contact, Ethernet port, and Bose AmpLink connectivity
- CSP configuration utility with browser-based UI facilitates real-time display and control of levels, routing, thresholds, priorities, scheduled events, Bose loudspeaker EQs, plus input and area EQs
- Rear-panel Ethernet port for PC/Mac configuration; also allows for connection to networks supporting ControlCenter digital zone controllers and the ControlSpace Remote app
- AutoVolume compensation continuously adapts zone output level based on ambient noise when paired with the Bose AVM-1 sense microphone (sold separately)
- Opti-voice paging provides a smooth transition between music and announcements
- Opti-source level management monitors input level of up to 4 sources, maintaining consistent volume when switching sources
SmartBass processing expands performance and response at any listening level
Bose AmpLink output for simplified digital audio connection to compatible power amplifiers, reducing terminations, and related points of failure
Intuitive end-user operation — optional ControlCenter CC-1D, CC-2D, and CC-3D digital zone controllers and ControlSpace Remote app provide easy volume control and source selection
More +
Product Specs
| INTEGRATED DSP | |
| Signal Processor/CPU | 32-bit fixed/floating-point DSP + ARM, 456 MHz |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS |
| Audio Latency | 900 μs (analog in to analog out) |
| A/D and D/A Converters | 24-bit |
| Sample Rate | 48 kHz |
| AUDIO PERFORMANCE SPECIFICATIONS | |
| Frequency Response | 20 Hz - 20 kHz (+0.3 dB/-0.5 dB) |
| THD+N | < 0.01 % at +4 dBu (A-weighted/20 Hz – 20 kHz) |
| Channel Separation (Crosstalk) | < -105 dB at +4 dBu input and output level, 1 kHz |
| Dynamic Range | > 115 dB A-weighted 20 Hz – 20 kHz, analog through |
| AUDIO INPUTS | |
| Input Channels | 4 analog inputs (two unbalanced, two balanced) |
| Inputs 1-4 | Connectors: RCA pairs Type: Unbalanced, mono-summed Sensitivity Options (via configuration utility) -10 dBV |
| Inputs 5-11 | Connectors: 3-pin Euroblock Type: Balanced, mic/line Sensitivity Options (via configuration utility) -70 / -60 / -50 / 0 / +4 dBu -10 dBV with selectable phantom power |
| Input 12 | Connectors: 4-pin Euroblock with dedicated GPI for paging Type: Balanced mic/line or 600 Ω paging input Sensitivity Options (via configuration utility) -70 / -60 / -50 / 0 / +4 dBu -10 dBV with selectable phantom power |
| Input Impedance | 12 kΩ @ 1 kHz (with or without phantom power active) |
| Maximum Input Level | +24 dBu (THD+N <=0.3%, 20 to 20kHz, 0 dB gain) |
| Equivalent Input Noise | <-119 dBu (22Hz - 20 kHz, 150 Ω input, 64 dB gain) |
| Phantom Power | +48V, open circuit, 10mA max per channel, selectable per input, 80mA max across all channels |
| AUDIO OUTPUTS | |
| Output Channels | 10 (2 analog, 8 digital via AmpLink) |
| Analog Outputs 1-3 | Connectors 3-pin Euroblock Type Balanced line level |
| Analog Output 4 | Connectors 3-pin Euroblock Type Balanced line level, or fully-isolated output for Music On Hold for 600 Ω telephone systems (activated in configuration utility) |
| Digital Outputs | Connectors RJ-45 Type 48 kHz, 8-channel digital audio over AmpLink |
| Output Impedance | 66 Ω |
| Maximum Output Level | +24 dBu (THD+N <=0.3%, 22 Hz to 20 kHz ) |
| CONTROL INPUTS | |
| Inputs (Control) | 8 digital inputs, 2 kΩ internal pull-up resistor to 5 V, Green 3.81 mm pitch connector (9-pin) |
| Mute (Control) | 1 digital input, 2 kΩ internal pull-up resistor to 5 V, Black 3.81 mm pitch connector (2-pin) |
| Digital Input Voltage | 0 V to 3.3 V (threshold voltage = 1.6 V) |
| CONTROL OUTPUTS | |
| Outputs (Control) | 1 digital outputs, Orange 3.81 mm pitch connector (2-pin) |
| Output Voltage | High: 8 V (open circuit), 2.5 V @ 10 mA, Low: < 1 V @ 100 mA, push-pull |
| Output Current | 10 mA source, 100 mA sink (24 VDC max external supply voltage) |
| INDICATORS AND CONTROLS | |
| LED Status Indicators | Power/Status, Signal, Ethernet, AmpLink |
| Audio Signal Indication | Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 dBFS to Clip) |
| ELECTRICAL SPECIFICATIONS | |
| Mains Voltage | 85 VAC-264 VAC 50/60 Hz |
| AC Power Consumption | < 30 W typical, over all mains voltages, (PSU Max < 45W) |
| Mains Connector | IEC 60320-C14 (Inlet) |
| Power Dissipation | ~22 W (75 BTU/Hr, 19 kcal/hr) |
| PHYSICAL | |
| Dimensions (H x W x D) | 44 × 483 × 215 mm (1.7 × 19 × 8.5 in) |
| Operating Temperature | 0 °C - 40 °C (32 °F - 104 °F) |
| Cooling System | Active, side venting with fan |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Humidity | 80% (without condensation) |
| GENERAL | |
| Configuration Software | Web browser based configuration utility |
| Network Control | Ethernet (RJ-45), 10/100 Mbps |
