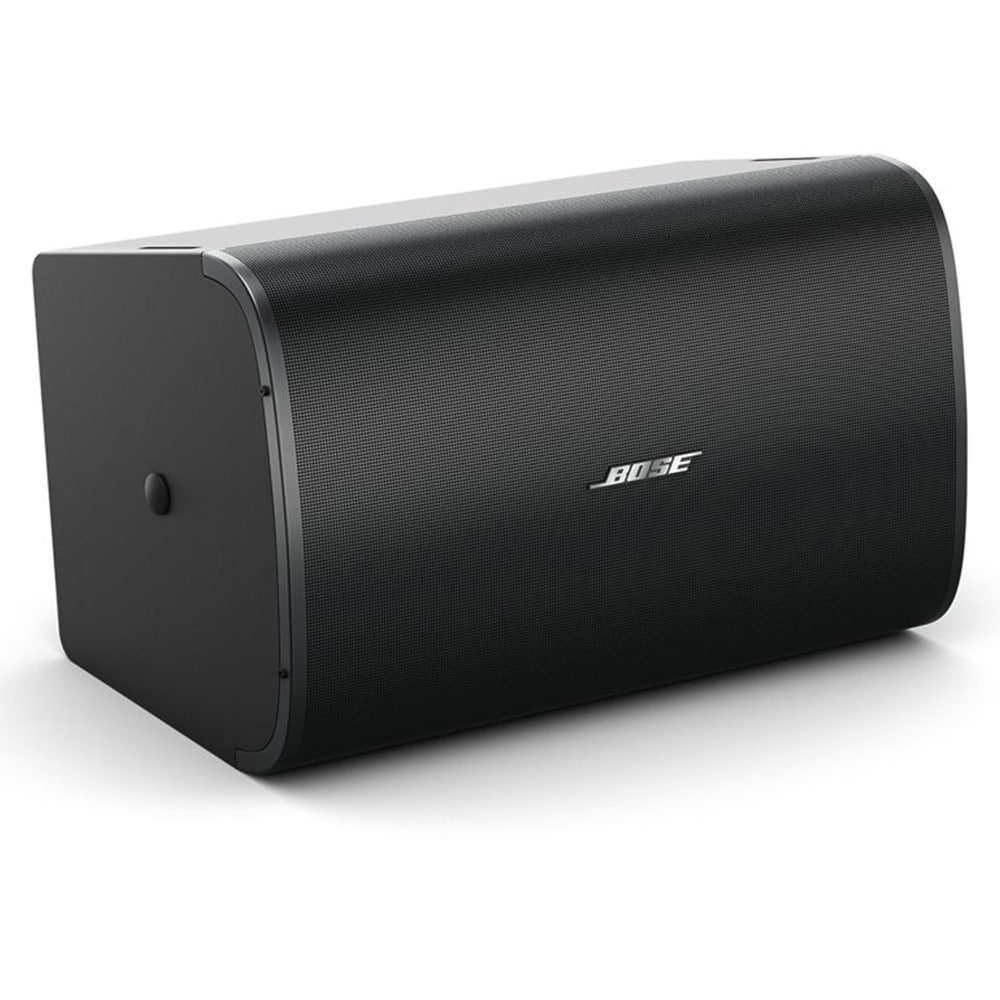

Bose DesignMax DM10S-SUB Surface Mount Subwoofer (Black)


  • Dale #:

    BOSE-8318560110
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Premium sound to maximize any design.DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, red... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Premium sound to maximize any design.

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

The 250-watt DM10S-SUB subwoofer features a 10-inch woofer, which delivers a 42 Hz - 300 Hz frequency range. The DM10S-SUB is surface-mounted, outdoor-rated, and locks onto a hidden QuickHold U-bracket.

Features:

  • Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

More +

Product Specs

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1)48 - 250 Hz
Frequency Range (-10 dB)40 - 300 Hz
Nominal Coverage Angle (H x V)Omnidirectional below 200 Hz
Bose extended-lifecycle test (4)AES component test (5)
Power Handling, long-term continuous250 W300 W
Power Handling, peak1000 W1200 W
Sensitivity (SPL/ 1W @ 1 m) (2)93 dB93 dB
Calculated Maximum SPL @ 1 m (3)117 dB118 dB
Calculated Maximum SPL @ 1 m, peak123 dB124 dB
Recommended Crossover80 - 200 Hz (via active crossover in DSP)
Recommended High-Pass Protection40 Hz with 24 dB / octave filter
Overload protectionresistor-network power reduction with automatic reset
Transformer taps70V: 20, 40, 80, 150 W, bypass
100V: 40, 80, 150 W, bypass
TRANSDUCERS
Low Frequency1 x 10-inch woofer (254 mm)
Nominal Impedance8 ohms (transformer bypass)
PHYSICAL
Enclosure MaterialHigh-density wood composite with solid color laminate, UV fade resistant
GrillePerforated steel, powder-coated finish, paintable, tamper-resistant design
LogoRotatable, removable
ColorBlack: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable
Environmental / Ingress-ProtectionIndoor only
Safety AgencyUL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant
Operating Temperature Range0 to +150 °C
ConnectorsEuroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Suspension / MountingQuickHold Mounting System with included U-Bracket
2 repeatable mounting angles: 0°,90° for wall or ceiling placement
One (1) rear M8 screw insert for safety-tether attachment
Dimensions (H x W x D)495 x 318 x 318 mm (19.5 x 12.5 x 12.5")
Dimensions (H x W x D) with bracket495 x 318 x 330 mm (19.5 x 12.5 x 13")
Net WeightTBD
Shipping WeightTBD
Included AccessoriesU-Bracket
Optional Accessoriesnone

Footnotes:

  • (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
  • (2) Sensitivity measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
  • (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
  • (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
  • (5) AES standard 2-hour duration with IEC system noise
