Bose DesignMax DM10S-SUB Surface Mount Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM10S-SUB Surface Mount Subwoofer (White)
Sale price$639.95
Regular price$766.00
Description
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

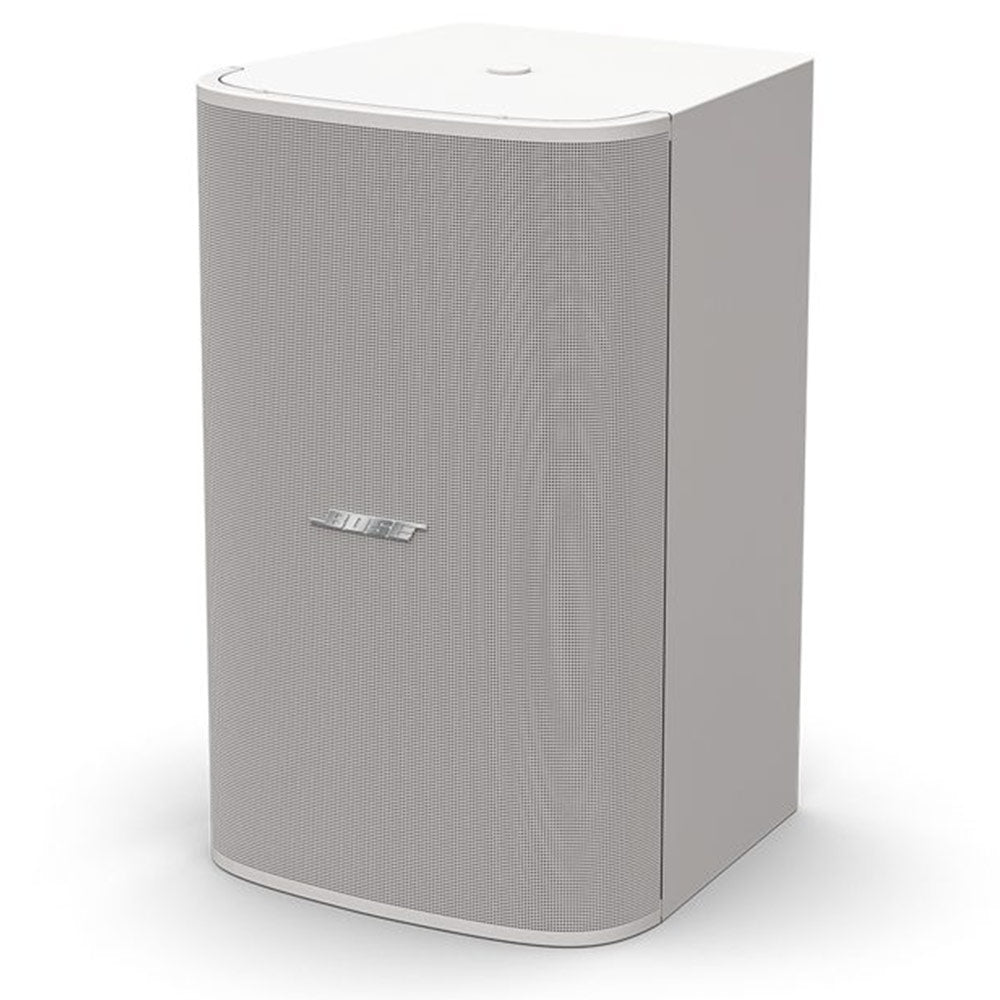

The 250-watt DM10S-SUB subwoofer features a 10-inch woofer, which delivers a 42 Hz - 300 Hz frequency range. The DM10S-SUB is surface-mounted, outdoor-rated, and locks onto a hidden QuickHold U-bracket.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 48 - 250 Hz | |
| Frequency Range (-10 dB) | 40 - 300 Hz | |
| Nominal Coverage Angle (H x V) | Omnidirectional below 200 Hz | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 250 W | 300 W |
| Power Handling, peak | 1000 W | 1200 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 93 dB | 93 dB |
| Calculated Maximum SPL @ 1 m (3) | 117 dB | 118 dB |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 124 dB |
| Recommended Crossover | 80 - 200 Hz (via active crossover in DSP) | |
| Recommended High-Pass Protection | 40 Hz with 24 dB / octave filter | |
| Overload protection | resistor-network power reduction with automatic reset | |
| Transformer taps | 70V: 20, 40, 80, 150 W, bypass 100V: 40, 80, 150 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 10-inch woofer (254 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | High-density wood composite with solid color laminate, UV fade resistant | |
| Grille | Perforated steel, powder-coated finish, paintable, tamper-resistant design | |
| Logo | Rotatable, removable | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to +150 ¡C | |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | QuickHold Mounting System with included U-Bracket 2 repeatable mounting angles: 0¡,90¡ for wall or ceiling placement One (1) rear M8 screw insert for safety-tether attachment | |
| Dimensions (H x W x D) | 495 x 318 x 318 mm (19.5 x 12.5 x 12.5") | |
| Dimensions (H x W x D) with bracket | 495 x 318 x 330 mm (19.5 x 12.5 x 13") | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | U-Bracket | |
| Optional Accessories | none | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) Sensitivity measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (5) AES standard 2-hour duration with IEC system noise
