DALE SKU # BOSE-8297080220

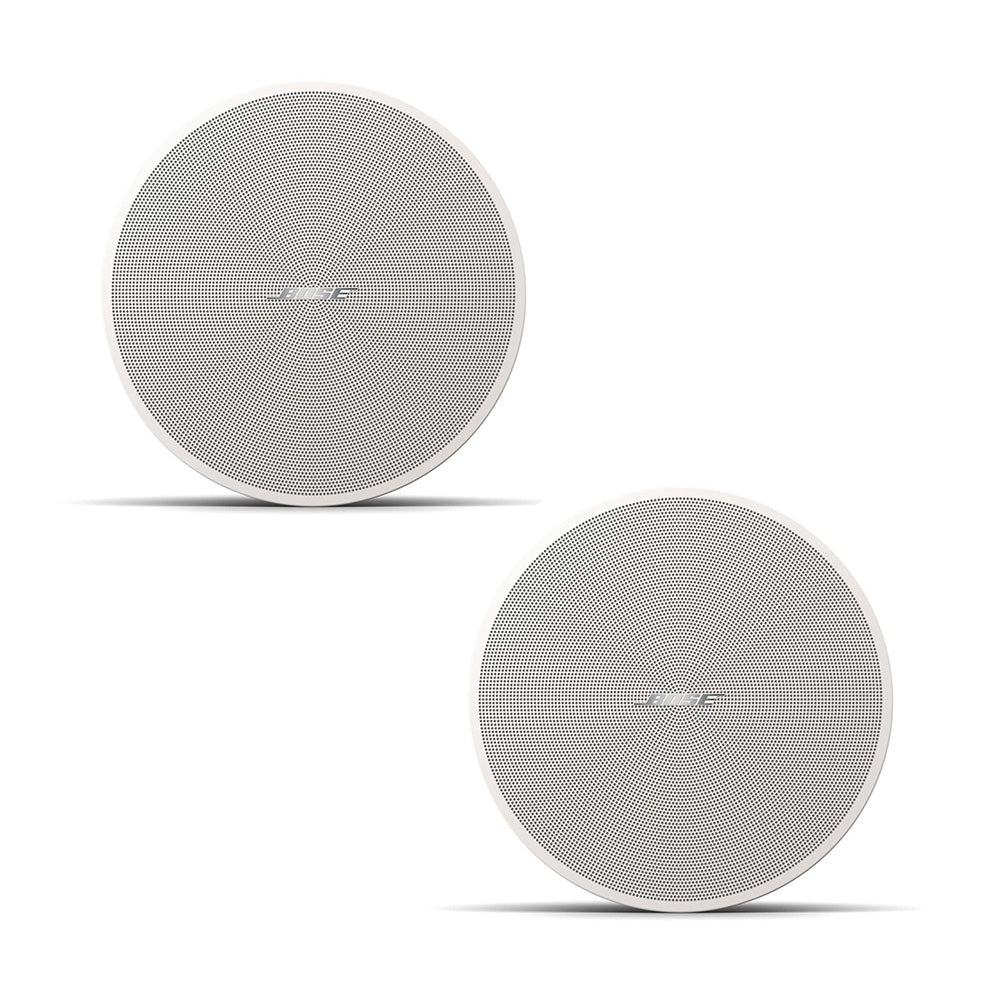

Bose DesignMax DM3C - Coaxial Two-Way 3.5-Inch Ceiling Loudspeaker (White / Pair)

Sale price$384.95 Regular price$462.00
Save $77.05
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

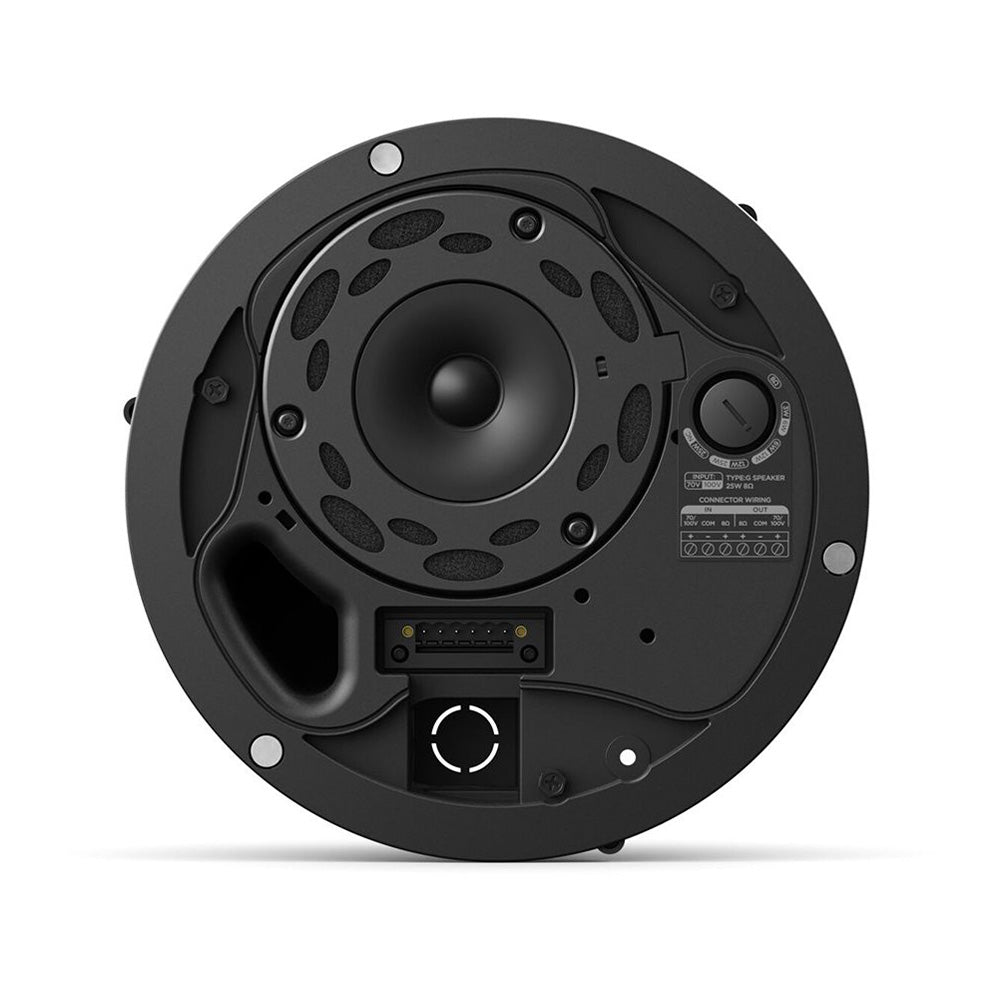

    With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size - along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

    Features:

    • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
    • Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
    • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
    • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

    Applications:

    • Performing arts venues
    • Places of worship
    • Conference centers
    • Retail stores
    • Restaurants and bars
    • Hospitality venues
    PHYSICAL
    Environmental Indoor only
    Colors Black (RAL 9005), white (similar to RAL 9003), paintable
    Ceiling Cutout 8.2 in (208 mm)

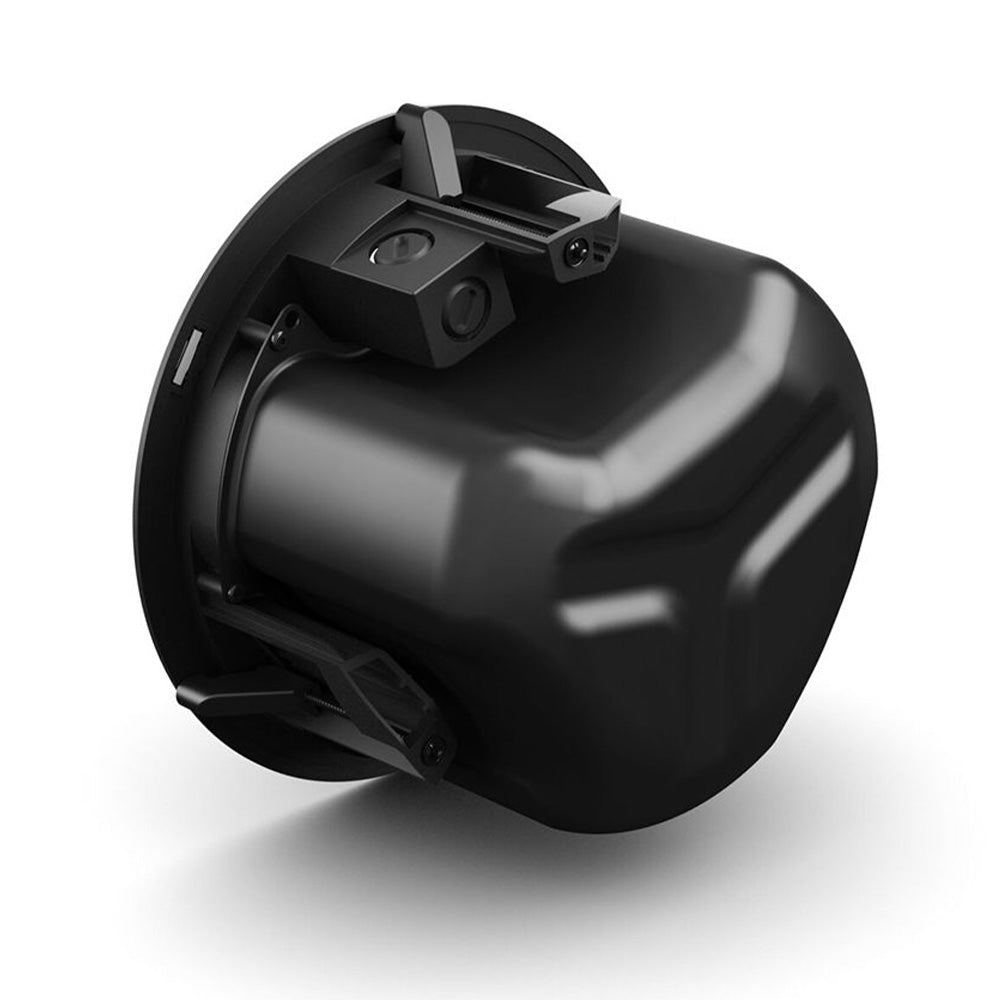

    Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
    Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
    Logo Rotatable, removable

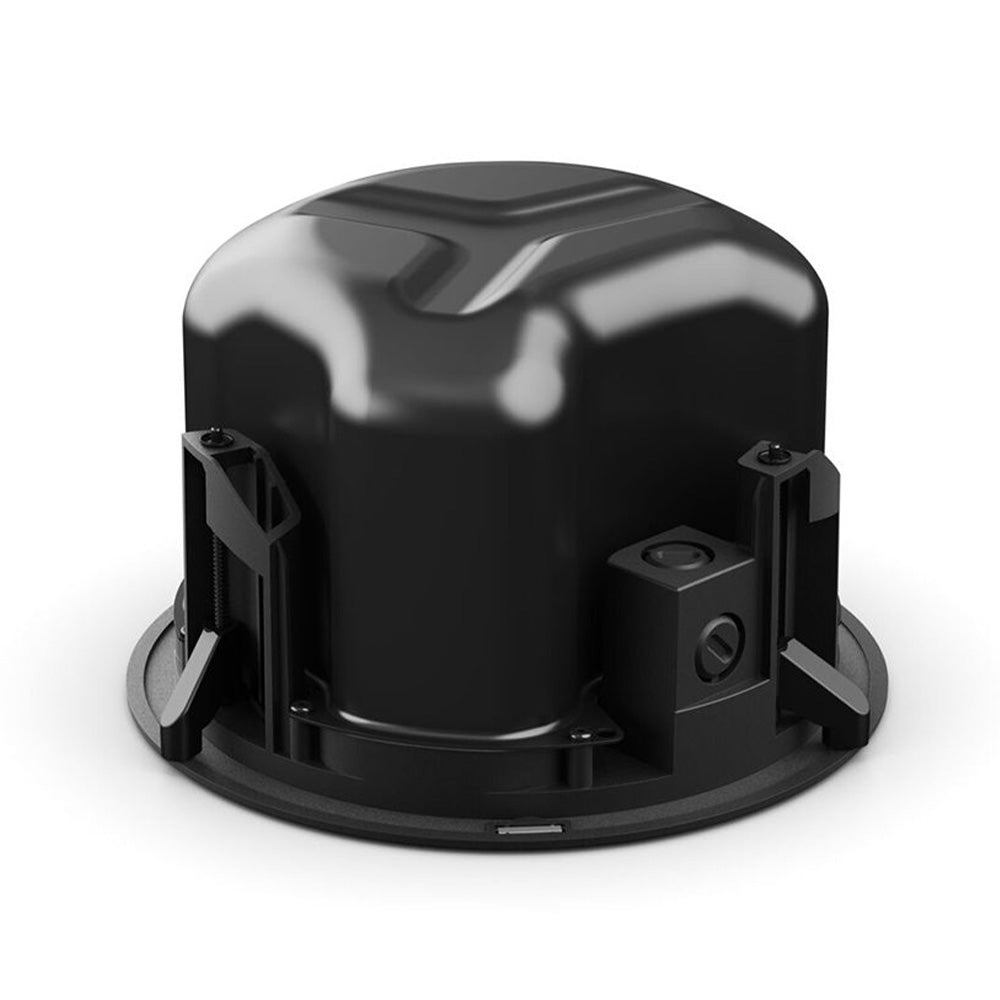

    Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
    Net Weight 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)
    Operating Temperature Range 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F)
    Product Dimensions (HxWxD) 10.0 in x 6.0 in (255 mm x 154 mm), loudspeaker diameter x depth / 8.0 in x 5.7 in (203 mm x 144 mm), backcan diameter x depth
    Shipping Weight 19.2 lb (8.7 kg), pair
    COMPLIANCE
    Safety Agency Ratings UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 / NFPA 90A, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 75 Hz Ð 20,000 Hz
    Coverage, Horizontal 135¡ conical
    Coverage, Vertical 135¡ conical
    Calculated Maximum SPL @ 1 m 98 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 30 W
    Power Handling, Peak 120 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 83 dB
    Transformer Taps, 100V 6, 12, 25 W, bypass
    Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass
    TRANSDUCERS
    Crossover 1.7 kHz, passive 2-way crossover
    Driver Protection Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
    High-Frequency 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
    Low-Frequency 1 x 3.25 in (83 mm) woofer
    Product codes 829708-0110
    DESIGNMAX DM3C PAIR BLK
    829708-0210
    DESIGNMAX DM3C PAIR WHT
    829708-0120
    DESIGNMAX DM3C PAIR BLK (NEW)
    829708-0220
    DESIGNMAX DM3C PAIR WHT (NEW)
    Warranty Period 5 years
    Included in Packaging (1) cutout template
    (1) installation guide
    (2) DesignMax DM3C loudspeakers
    (2) grilles
    (2) tile bridges

    With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size - along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

    Features:

    • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
    • Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
    • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
    • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

    Applications:

    • Performing arts venues
    • Places of worship
    • Conference centers
    • Retail stores
    • Restaurants and bars
    • Hospitality venues
    PHYSICAL
    Environmental Indoor only
    Colors Black (RAL 9005), white (similar to RAL 9003), paintable
    Ceiling Cutout 8.2 in (208 mm)
    Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
    Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
    Logo Rotatable, removable
    Suspension/Mounting (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
    Net Weight 5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)
    Operating Temperature Range 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F)
    Product Dimensions (HxWxD) 10.0 in x 6.0 in (255 mm x 154 mm), loudspeaker diameter x depth / 8.0 in x 5.7 in (203 mm x 144 mm), backcan diameter x depth
    Shipping Weight 19.2 lb (8.7 kg), pair
    COMPLIANCE
    Safety Agency Ratings UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 / NFPA 90A, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 75 Hz Ð 20,000 Hz
    Coverage, Horizontal 135¡ conical
    Coverage, Vertical 135¡ conical
    Calculated Maximum SPL @ 1 m 98 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 30 W
    Power Handling, Peak 120 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 83 dB
    Transformer Taps, 100V 6, 12, 25 W, bypass
    Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass
    TRANSDUCERS
    Crossover 1.7 kHz, passive 2-way crossover
    Driver Protection Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
    High-Frequency 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
    Low-Frequency 1 x 3.25 in (83 mm) woofer
    Product codes 829708-0110
    DESIGNMAX DM3C PAIR BLK
    829708-0210
    DESIGNMAX DM3C PAIR WHT
    829708-0120
    DESIGNMAX DM3C PAIR BLK (NEW)
    829708-0220
    DESIGNMAX DM3C PAIR WHT (NEW)
    Warranty Period 5 years
    Included in Packaging (1) cutout template
    (1) installation guide
    (2) DesignMax DM3C loudspeakers
    (2) grilles
    (2) tile bridges
