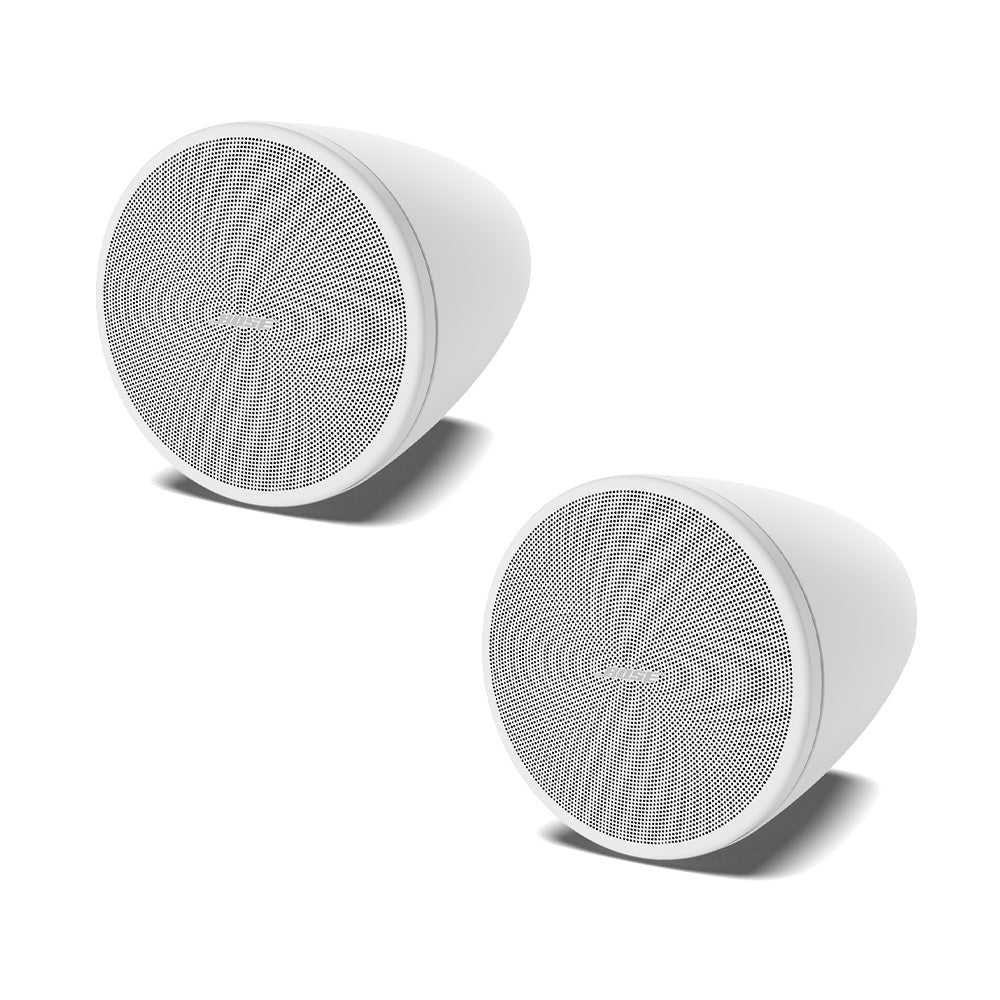

Bose DesignMax DM3P - 2-Way 3.5-Inch Pendant Loudspeaker (White / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM3P - 2-Way 3.5-Inch Pendant Loudspeaker (White / Pair)
Sale price$499.95
Regular price$598.00
Description
With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM3 models - the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
- Deliver clear highs and surprising low end for their size with a coaxial two-way design - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| PHYSICAL | |
| Environmental | Indoor only |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 5.5 lb (2.5 kg), single |
| Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
| Product Dimensions (HxWxD) | 8.2 in x 9.8 in (207 mm x 248 mm), loudspeaker diameter x depth / 15.0 ft x 0.1 in (4.6 m x 2 mm), suspension cable length x diameter |
| Shipping Weight | 15.4 lb (7.0 kg), pair |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 75 Hz Ð 20,000 Hz |
| Coverage, Horizontal | 130¡ conical |
| Coverage, Vertical | 130¡ conical |
| Calculated Maximum SPL @ 1 m | 99 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 25 W |
| Power Handling, Peak | 100 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 84 dB |
| Transformer Taps, 100V | 6, 12, 25 W, bypass |
| Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, bypass |
| TRANSDUCERS | |
| Crossover | 1.7 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter |
| High-Frequency | 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted |
| Low-Frequency | 1 x 3.25 in (83 mm) woofer |
| Product codes | 841165-0110 DESIGNMAX DM3P PAIR BLACK 841165-0210 DESIGNMAX DM3P PAIR WHITE 841165-0120 DESIGNMAX DM3P PAIR BLACK (NEW) 841165-0220 DESIGNMAX DM3P PAIR WHITE (NEW) |
| Warranty Period | 5 years |
| Included in Packaging | (1) installation guide (2) cable fastener tools (2) cable fasteners (2) DesignMax DM3P loudspeakers (2) suspension cables, 15.0 ft (4.5 m) each (8) cable ties |
With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM3 models - the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
- Deliver clear highs and surprising low end for their size with a coaxial two-way design - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| PHYSICAL | |
| Environmental | Indoor only |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 5.5 lb (2.5 kg), single |
| Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
| Product Dimensions (HxWxD) | 8.2 in x 9.8 in (207 mm x 248 mm), loudspeaker diameter x depth / 15.0 ft x 0.1 in (4.6 m x 2 mm), suspension cable length x diameter |
| Shipping Weight | 15.4 lb (7.0 kg), pair |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 75 Hz Ð 20,000 Hz |
| Coverage, Horizontal | 130¡ conical |
| Coverage, Vertical | 130¡ conical |
| Calculated Maximum SPL @ 1 m | 99 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 25 W |
| Power Handling, Peak | 100 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 84 dB |
| Transformer Taps, 100V | 6, 12, 25 W, bypass |
| Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, bypass |
| TRANSDUCERS | |
| Crossover | 1.7 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter |
| High-Frequency | 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted |
| Low-Frequency | 1 x 3.25 in (83 mm) woofer |
| Product codes | 841165-0110 DESIGNMAX DM3P PAIR BLACK 841165-0210 DESIGNMAX DM3P PAIR WHITE 841165-0120 DESIGNMAX DM3P PAIR BLACK (NEW) 841165-0220 DESIGNMAX DM3P PAIR WHITE (NEW) |
| Warranty Period | 5 years |
| Included in Packaging | (1) installation guide (2) cable fastener tools (2) cable fasteners (2) DesignMax DM3P loudspeakers (2) suspension cables, 15.0 ft (4.5 m) each (8) cable ties |
