Description

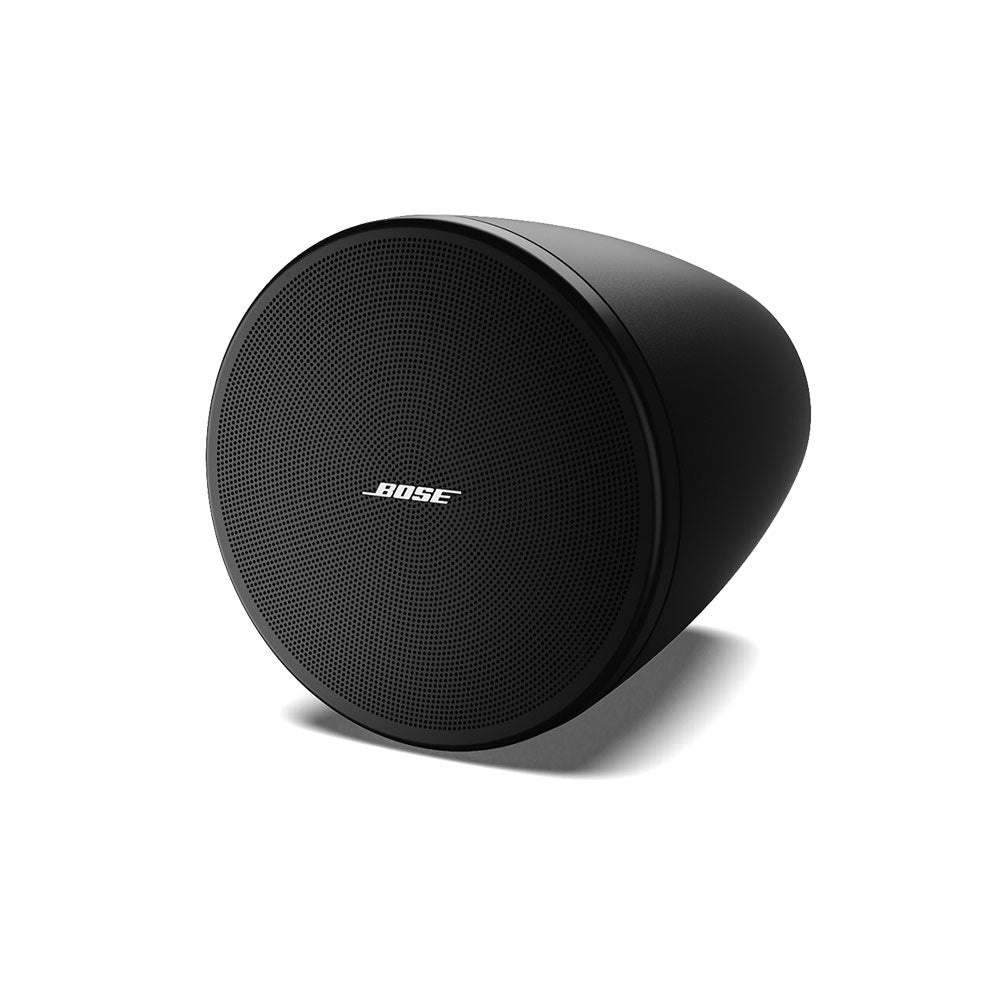

With a coaxial two-way design, the 30-watt DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
- Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
SINGLE-LOUDSPEAKER PERFORMANCE | |
Frequency Response (Ð3 dB) | 85 Ð 20,000 Hz |
Frequency Range (Ð10 dB) | 75 Ð 20,000 Hz |
Nominal Coverage Angle (1 Ð 4 kHz) | 130¡ conical |
Nominal Coverage Angle (1 Ð 10 kHz) | 130¡ conical |
Power Handling, long-term continuous | AES transducer test: 30 W Bose extended-lifecycle test: 25 W |
Power Handling, peak | AES transducer test: 120 W Bose extended-lifecycle test: 100 W |
Sensitivity (SPL / 1 W @ 1 m) | AES transducer test: 84 dB Bose extended-lifecycle test: 84 dB |
Calculated Maximum SPL @ 1 m | AES transducer test: 99 dB Bose extended-lifecycle test: 98 dB |
Calculated Maximum SPL @ 1 m, peak | AES transducer test: 105 dB Bose extended-lifecycle test: 104 dB |
Crossover | 1.7 kHz (passive two-way crossover) |
Loudspeaker EQ | Not required, Bose EQ voicing, and SmartBass processing available |
Recommended High-pass Protection | 80 Hz with minimum 24 dB/octave filter |
Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass |
TRANSDUCERS | |
Low Frequency | 1 _ 3.25-inch woofer (83 mm) |
High Frequency | 1 _ 0.75-inch (20 mm) neodymium dome tweeter, coaxially mounted |
Technology | Dispersion Alignment system, 127 mm (5 in) system diameter |
Nominal Impedance | 8 _ (transformer bypass) |
PHYSICAL | |
Enclosure Material | Engineered plastics |
Grille | Perforated steel, powder-coated finish |
Logo | Rotatable, removable |
Color | Black: Bose Black, similar to RAL 9005, paintable White: Bose Arctic White, similar to RAL 9003, paintable |
Paintable | Choose a paint that is specifically designed for use with polypropylene (PP) plastics. |
Environmental | Indoor only |
Safety Agency | UL-1480A, S5591/UL Listed, NFPA70 / NFPA90-A, CE compliant, UL 2239 for suspension cable |
Operating Temperature Range | 0 ¡C to 50 ¡C (52 ¡F to 122 ¡F) |

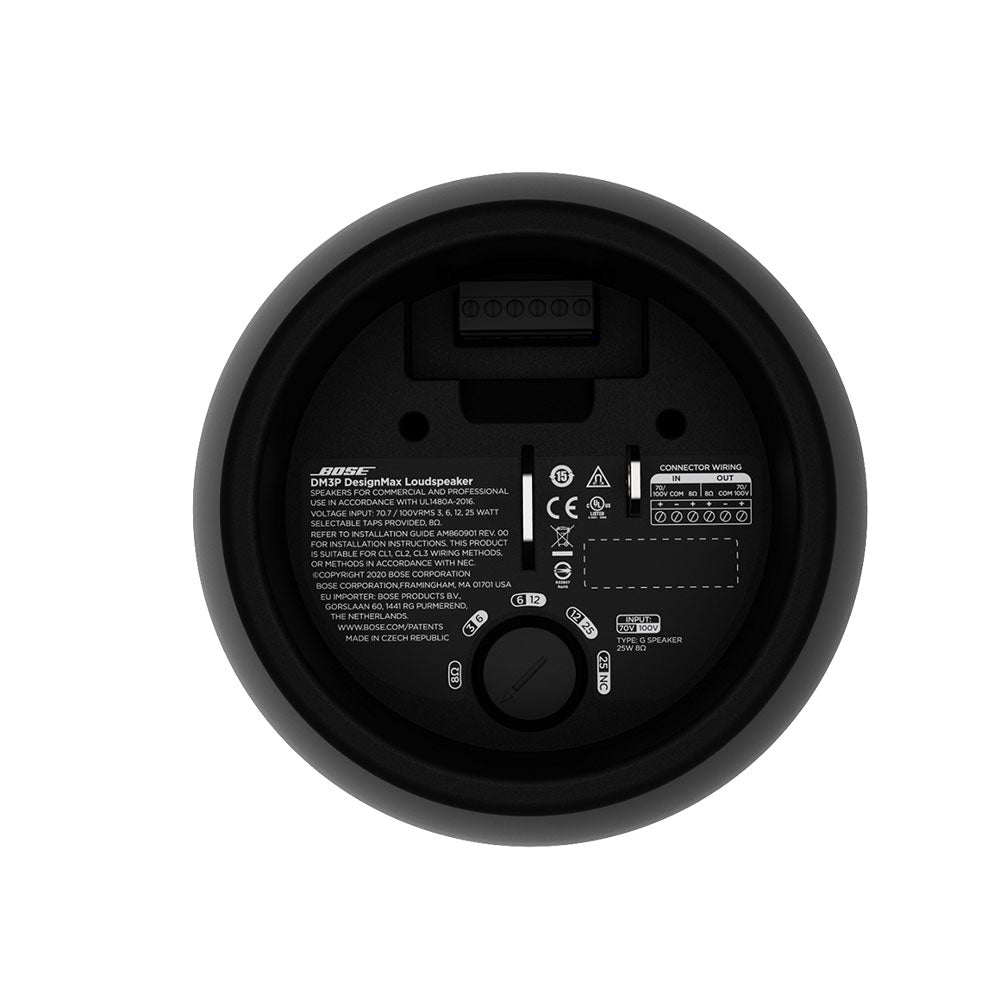

Connectors | Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
Suspension / Mounting | Each DM3P has one (1) suspension attachment point and one (1) safety cable attachment point. Included is one (1) 4.5 meter (15 foot) Gripple adjustable suspension cable. |
Product Dimensions (Enclosure Diameter _ Depth) | 207 _ 248 mm (8.2 _ 9.8 in) |
Cable Dimensions | Length: 4.57 m (15.00 ft) Diameter: 2 mm (0.08 in) |
Net Weight, single | 2.5 kg (5.5 lb) |
Shipping Weight, pair | 7.00 kg (15.43 lb) |
Included Accessories | Each DM3P includes one (1) Gripple adjustable suspension cable system, four (4) cable ties |
Optional Accessories | Threaded Rod Adapter, Conduit Adapter, Gripple Pendant Suspension Cable Pair kit |
With a coaxial two-way design, the 30-watt DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
- Deliver clear highs and surprising low end for their size with a coaxial two-way design — no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
SINGLE-LOUDSPEAKER PERFORMANCE | |
Frequency Response (Ð3 dB) | 85 Ð 20,000 Hz |
Frequency Range (Ð10 dB) | 75 Ð 20,000 Hz |
Nominal Coverage Angle (1 Ð 4 kHz) | 130¡ conical |
Nominal Coverage Angle (1 Ð 10 kHz) | 130¡ conical |
Power Handling, long-term continuous | AES transducer test: 30 W Bose extended-lifecycle test: 25 W |
Power Handling, peak | AES transducer test: 120 W Bose extended-lifecycle test: 100 W |
Sensitivity (SPL / 1 W @ 1 m) | AES transducer test: 84 dB Bose extended-lifecycle test: 84 dB |
Calculated Maximum SPL @ 1 m | AES transducer test: 99 dB Bose extended-lifecycle test: 98 dB |
Calculated Maximum SPL @ 1 m, peak | AES transducer test: 105 dB Bose extended-lifecycle test: 104 dB |
Crossover | 1.7 kHz (passive two-way crossover) |
Loudspeaker EQ | Not required, Bose EQ voicing, and SmartBass processing available |
Recommended High-pass Protection | 80 Hz with minimum 24 dB/octave filter |
Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass |
TRANSDUCERS | |
Low Frequency | 1 _ 3.25-inch woofer (83 mm) |
High Frequency | 1 _ 0.75-inch (20 mm) neodymium dome tweeter, coaxially mounted |
Technology | Dispersion Alignment system, 127 mm (5 in) system diameter |
Nominal Impedance | 8 _ (transformer bypass) |
PHYSICAL | |
Enclosure Material | Engineered plastics |
Grille | Perforated steel, powder-coated finish |
Logo | Rotatable, removable |
Color | Black: Bose Black, similar to RAL 9005, paintable White: Bose Arctic White, similar to RAL 9003, paintable |
Paintable | Choose a paint that is specifically designed for use with polypropylene (PP) plastics. |
Environmental | Indoor only |
Safety Agency | UL-1480A, S5591/UL Listed, NFPA70 / NFPA90-A, CE compliant, UL 2239 for suspension cable |
Operating Temperature Range | 0 ¡C to 50 ¡C (52 ¡F to 122 ¡F) |
Connectors | Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
Suspension / Mounting | Each DM3P has one (1) suspension attachment point and one (1) safety cable attachment point. Included is one (1) 4.5 meter (15 foot) Gripple adjustable suspension cable. |
Product Dimensions (Enclosure Diameter _ Depth) | 207 _ 248 mm (8.2 _ 9.8 in) |
Cable Dimensions | Length: 4.57 m (15.00 ft) Diameter: 2 mm (0.08 in) |
Net Weight, single | 2.5 kg (5.5 lb) |
Shipping Weight, pair | 7.00 kg (15.43 lb) |
Included Accessories | Each DM3P includes one (1) Gripple adjustable suspension cable system, four (4) cable ties |
Optional Accessories | Threaded Rod Adapter, Conduit Adapter, Gripple Pendant Suspension Cable Pair kit |
