Bose DesignMax DM3SE Surface Mount Loudspeaker (Black / Pair)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose DesignMax DM3SE Surface Mount Loudspeaker (Black / Pair)
Sale price$510.00
Description
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

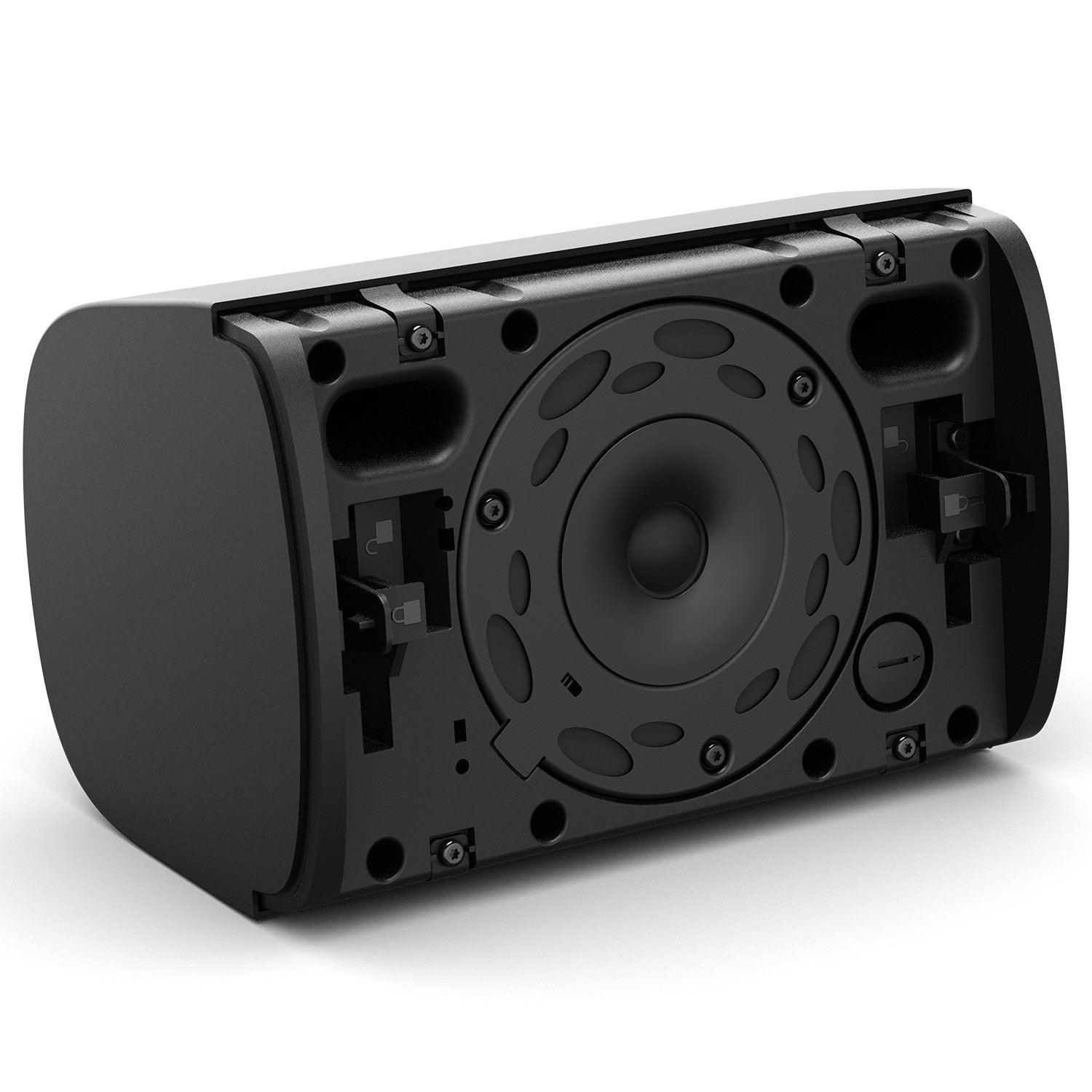

The 25-watt DesignMax DM3SE loudspeaker features a two-way 3.5-inch woofer and 3/4-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 70 Hz - 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Install DM3SE outside - IP55 rating with standard aluminum grille for outdoor use
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 95 - 17,000 Hz | |
| Frequency Range (-10 dB)(1) | 70 - 20,000 Hz | |
| Nominal Coverage Angle (H x V) (2) | 150¡ x 150¡ | |
| Bose extended-lifecycle test (5) | AES component test (6) | |
| Power Handling, long-term continuous | 25 W | 30 W |
| Power Handling, peak | 100 W | 120 W |
| Sensitivity (SPL/ 1W @ 1 m) (3) | 85 dB | 85 dB |
| Calculated Maximum SPL @ 1 m (4) | 99 dB | 100 dB |
| Calculated Maximum SPL @ 1 m, peak | 105 dB | 106 dB |
| Crossover | 1.5 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Recommended High-Pass Protection | 70 Hz with minimum 12 dB / octave filter | |
| Transformer taps | 70V: 3, 6, 12, 25 W, bypass 100V: 6, 12, 25 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 83 mm woofer (3.25Ó), weather-treated | |
| High Frequency | 1 x 20 mm (0.75Ó) neodymium dome tweeter, coaxially mounted, weather-treated | |
| Technology | Dispersion Alignment System, 127 mm (5Ó) system diameter | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered plastics, highly UV fade resistant | |
| Bracket Material | Powder-coated steel | |
| Grille | Perforated aluminum with powder-coat finish, tamper-resistant design, paintable | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover | |
| Safety Agency | UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | -25 to 70¡C (-13 ¡F to 158 ¡F) | |

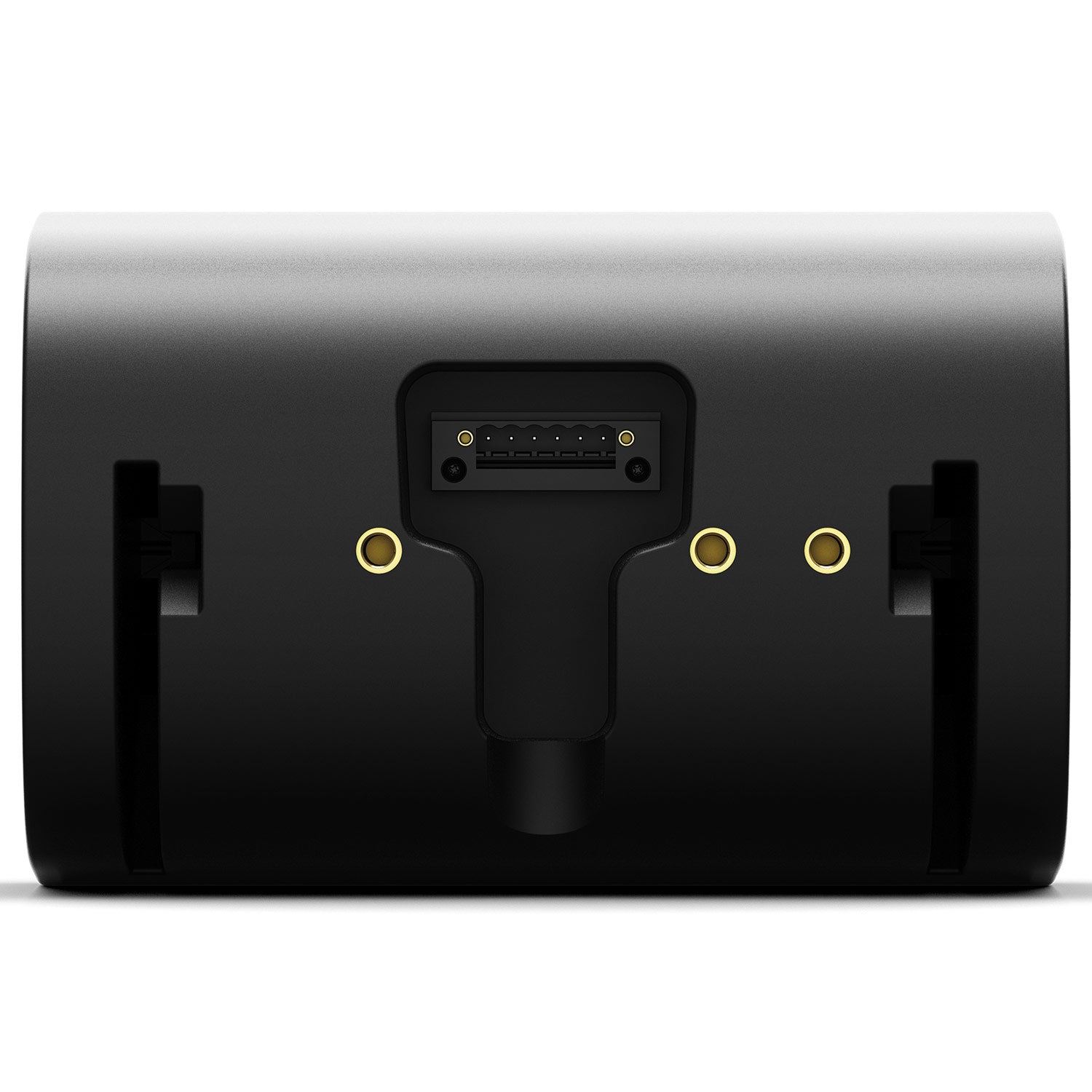

| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | QuickHold Mounting System with included U-Bracket 4 preset mounting angles: 0¡, 15¡, 30¡, 45¡ for wall or ceiling placement Two (2) rear M6 screw inserts for use with optional pan and tilt bracket and one (1) rear M6 screw insert for safety-tether attachment | |
| Dimensions (H x W x D) | 232 x 154 x 154 mm (9.1 x 6.1 x 6.1") | |
| Dimensions (H x W x D) with bracket | 232 x 154 x 166 mm (9.1 x 6.1 x 6.5Ó) | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | U-Bracket, powder-coated steel | |
| Optional Accessories | Pan and Tilt Bracket | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) 1 khz to 4 khz average
- (3) Sensitivity measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (6) AES standard 2-hour duration with IEC system noise
