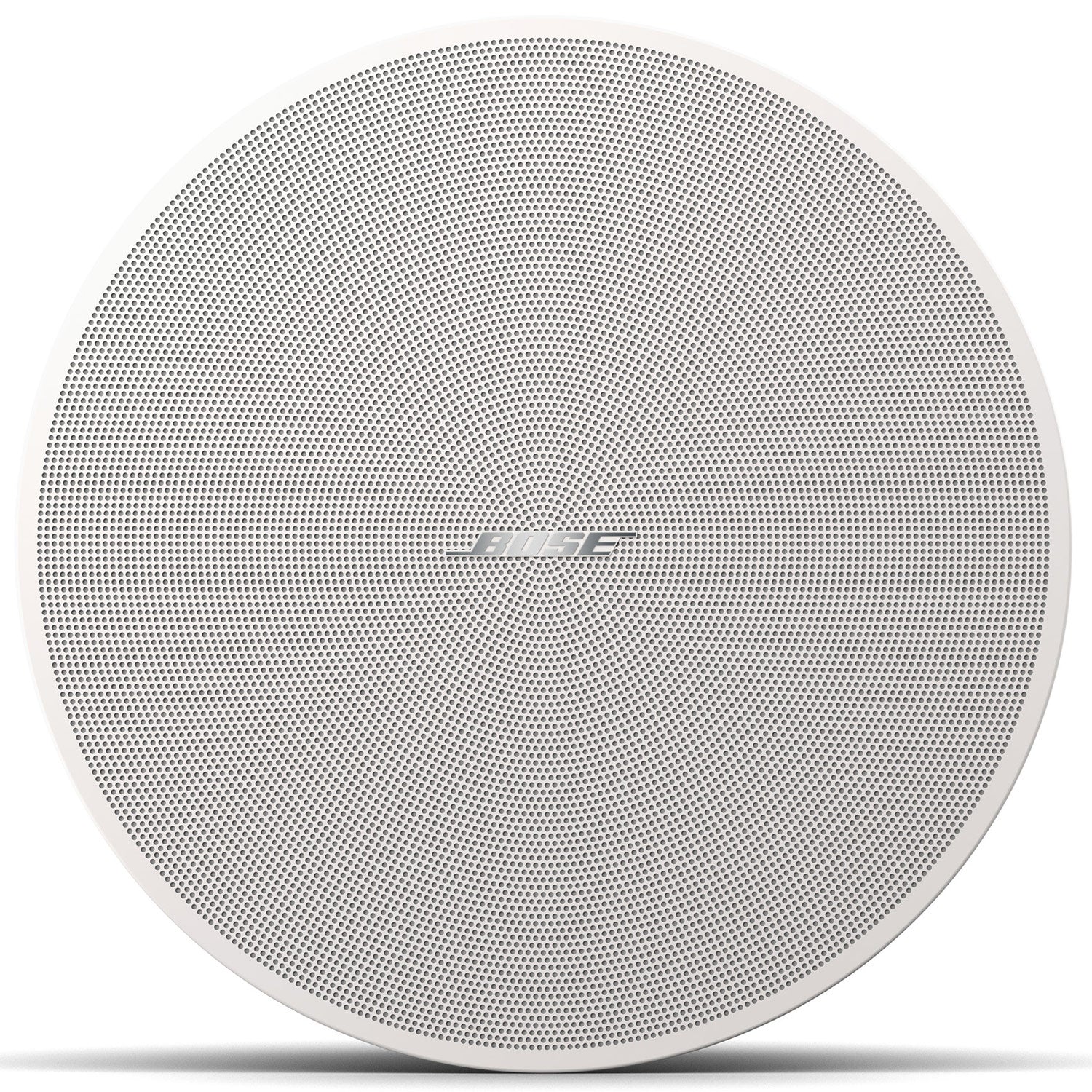

Bose DesignMax DM5C Ceiling Mount Loudspeaker (White / Pair)


  • Dale #:

    BOSE-8296830210
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Premium sound to maximize any design.DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, red... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Premium sound to maximize any design.

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

The 50-watt DesignMax DM5C loudspeaker features a two-way 5.25-inch woofer and 1-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 60 Hz - 20 kHz. The DM5C is ceiling-mounted and installs easily via QuickHold mounting arms.

Features:

  • Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
  • Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

More +

Product Specs

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1)70 - 17,000 Hz
Frequency Range (-10 dB)(1)60 - 20,000 Hz
Nominal Coverage Angle (H x V) (2)Conical
Bose extended-lifecycle test (5)AES component test (6)
Power Handling, long-term continuous50 W60 W
Power Handling, peak200 W240 W
Sensitivity (SPL/ 1W @ 1 m) (3)88 dB88 dB
Calculated Maximum SPL @ 1 m (4)105 dB106 dB
Calculated Maximum SPL @ 1 m, peak111 dB112 dB
Crossover1.5 kHz (passive 2-way crossover)
Loudspeaker EQNot Required, Bose voicings and SmartBass processing available
Recommended High-Pass Protection60 Hz with minimum 12 dB / octave filter
Transformer taps70V: 3, 6, 12, 25, 50 W, bypass
100V: 6, 12, 25, 50 W, bypass
TRANSDUCERS
Low Frequency1 x 5.25-inch woofer (133 mm), weather treated
High Frequency1 x 1-inch (25 mm) neodymium dome tweeter, coaxially mounted, weather-treated
TechnologyDispersion Alignment system, 165mm (6.5”) system diameter
Nominal Impedance8 ohms (transformer bypass)
PHYSICAL
Enclosure MaterialEngineered-plastics front baffle with integrated steel formed back can
GrilleMagnetically attached perforated steel, powder-coated finish, paintable, with safety-tether
LogoRotatable, removable
ColorBlack: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable
Environmental / Ingress-ProtectionIndoor only
Safety AgencyUL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant
Operating Temperature Range0 to 50°C (32 °F to 122 °F)
ConnectorsEuroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Wire / Conduit EntrySingle top wire entry point knockouts, allows for 9.5 mm (3/8”) conduit
Suspension / MountingThree (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable tabs
Maximum Ceiling ThicknessTBD
Product Dimensions (Grille Diameter x Depth)202 x 302.7 mm (11.9” x 8”)
Backcan Dimensions (Diameter x Depth)192 x 243.9 mm (9.6” x 7.6”)
Ceiling Cutout192 mm (9.6")
Net WeightTBD
Shipping WeightTBD
Included AccessoriesAdjustable Tile-Bridge, Template
Optional AccessoriesRough-in 6-pack

Footnotes:

  • (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
  • (2) 1 khz to 4 khz average
  • (3) Sensitivity measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
  • (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
  • (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
  • (6) AES standard 2-hour duration with IEC system noise
