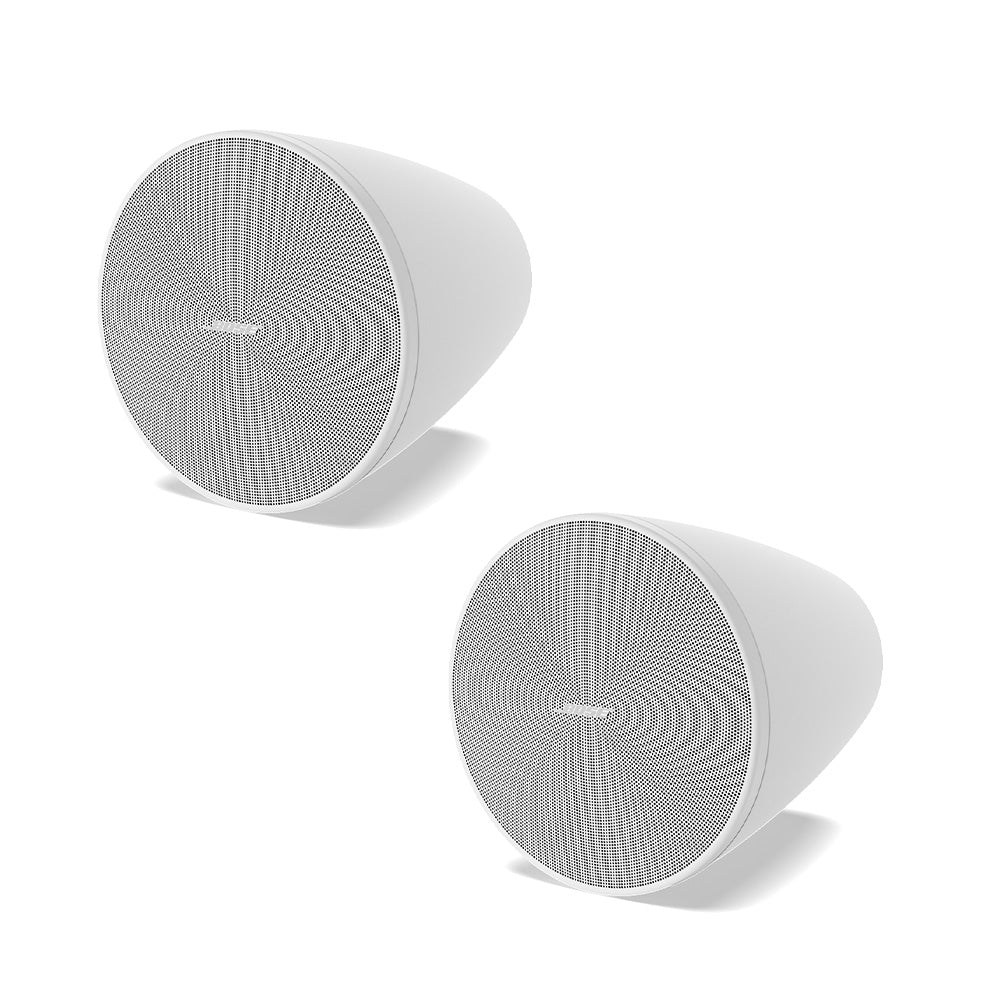

Bose DesignMax DM5P - Two-Way 5.25-Inch Pendant Loudspeaker (White / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM5P - Two-Way 5.25-Inch Pendant Loudspeaker (White / Pair)
Sale price$649.95
Regular price$784.00
Description
With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz - 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 15 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM5 models - the in-ceiling DM5C, the surface-mounted, outdoor-rated DM5SE, and the sleek DM5P pendant loudspeaker
- Deliver rich lows and clear, intelligible highs with a coaxial two-way design - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| PHYSICAL | |
| Environmental | Indoor only |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 9.1 lb (4.1 kg), single |
| Operating Temperature Range | 0 ¡C to 50 ¡C (32 ¡F to 122 ¡F) |
| Product Dimensions (HxWxD) | 10.2 in x 11.8 in (259 mm x 300 mm), loudspeaker diameter x depth / 15.0 ft x 0.1 in (4.6 m x 2 mm), suspension cable length x diameter |
| Shipping Weight | 24.3 lb (11.0 kg), pair |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 65 Hz Ð 20,000 Hz |
| Coverage, Horizontal | 120¡ conical |
| Coverage, Vertical | 120¡ conical |
| Calculated Maximum SPL @ 1 m | 105 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 50 W |
| Power Handling, Peak | 200 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 87 dB |
| Transformer Taps, 100V | 6, 12, 25, 50 W, bypass |
| Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, 50 W, bypass |
| TRANSDUCERS | |
| Crossover | 1.8 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter |
| High-Frequency | 1 x 1 in (25 mm) neodymium dome tweeter, coaxially mounted |
| Low-Frequency | 1 x 5.25 in (133 mm) woofer |
| Product codes | 841166-0110 DESIGNMAX DM5P PAIR BLACK 841166-0210 DESIGNMAX DM5P PAIR WHITE 841166-0120 DESIGNMAX DM5P PAIR BLACK (NEW) 841166-0220 DESIGNMAX DM5P PAIR WHITE (NEW) |
| Warranty Period | 5 years |
| Included in Packaging | (1) installation guide (2) cable fastener tools (2) cable fasteners (2) DesignMax DM5P loudspeakers (2) suspension cables, 15.0 ft (4.5 m) each (8) cable ties |
