DALE SKU # BOSE-8297050220

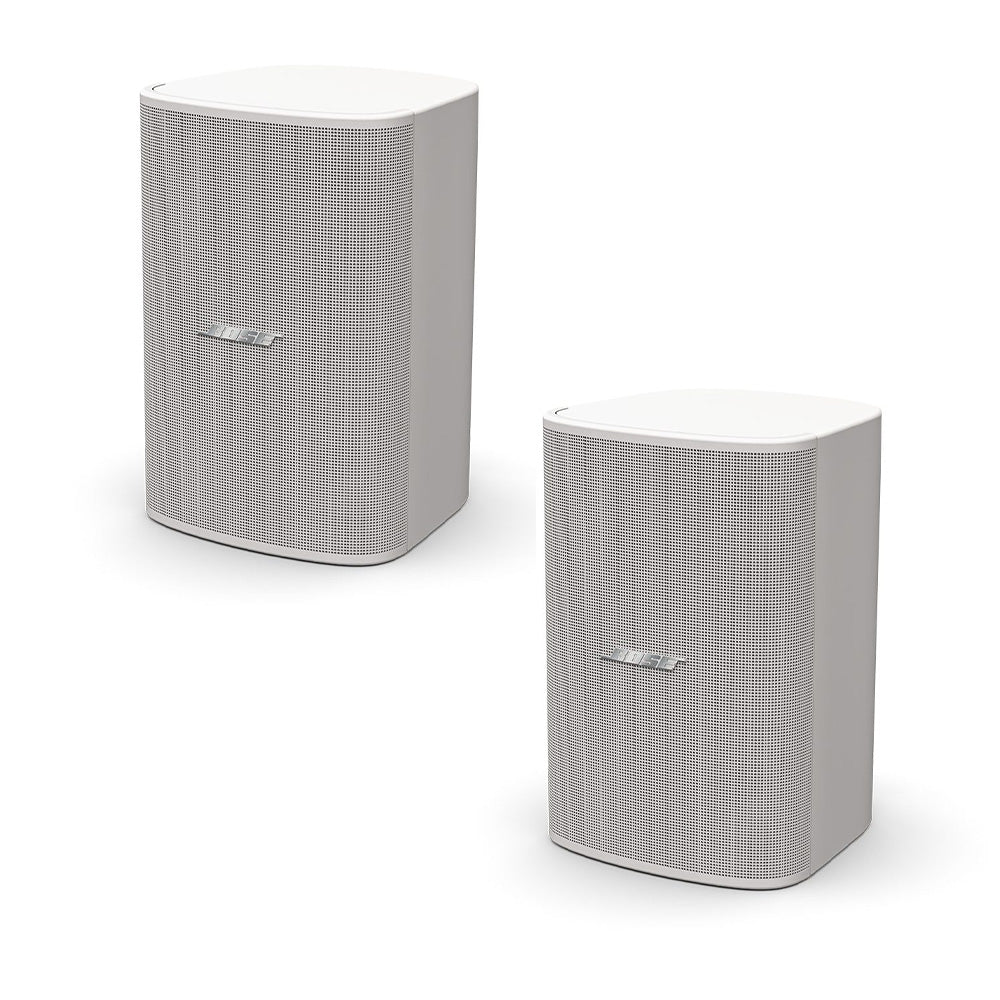

Bose DesignMax DM5SE - Coaxial Two-Way 5.25-Inch Install Speaker (White / Pair)

Sale price$729.95 Regular price$880.00
Save $150.05
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

    Features:

    • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
    • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
    • Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
    • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
    • Install DM5SE outside - IP55 rating with standard aluminum grille for outdoor use

    Applications:

    • Performing arts venues
    • Places of worship
    • Conference centers
    • Retail stores
    • Restaurants and bars
    • Hospitality venues
    PHYSICAL
    Environmental Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
    Colors Black (RAL 9005), white (similar to RAL 9003), paintable
    Enclosure Material Engineered plastics, highly UV fade-resistant
    Grille Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
    Ingress Protection IP55
    Logo Rotatable, removable
    Net Weight 9.7 lb (4.4 kg), loudspeaker with grille (single)
    Operating Temperature Range -25 ¡C to 70 ¡C (-13 ¡F to 158 ¡F)
    Product Dimensions (HxWxD) 11.2 in x 7.5 in x 7.7 in (286 mm x 192 mm x 197 mm), loudspeaker / 11.2 in x 7.5 in x 8.4 in (286 mm x 192 mm x 215 mm), loudspeaker with bracket
    Shipping Weight 25.2 lb (11.4 kg), pair
    COMPLIANCE
    Safety Agency Ratings UL 1480A, NFPA 70, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 65 Hz Ð 20,000 Hz
    Coverage, Horizontal 135¡ conical
    Coverage, Vertical 135¡ conical
    Calculated Maximum SPL @ 1 m 107 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 60 W
    Power Handling, Peak 240 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 89 dB
    Transformer Taps, 100V 6, 12, 25, 50 W, bypass
    Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, 50 W, bypass
    TRANSDUCERS
    Crossover 1.8 kHz, passive 2-way crossover
    Driver Protection Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
    High-Frequency 1 x 1 in (25 mm) neodymium dome tweeter, coaxially mounted
    Low-Frequency 1 x 5.25 in (133 mm) woofer
    Product codes 829705-0110
    DESIGNMAX DM5SE PAIR BLK
    829705-0210
    DESIGNMAX DM5SE PAIR WHT
    829705-0120
    DESIGNMAX DM5SE PAIR BLK (NEW)
    829705-0220
    DESIGNMAX DM5SE PAIR WHT (NEW)
    Included in Packaging (1) U-bracket, powder-coated steel

    With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

    Features:

    • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
    • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
    • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
    • Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
    • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
    • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
    • Install DM5SE outside - IP55 rating with standard aluminum grille for outdoor use

    Applications:

    • Performing arts venues
    • Places of worship
    • Conference centers
    • Retail stores
    • Restaurants and bars
    • Hospitality venues
    PHYSICAL
    Environmental Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
    Colors Black (RAL 9005), white (similar to RAL 9003), paintable
    Enclosure Material Engineered plastics, highly UV fade-resistant
    Grille Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
    Ingress Protection IP55
    Logo Rotatable, removable
    Net Weight 9.7 lb (4.4 kg), loudspeaker with grille (single)
    Operating Temperature Range -25 ¡C to 70 ¡C (-13 ¡F to 158 ¡F)
    Product Dimensions (HxWxD) 11.2 in x 7.5 in x 7.7 in (286 mm x 192 mm x 197 mm), loudspeaker / 11.2 in x 7.5 in x 8.4 in (286 mm x 192 mm x 215 mm), loudspeaker with bracket
    Shipping Weight 25.2 lb (11.4 kg), pair
    COMPLIANCE
    Safety Agency Ratings UL 1480A, NFPA 70, CE-compliant
    PERFORMANCE
    Frequency Range (-10 dB) 65 Hz Ð 20,000 Hz
    Coverage, Horizontal 135¡ conical
    Coverage, Vertical 135¡ conical
    Calculated Maximum SPL @ 1 m 107 dB
    Nominal Impedance 8 ½ (transformer bypass)
    Power Handling, long-term continuous 60 W
    Power Handling, Peak 240 W
    Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
    Sensitivity (SPL/1 W at 1 m) 89 dB
    Transformer Taps, 100V 6, 12, 25, 50 W, bypass
    Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, 50 W, bypass
    TRANSDUCERS
    Crossover 1.8 kHz, passive 2-way crossover
    Driver Protection Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
    High-Frequency 1 x 1 in (25 mm) neodymium dome tweeter, coaxially mounted
    Low-Frequency 1 x 5.25 in (133 mm) woofer
    Product codes 829705-0110
    DESIGNMAX DM5SE PAIR BLK
    829705-0210
    DESIGNMAX DM5SE PAIR WHT
    829705-0120
    DESIGNMAX DM5SE PAIR BLK (NEW)
    829705-0220
    DESIGNMAX DM5SE PAIR WHT (NEW)
    Included in Packaging (1) U-bracket, powder-coated steel
