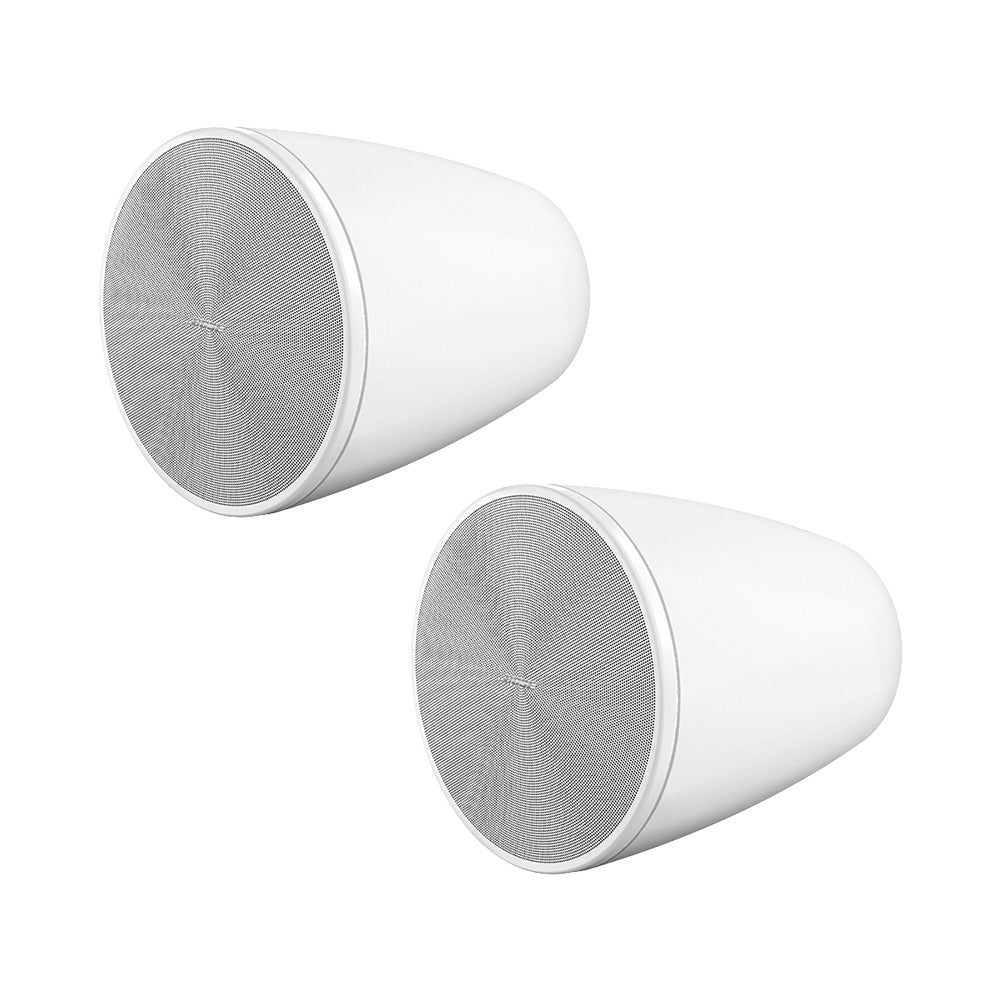

Bose DesignMax DM6PE - Two-Way 6-Inch Pendant Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM6PE - Two-Way 6-Inch Pendant Loudspeaker (White)
Sale price$929.95
Regular price$1,106.00
Description
With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features:
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM6 models - the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker
- Deliver rich lows and clear, intelligible highs with a coaxial two-way design - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Install DM6PE outside - IP55 rating with powder-coated steel grille for outdoor
| PHYSICAL | |
| Environmental | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Grille | Perforated steel, powder-coated finish |
| Ingress Protection | IP55 |
| Logo | Rotatable, removable |
| Suspension/Mounting | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 12.5 lb (5.7 kg), single |
| Operating Temperature Range | -25 ¡C to 65 ¡C (-13 ¡F to 149 ¡F) |
| Product Dimensions (HxWxD) | 12.1 in x 14.8 in (308 mm x 375 mm), loudspeaker diameter x depth |
| Shipping Weight | 33.1 lb (15.0 kg), pair |
| COMPLIANCE | |
| Safety Agency Ratings | UL 1480A, UL 2239 for suspension cable, NFPA 70 / NFPA 90A, CE-compliant |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 62 Hz Ð 20,000 Hz |
| Coverage, Horizontal | 115¡ conical |
| Coverage, Vertical | 115¡ conical |
| Calculated Maximum SPL @ 1 m | 110 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 100 W |
| Power Handling, Peak | 400 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 89 dB |
| Transformer Taps, 100V | 5, 10, 20, 40, 80 W, bypass |
| Transformer Taps, 70V | 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
| TRANSDUCERS | |
| Crossover | 1.7 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter |
| High-Frequency | 1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated |
| Low-Frequency | 1 x 6.5 in (165 mm) woofer, weather-treated |
| Product codes | 841168-0110 DESIGNMAX DM6PE PAIR BLACK 841168-0210 DESIGNMAX DM6PE PAIR WHITE 841168-0120 DESIGNMAX DM6PE PAIR BLACK (NEW) 841168-0220 DESIGNMAX DMPE PAIR WHITE (NEW) |
| Included in Packaging | (1) weather-resistant input cover (2) suspension cables, 15.0 ft (4.5 m) each (4) cable ties |
