Description
Premium sound to maximize any design.DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, red... Read MoreSuggested Accessories
Description
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

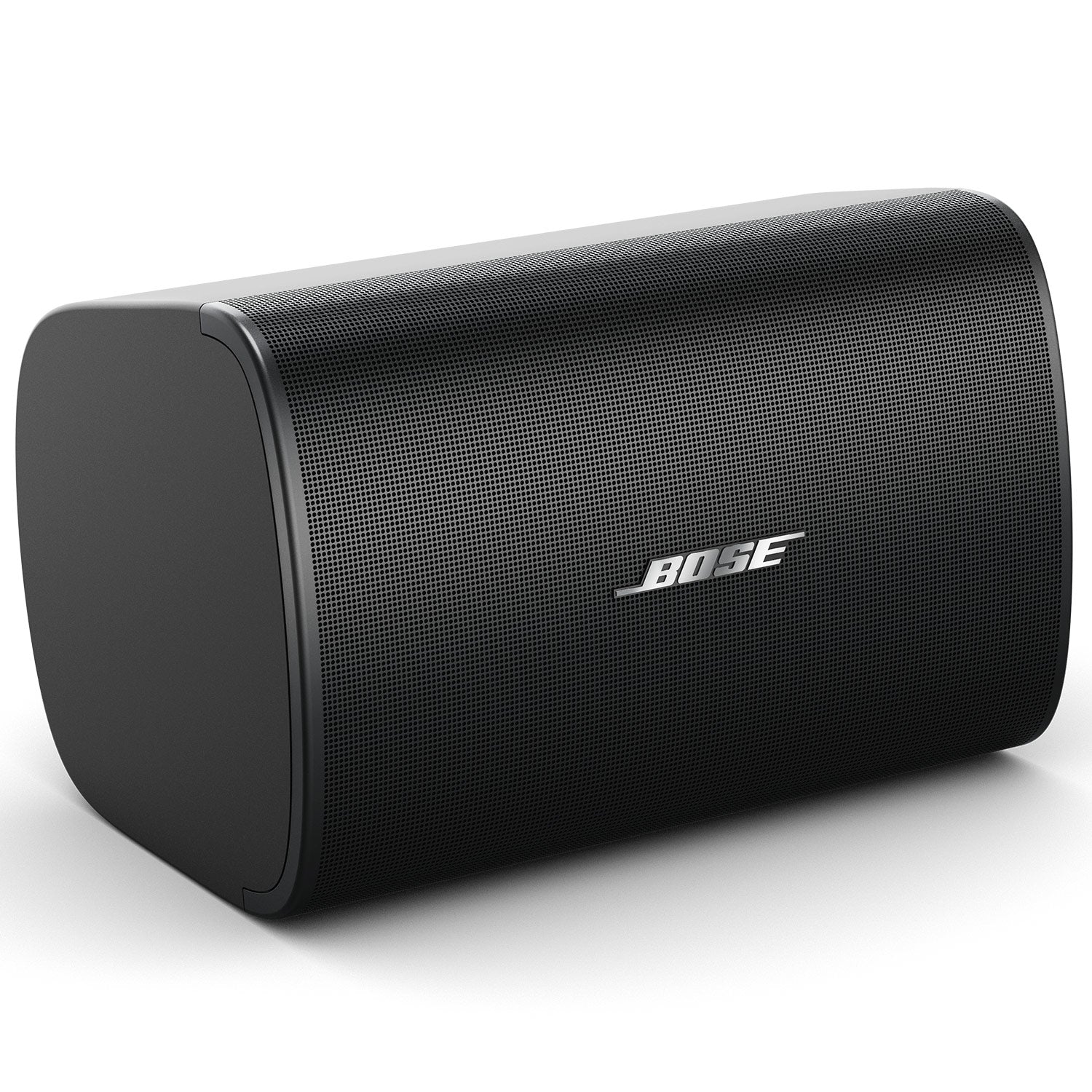

The 100-watt DesignMax DM6SE features a two-way 6.5-inch woofer and 1.25-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 55 Hz - 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Features:
Applications:
More +
Product Specs
SINGLE LOUDSPEAKER PERFORMANCE | ||
Frequency Response (-3 dB) (1) | 65 - 17,000 Hz | |
Frequency Range (-10 dB)(1) | 55 - 20,000 Hz | |
Nominal Coverage Angle (H x V) (2) | 130° x 130° | |
Bose extended-lifecycle test (5) | AES component test (6) | |
Power Handling, long-term continuous | 100 W | 125 W |
Power Handling, peak | 400 W | 500 W |
Sensitivity (SPL/ 1W @ 1 m) (3) | 91 dB | 91 dB |
Calculated Maximum SPL @ 1 m (4) | 111 dB | 112 dB |
Calculated Maximum SPL @ 1 m, peak | 117 dB | 118 dB |
Crossover | 1.5 kHz (passive 2-way crossover) | |
Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
Recommended High-Pass Protection | 55 Hz with minimum 12 dB / octave filter | |
Overload Protection | resistor-network power reduction with automatic reset | |
Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass | |
TRANSDUCERS | ||
Low Frequency | 1 x 6.5-inch woofer (165 mm), weather treated | |
High Frequency | 1 x 1.25-inch (32 mm) neodymium dome tweeter, coaxially-mounted, weather-treated | |
Technology | Dispersion Alignment System, 197 mm (7.75’) system diameter | |
Nominal Impedance | 8 ohms (transformer bypass) | |
PHYSICAL | ||
Enclosure Material | Engineered-plastics front baffle with integrated steel formed back can | |
Bracket Material | Powder-coated steel | |
Grille | Perforated aluminum with powder-coat finish, tamper-resistant design, paintable | |
Logo | Rotatable, removable | |
Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
Environmental / Ingress-Protection | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover | |
Safety Agency | UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant | |
Operating Temperature Range | -25 to 70°C (-13 °F to 158 °F) | |
Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
Suspension / Mounting | QuickHold Mounting System with included U-Bracket 4 preset mounting angles: 0°, 15°, 30°, 45° for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional pan and tilt bracket and one (1) rear M8 screw insert for safety-tether attachment | |
Dimensions (H x W x D) | 340 x 222 x 227 mm (13.4 x 8.7 x 9") | |
Dimensions (H x W x D) with bracket | 340 x 222 x 227 mm (13.4 x 8.7 x 9.4") | |
Net Weight | TBD | |
Shipping Weight | TBD | |
Included Accessories | U-Bracket, powder-coated steel | |
Optional Accessories | Pan and Tilt Bracket |
Footnotes:
