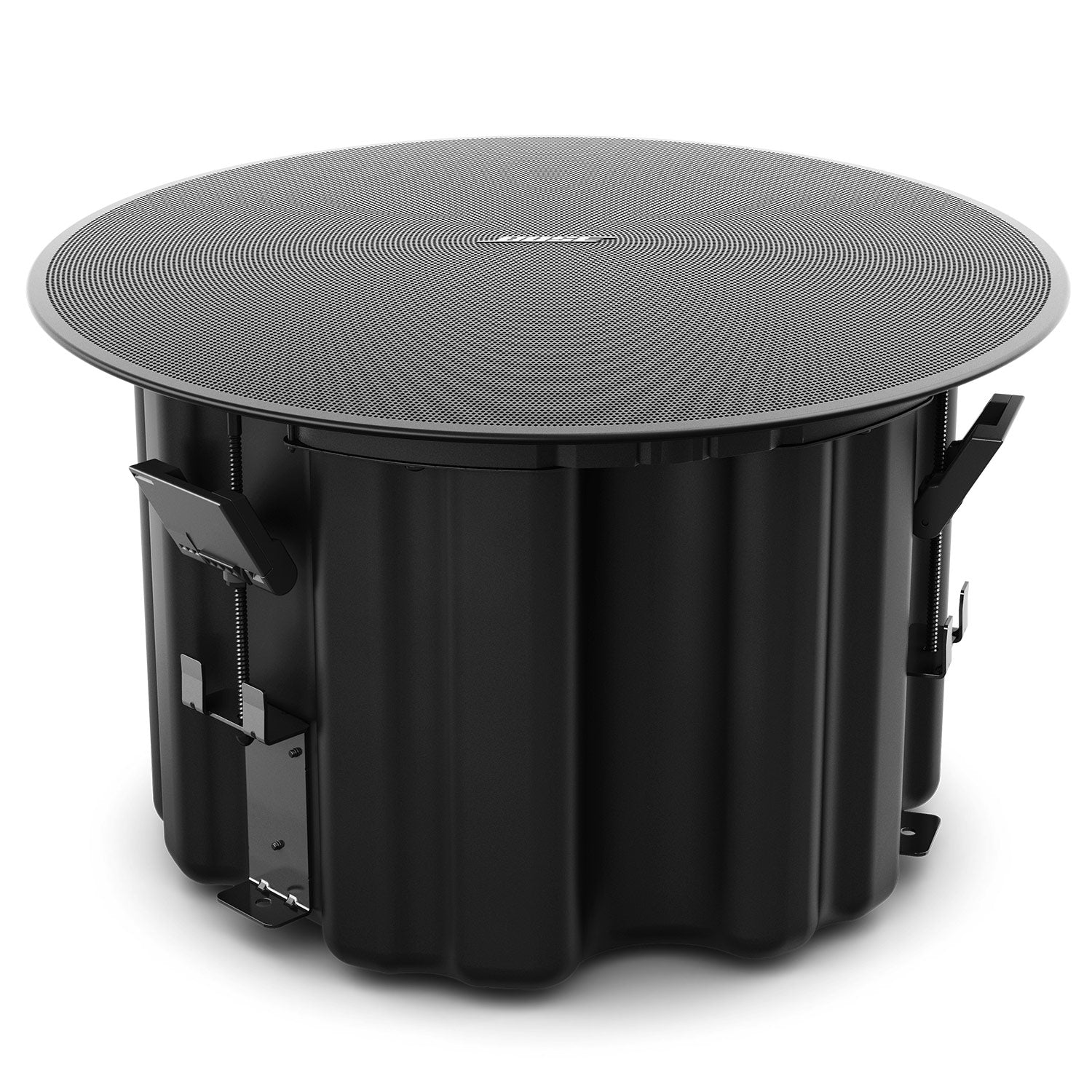

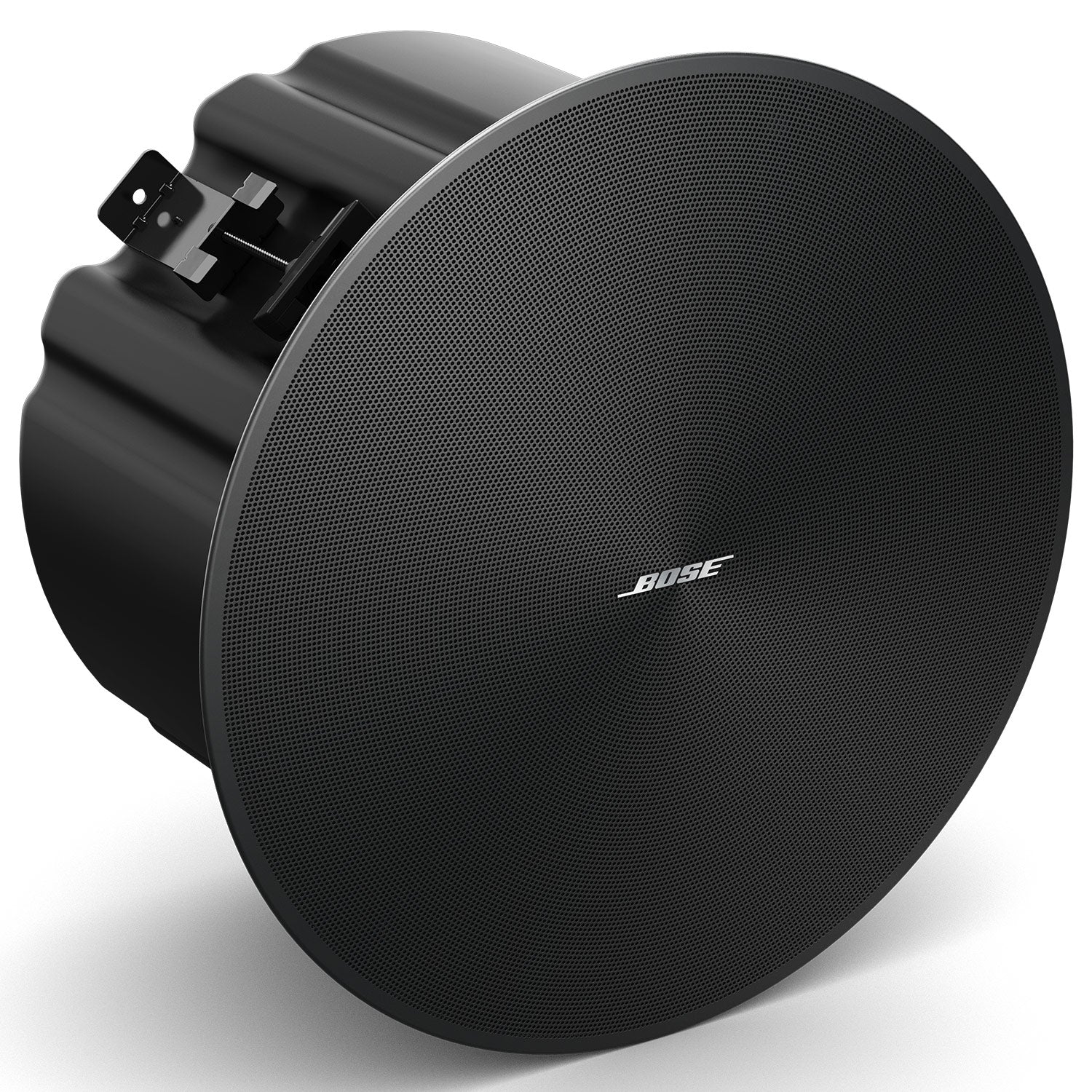

Bose DesignMax DM8C Ceiling Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Bose DesignMax DM8C Ceiling Mount Loudspeaker (Black)
Sale price$699.95
Regular price$832.00
Description
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

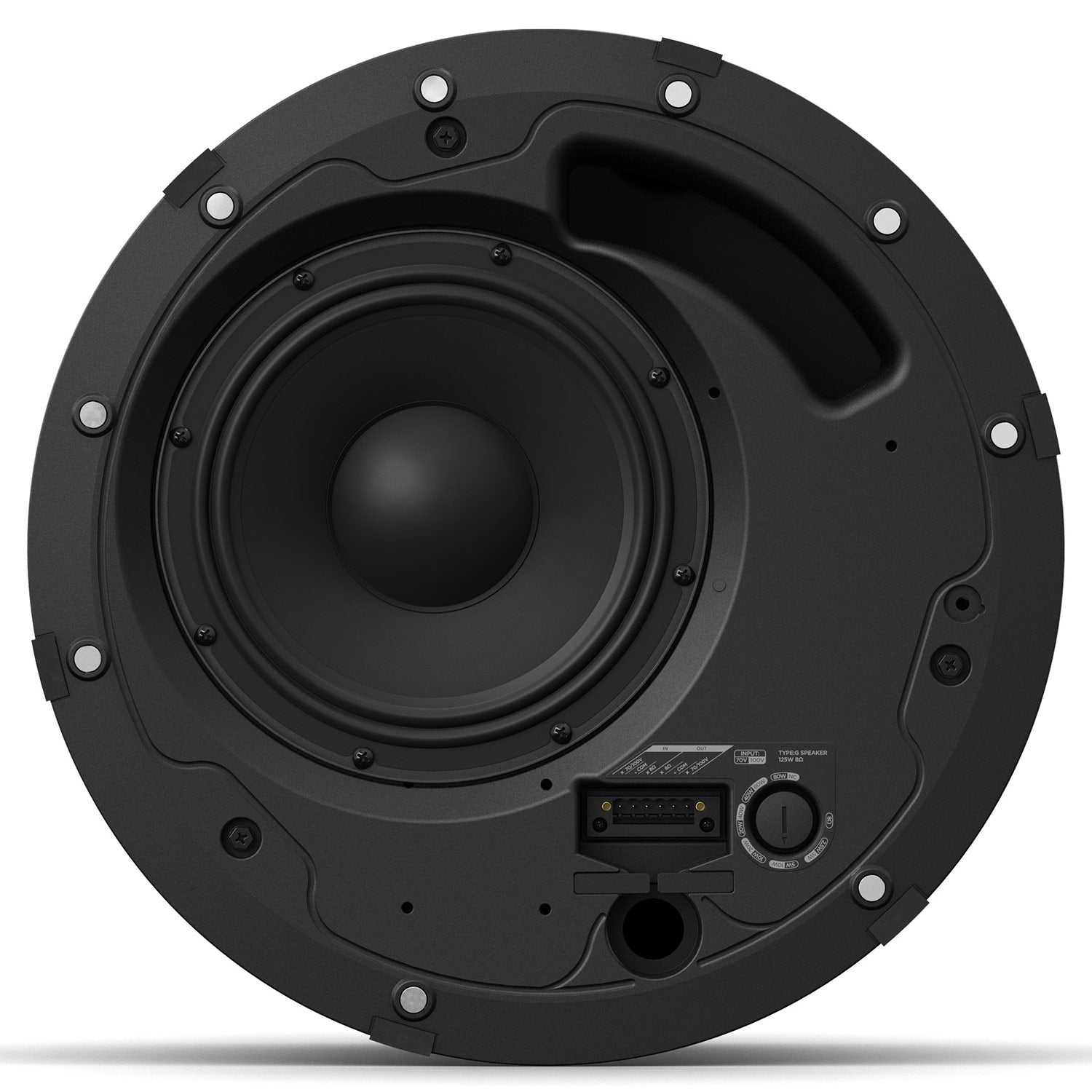

Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8C loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8C is ceiling-mounted and installs easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourses, and convention centers
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 65 Ð 20,000 Hz | |
| Frequency Range (-10 dB) | 50 Ð 20,000 Hz | |
| Nominal Coverage Angle (H x V) (2) | 115¡ conical | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 125 W | 150 W |
| Power Handling, peak | 500 W | 600 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 96 dB | 96 dB |
| Calculated Maximum SPL @ 1 m (3) | 117 dB | 118 dB |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 124 dB |
| Crossover | 1.4 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Recommended High-Pass Protection | 48 Hz with minimum 12 dB / octave filter | |
| Overload protection | Resistor-network power reduction with automatic reset | |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| High Frequency | 1 x 1-inch compression driver, coaxial center-firing (25 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered plastics front baffle with integrated steel formed backcan | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Logo | Rotatable, removable | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus Three (3) safety cable locations | |
| Product Dimensions (Grille Diameter x Depth) | 409 x 255 mm (16.1Ó x 10Ó) | |
| Backcan Dimensions (Diameter x Depth) | 329 x 240 mm (13Ó x 9.4Ó) | |
| Cutout size [Diameter] | 349 mm (13.75") | |
| Maximum Ceiling Thickness | 76 mm (3.0 in) | |
| Net Weight, Loudspeaker with Grille | 9.57 kg (21.1 lbs) | |
| Net Weight, Tile Bridge | TBD | |
| Shipping Weight, Single | 10.57 kg (23.3 lb) | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack for new construction | |
Footnotes:
- (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
- (2) 1 khz to 10 khz average
- (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
- (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (6) AES standard 2-hour duration with IEC system noise
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8C loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8C is ceiling-mounted and installs easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourses, and convention centers
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 65 Ð 20,000 Hz | |
| Frequency Range (-10 dB) | 50 Ð 20,000 Hz | |
| Nominal Coverage Angle (H x V) (2) | 115¡ conical | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 125 W | 150 W |
| Power Handling, peak | 500 W | 600 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 96 dB | 96 dB |
| Calculated Maximum SPL @ 1 m (3) | 117 dB | 118 dB |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 124 dB |
| Crossover | 1.4 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Recommended High-Pass Protection | 48 Hz with minimum 12 dB / octave filter | |
| Overload protection | Resistor-network power reduction with automatic reset | |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| High Frequency | 1 x 1-inch compression driver, coaxial center-firing (25 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered plastics front baffle with integrated steel formed backcan | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Logo | Rotatable, removable | |
| Color | Black: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus Three (3) safety cable locations | |
| Product Dimensions (Grille Diameter x Depth) | 409 x 255 mm (16.1Ó x 10Ó) | |
| Backcan Dimensions (Diameter x Depth) | 329 x 240 mm (13Ó x 9.4Ó) | |
| Cutout size [Diameter] | 349 mm (13.75") | |
| Maximum Ceiling Thickness | 76 mm (3.0 in) | |
| Net Weight, Loudspeaker with Grille | 9.57 kg (21.1 lbs) | |
| Net Weight, Tile Bridge | TBD | |
| Shipping Weight, Single | 10.57 kg (23.3 lb) | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack for new construction | |
Footnotes:
- (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
- (2) 1 khz to 10 khz average
- (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
- (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (6) AES standard 2-hour duration with IEC system noise
