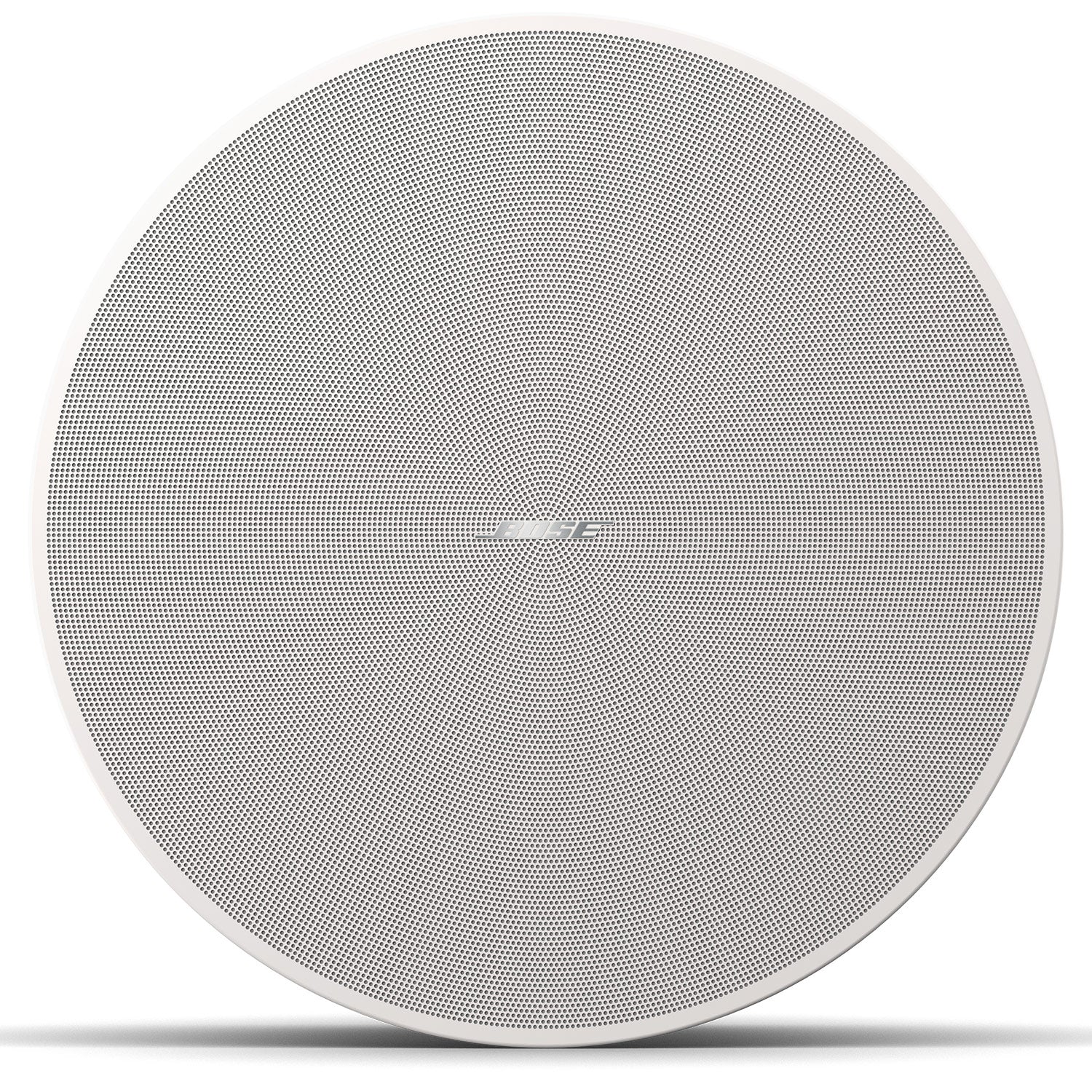

Bose DesignMax DM8C Ceiling Mount Loudspeaker (White)


  • Dale #:

    BOSE-8020800210
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving ... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8C loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8C is ceiling-mounted and installs easily via QuickHold mounting arms.

Features:

  • Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourses, and convention centers

Applications:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

More +

Product Specs

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1)65 – 20,000 Hz
Frequency Range (-10 dB)50 – 20,000 Hz
Nominal Coverage Angle (H x V) (2)115° conical
Bose extended-lifecycle test (4)AES component test (5)
Power Handling, long-term continuous125 W150 W
Power Handling, peak500 W600 W
Sensitivity (SPL/ 1W @ 1 m) (2)96 dB96 dB
Calculated Maximum SPL @ 1 m (3)117 dB118 dB
Calculated Maximum SPL @ 1 m, peak123 dB124 dB
Crossover1.4 kHz (passive 2-way crossover)
Loudspeaker EQNot Required, Bose voicings and SmartBass processing available
Recommended High-Pass Protection48 Hz with minimum 12 dB / octave filter
Overload protectionResistor-network power reduction with automatic reset
Transformer taps70V: 2.5, 5, 10, 20, 40, 80 W, bypass
100V: 5, 10, 20, 40, 80 W, bypass
TRANSDUCERS
Low Frequency1 x 8-inch woofer (203 mm)
High Frequency1 x 1-inch compression driver, coaxial center-firing (25 mm)
Nominal Impedance8 ohms (transformer bypass)
PHYSICAL
Enclosure MaterialEngineered plastics front baffle with integrated steel formed backcan
GrilleMagnetically attached perforated steel, powder-coated finish, paintable, with safety-tether
LogoRotatable, removable
ColorBlack: RAL 9005, White: Bose Artic White, similar to RAL 9003, Paintable
Environmental / Ingress-ProtectionIndoor only
Safety AgencyUL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant
Operating Temperature Range0 to 50 °C (32 °F to 122 °F)
ConnectorsEuroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Suspension / MountingThree (3) QuickHold, spring-loaded mounting arms plus Three (3) safety cable locations
Product Dimensions (Grille Diameter x Depth)409 x 255 mm (16.1” x 10”)
Backcan Dimensions (Diameter x Depth)329 x 240 mm (13” x 9.4”)
Cutout size [Diameter]349 mm (13.75")
Maximum Ceiling Thickness76 mm (3.0 in)
Net Weight, Loudspeaker with Grille9.57 kg (21.1 lbs)
Net Weight, Tile BridgeTBD
Shipping Weight, Single10.57 kg (23.3 lb)
Included AccessoriesAdjustable Tile-Bridge, Template
Optional AccessoriesRough-in 6-pack for new construction

Footnotes:

  • (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
  • (2) 1 khz to 10 khz average
  • (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
  • (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
  • (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
  • (6) AES standard 2-hour duration with IEC system noise
