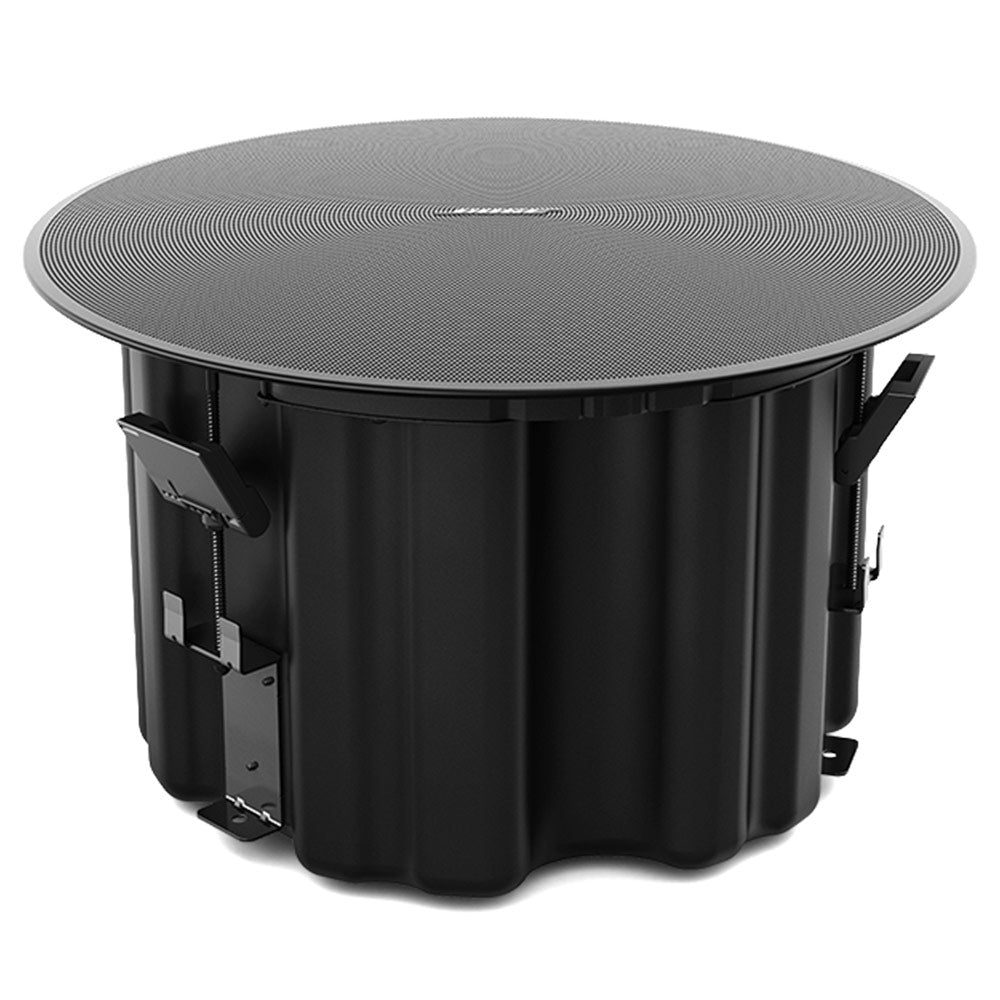

Bose DesignMax DM8C-SUB Ceiling Mount Subwoofer (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose DesignMax DM8C-SUB Ceiling Mount Subwoofer (Black)
Sale price$579.95
Regular price$692.00
Description
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 150-watt DesignMax DM8C-SUB subwoofer features an 8-inch woofer, which delivers a 42 Hz - 300 Hz frequency range. The DM8C-SUB is ceiling-mounted, installed easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 50 - 2000 Hz | |
| Frequency Range (-10 dB) | 42 - 300 Hz | |
| Nominal Coverage Angle (H x V) | Omnidirectional below 200 Hz | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 150 W | 180 W |
| Power Handling, peak | 600 W | 720 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 91 dB | 91 dB |
| Calculated Maximum SPL @ 1 m (3) | 113 dB | 114 dB |
| Calculated Maximum SPL @ 1 m, peak | 119 dB | 120 dB |
| Recommended High-Pass Protection | 45 Hz with 24-dB / octave filter | |
| Recommended Crossover | 80 - 200 Hz (via active crossover in DSP) | |
| Transformer taps | 70V: 20, 40, 80, 150 W, bypass 100V: 40, 80, 150 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered-plastics front baffle with integrated steel formed back can | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Color | Black: RAL 9005, White: Bose Artic White, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Wire / Conduit Entry | Single top wire entry point, allows for 9.5 mm (3/8 Ò) conduit | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable locations | |
| Maximum Ceiling Thickness | 76 mm (3.0 in) | |
| Dimensions (H x W x D) | 409 x 255 mm (16.1Ó x 10Ó ) | |
| Backcan Dimensions (Diameter x Depth) | 329 x 240 mm (13Ó x 9.4Ó) | |
| Ceiling Cutout | 349 mm (13.75Ó) | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack for new construction | |
Footnotes:
- (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
- (2) 1 khz to 4 khz average (vertical is longer dimension of enclosure)
- (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
- (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (6) AES standard 2-hour duration with IEC system noise
Premium sound to maximize any design.
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
The 150-watt DesignMax DM8C-SUB subwoofer features an 8-inch woofer, which delivers a 42 Hz - 300 Hz frequency range. The DM8C-SUB is ceiling-mounted, installed easily via QuickHold mounting arms.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB) (1) | 50 - 2000 Hz | |
| Frequency Range (-10 dB) | 42 - 300 Hz | |
| Nominal Coverage Angle (H x V) | Omnidirectional below 200 Hz | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 150 W | 180 W |
| Power Handling, peak | 600 W | 720 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 91 dB | 91 dB |
| Calculated Maximum SPL @ 1 m (3) | 113 dB | 114 dB |
| Calculated Maximum SPL @ 1 m, peak | 119 dB | 120 dB |
| Recommended High-Pass Protection | 45 Hz with 24-dB / octave filter | |
| Recommended Crossover | 80 - 200 Hz (via active crossover in DSP) | |
| Transformer taps | 70V: 20, 40, 80, 150 W, bypass 100V: 40, 80, 150 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered-plastics front baffle with integrated steel formed back can | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether | |
| Color | Black: RAL 9005, White: Bose Artic White, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Wire / Conduit Entry | Single top wire entry point, allows for 9.5 mm (3/8 Ò) conduit | |
| Suspension / Mounting | Three (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable locations | |
| Maximum Ceiling Thickness | 76 mm (3.0 in) | |
| Dimensions (H x W x D) | 409 x 255 mm (16.1Ó x 10Ó ) | |
| Backcan Dimensions (Diameter x Depth) | 329 x 240 mm (13Ó x 9.4Ó) | |
| Ceiling Cutout | 349 mm (13.75Ó) | |
| Net Weight | TBD | |
| Shipping Weight | TBD | |
| Included Accessories | Adjustable Tile-Bridge, Template | |
| Optional Accessories | Rough-in 6-pack for new construction | |
Footnotes:
- (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
- (2) 1 khz to 4 khz average (vertical is longer dimension of enclosure)
- (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
- (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (6) AES standard 2-hour duration with IEC system noise
