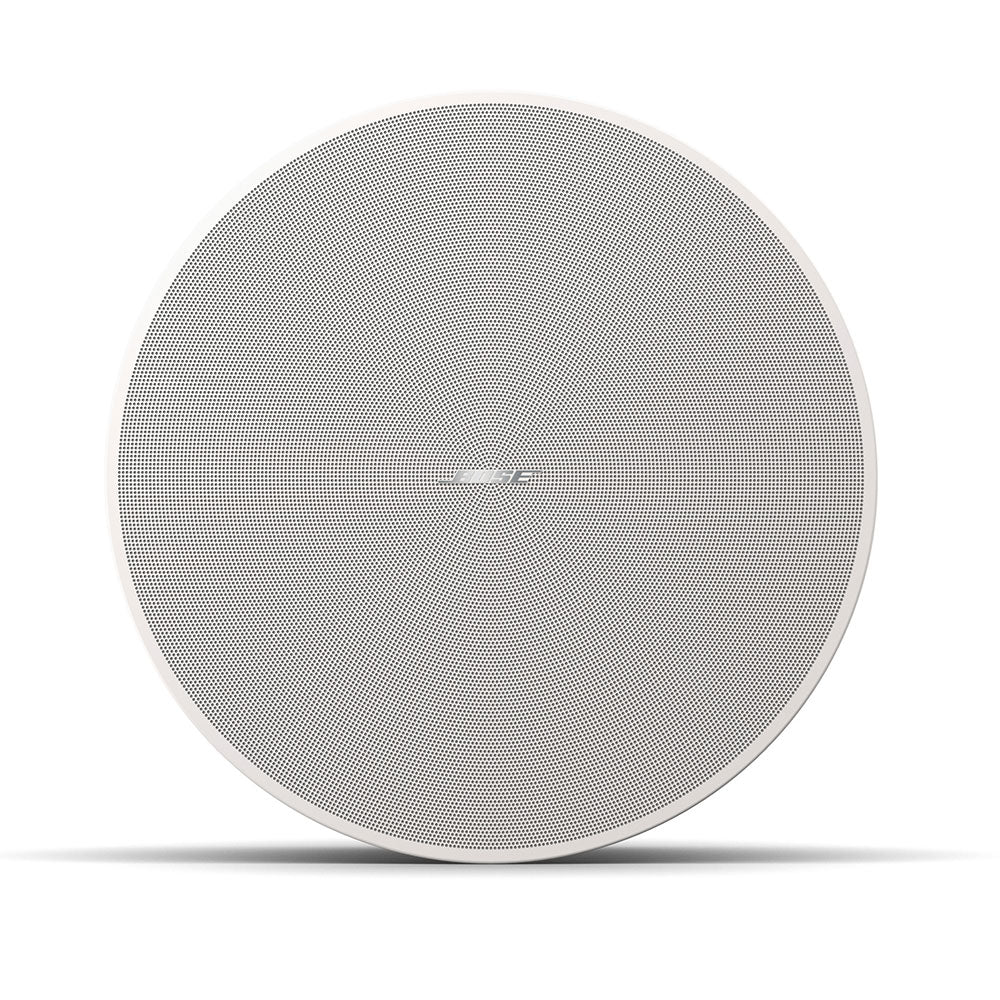

Bose DesignMax DM8C-SUB Ceiling Mount Subwoofer (White)


  • Dale #:

    BOSE-8293800210
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Premium sound to maximize any design.DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, red... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Premium sound to maximize any design.

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

The 150-watt DesignMax DM8C-SUB subwoofer features an 8-inch woofer, which delivers a 42 Hz - 300 Hz frequency range. The DM8C-SUB is ceiling-mounted, installed easily via QuickHold mounting arms.

Features:

  • Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

More +

Product Specs

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1)50 - 2000 Hz
Frequency Range (-10 dB)42 - 300 Hz
Nominal Coverage Angle (H x V)Omnidirectional below 200 Hz
Bose extended-lifecycle test (4)AES component test (5)
Power Handling, long-term continuous150 W180 W
Power Handling, peak600 W720 W
Sensitivity (SPL/ 1W @ 1 m) (2)91 dB91 dB
Calculated Maximum SPL @ 1 m (3)113 dB114 dB
Calculated Maximum SPL @ 1 m, peak119 dB120 dB
Recommended High-Pass Protection45 Hz with 24-dB / octave filter
Recommended Crossover80 - 200 Hz (via active crossover in DSP)
Transformer taps70V: 20, 40, 80, 150 W, bypass
100V: 40, 80, 150 W, bypass
TRANSDUCERS
Low Frequency1 x 8-inch woofer (203 mm)
Nominal Impedance8 ohms (transformer bypass)
PHYSICAL
Enclosure MaterialEngineered-plastics front baffle with integrated steel formed back can
GrilleMagnetically attached perforated steel, powder-coated finish, paintable, with safety-tether
ColorBlack: RAL 9005, White: Bose Artic White, Paintable
Environmental / Ingress-ProtectionIndoor only
Safety AgencyUL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 and NFPA90-A, in accordance with IEC60268-5, ROHS, CE compliant
Operating Temperature Range0 to 50 °C (32 °F to 122 °F)
ConnectorsEuroblock 6-pin connector with loop-through, front-baffle mounted. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Wire / Conduit EntrySingle top wire entry point, allows for 9.5 mm (3/8 “) conduit
Suspension / MountingThree (3) QuickHold, spring-loaded mounting arms plus three (3) safety cable locations
Maximum Ceiling Thickness76 mm (3.0 in)
Dimensions (H x W x D)409 x 255 mm (16.1” x 10” )
Backcan Dimensions (Diameter x Depth)329 x 240 mm (13” x 9.4”)
Ceiling Cutout349 mm (13.75”)
Net WeightTBD
Shipping WeightTBD
Included AccessoriesAdjustable Tile-Bridge, Template
Optional AccessoriesRough-in 6-pack for new construction

Footnotes:

  • (1) Frequency response and range measured on-axis in half-space environment with Bose EQ Voicing
  • (2) 1 khz to 4 khz average (vertical is longer dimension of enclosure)
  • (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing
  • (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
  • (5) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
  • (6) AES standard 2-hour duration with IEC system noise
