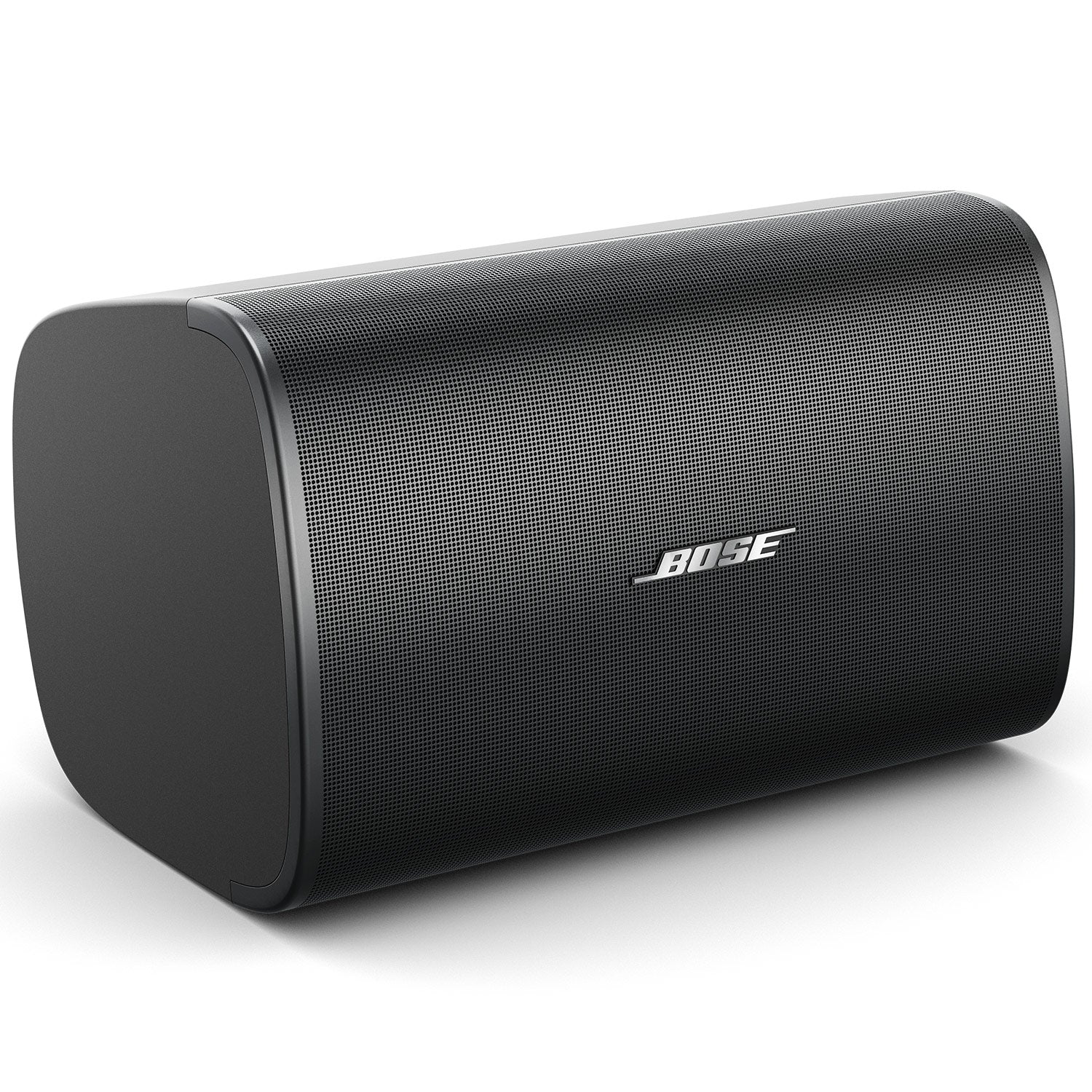

Bose DesignMax DM8S Surface Mount Loudspeaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8S loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Deliver high SPL for clear foreground music
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB)(1) | 70 Ð 20,000 Hz | |
| Frequency Range (-10 dB) | 60 Ð 20,000 Hz | |
| Nominal Coverage Angle (H x V) (2) | 115¡ x 115¡ | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 125 W | 150 W |
| Power Handling, peak | 500 W | 600 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 96 dB | 96 dB |
| Calculated Maximum SPL @ 1 m (3) | 117 dB | 118 dB |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 124 dB |
| Crossover | 1.4 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Overload protection | Resistor-network power reduction with automatic reset | |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| High Frequency | 1 x 1-inch compression driver, coaxial center-firing (25 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered plastics, highly UV fade resistant | |
| Bracket Material | Powder-coated steel | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, tamper-resistant design, includes safety-tether | |
| Logo | Rotatable, removable | |
| Color | Black: RAL 9005, White: Bose Artic White, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |

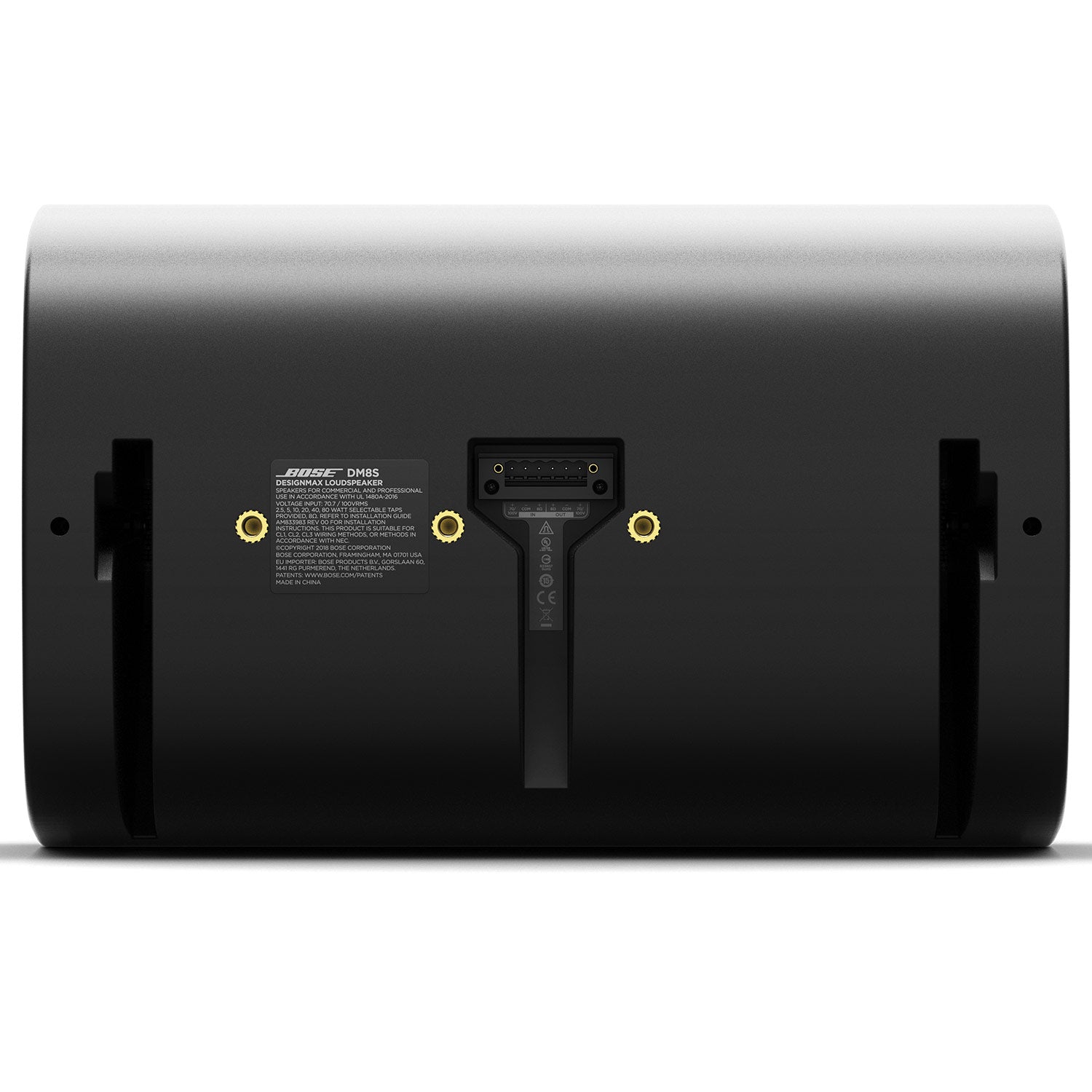

| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | QuickHold Mounting System with included U-Bracket 4 preset mounting angles: 0¡, 15¡, 30¡, 45¡ for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional pan and tilt bracket and one (1) rear M8 screw insert for safety-tether attachment | |
| Dimensions (H x W x D) | 395 x 249 x 253 mm (15.6Ó L x 9.8Ó W x 10Ó D) | |
| Dimensions (H x W x D) with bracket | 395 x 249 x 270 mm (15.6Ó L x 9.8Ó W x 10.7Ó D) | |
| Net Weight, Loudspeaker | 10.3 kg (22.8 lbs) | |
| Shipping Weight, Single | TBD | |
| Included Accessories | U-Bracket, powder-coated steel | |
| Optional Accessories | Pan and Tilt Bracket | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) 1 khz to 10 khz average (vertical is longer dimension of enclosure)
- (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (5) AES standard 2-hour duration with IEC system noise
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it's easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle - and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.
Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8S loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Features:
- Combine models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver instantly impressive sound with custom Bose drivers - no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily - all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Deliver high SPL for clear foreground music
Applications:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
| SINGLE LOUDSPEAKER PERFORMANCE | ||
| Frequency Response (-3 dB)(1) | 70 Ð 20,000 Hz | |
| Frequency Range (-10 dB) | 60 Ð 20,000 Hz | |
| Nominal Coverage Angle (H x V) (2) | 115¡ x 115¡ | |
| Bose extended-lifecycle test (4) | AES component test (5) | |
| Power Handling, long-term continuous | 125 W | 150 W |
| Power Handling, peak | 500 W | 600 W |
| Sensitivity (SPL/ 1W @ 1 m) (2) | 96 dB | 96 dB |
| Calculated Maximum SPL @ 1 m (3) | 117 dB | 118 dB |
| Calculated Maximum SPL @ 1 m, peak | 123 dB | 124 dB |
| Crossover | 1.4 kHz (passive 2-way crossover) | |
| Loudspeaker EQ | Not Required, Bose voicings and SmartBass processing available | |
| Overload protection | Resistor-network power reduction with automatic reset | |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass | |
| TRANSDUCERS | ||
| Low Frequency | 1 x 8-inch woofer (203 mm) | |
| High Frequency | 1 x 1-inch compression driver, coaxial center-firing (25 mm) | |
| Nominal Impedance | 8 ohms (transformer bypass) | |
| PHYSICAL | ||
| Enclosure Material | Engineered plastics, highly UV fade resistant | |
| Bracket Material | Powder-coated steel | |
| Grille | Magnetically attached perforated steel, powder-coated finish, paintable, tamper-resistant design, includes safety-tether | |
| Logo | Rotatable, removable | |
| Color | Black: RAL 9005, White: Bose Artic White, Paintable | |
| Environmental / Ingress-Protection | Indoor only | |
| Safety Agency | UL-1480A, S5591/ UL Listed, NFPA70, in accordance with IEC60268-5, ROHS, CE compliant | |
| Operating Temperature Range | 0 to 50 ¡C (32 ¡F to 122 ¡F) | |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on rear. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire | |
| Suspension / Mounting | QuickHold Mounting System with included U-Bracket 4 preset mounting angles: 0¡, 15¡, 30¡, 45¡ for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional pan and tilt bracket and one (1) rear M8 screw insert for safety-tether attachment | |
| Dimensions (H x W x D) | 395 x 249 x 253 mm (15.6Ó L x 9.8Ó W x 10Ó D) | |
| Dimensions (H x W x D) with bracket | 395 x 249 x 270 mm (15.6Ó L x 9.8Ó W x 10.7Ó D) | |
| Net Weight, Loudspeaker | 10.3 kg (22.8 lbs) | |
| Shipping Weight, Single | TBD | |
| Included Accessories | U-Bracket, powder-coated steel | |
| Optional Accessories | Pan and Tilt Bracket | |
Footnotes:
- (1) Frequency response and range measured on-axis in quarter-space (wall/ceiling boundary) environment with recommended EQ
- (2) 1 khz to 10 khz average (vertical is longer dimension of enclosure)
- (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
- (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
- (5) AES standard 2-hour duration with IEC system noise
