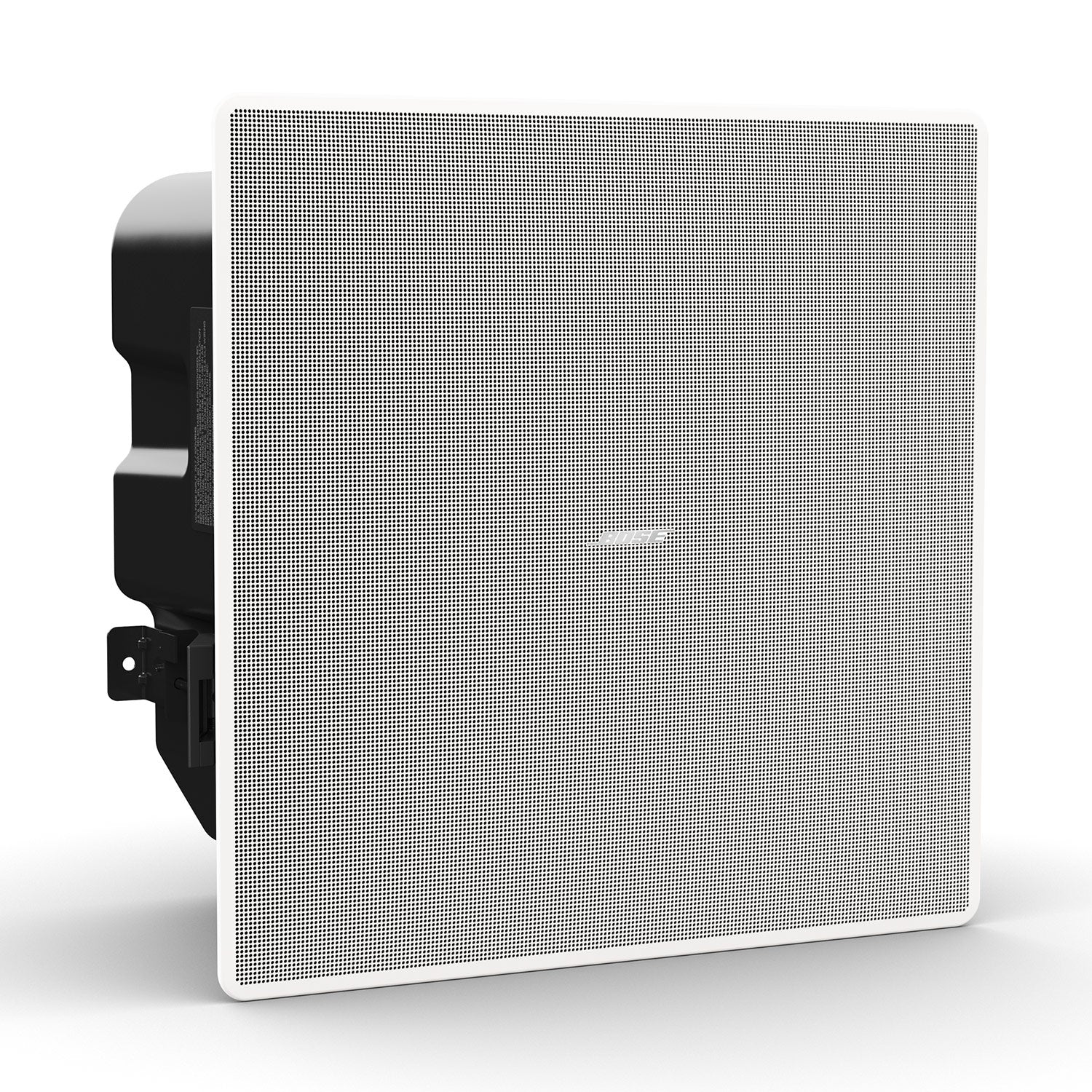

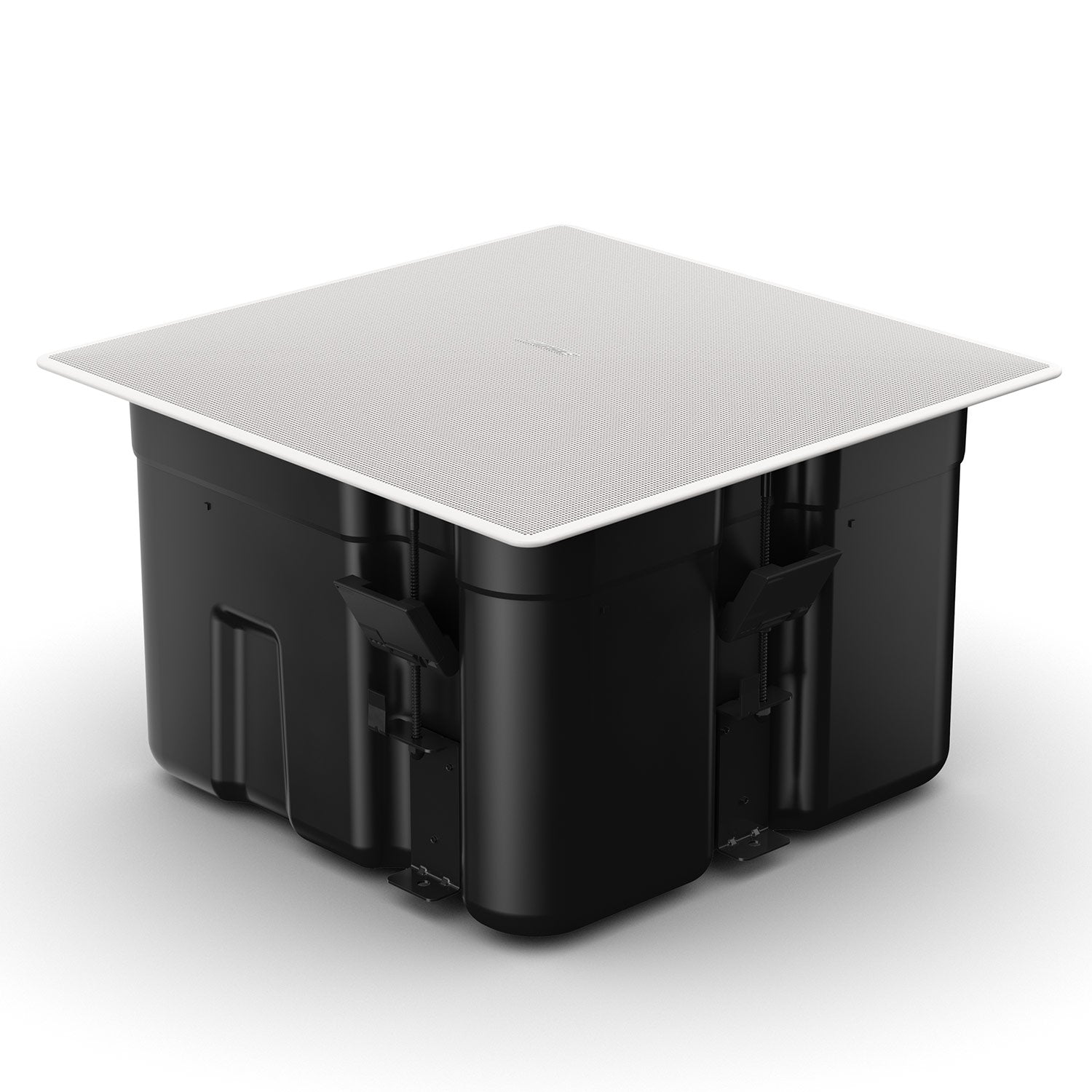

Bose EdgeMax EM180 Premium Ceiling Loudspeaker with PhaseGuide Technology
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose EdgeMax EM180 Premium Ceiling Loudspeaker with PhaseGuide Technology
Sale price$551.00
Regular price$914.00
Description
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology with high-frequency compression drivers to create a new category that combines the room- lling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Features:
- PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound
- EdgeMax EM90 provides nominal 90° horizontal coverage from room corners
- EdgeMax EM180 provides nominal 180° horizontal coverage from center ceiling-wall locations
- Full-frequency range 60 – 18,000 Hz (-10 dB)
- Maximum SPL up to 119 dB continuous and 125 dB peak

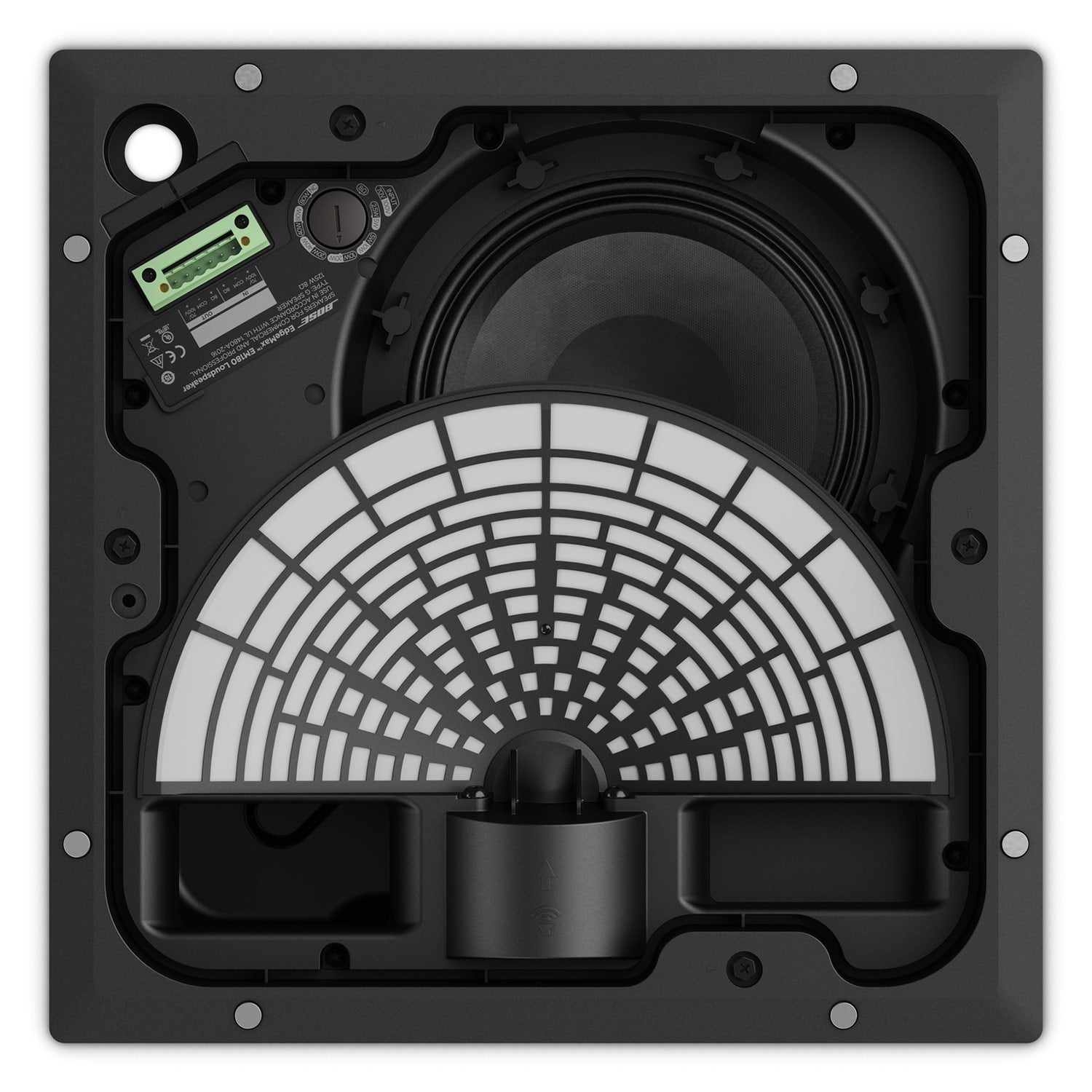

- 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
- Passive crossover with 8 Ω or 70/100V transformer taps
- New auto-hold, spring-loaded mounting arms for fast, easy installs; Ships with tile bridge
- UL1480 listing for air-handling (plenum) space installation

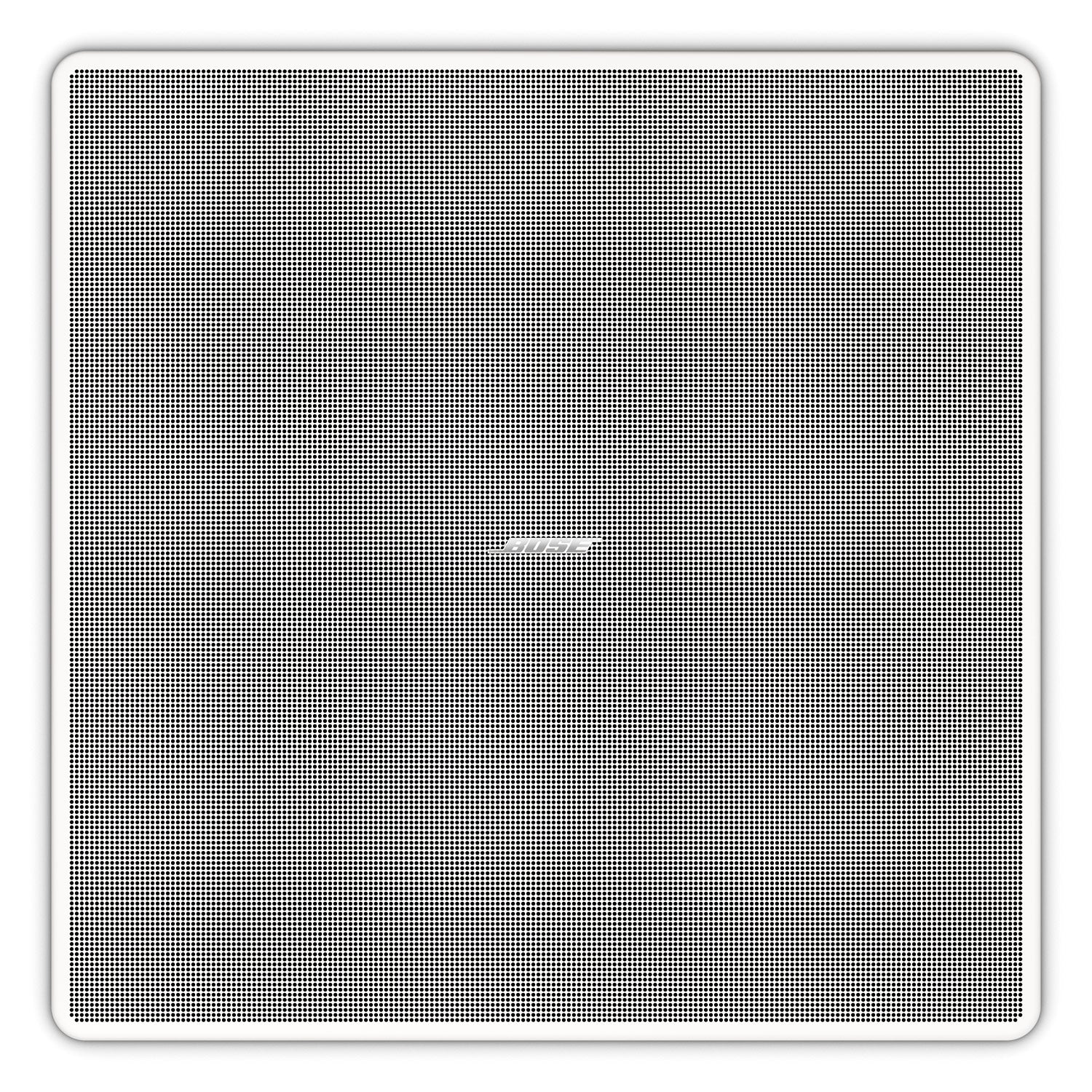

- Magnetically attached white grille for quick access to wiring and tap settings
- Black grille and rough-in pan accessories will be available
| Frequency Response (-3 dB) | 70 Ð 16,000 Hz |
| Frequency Range (-10 dB) | 60 Ð 18,000 Hz |
| Nominal Coverage Pattern | 180¡ H x asymetrical 75¡ V (-90¡ to -15¡ referenced to ceiling) |
| Power Handling, long-term continuous | Bose extended-lifecycle test: 125 W AES transducer test: 150 W |
| Power Handling, peak | Bose extended-lifecycle test: 500 W AES transducer test: 600 W |
| Sensitivity (SPL/ 1W @ 1 m) | Bose extended-lifecycle test: 94 dB AES transducer test: 94 dB |
| Calculated Maximum SPL @ 1 m | Bose extended-lifecycle test: 115 dB AES transducer test: 116 dB |
| Calculated Maximum SPL @ 1 m, peak | Bose extended-lifecycle test: 121 dB AES transducer test: 122 dB |
| Crossover | 1.0 kHz (passive 2-way crossover with integrated 70/100V transformer) |
| Loudspeaker EQ | Recommended but not required |
| Recommended high-pass protection | 70 Hz with minimum 12-dB / octave filter |
| Overload protection | Resistor-network power reduction with automatic reset |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass / 100V: 5, 10, 20, 40, 80 W, bypass |
| TRANSDUCERS | |
| Low Frequency | 1x 8-inch woofer (1.5-inch voice coil) |
| High Frequency | 1x compression driver (1.3-inch voice coil) |
| Nominal Impedance | 8 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered-plastics front ba e with integrated steel formed enclosure |
| Grille | Micro perforated steel, powder-coated nish, white |
| Environmental | Indoor only; UL-1480A listed for plenum-space installation |
| Connectors | Euro block 6-pin connector with loop-through, front-baffle mounted |
| Suspension / mounting | Four (4) auto-hold, spring-loaded mounting arms plus four (4) M6 safety cable tabs |
| Maximum ceiling thickness | 80 mm (3.2Ó) |
| Dimensions (H x W x D) | 339 x 339 x 249 mm (13.4Ó L x 13.4Ó W x 9.8Ó D) enclosure 390 x 390 x 13 mm (15.4Ó L x 15.4Ó W x 0.5Ó D) grille flange, as mounted |
| Ceiling cutout and clearance | 345 x 345mm (13.6Ó L x 13.6Ó W) with 236 mm (9.3Ó) mounting depth |
| Net Weight | 10.1 kg (22.2 lbs) with grille |
| Shipping Weight | 12.5 kg (29 lbs) |
| Accessories | Black grille, rough-in pan for new construction |
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology with high-frequency compression drivers to create a new category that combines the room- lling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Features:
- PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound
- EdgeMax EM90 provides nominal 90° horizontal coverage from room corners
- EdgeMax EM180 provides nominal 180° horizontal coverage from center ceiling-wall locations
- Full-frequency range 60 – 18,000 Hz (-10 dB)
- Maximum SPL up to 119 dB continuous and 125 dB peak
- 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
- Passive crossover with 8 Ω or 70/100V transformer taps
- New auto-hold, spring-loaded mounting arms for fast, easy installs; Ships with tile bridge
- UL1480 listing for air-handling (plenum) space installation
- Magnetically attached white grille for quick access to wiring and tap settings
- Black grille and rough-in pan accessories will be available
| Frequency Response (-3 dB) | 70 Ð 16,000 Hz |
| Frequency Range (-10 dB) | 60 Ð 18,000 Hz |
| Nominal Coverage Pattern | 180¡ H x asymetrical 75¡ V (-90¡ to -15¡ referenced to ceiling) |
| Power Handling, long-term continuous | Bose extended-lifecycle test: 125 W AES transducer test: 150 W |
| Power Handling, peak | Bose extended-lifecycle test: 500 W AES transducer test: 600 W |
| Sensitivity (SPL/ 1W @ 1 m) | Bose extended-lifecycle test: 94 dB AES transducer test: 94 dB |
| Calculated Maximum SPL @ 1 m | Bose extended-lifecycle test: 115 dB AES transducer test: 116 dB |
| Calculated Maximum SPL @ 1 m, peak | Bose extended-lifecycle test: 121 dB AES transducer test: 122 dB |
| Crossover | 1.0 kHz (passive 2-way crossover with integrated 70/100V transformer) |
| Loudspeaker EQ | Recommended but not required |
| Recommended high-pass protection | 70 Hz with minimum 12-dB / octave filter |
| Overload protection | Resistor-network power reduction with automatic reset |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40, 80 W, bypass / 100V: 5, 10, 20, 40, 80 W, bypass |
| TRANSDUCERS | |
| Low Frequency | 1x 8-inch woofer (1.5-inch voice coil) |
| High Frequency | 1x compression driver (1.3-inch voice coil) |
| Nominal Impedance | 8 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered-plastics front ba e with integrated steel formed enclosure |
| Grille | Micro perforated steel, powder-coated nish, white |
| Environmental | Indoor only; UL-1480A listed for plenum-space installation |
| Connectors | Euro block 6-pin connector with loop-through, front-baffle mounted |
| Suspension / mounting | Four (4) auto-hold, spring-loaded mounting arms plus four (4) M6 safety cable tabs |
| Maximum ceiling thickness | 80 mm (3.2Ó) |
| Dimensions (H x W x D) | 339 x 339 x 249 mm (13.4Ó L x 13.4Ó W x 9.8Ó D) enclosure 390 x 390 x 13 mm (15.4Ó L x 15.4Ó W x 0.5Ó D) grille flange, as mounted |
| Ceiling cutout and clearance | 345 x 345mm (13.6Ó L x 13.6Ó W) with 236 mm (9.3Ó) mounting depth |
| Net Weight | 10.1 kg (22.2 lbs) with grille |
| Shipping Weight | 12.5 kg (29 lbs) |
| Accessories | Black grille, rough-in pan for new construction |
