Bose EdgeMax EM90-LP - Premium Ceiling Loudspeaker with PhaseGuide Technology

EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Patented PhaseGuide® technology enables EdgeMax loudspeakers to project powerful, focused sound asymmetrically from the room's edges to the center.

New EdgeMax LP models feature an 80-degree vertical coverage angle for use in rooms with lower ceilings, and their shallow 4-inch backcan is ideal for spaces with above-ceiling limitations and tighter clearances. Larger rooms with higher SPL needs benefit from the powerful, deeper 9-inch cans and 75-degree vertical coverage of the original EdgeMax models.

EdgeMax models are purpose-built to provide specific horizontal coverage. The EM90-LP's 90-degree horizontal coverage angle is optimized for corner placement, with wall-boundary loading providing extended bass impact.

Integrators can mix and match original EdgeMax and new LP loudspeakers, particularly in challenging installations with varying space dimensions and above-ceiling obstructions.

Features:

• Patented PhaseGuide technology distributes sound asymmetrically throughout the space to ensure all listeners enjoy the same experience—regardless of their location
• In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound

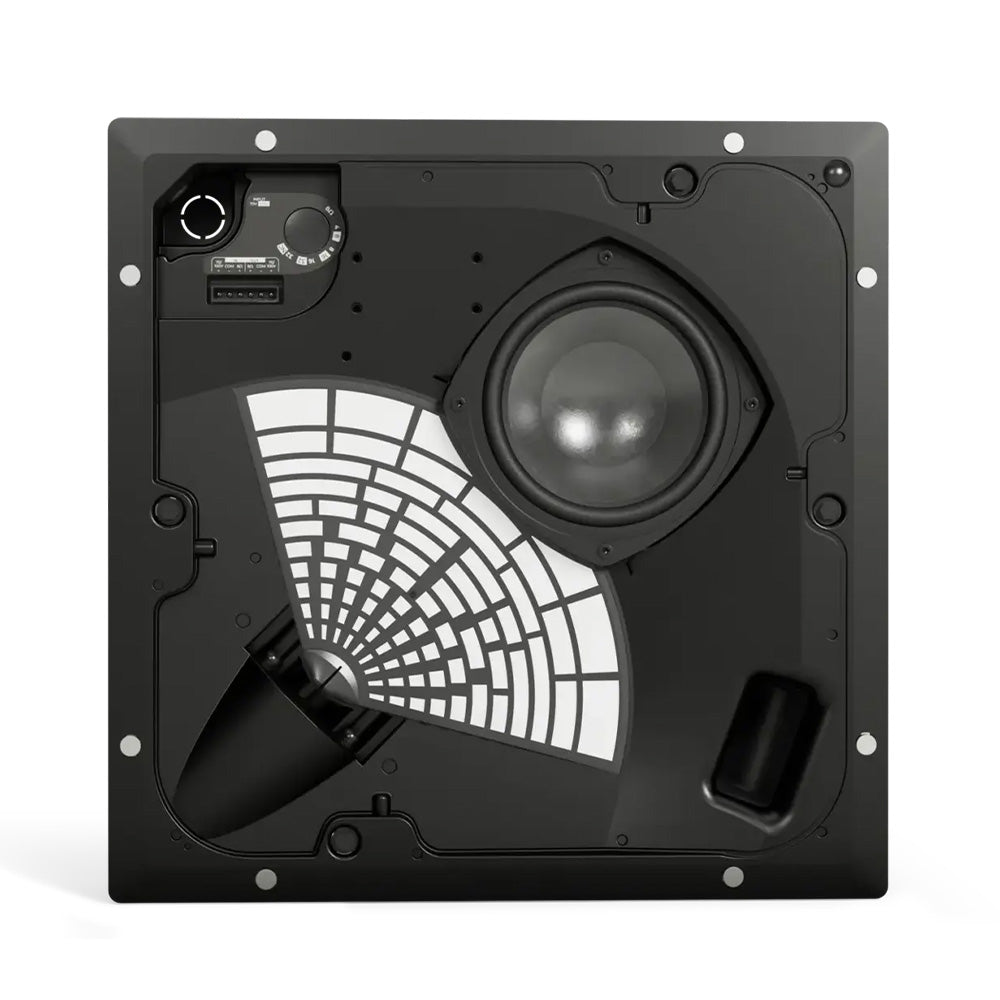

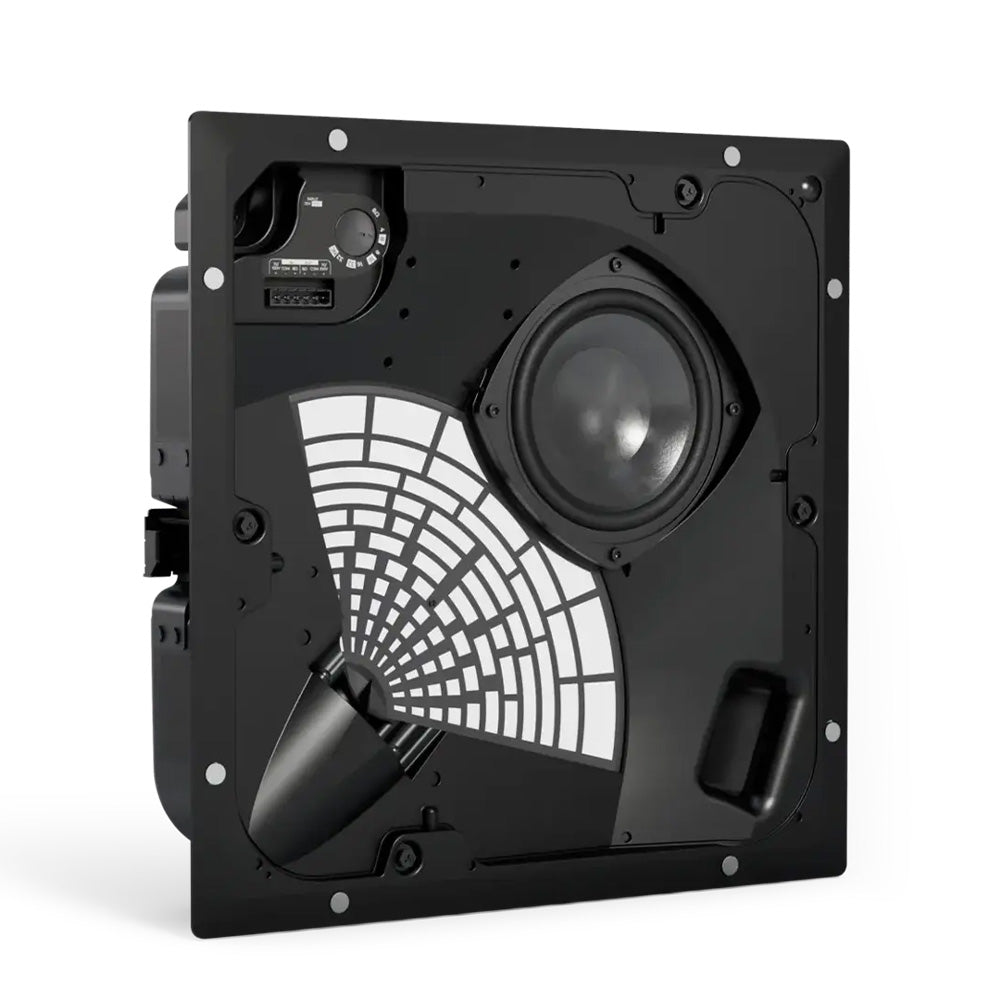

• High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
• In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
• Wall-boundary loading for greater bass response and performance
• 2-way passive crossover with bypassable 70/100V transformer
• Consistent voicing across the EdgeMax family

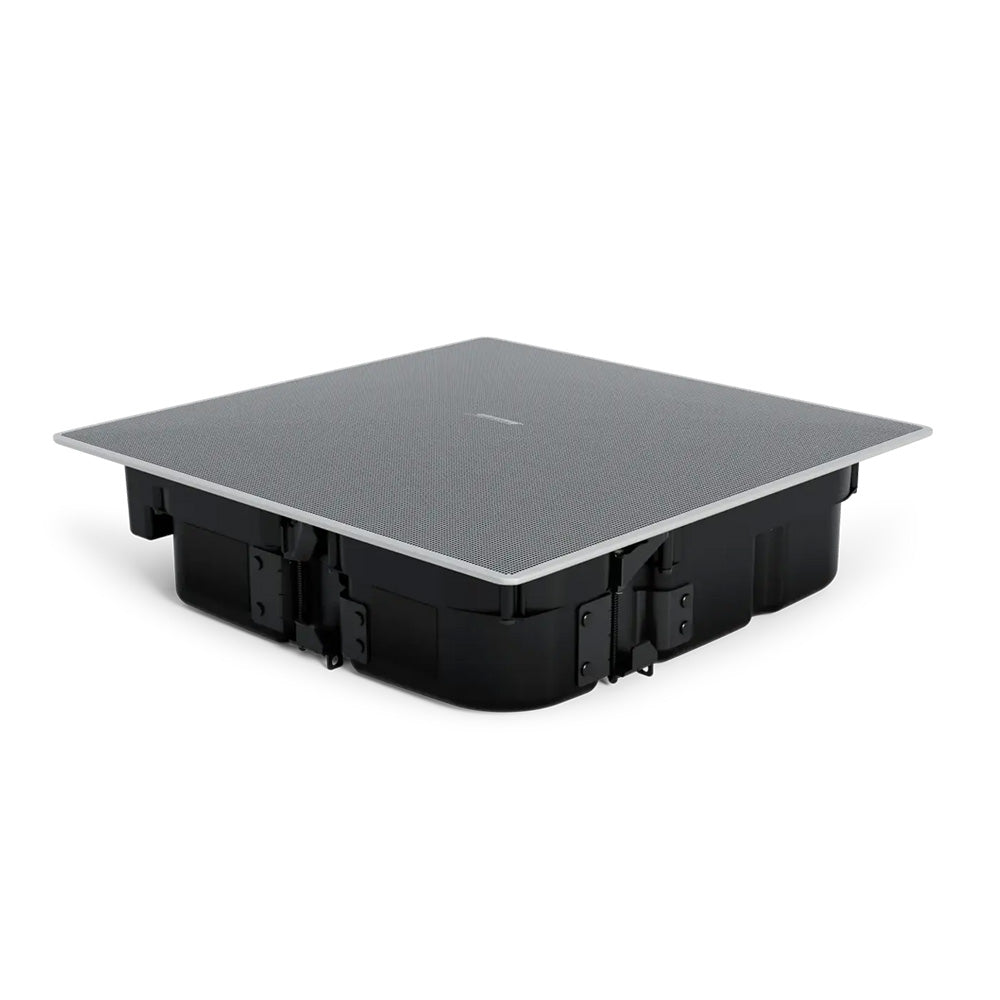

• QuickHold spring-loaded mounting system for easy installs

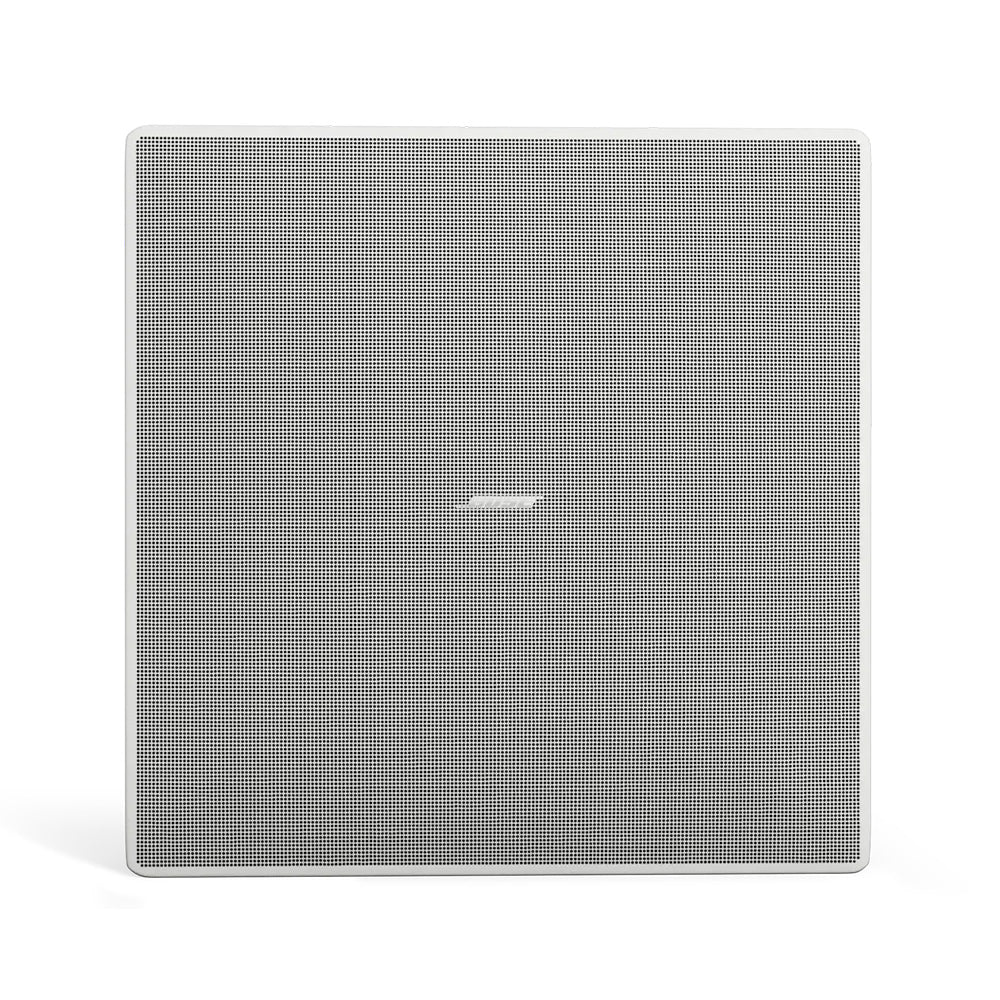

• Magnetically attached grille for quick access to wiring and tap settings

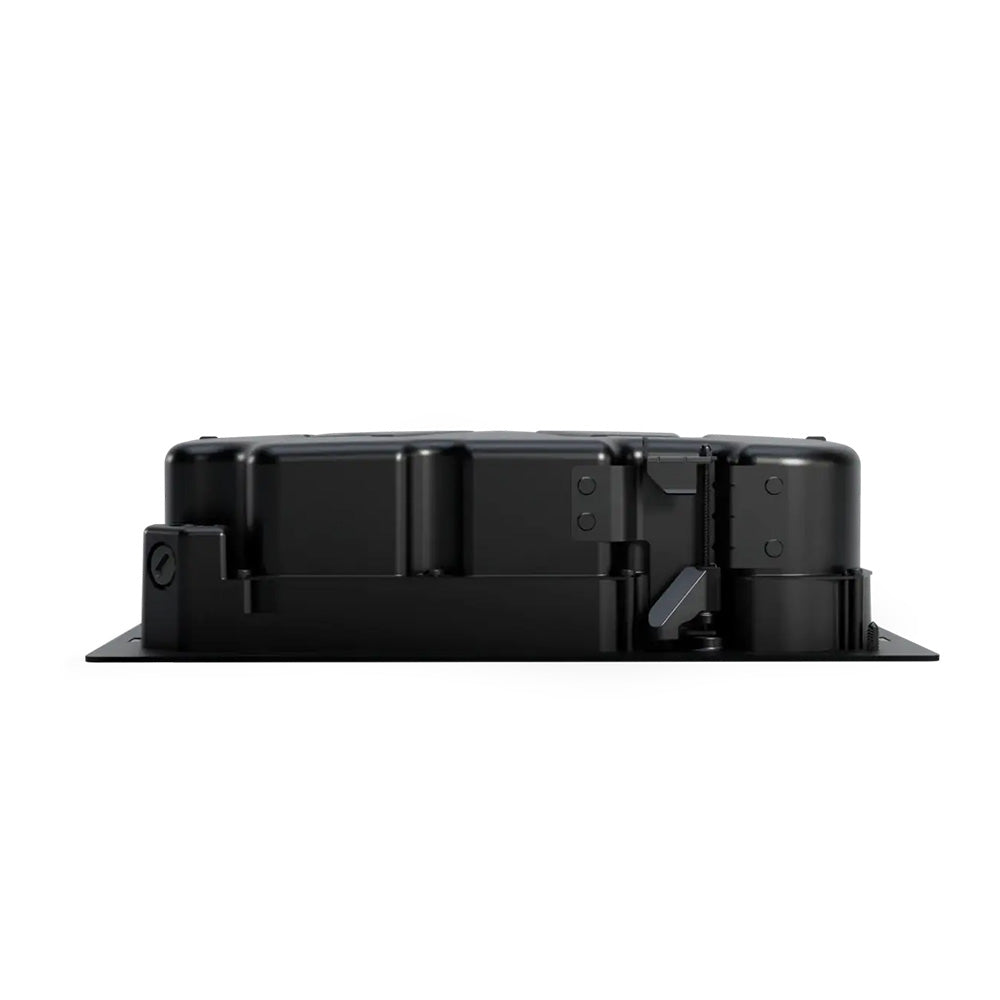

• Shallow 4-inch (10 cm) backcan height for rooms with above-ceiling limitations and tighter clearances
• 80-degree vertical coverage angle for use in rooms with lower ceilings
• UL 62368 and UL 2043 safety standard compliance

Applications:

• Conference rooms, halls, atriums or cafeterias
• Hospitality spaces with low ceiling clearance
• Restaurant
• Retail
• Retrofits with unknown ceiling clearance
