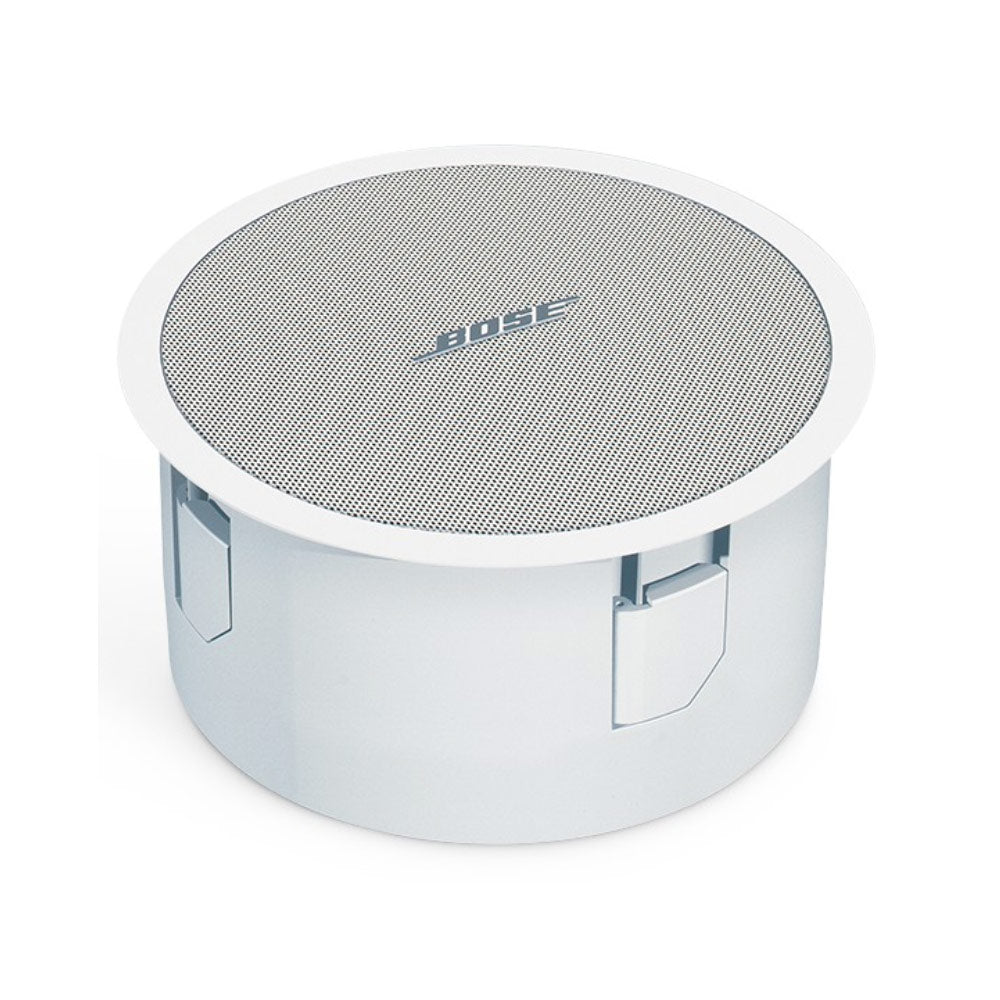

Bose FreeSpace 3 Flush-Mount Acoustimass Subwoofer - White
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Contact us
Bose FreeSpace 3 Flush-Mount Acoustimass Subwoofer - White
Sale price$339.00
Regular price$388.00
Description
The Bose FreeSpace Acoustimass Subwoofer is designed to provide flush-mount bass augmentation for new and existing background music systems. It features one 5.25 (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.
Features:- Low-frequency loudspeaker featuring one 5.25 (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications
- Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
- Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired
- Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
- Plenum rated for use in air handling spaces (with optional plenum cover)
- Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille
| System Performance | |
| Frequency Response (+/-3 dB) | 50 Hz - 230 kHz |
| Frequency Range (-10 dB) | 40 Hz - 315 kHz |
| Nominal Dispersion | Omni-directional below 200 Hz |
| Recommended High-Pass Filter | 40 Hz high-pass filter |
| Loudspeaker EQ | Recommended |
| Overload Protection | PTC |
| Long-Term Power Handling | 70/100 V: 200 W (800 W peak) mono Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono |
| Sensitivity (SPL / 1 W @ 1 m) | Per channel: 76 dB SPL (Mono: 79 dB SPL) |
| Maximum SPL @ 1 m | Per channel: 96 dB SPL (102 dB SPL peak) Mono: 102 dB SPL (108 dB SPL peak) |
| Nominal Impedance | 6 mono direct (transformer bypassed) |
| Transformer Taps (70/100 V) | 25 W, 50 W, 100 W, 200W |
| Transducers | |
| Driver Compliment | 5.25" (133 mm) dual voice coil low frequency driver |
| Physical | |
| Enclosure | PC/ABS |
| Grille | Expanded metal grille |
| Environmental | Indoor use only |
| Connectors | Multi-position screw-type barriers |
| Suspension / Mounting | Integral quick-install mounting features. Three mounting points at the rear of the housing for pendant mounting |
| Dimensions | Outer flange diameter: 15.4" (391 mm) Depth: 7.5" (190 mm) Ceiling hole diameter: 14.3" (362 mm) |
| Ceiling Thickness (Maximum) | 1.8" (48 mm) |
| Net Weight | 14 lb (6.4 kg) |
| Shipping Weight | 20 lb (9.1 kg) |
The Bose FreeSpace Acoustimass Subwoofer is designed to provide flush-mount bass augmentation for new and existing background music systems. It features one 5.25 (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.
Features:- Low-frequency loudspeaker featuring one 5.25 (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications
- Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
- Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired
- Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
- Plenum rated for use in air handling spaces (with optional plenum cover)
- Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille
| System Performance | |
| Frequency Response (+/-3 dB) | 50 Hz - 230 kHz |
| Frequency Range (-10 dB) | 40 Hz - 315 kHz |
| Nominal Dispersion | Omni-directional below 200 Hz |
| Recommended High-Pass Filter | 40 Hz high-pass filter |
| Loudspeaker EQ | Recommended |
| Overload Protection | PTC |
| Long-Term Power Handling | 70/100 V: 200 W (800 W peak) mono Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono |
| Sensitivity (SPL / 1 W @ 1 m) | Per channel: 76 dB SPL (Mono: 79 dB SPL) |
| Maximum SPL @ 1 m | Per channel: 96 dB SPL (102 dB SPL peak) Mono: 102 dB SPL (108 dB SPL peak) |
| Nominal Impedance | 6 mono direct (transformer bypassed) |
| Transformer Taps (70/100 V) | 25 W, 50 W, 100 W, 200W |
| Transducers | |
| Driver Compliment | 5.25" (133 mm) dual voice coil low frequency driver |
| Physical | |
| Enclosure | PC/ABS |
| Grille | Expanded metal grille |
| Environmental | Indoor use only |
| Connectors | Multi-position screw-type barriers |
| Suspension / Mounting | Integral quick-install mounting features. Three mounting points at the rear of the housing for pendant mounting |
| Dimensions | Outer flange diameter: 15.4" (391 mm) Depth: 7.5" (190 mm) Ceiling hole diameter: 14.3" (362 mm) |
| Ceiling Thickness (Maximum) | 1.8" (48 mm) |
| Net Weight | 14 lb (6.4 kg) |
| Shipping Weight | 20 lb (9.1 kg) |
