Description

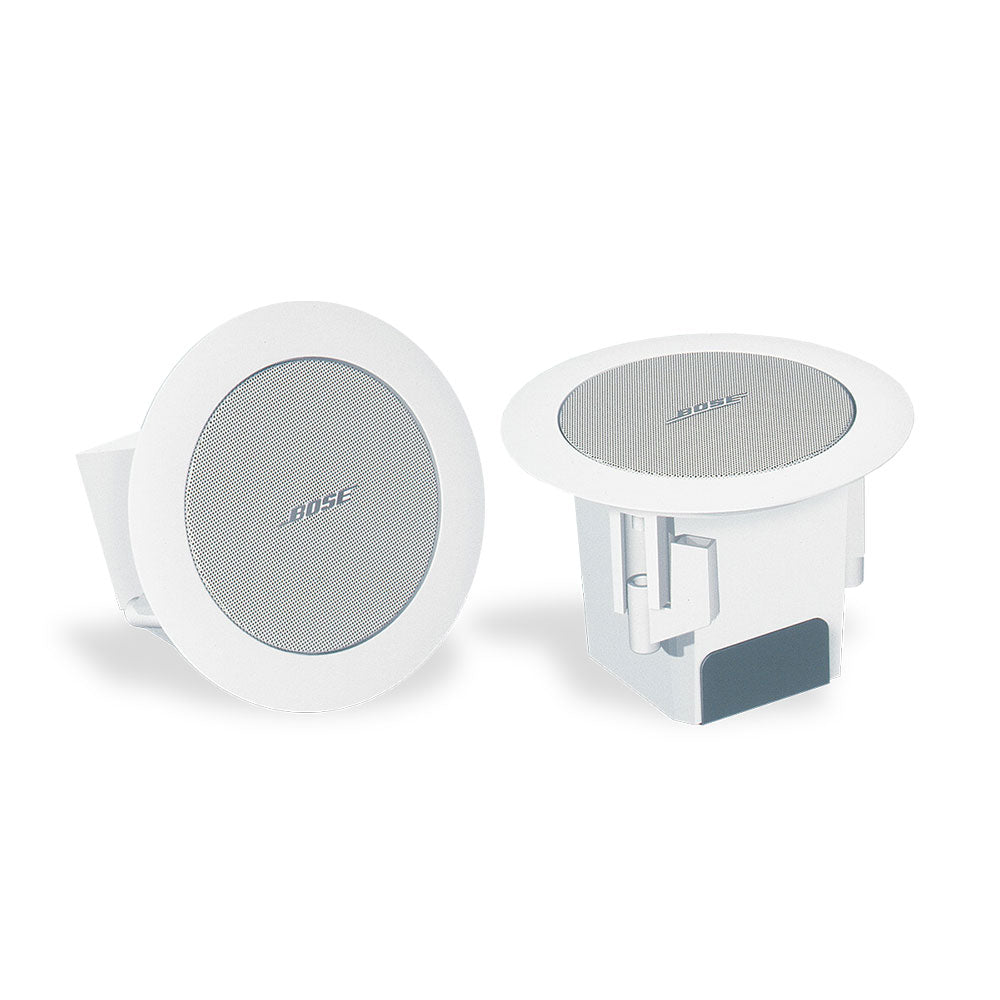

The Bose® FreeSpace® 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.
For indoor applications only.
Features:
- Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
- Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
- Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
- Flush-mount components are plenum rated when used with the optional plenum cover
- Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
- Can be configured for stereo or mono operation
Applications:
- Retail stores
- Restaurants and bars
- Lobbies and conference rooms
| Frequency Response (+/-3 dB) | 50 Hz - 16 kHz (System) 210 Hz - 16 kHz (Satellites) |
| Frequency Range (-10 dB) | 40 Hz - 20 kHz (System) 170 Hz - 20 kH z (Satellites) |
| Nominal Dispersion | 170 deg. conical |
| Long-Term Power Handling | System: 70/100 V: 200 W (800 W peak) System Low impedance: 100 W (400 W peak) Satellites: 12W (48W Peak) |
| Sensitivity (SPL / 1 W @ 1 m) | 82 dB SPL (System) 84 dB SPL (Satellites) |
| Maximum SPL @ 1 m | System: 93 dB (99 dB SPL peak in a 45,000 ft_ room, with RT60 of 1 second, +/- 3 dB) Satellites : 95 dB (101 dB SPL peak) |
| Nominal Impedance | 4-Cube System: 6 ohm per channel 2-Cube System: 5 ohm per channel (surface); 6 ohm per channel (flush) |
The Bose® FreeSpace® 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music.
For indoor applications only.
Features:
- Subwoofer/satellite systems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations
- Modular design supports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules
- Mix and match surface-mount and flush-mount components to work with different room decors and layouts for a variety of applications
- Flush-mount components are plenum rated when used with the optional plenum cover
- Selectable 70/100V or low impedance with transformer tap adjustment on Acoustimass bass module
- Can be configured for stereo or mono operation
Applications:
- Retail stores
- Restaurants and bars
- Lobbies and conference rooms
| Frequency Response (+/-3 dB) | 50 Hz - 16 kHz (System) 210 Hz - 16 kHz (Satellites) |
| Frequency Range (-10 dB) | 40 Hz - 20 kHz (System) 170 Hz - 20 kH z (Satellites) |
| Nominal Dispersion | 170 deg. conical |
| Long-Term Power Handling | System: 70/100 V: 200 W (800 W peak) System Low impedance: 100 W (400 W peak) Satellites: 12W (48W Peak) |
| Sensitivity (SPL / 1 W @ 1 m) | 82 dB SPL (System) 84 dB SPL (Satellites) |
| Maximum SPL @ 1 m | System: 93 dB (99 dB SPL peak in a 45,000 ft_ room, with RT60 of 1 second, +/- 3 dB) Satellites : 95 dB (101 dB SPL peak) |
| Nominal Impedance | 4-Cube System: 6 ohm per channel 2-Cube System: 5 ohm per channel (surface); 6 ohm per channel (flush) |
