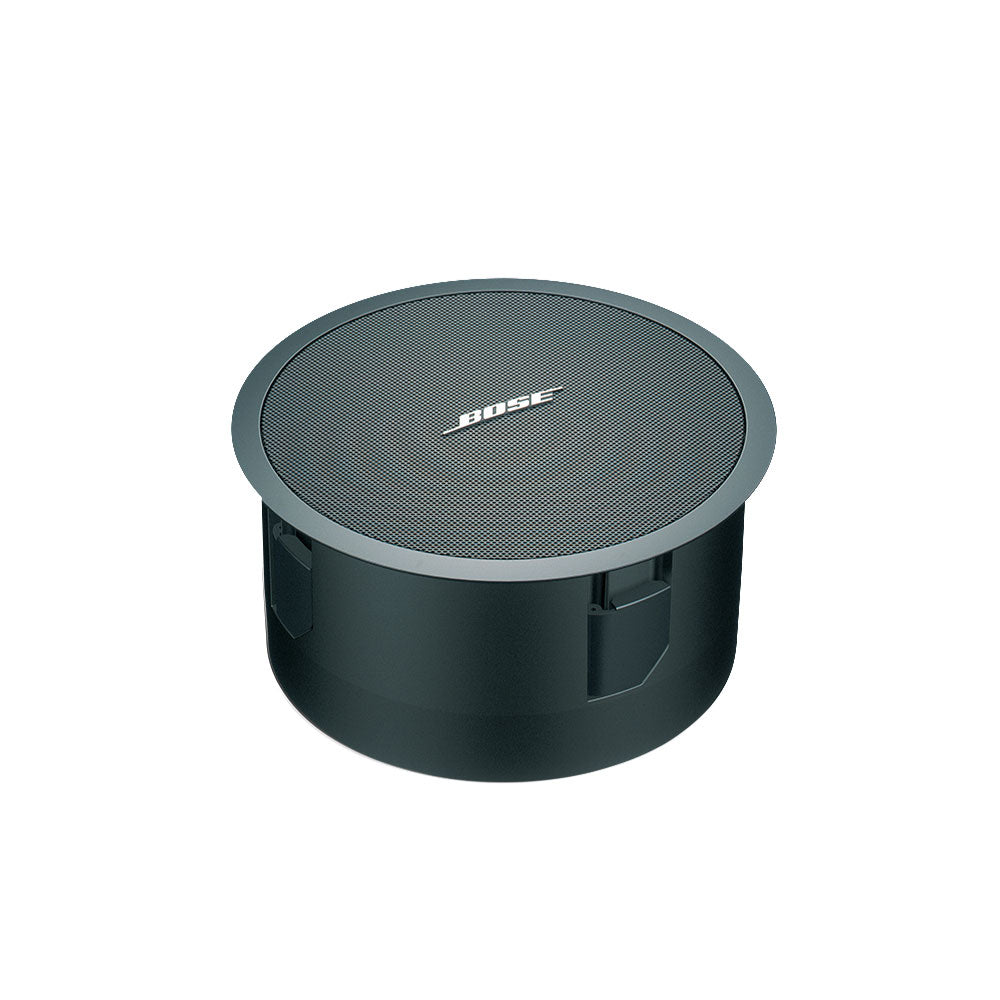

Bose FreeSpace 3 Series II Flush-Mount Acoustimass Module (Black)


  • Dale #:

    BOSE-8430900110
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion. For indoor applications only. Features: Low-frequency loudspeaker featuring one 5.25" (133 mm) wo... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed to provide flush-mount bass augmentation for new and existing background music systems. Features one 5.25" (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.

For indoor applications only.

Features:

  • Low-frequency loudspeaker featuring one 5.25" (133 mm) woofer that delivers deep, non-localized bass support down to 40 Hz without audible distortion. For flush, ceiling, pendant and wall-mount applications
  • Acoustimass speaker technology filters out audible distortion to deliver non-localized bass
  • Designed to work with the FreeSpace 3 flush and surface satellite speakers, or existing systems where additional bass reinforcement is desired
  • Module design allows parallel connection of multiple bass modules and can accommodate two or four FreeSpace 3 satellites per bass module
  • Plenum rated for use in air handling spaces (with optional plenum cover)
  • Selectable 70/100V or low impedance with transformer tap adjustment under speaker grille

Applications:

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms

More +

Product Specs

Frequency Response (+/-3 dB) 50 Hz - 230 kHz
Frequency Range (-10 dB) 40 Hz - 315 Hz
Nominal Dispersion Omni-directional below 200 Hz
Long-Term Power Handling 70/100 V: 200 W (800 W peak) mono
Low impedance: 50 W (200 W peak) per channel stereo or 100 W (400 W peak) mono
Sensitivity (SPL / 1 W @ 1 m) Per channel: 76 dB SPL (Mono: 79 dB SPL)
Maximum SPL @ 1 m Per channel: 96 dB SPL (102 dB SPL peak)
Mono: 102 dB SPL (108 dB SPL peak)
Nominal Impedance 6 ohm mono direct (transformer bypassed)

More +
