Description

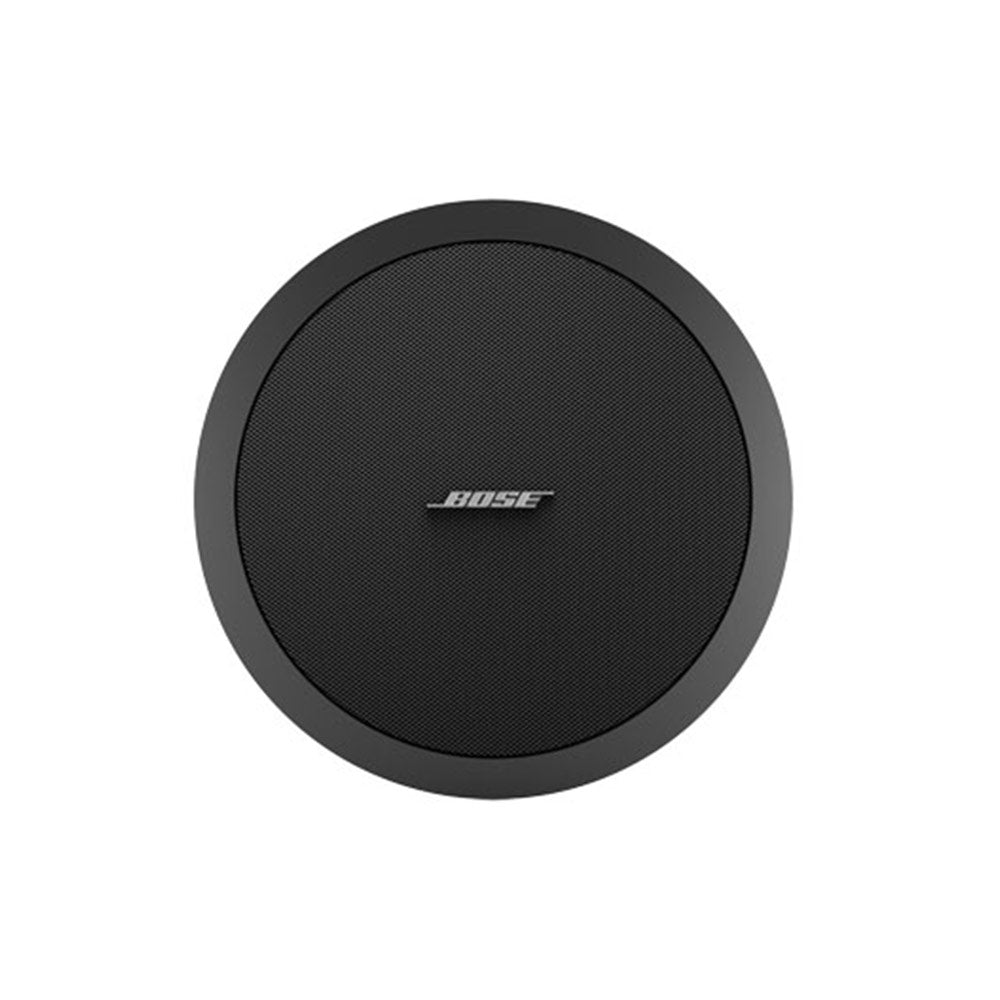

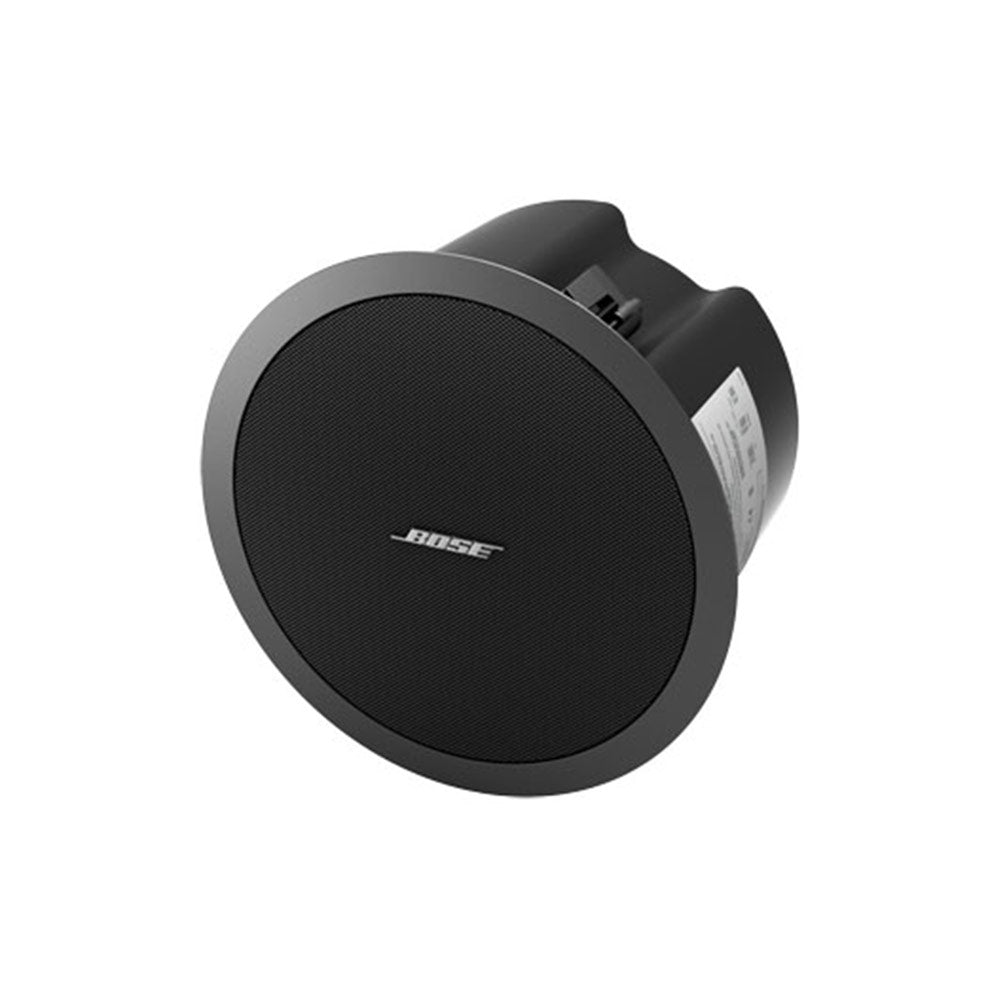

Premier high-performance, extended-range, flush-mount loudspeaker designed for foreground music and speech reproduction in a wide range of installed applications. High output and wide, 160° conical pattern with a frequency range down to 60 Hz. For indoor applications only.
Features:
- Extended-range, high output loudspeaker with a single 2.25 (57 mm) Twiddler® driver and 5.25 (133 mm) woofer in ported enclosure to deliver a 160° conical coverage pattern for flush-ceiling or pendant-mount applications in ceilings up to 32 ft (10 m) high
- Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille
- Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
- Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille
Frequency Response (+/-3 dB) | 75 Hz - 18 kHz |
Frequency Range (-10 dB)Ê | 60 Hz - 20 kHz |
Nominal DispersionÊ | 160¡ conical |
Long-Term Power Handling | 100 W (400 W peak) |
Sensitivity (SPL / 1 W @ 1 m) | 85 dB SPL |
Maximum SPL @ 1 mÊ | 105 dB SPL (111 dB SPL peak) |
Nominal ImpedanceÊ | 8 (transformer bypassed) |
Enclosure | Polypropylene (front baffle), powder-coated steel (rear enclosure) |
Environmental | Indoor use only |
Connectors | Three-terminal barrier strip. Optional accessory available for use when ceramic connector and thermal fuse are required. Wire gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm) |

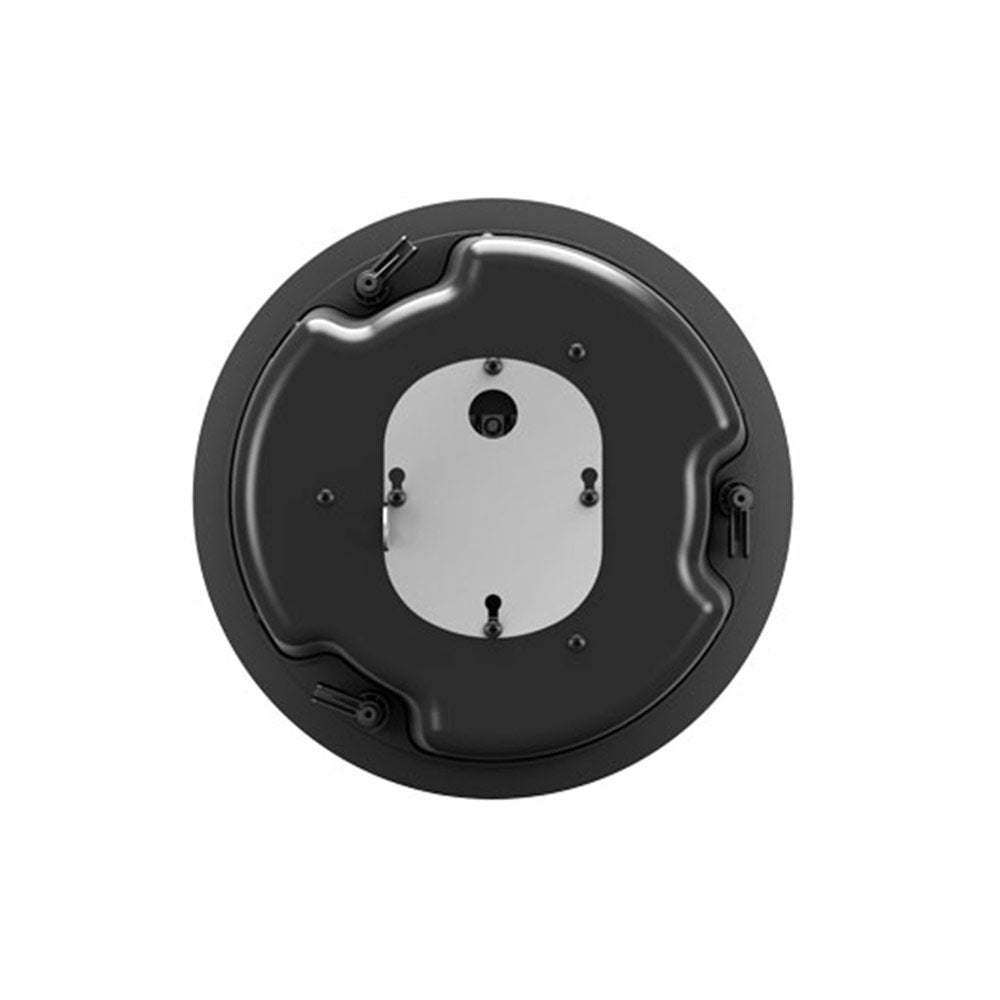

Suspension / Mounting | Three integrated quick-install mounting arms. Three mounting points at the rear of the enclosure for use with optional accessory pendant mount kit. Safety cable attachment: .35 (8.9 mm) diameter hole on junction box |
Dimensions | Outer flange diameter: 11.8 (299 mm) Depth: 8.2 (210 mm) Ceiling hole diameter: 10.5 (267 mm) |
Net Weight | 13.0 lb (5.9 kg) |
Color | Black,ÊWhite,ÊPaintable |
Package Contents | 1 loudspeaker |
