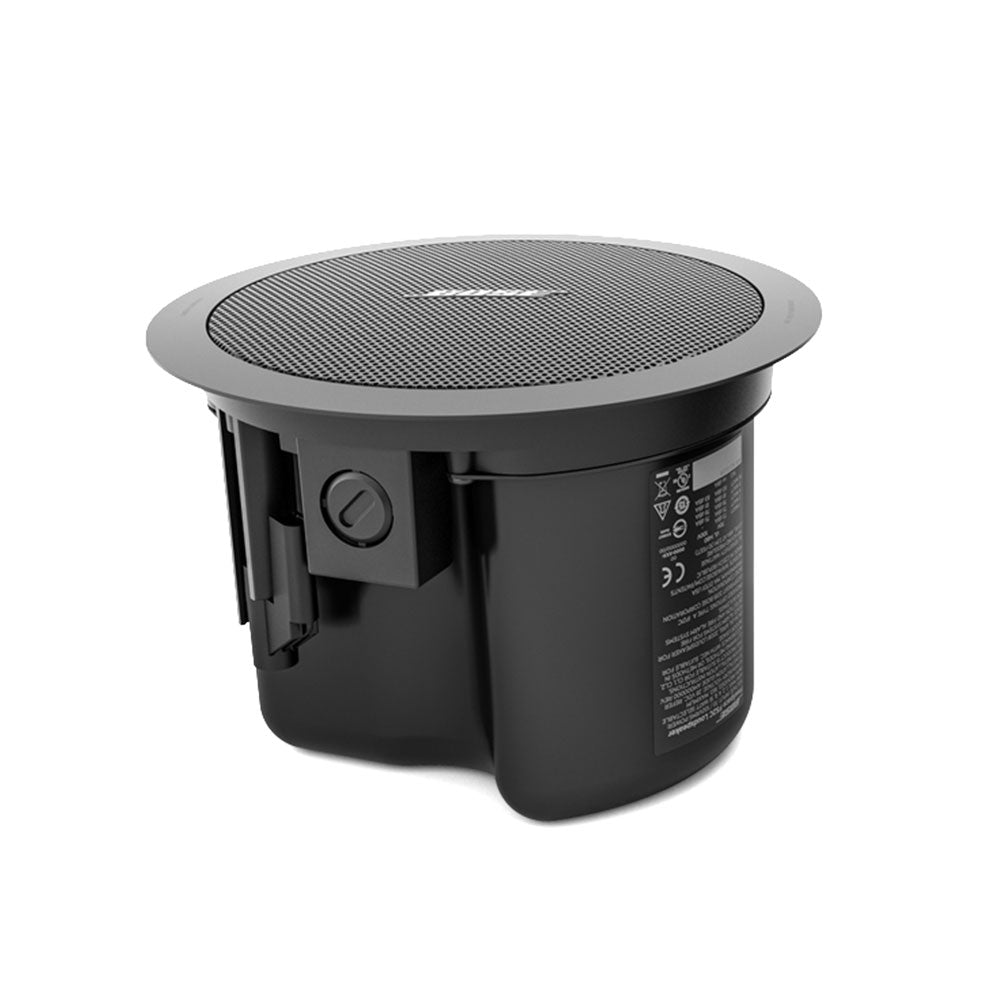

Bose FreeSpace FS2C - In-Ceiling Install Loudspeaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose FreeSpace FS2C - In-Ceiling Install Loudspeaker (Black)
Sale price$278.00
Description
The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation
- Front baffle-mounted tap settings and front-baffle audio connections
- Pick your power - FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - ?with transducers that offer clear voice reproduction and smooth response for background music
- Bring quality sound to more places
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - ?all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 95 - 16,000 Hz |
| Frequency Range (-10 dB) | 83 - 19,000 Hz |
| Nominal Coverage Angle (H x V) (1 - 4 kHz) | 150deg. |
| Nominal Coverage (H x V) (1 - 10 kHz) | 145deg. |
| Power Handling, Long-term Continuous | AES transducer test: 20 W Bose extended-lifecycle test: 16 W |
| Power Handling, Peak | AES transducer test: 80 W Bose extended-lifecycle test: 64 W |
| Sensitivity SPL/1W @ 1 m | AES transducer test: 86 dB Bose extended-lifecycle test: 86 dB |
| Calculated Maximum SPL @ 1 m | AES transducer test: 99 dB Bose extended-lifecycle test: 98 dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test: 105 dB Bose extended-lifecycle test: 104 dB |
| Loudspeaker EQ | No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings document on pro.bose.com for details |
| Recommended High-Pass Protection | 85 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 1, 2, 4, 8, 16 W, bypass 100V: 2, 4, 8, 16 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 x 2.25-inch woofer (57 mm) |
| Nominal Impedance | 16 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Color | Black (similar to Ral 9005), White (similar to Ral 9003) |
| Environmental | Indoor only, suitable for use in plenum locations |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, Refer to FS2SE EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 Equilization required for EN54-24 use. |
| Operating Temperature Range | 0 deg.C to 50 deg.C (32 deg.F to 122 deg.F) |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
| Wire/Conduit Entry | Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in) conduit and fittings |
| Suspension/Mounting | Two (2) standard mounting arms plus one (1) safety cable tab |
| Maximum Ceiling Thickness | 38 mm (1.5 in) |
| Product Dimensions (Baffle Diameter x Depth) | 182 x 132 mm (7.2 x 5.2 in) |
| Backcan Dimensions | 127 x 125 mm (5.0 x 4.9 in) |
| Ceiling Cutout | 160 mm (6.3 in) |
| Net Weight, Loudspeaker with Grille (Single) | 1.63 kg (3.6 lb) |
| Shipping Weight (Pair) | 4.4 kg (9.7 lb) |
| Included Accessories | Each FS2C includes one (1) cutout template per box |
| Optional Accessories | Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in kit (6-pack), Retrofit Kit (2-pack), Ceramic terminal w/ Fuse kit |
The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm, and 70/100V operation
- Front baffle-mounted tap settings and front-baffle audio connections
- Pick your power - FS2 models feature a 2.25-inch full-range transducer, low frequency down to 83 Hz, 16-ohm and 70/100V operation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - ?with transducers that offer clear voice reproduction and smooth response for background music
- Bring quality sound to more places
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - ?all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 95 - 16,000 Hz |
| Frequency Range (-10 dB) | 83 - 19,000 Hz |
| Nominal Coverage Angle (H x V) (1 - 4 kHz) | 150deg. |
| Nominal Coverage (H x V) (1 - 10 kHz) | 145deg. |
| Power Handling, Long-term Continuous | AES transducer test: 20 W Bose extended-lifecycle test: 16 W |
| Power Handling, Peak | AES transducer test: 80 W Bose extended-lifecycle test: 64 W |
| Sensitivity SPL/1W @ 1 m | AES transducer test: 86 dB Bose extended-lifecycle test: 86 dB |
| Calculated Maximum SPL @ 1 m | AES transducer test: 99 dB Bose extended-lifecycle test: 98 dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test: 105 dB Bose extended-lifecycle test: 104 dB |
| Loudspeaker EQ | No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass available. EN54-24 Equalization is required for EN54-24 use; refer to FS2P EN54-24 Certified ratings document on pro.bose.com for details |
| Recommended High-Pass Protection | 85 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 1, 2, 4, 8, 16 W, bypass 100V: 2, 4, 8, 16 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 x 2.25-inch woofer (57 mm) |
| Nominal Impedance | 16 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Grille | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Color | Black (similar to Ral 9005), White (similar to Ral 9003) |
| Environmental | Indoor only, suitable for use in plenum locations |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, Refer to FS2SE EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 Equilization required for EN54-24 use. |
| Operating Temperature Range | 0 deg.C to 50 deg.C (32 deg.F to 122 deg.F) |
| Connectors | Euroblock 6-pin connector with loop-through, front-baffle mounted Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. |
| Wire/Conduit Entry | Top and side wire entry-point 12.7 mm (1/2 in) knockouts allow for 9.5 mm (3/8 in) conduit and fittings |
| Suspension/Mounting | Two (2) standard mounting arms plus one (1) safety cable tab |
| Maximum Ceiling Thickness | 38 mm (1.5 in) |
| Product Dimensions (Baffle Diameter x Depth) | 182 x 132 mm (7.2 x 5.2 in) |
| Backcan Dimensions | 127 x 125 mm (5.0 x 4.9 in) |
| Ceiling Cutout | 160 mm (6.3 in) |
| Net Weight, Loudspeaker with Grille (Single) | 1.63 kg (3.6 lb) |
| Shipping Weight (Pair) | 4.4 kg (9.7 lb) |
| Included Accessories | Each FS2C includes one (1) cutout template per box |
| Optional Accessories | Adjustable Tile Bridge (6-pack), DesignMax DM2CRI Rough-in kit (6-pack), Retrofit Kit (2-pack), Ceramic terminal w/ Fuse kit |
