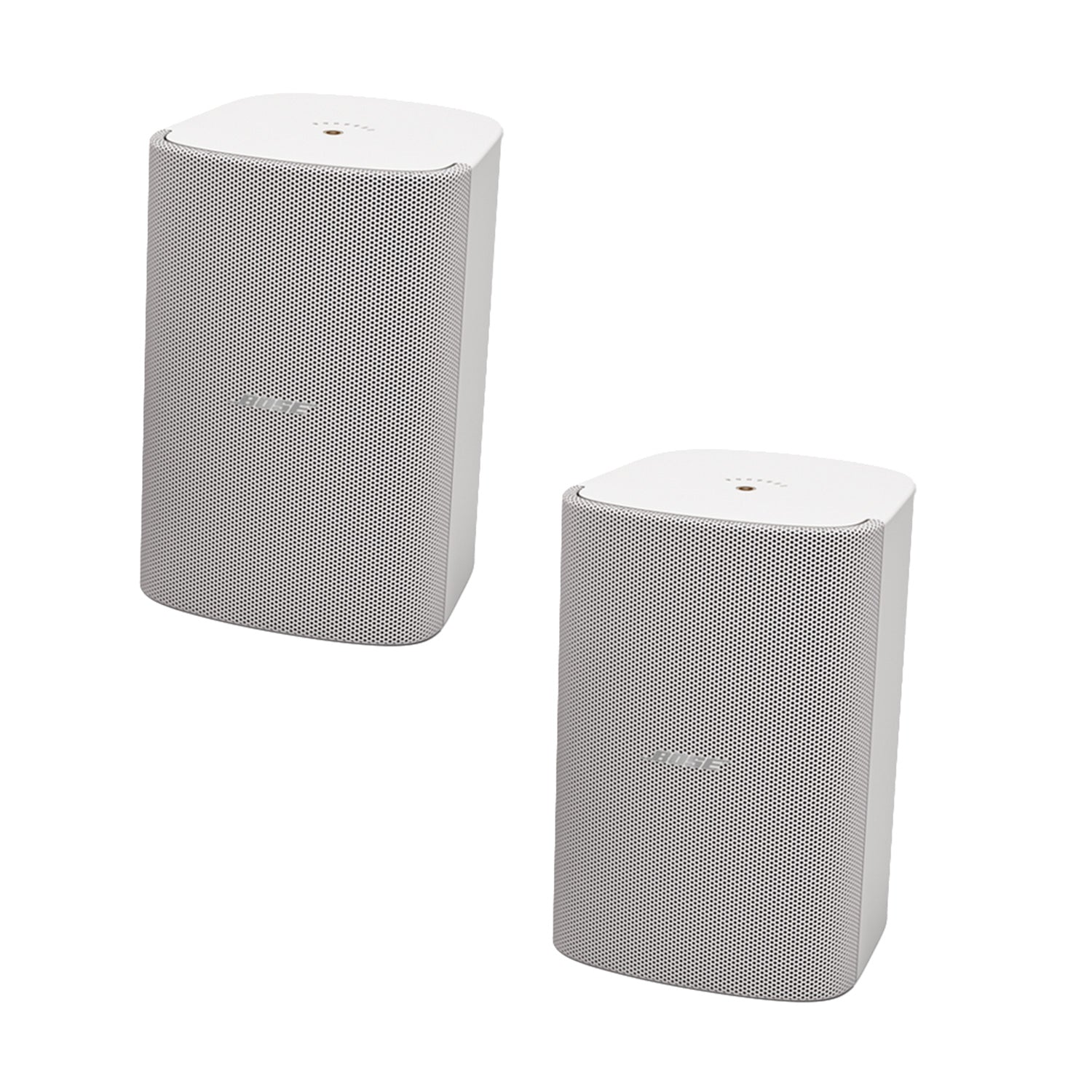

Bose FreeSpace FS4SE - 2-Way Compact Surface Mount Loudspeaker (White / Pair)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bose Professional sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Bring quality sound to more places with the FS4SE - rated for outdoor, wet installations
| PHYSICAL | |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003) |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Grille | Steel, powder-coated finish |
| Ingress Protection | IP55 |
| Logo | Rotatable, removable |
| Net Weight | 6.8 lb (3.1 kg), loudspeaker with grille / bracket (single) |
| Operating Temperature Range | -25 ¡C to 70 ¡C (-13 ¡F to 158 ¡F) |
| Product Dimensions (HxWxD) | 10.0 in x 6.7 in x 6.8 in (254 mm x 171 mm x 174 mm), loudspeaker / 10.7 in x 6.7 in x 7.7 in (273 mm x 171 mm x 196 mm), loudspeaker with bracket |
| Shipping Weight | 18.4 lb (8.3 kg). pair |
| COMPLIANCE | |
| EN 54-24 Certified | Yes |
| Safety Agency Ratings | EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 / NFPA 72; CSA C22.1 Section 32 |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 70 Ð 17,000 Hz |
| Coverage, Horizontal | 130¡ |
| Coverage, Vertical | 125¡ |
| Calculated Maximum SPL @ 1 m | 105 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 40 W |
| Power Handling, Peak | 160 W |
| Sensitivity (SPL/1 W at 1 m) | 89 dB |
| Transformer Taps, 100V | 5, 10, 20, 40 W, bypass |
| Transformer Taps, 70V | 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass |
| TRANSDUCERS | |
| Driver Protection | Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter |
| Low-Frequency | 1 x 4.5 in (114 mm) woofer |
| Product codes | 841155-0310 FREESPACE FS4SE PAIR BLK 841155-0410 FREESPACE FS4SE PAIR WHT 841155-0320 FREESPACE FS4SE PAIR BLK (NEW) 841155-0420 FREESPACE FS4SE PAIR WHT (NEW) |
| Included in Packaging | (2) logos (2) weather-resistant input covers |
The Bose Professional sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix-and-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
- Bring quality sound to more places with the FS4SE - rated for outdoor, wet installations
| PHYSICAL | |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003) |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Grille | Steel, powder-coated finish |
| Ingress Protection | IP55 |
| Logo | Rotatable, removable |
| Net Weight | 6.8 lb (3.1 kg), loudspeaker with grille / bracket (single) |
| Operating Temperature Range | -25 ¡C to 70 ¡C (-13 ¡F to 158 ¡F) |
| Product Dimensions (HxWxD) | 10.0 in x 6.7 in x 6.8 in (254 mm x 171 mm x 174 mm), loudspeaker / 10.7 in x 6.7 in x 7.7 in (273 mm x 171 mm x 196 mm), loudspeaker with bracket |
| Shipping Weight | 18.4 lb (8.3 kg). pair |
| COMPLIANCE | |
| EN 54-24 Certified | Yes |
| Safety Agency Ratings | EN 54-24: 2008 for Voice Alarm Systems; UL 1480(A); NFPA 70 / NFPA 72; CSA C22.1 Section 32 |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 70 Ð 17,000 Hz |
| Coverage, Horizontal | 130¡ |
| Coverage, Vertical | 125¡ |
| Calculated Maximum SPL @ 1 m | 105 dB |
| Nominal Impedance | 8 ½ (transformer bypass) |
| Power Handling, long-term continuous | 40 W |
| Power Handling, Peak | 160 W |
| Sensitivity (SPL/1 W at 1 m) | 89 dB |
| Transformer Taps, 100V | 5, 10, 20, 40 W, bypass |
| Transformer Taps, 70V | 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass |
| TRANSDUCERS | |
| Driver Protection | Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter |
| Low-Frequency | 1 x 4.5 in (114 mm) woofer |
| Product codes | 841155-0310 FREESPACE FS4SE PAIR BLK 841155-0410 FREESPACE FS4SE PAIR WHT 841155-0320 FREESPACE FS4SE PAIR BLK (NEW) 841155-0420 FREESPACE FS4SE PAIR WHT (NEW) |
| Included in Packaging | (2) logos (2) weather-resistant input covers |
