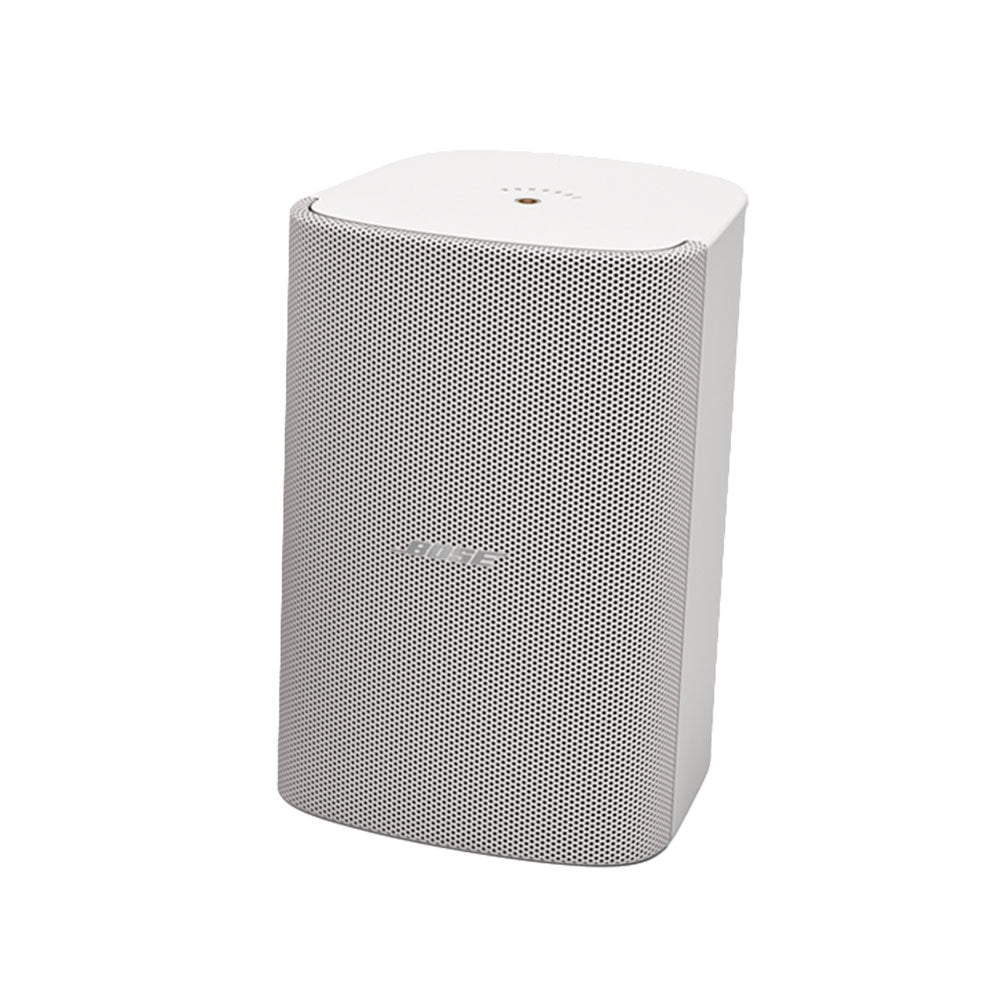

Bose FreeSpace FS4SE - Surface Mount Install Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Bose FreeSpace FS4SE - Surface Mount Install Loudspeaker (White)
Sale price$620.00
Description
The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
- Handles the weather, designed for outdoor wet installation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 80 - 16,000 Hz |
| Frequency Range (-10 dB) | 70 - 17,000 Hz |
| Nominal Coverage Angle (H x V) (1 - 4 kHz) | 130deg. x 125deg. |
| Nominal Coverage (H x V) (1 - 10 kHz) | 105deg. x 100deg. |
| Power Handling, Long-term Continuous | AES transducer test: 50 W Bose extended-lifecycle test: 40 W |
| Power Handling, Peak | AES transducer test: 200 W Bose extended-lifecycle test: 160 W |
| Sensitivity SPL/1W @ 1 m | AES transducer test: 89 dB Bose extended-lifecycle test: 89 dB |
| Calculated Maximum SPL @ 1 m | AES transducer test: 106 dB Bose extended-lifecycle test: 105 dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test: 112 dB Bose extended-lifecycle test: 111 dB |
| Loudspeaker EQ | Not required, Bose EQ voicing and SmartBass available |
| Recommended High-Pass Protection | 70 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40 W, bypass 100V: 5, 10, 20, 40 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 x 4.5-inch woofer (114 mm) |
| Nominal Impedance | 8 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Bracket Material | Powder-coated steel |
| Grille | Perforated steel, powder-coated finish, tamper-resistant design |
| Logo | Rotatable, removable |
| Color | Black (similar to Ral 9005), White (similar to Ral 9003) |
| Environmental/Ingress Protection | Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available. |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, Refer to FS2SE EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 Equilization required for EN54-24 use. |
| Operating Temperature Range | -25 deg.C to 70 deg.C (-13 deg.F to 158 deg.F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. Includes input cover. |
| Suspension/Mounting | External U-bracket with bracket screws 7 preset mounting angles: 0deg., +15deg., +30deg., or +45deg. for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional Ceiling Mount Ceiling Mount Bracket S2, DMSBRKT pan-and-tilt bracket Safety cable can be used with either of two (2) rear M6 inserts when using included U-bracket, or with either of two (2) side M5 inserts, when using optional brackets |
| Dimensions (H x W x D) | 254 x 171 x 174 mm (10.0 x 6.7 x 6.8 in) |
| Dimensions with Bracket (H x W x D) | 273 x 171 x 196 mm (10.7 x 6.7 x 7.7 in) |
| Net Weight, Loudspeaker with Grille and Bracket (Single) | 3.08 kg (6.80 lb) |
| Shipping Weight (Pair) | 8.32 kg (18.35 lb) |
| Included Accessories | Each FS4SE includes one (1) Bose logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover |
| Optional Accessories | Aluminum Grille kit (2-pack), WBPWR-50 pan-and-tilt bracket (for outdoors), RMUBRKT1 pan-and-tilt bracket (for indoors), Ceiling Mount Bracket S2, Ceramic Terminal and Thermal Fuse Kit (10-pack) |
The Bose sound quality you expect. The improvements you need. FreeSpace FS loudspeakers are the next step of our widely trusted line of in-ceiling and surface-mount loudspeakers, offering significant upgrades in durability, design, and ease of installation - all with remarkably consistent tonality. Engineered for high-quality performance in both background music and voice announcement applications, FS loudspeakers are ideal for almost any commercial space. The line includes five loudspeakers, two distinct levels of sound, new mounting options, and a modern aesthetic to match. For those seeking consistent, quality installed sound, FreeSpace FS loudspeakers are the perfect mix of performance and value.
Features:
- Full-range 4.5-inch transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
- Handles the weather, designed for outdoor wet installation
- Maintain consistent tonal quality with shared voicing across all FS models
- Hear the best of both - music and voice - with transducers that offer clear voice reproduction and smooth response for background music
- Blend with more room designs with updated enclosures - available in black and white - that pair modern aesthetics with practical features, including removable logos
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
- Install with ease - all models feature Euroblock inputs and front-baffle input location on in-ceiling models
- Support public safety - all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications
| SINGLE LOUDSPEAKER PERFORMANCE | |
| Frequency Response (-3 dB) | 80 - 16,000 Hz |
| Frequency Range (-10 dB) | 70 - 17,000 Hz |
| Nominal Coverage Angle (H x V) (1 - 4 kHz) | 130deg. x 125deg. |
| Nominal Coverage (H x V) (1 - 10 kHz) | 105deg. x 100deg. |
| Power Handling, Long-term Continuous | AES transducer test: 50 W Bose extended-lifecycle test: 40 W |
| Power Handling, Peak | AES transducer test: 200 W Bose extended-lifecycle test: 160 W |
| Sensitivity SPL/1W @ 1 m | AES transducer test: 89 dB Bose extended-lifecycle test: 89 dB |
| Calculated Maximum SPL @ 1 m | AES transducer test: 106 dB Bose extended-lifecycle test: 105 dB |
| Calculated Maximum SPL @ 1 m, Peak | AES transducer test: 112 dB Bose extended-lifecycle test: 111 dB |
| Loudspeaker EQ | Not required, Bose EQ voicing and SmartBass available |
| Recommended High-Pass Protection | 70 Hz with minimum 24-dB/octave filter |
| Transformer taps | 70V: 2.5, 5, 10, 20, 40 W, bypass 100V: 5, 10, 20, 40 W, bypass |
| TRANSDUCERS | |
| Full-Range Driver | 1 x 4.5-inch woofer (114 mm) |
| Nominal Impedance | 8 ohms (transformer bypass) |
| PHYSICAL | |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Bracket Material | Powder-coated steel |
| Grille | Perforated steel, powder-coated finish, tamper-resistant design |
| Logo | Rotatable, removable |
| Color | Black (similar to Ral 9005), White (similar to Ral 9003) |
| Environmental/Ingress Protection | Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24). Suitable for use outdoors in wet locations. Includes weather-resistant input cover. Optional accessory aluminum grille for harsh environments to prevent red corrosion is available. |
| Safety Agency | Certification: EN54-24:2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1 Section 32 For EN54-24 specifications, Refer to FS2SE EN 54-24 Certified Ratings document on pro.bose.com. EN54-24 Equilization required for EN54-24 use. |
| Operating Temperature Range | -25 deg.C to 70 deg.C (-13 deg.F to 158 deg.F) |
| Connectors | Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire. Includes input cover. |
| Suspension/Mounting | External U-bracket with bracket screws 7 preset mounting angles: 0deg., +15deg., +30deg., or +45deg. for wall or ceiling placement Two (2) rear M8 screw inserts for use with optional Ceiling Mount Ceiling Mount Bracket S2, DMSBRKT pan-and-tilt bracket Safety cable can be used with either of two (2) rear M6 inserts when using included U-bracket, or with either of two (2) side M5 inserts, when using optional brackets |
| Dimensions (H x W x D) | 254 x 171 x 174 mm (10.0 x 6.7 x 6.8 in) |
| Dimensions with Bracket (H x W x D) | 273 x 171 x 196 mm (10.7 x 6.7 x 7.7 in) |
| Net Weight, Loudspeaker with Grille and Bracket (Single) | 3.08 kg (6.80 lb) |
| Shipping Weight (Pair) | 8.32 kg (18.35 lb) |
| Included Accessories | Each FS4SE includes one (1) Bose logo for vertical orientation, one (1) U-Bracket and one (1) weather-resistant input cover |
| Optional Accessories | Aluminum Grille kit (2-pack), WBPWR-50 pan-and-tilt bracket (for outdoors), RMUBRKT1 pan-and-tilt bracket (for indoors), Ceiling Mount Bracket S2, Ceramic Terminal and Thermal Fuse Kit (10-pack) |
