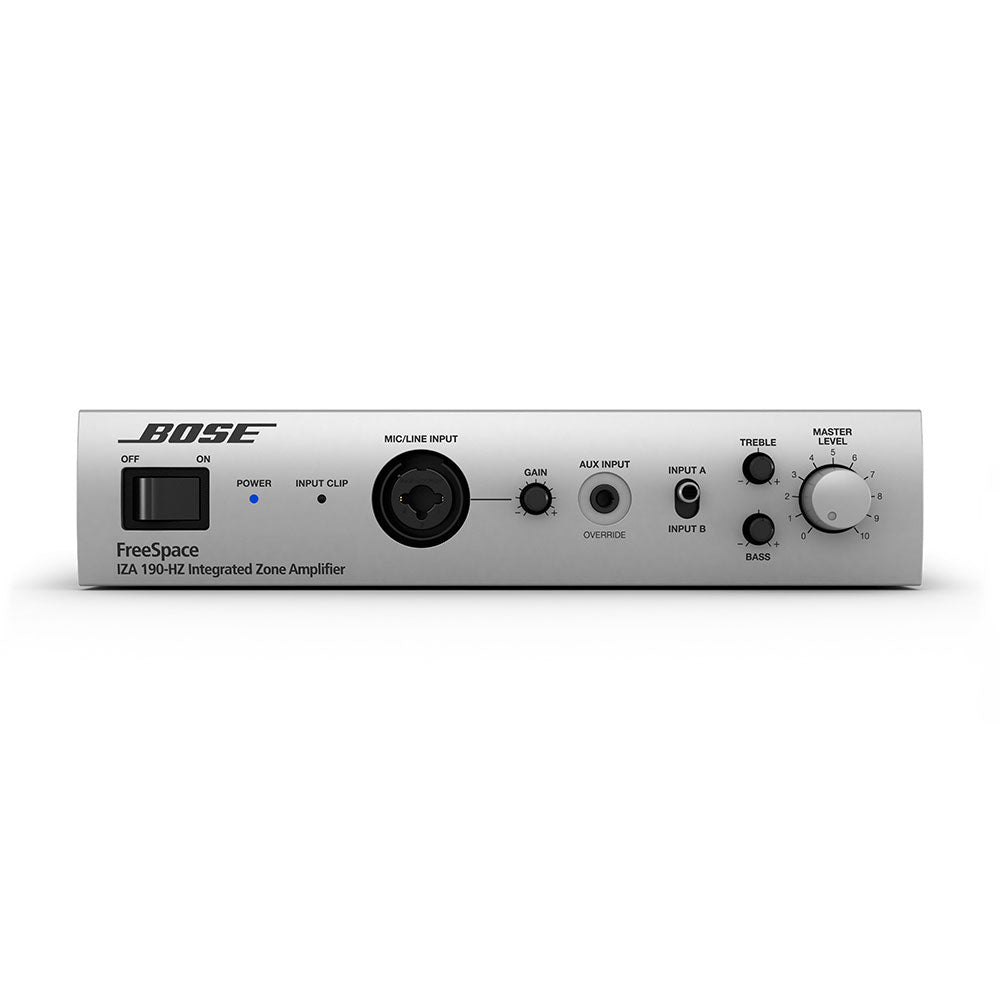

Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier


  • Dale #:

    BOSE-3448711430
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

For background/foreground music and paging applications, the Bose® FreeSpace® IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. Wh... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

For background/foreground music and paging applications, the Bose® FreeSpace® IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.

Features:

  • Amplification for premium sound from a reliable, high quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
  • Installation made simple with set up done locally from the front and rear panels of the amplifier - no computer is required
  • Opti-voice® paging provides smooth automatic transition between the music and page signals
  • End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
  • Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way - on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory

Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones

More +

Product Specs

POWER RATING
Amplifier Power 2 x 50 W @ 4 ohm, 2 x 25 W @ 8 ohm
AUDIO PERFORMANCE
Frequency Response 40 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
THD+N ?0.3 % (at full rated power)
Channel Separation (Crosstalk) ?-60 dBV (below rated power, 1 kHz)
Dynamic Range 88 dB
INTEGRATED DSP
A/D and D/A Converters 24-bit / 48 kHz
Processing Functions Loudspeaker EQ, Bose Opti-voice paging, Dynamic equalization
Loudspeaker Presets FreeSpace FS2 and FS4 loudspeakers, High-Pass Filter (HPF)
Audio Latency 10.4 ms - (any input to speaker output or aux output)
AUDIO INPUTS
LINE INPUTS
Input Channels 2 unbalanced line
Connectors Stereo RCA
Input Range -10 dBV - +10 dBV
Adjustment Range -20 dB - +20 dB
Input Impedance 20 kohm
Maximum Input Level +10 dBV
Sensitivity N/A
Nominal Input Level 0 dBV
MIC/LINE INPUTS
Input Channels 1 balanced mic/line
Connectors Combo XLR - 1/4"
Input Range -60 dBV - +10 dBV
Adjustment Range 0 dB - +50 dB
Input Impedance 2 kohm
Maximum Input Level +10 dBV
Sensitivity N/A
Nominal Input Level -40 dBV
PAGE INPUTS
Input Channels 1 Balanced mic
Connectors 4-pin Euroblock
Input Range -60 dBV - +10 dBV
Adjustment Range 0 dB - +50 dB
Input Impedance 2 kohm
Maximum Input Level +10 dBV
Sensitivity N/A
Nominal Input Level -40 dBV
AUXILIARY INPUT
Input Channels 1 unbalanced line
Connectors 3.5mm (1/8") TRS
Input Range 0 dBV - +10 dBV
Adjustment Range Fixed
Input Impedance 20 kohm
Maximum Input Level +10 dBV
Sensitivity 0 dBV
Nominal Input Level 0 dBV
AUDIO OUTPUTS
AMPLIFIER OUTPUTS
Outputs 2
Connectors, Output 2-terminal barrier strip
Output Impedance 4 ohm
Nominal Output Level 2 x 50 W @ 4ohm (min); 2 x 25
AUXILIARY OUTPUT
Outputs 1 unbalanced
Connectors, Output Stereo RCA
Output Impedance 400 ohm
Nominal Output Level 1 x 90 W @ 70/100 V 0 dBV (max)
INDICATORS AND CONTROLS
LED Status Indicators Power - blue, Input clip - red (-3 dBFS)
Controls, Front Panel Power On/Off, Input Select (A/B), Tone Controls (Treble/Bass), Mic/Line Gain, Master Level
Controls, Rear Panel Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim
ELECTRICAL
Mains Voltage 100 V AC - 240 V AC (+/- 10%, 50/60 Hz)
AC Power Consumption 15 W (Idle), 200 W (Max)
Mains Connector Standard IEC (C14)
Maximum Inrush Current 13.9 Amps (230 V / 50 Hz), 7.6 Amps (120 V / 60 Hz)
Overload Protection High temperature, short
PHYSICAL
Rack Space Units 1 RU high, half rack wide
Dimensions 45 mm x 214 mm x 310 mm D (1.8" H x 8.4" W x 12.2")
Shipping Weight 3.0 kg (6.7 lb)
Net Weight 2.2 kg (4.8 lb)
Cooling System Natural convection
GENERAL
Inputs (Control) Remote input for CC-1 volume control (operates with a fixed input B) or CC-2 volume control with A/B source select
user interface, Mute input for amplifier muting via contact closure
