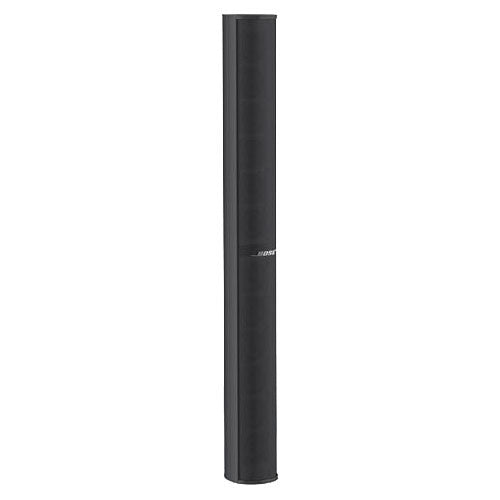

Bose Panaray MA12 Mid/High Modular Line Array - Black / Single
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Contact us
Description
Panaray® MA12 mid/high modular line array - Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.
For indoor applications only.
Features:
- Twelve 2.25 (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections
- 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
- Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
- Optional brackets allow easy installation of single-, double- or triple-stack line array modules
| Sensitivity | 88dB-SPL @ 1W, 1m |
| Frequency Range | 155Hz to 12kHz (-3dB); 100Hz to 16kHz (-10dB) |
| Dispersion (Ð6dB point average, 1-4kHz) | Horizontal 160¡, Vertical coverage is a band of constant |
| Long-Term Power Handling | 300W continuous |
| Impedance | 8 nominal |
| Dimensions | 5.1D x 4.2W x 38.7H |
| Weight | 20 lb (9 kg) |
| Available colors | White and black |
Panaray® MA12 mid/high modular line array - Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.
For indoor applications only.
Features:
- Twelve 2.25 (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections
- 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
- Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
- Optional brackets allow easy installation of single-, double- or triple-stack line array modules
| Sensitivity | 88dB-SPL @ 1W, 1m |
| Frequency Range | 155Hz to 12kHz (-3dB); 100Hz to 16kHz (-10dB) |
| Dispersion (Ð6dB point average, 1-4kHz) | Horizontal 160¡, Vertical coverage is a band of constant |
| Long-Term Power Handling | 300W continuous |
| Impedance | 8 nominal |
| Dimensions | 5.1D x 4.2W x 38.7H |
| Weight | 20 lb (9 kg) |
| Available colors | White and black |
