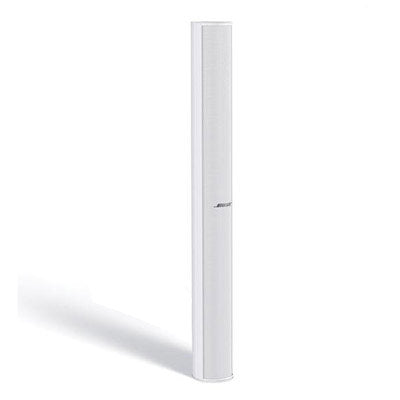

Bose Panaray MA12 Mid/High Modular Line Array - White / Single


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:BOSE-40188

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Call for Price

Shipping Charges Apply
  • The Bose® Panaray® MA12 is a mid/high-frequency modular line array loudspeaker designed to provide outstanding vocal intelligibility in acoustically demanding spaces. The slim column enclosure blends with almost any décor.


    • Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
    • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
    • 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
    • Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
    • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
  • Sensitivity88dB-SPL @ 1W, 1m
    Frequency Range155Hz to 12kHz (-3dB); 100Hz to 16kHz (-10dB)
    Dispersion (–6dB point average, 1-4kHz)Horizontal 160°, Vertical coverage is a band of constant
    Long-Term Power Handling300W continuous
    Impedance8Ω nominal
    Dimensions5.1D x 4.2W x 38.7H
    Weight20 lb (9 kg)
    Available colorsWhite and black
