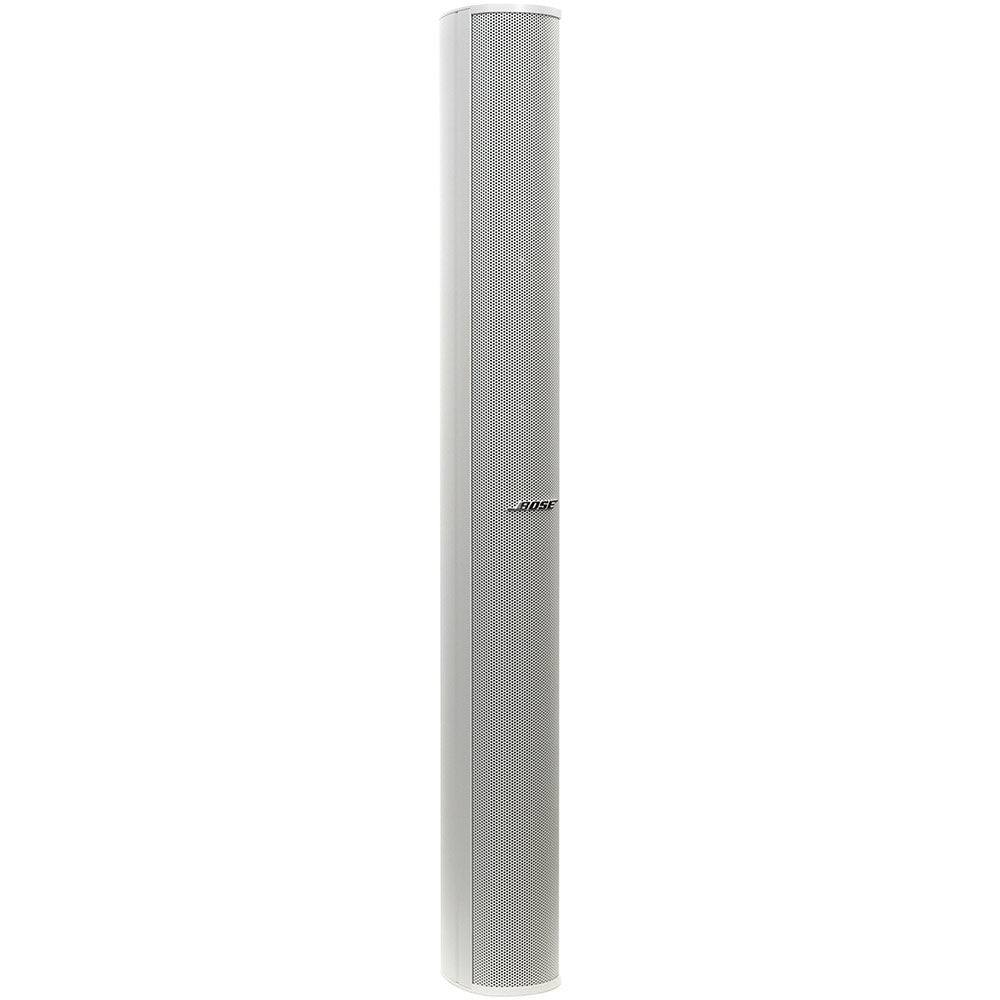

Bose Panaray MA12EX Column Array Loudspeaker (White)


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:BOSE-3173020200

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.

Call for Price

Shipping Charges Apply
  • Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor. For indoor and outdoor applications.


    • Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
    • Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
    • Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
    • Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
    • Optional brackets allow easy installation of single-, double- or triple-stack line array modules
  • Frequency Response (+/-3 dB) 75 Hz - 13 kHz
    Frequency Range (-10 dB)  58 Hz - 16 kHz
    Nominal Dispersion  160° H x 20° V
    Long-Term Power Handling 150 W (600 W peak)
    Sensitivity (SPL / 1 W @ 1 m)  87 dB SPL
    Maximum SPL @ 1 m  109 dB SPL (115 dB SPL peak)
    Nominal Impedance  8
    Enclosure Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated
    Environmental Outdoor per IEC 529 IPX5
    Connectors Two (2) parallel-wired NL4 Neutrik® Speakon® connectors
    Two (2) two-conductor barrier strips
    Suspension / Mounting  Six (6) x M6 threaded inserts (back)
    Dimensions (Enclosure only) 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mm x 139 mm)
    Net Weight 21 lb (9.4 kg)
    Color Black, White, Paintable
    Package Contents  1 loudspeaker
