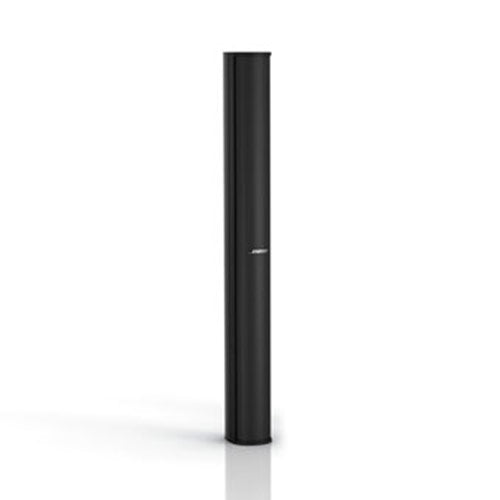

Bose Panaray MA12EX Column Install Loudspeaker (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Panaray® MA12EX is a full-range modular line array. The Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor. For indoor and outdoor applications.
Features:
- Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections
- Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
- Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
- Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Possible Applications:
- Houses of worship
- Multi-purpose spaces
- Recreation
- Restaurants and bars
- Auditoriums
- Transportation facilities
- Gymnasiums
- Atriums and malls
| System Performance | ||
| Frequency Response (+/-3 dB)Ê1 | 75 Hz - 13 kHz | |
| Frequency Range (-10 dB)Ê1 | 58 Hz - 16 kHz | |
| Nominal DispersionÊ2 | 160¡ H x 20¡ V | |
| Recommended High-Pass Filter | 65 Hz | |
| Loudspeaker EQ | Required | |
| Overload Protection | PTC / Lamp | |
| Long-Term Power HandlingÊ3,Ê4 | 150 W (600 W peak) | |
| Sensitivity (SPL / 1 W @ 1 m)Ê5 | 87 dB SPL | |
| Maximum SPL @ 1 mÊ6 | 109 dB SPL (115 dB SPL peak) | |
| Nominal Impedance | 8 ½ | |
| Transformer Taps (70/100 V) | CVT-MA12EX transformer available | |
| Transducers | ||
| Driver Compliment | Twelve (12) 2.25" (57 mm) high-excursion, weather-resistant drivers | |
| Physical | ||
| Enclosure | Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated | |
| Grille | Powder-coated aluminum grille | |
| Environmental | Outdoor perÊIEC 529 IPX5 | |
| Connectors | Two (2) parallel-wired NL4 Neutrik¨ Speakon¨ connectors Two (2) two-conductor barrier strips |
|
| Suspension / Mounting | Six (6) x M6 threaded inserts (back) | |
| Dimensions | 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mm x 139 mm) | |
| Net Weight | 21 lb (9.4 kg) | |
| Shipping Weight | 23 lb (10.4 kg) | |
The Panaray® MA12EX is a full-range modular line array. The Articulated Array® speaker configuration provides wider 160° horizontal coverage and weather-resistant components allow use in outdoor applications. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor. For indoor and outdoor applications.
Features:
- Twelve 2.25" (64 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections
- Articulated Array® design provides wide 160° horizontal coverage with 20° nominal vertical coverage for a single module. Actual vertical coverage varies with number of modules in line array configuration
- Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers
- Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Possible Applications:
- Houses of worship
- Multi-purpose spaces
- Recreation
- Restaurants and bars
- Auditoriums
- Transportation facilities
- Gymnasiums
- Atriums and malls
| System Performance | ||
| Frequency Response (+/-3 dB)Ê1 | 75 Hz - 13 kHz | |
| Frequency Range (-10 dB)Ê1 | 58 Hz - 16 kHz | |
| Nominal DispersionÊ2 | 160¡ H x 20¡ V | |
| Recommended High-Pass Filter | 65 Hz | |
| Loudspeaker EQ | Required | |
| Overload Protection | PTC / Lamp | |
| Long-Term Power HandlingÊ3,Ê4 | 150 W (600 W peak) | |
| Sensitivity (SPL / 1 W @ 1 m)Ê5 | 87 dB SPL | |
| Maximum SPL @ 1 mÊ6 | 109 dB SPL (115 dB SPL peak) | |
| Nominal Impedance | 8 ½ | |
| Transformer Taps (70/100 V) | CVT-MA12EX transformer available | |
| Transducers | ||
| Driver Compliment | Twelve (12) 2.25" (57 mm) high-excursion, weather-resistant drivers | |
| Physical | ||
| Enclosure | Extruded-aluminum sidewalls with zinc-plated steel top and bottom endcaps, all powder coated | |
| Grille | Powder-coated aluminum grille | |
| Environmental | Outdoor perÊIEC 529 IPX5 | |
| Connectors | Two (2) parallel-wired NL4 Neutrik¨ Speakon¨ connectors Two (2) two-conductor barrier strips |
|
| Suspension / Mounting | Six (6) x M6 threaded inserts (back) | |
| Dimensions | 38.8" H x 4.1" W x 5.5" D (985 mm x 104 mm x 139 mm) | |
| Net Weight | 21 lb (9.4 kg) | |
| Shipping Weight | 23 lb (10.4 kg) | |
