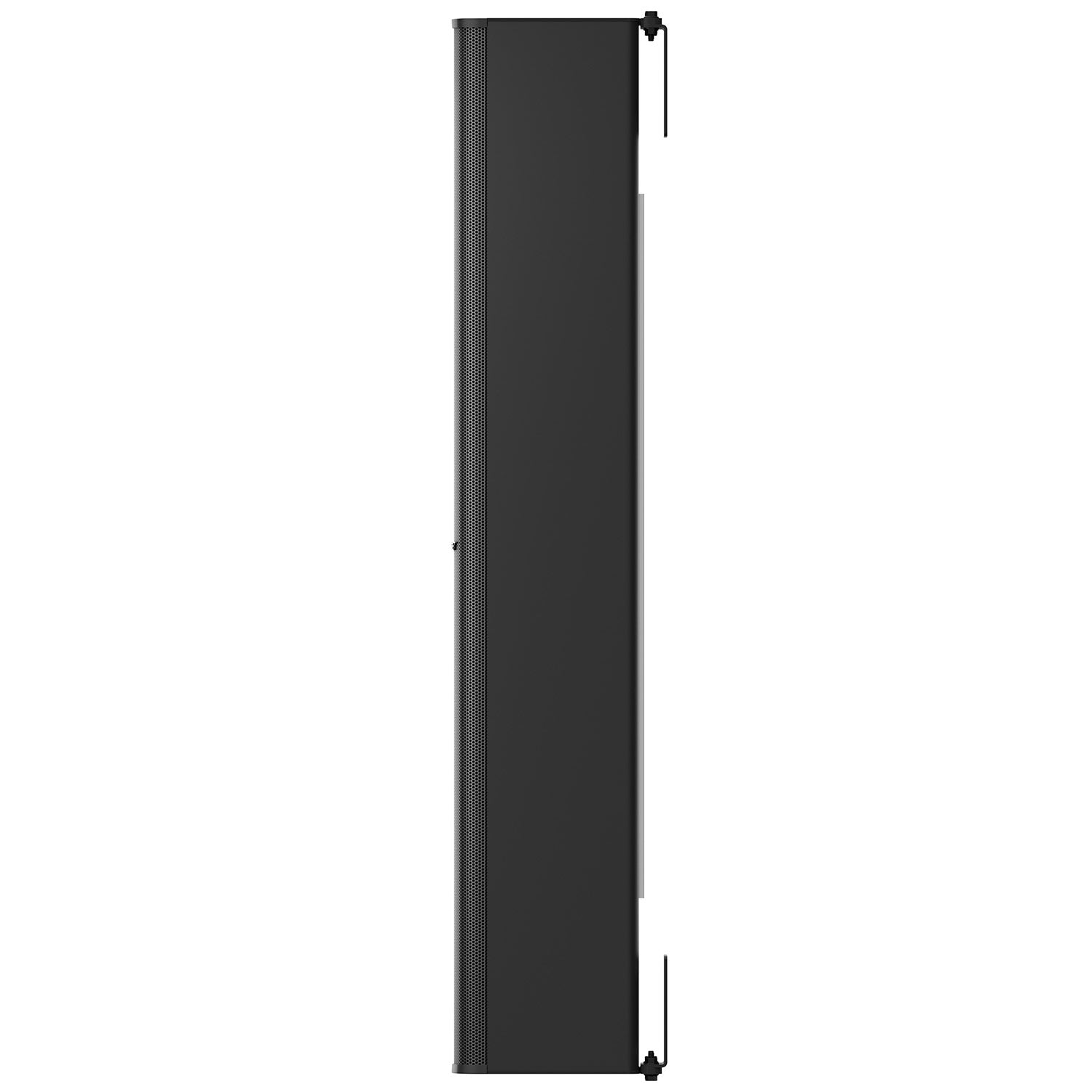

Bose Panaray MSA12X Modular Steerable Array Loudspeaker - Single / Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bose Professional Panaray® MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array® transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X's modular design allows building of vertical arrays using 1-3 units. Dante® digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks
Features:
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
- Family sound profile with the Panaray MA12EX Loudspeaker

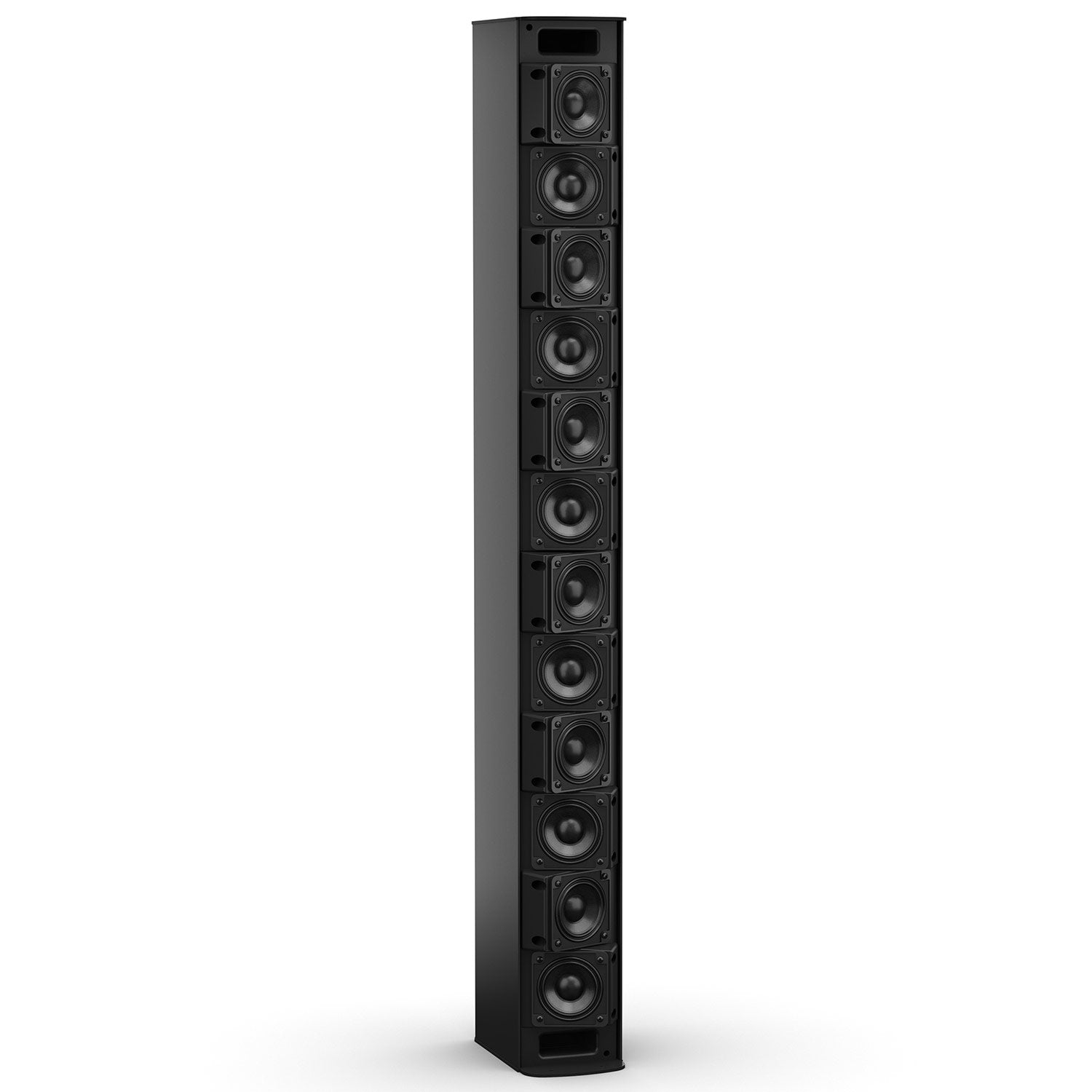

- Twelve (12) x 2.25-inch full-range transducers with 58 Hz - 18 kHz frequency range
- Dante® digital audio network interface and line-level analog input
- Articulated Array® configuration allows wide, 160° horizontal coverage
- Modular design allows building vertical arrays using 1-3 units
- Multiple algorithms for beam steering control - designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
- Supports independent level and EQ control of 2 separate beams per array
- Integrated mounting bracket allows up 90° of horizontal yaw adjustment
- Advanced steering and acoustic coverage prediction using Bose Modeler® software
- System setup, control and monitoring with Bose ControlSpace® Designer™ software
- Available in black or white finish
| SINGLE MODULE PERFORMANCE | |||
| Frequency Response (-3 dB) (1) | 75 Hz - 17 kHz | ||
| Frequency Range (-10 dB) (1) | 58 Hz - 18 kHz | ||
| Horizontal Dispersion (2) | 160¡ | ||
| Vertical Opening Angles | Software Adjustable: 1 module - up to 30¡ 2-3 modules - up to 40¡ Vertical | ||
| Vertical Beam Steering Angles | + / - 20¡ | ||
| Max SPL @ 1 m (3) | 112 dB | ||
| Multiple Module Performance | |||
| Typical Usable Throw Distance (4) | |||
| Distance | |||
| Max SPL (3) at Distance | |||
| Low-frequency Beam Control Limit | |||
| Driver Compliment, Full-range Cones | |||
| Amplifier Channels / Rated Power | |||
| Physical Array Height | |||
| ELECTRICAL PERFORMANCE (SINGLE MODULE) | |||
| AC Mains Voltage | Universal 85-264VAC/50/60 Hz | ||
| AC Mains Connector | IEC60320-C14 | ||
| AC Power Consumption | 120VAC /240VAC: 25 W idle, 275 W max | ||
| AUDIO INPUTS | |||
| Analog Audio Input Connector | 3-pin Phoenix connector (5) | ||
| Analog Audio Maximum Input Level | 0dBU /+10dBu/ +24 dBU (pad engaged) | ||
| Input Sensitivity | 15dBu | ||
| Input Impedance | 20k ohms | ||
| Digital Audio Inputs | Input: 2 channels of Dante¨ digital audio network (RJ45), Expansion: LVDS (RJ50) | ||
| Digital Output | Expansion: LVDS (RJ50) | ||
| INTEGRATED DSP | |||
| DSP platform/network support | Bose ControlSpace¨ | ||
| A/D and D/A converters | 24-bit, 48 kHz | ||
| Number of beams supported (5) | 2 | ||
| FIR filter support (local MSA12X) | 1024 tap @ 48 kHz | ||
| Number user presets (local MSA12X) | 10 | ||
| Audio latency | 5.7ms | ||
| PHYSICAL | |||
| Enclosure | Extruded aluminum sidewalls; steel end caps, all powder coated | ||
| Grille | Powder-coated alumimum | ||
| Indicators and controls | Power, limit, fault | ||
| Operating temperature range (ambient) | 32¡F to 104¡F / 0¡C to 40¡C | ||
| Cooling system | Cooling is passive only, airflow bottom to top | ||
| Environmental | Indoor only | ||
| Suspension / Mounting | Integrated wall brackets; allows horizontal yaw up to 90¡ in either direction | ||
| Dimensions (HxWxD) | 984 x 106 x 206mm (38.74" x 4.16" x 8.12") | ||
| Net Weight | 14.5 kg (32 lbs) | ||
| Shipping Weight | 19.21 kg (42.35 lbs) | ||
| Accessories, included | (1) Power Cord, (1) Power interconnect cable, (1) RJ50 Expansion Cable, (1) Phoenix connector, (2) Wall/Speaker-mount Bracket sets, (1) Interconnect Bracket, (12) Zip Ties, (1) Bose logo, extra (4) m6 flange nuts, (8) m6 Hex Head bolts, (1) yaw bracket | ||
Footnotes
(1) Frequency response and range measured on-axis with recommended EQ in indicated anechoic environment
(2) Sensitivity with indicated boundary, 40 -300 Hz bandpass, referenced to 2.83V
(3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
(4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
(5) AES standard 2-hour duration with IEC system noise
The Bose Professional Panaray® MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array® transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X's modular design allows building of vertical arrays using 1-3 units. Dante® digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks
Features:
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
- Family sound profile with the Panaray MA12EX Loudspeaker
- Twelve (12) x 2.25-inch full-range transducers with 58 Hz - 18 kHz frequency range
- Dante® digital audio network interface and line-level analog input
- Articulated Array® configuration allows wide, 160° horizontal coverage
- Modular design allows building vertical arrays using 1-3 units
- Multiple algorithms for beam steering control - designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
- Supports independent level and EQ control of 2 separate beams per array
- Integrated mounting bracket allows up 90° of horizontal yaw adjustment
- Advanced steering and acoustic coverage prediction using Bose Modeler® software
- System setup, control and monitoring with Bose ControlSpace® Designer™ software
- Available in black or white finish
| SINGLE MODULE PERFORMANCE | |||
| Frequency Response (-3 dB) (1) | 75 Hz - 17 kHz | ||
| Frequency Range (-10 dB) (1) | 58 Hz - 18 kHz | ||
| Horizontal Dispersion (2) | 160¡ | ||
| Vertical Opening Angles | Software Adjustable: 1 module - up to 30¡ 2-3 modules - up to 40¡ Vertical | ||
| Vertical Beam Steering Angles | + / - 20¡ | ||
| Max SPL @ 1 m (3) | 112 dB | ||
| Multiple Module Performance | |||
| Typical Usable Throw Distance (4) | |||
| Distance | |||
| Max SPL (3) at Distance | |||
| Low-frequency Beam Control Limit | |||
| Driver Compliment, Full-range Cones | |||
| Amplifier Channels / Rated Power | |||
| Physical Array Height | |||
| ELECTRICAL PERFORMANCE (SINGLE MODULE) | |||
| AC Mains Voltage | Universal 85-264VAC/50/60 Hz | ||
| AC Mains Connector | IEC60320-C14 | ||
| AC Power Consumption | 120VAC /240VAC: 25 W idle, 275 W max | ||
| AUDIO INPUTS | |||
| Analog Audio Input Connector | 3-pin Phoenix connector (5) | ||
| Analog Audio Maximum Input Level | 0dBU /+10dBu/ +24 dBU (pad engaged) | ||
| Input Sensitivity | 15dBu | ||
| Input Impedance | 20k ohms | ||
| Digital Audio Inputs | Input: 2 channels of Dante¨ digital audio network (RJ45), Expansion: LVDS (RJ50) | ||
| Digital Output | Expansion: LVDS (RJ50) | ||
| INTEGRATED DSP | |||
| DSP platform/network support | Bose ControlSpace¨ | ||
| A/D and D/A converters | 24-bit, 48 kHz | ||
| Number of beams supported (5) | 2 | ||
| FIR filter support (local MSA12X) | 1024 tap @ 48 kHz | ||
| Number user presets (local MSA12X) | 10 | ||
| Audio latency | 5.7ms | ||
| PHYSICAL | |||
| Enclosure | Extruded aluminum sidewalls; steel end caps, all powder coated | ||
| Grille | Powder-coated alumimum | ||
| Indicators and controls | Power, limit, fault | ||
| Operating temperature range (ambient) | 32¡F to 104¡F / 0¡C to 40¡C | ||
| Cooling system | Cooling is passive only, airflow bottom to top | ||
| Environmental | Indoor only | ||
| Suspension / Mounting | Integrated wall brackets; allows horizontal yaw up to 90¡ in either direction | ||
| Dimensions (HxWxD) | 984 x 106 x 206mm (38.74" x 4.16" x 8.12") | ||
| Net Weight | 14.5 kg (32 lbs) | ||
| Shipping Weight | 19.21 kg (42.35 lbs) | ||
| Accessories, included | (1) Power Cord, (1) Power interconnect cable, (1) RJ50 Expansion Cable, (1) Phoenix connector, (2) Wall/Speaker-mount Bracket sets, (1) Interconnect Bracket, (12) Zip Ties, (1) Bose logo, extra (4) m6 flange nuts, (8) m6 Hex Head bolts, (1) yaw bracket | ||
Footnotes
(1) Frequency response and range measured on-axis with recommended EQ in indicated anechoic environment
(2) Sensitivity with indicated boundary, 40 -300 Hz bandpass, referenced to 2.83V
(3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
(4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
(5) AES standard 2-hour duration with IEC system noise
