DALE SKU # BOSE-7878561210

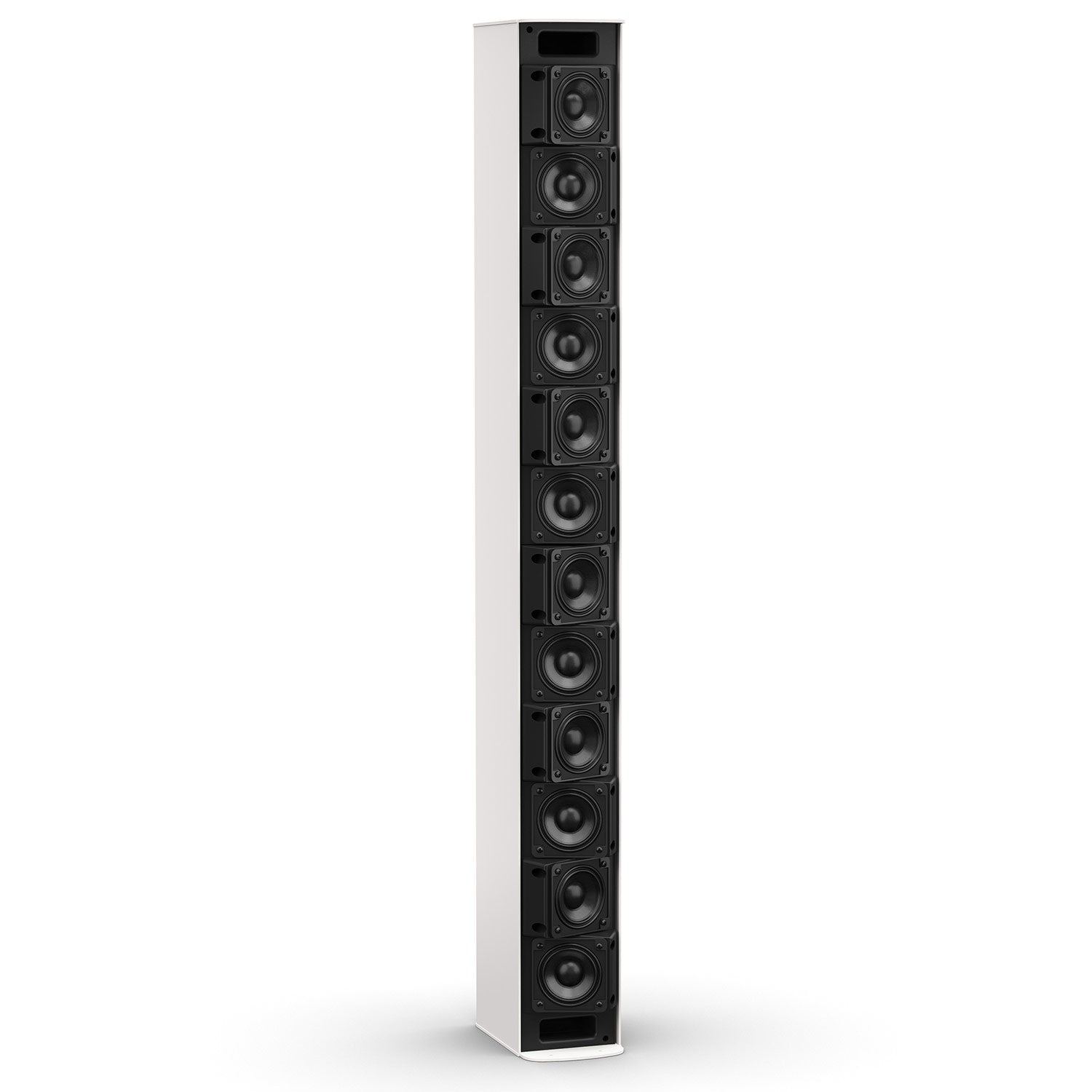

Bose Panaray MSA12X Modular Steerable Array Loudspeaker - Single / White

Sale price$3,012.00 Regular price$4,998.00
Save $1,986.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Bose Professional Panaray® MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array® transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X's modular design allows building of vertical arrays using 1-3 units. Dante® digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks

    Features:

    • Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
    • Family sound profile with the Panaray MA12EX Loudspeaker
    • Twelve (12) x 2.25-inch full-range transducers with 58 Hz - 18 kHz frequency range
    • Dante® digital audio network interface and line-level analog input
    • Articulated Array® configuration allows wide, 160° horizontal coverage
    • Modular design allows building vertical arrays using 1-3 units
    • Multiple algorithms for beam steering control - designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
    • Supports independent level and EQ control of 2 separate beams per array
    • Integrated mounting bracket allows up 90° of horizontal yaw adjustment
    • Advanced steering and acoustic coverage prediction using Bose Modeler® software
    • System setup, control and monitoring with Bose ControlSpace® Designer™ software
    • Available in black or white finish
    SINGLE MODULE PERFORMANCE
    Frequency Response (-3 dB) (1)75 Hz - 17 kHz
    Frequency Range (-10 dB) (1)58 Hz - 18 kHz
    Horizontal Dispersion (2)160¡
    Vertical Opening AnglesSoftware Adjustable: 1 module - up to 30¡
    2-3 modules - up to 40¡ Vertical
    Vertical Beam Steering Angles+ / - 20¡
    Max SPL @ 1 m (3)112 dB
    Multiple Module Performance
    1-Module
    2-Modules
    3-Modules
    Typical Usable Throw Distance (4)
    10 m (33 ft)
    25 m (82 ft)
    35 m (115 ft)
    Distance
    10 m (33 ft)
    20 m (66 ft)
    30 m (98 ft)
    Max SPL (3) at Distance
    97 dB (103 dB Peak)
    96 dB (102 dB Peak)
    95 dB (101 dB Peak)
    Low-frequency Beam Control Limit
    500 Hz
    250 Hz
    160 Hz
    Driver Compliment, Full-range Cones
    12 x 2.25" (57 mm)
    24 x 2.25" (57 mm)
    36 x 2.25" (57 mm)
    Amplifier Channels / Rated Power
    12 x 50 W
    24 x 50 W
    36 x 50 W
    Physical Array Height
    39" (1 m)
    78" (2 m)
    117" (3 m)
    ELECTRICAL PERFORMANCE (SINGLE MODULE)
    AC Mains VoltageUniversal 85-264VAC/50/60 Hz
    AC Mains ConnectorIEC60320-C14
    AC Power Consumption120VAC /240VAC: 25 W idle, 275 W max

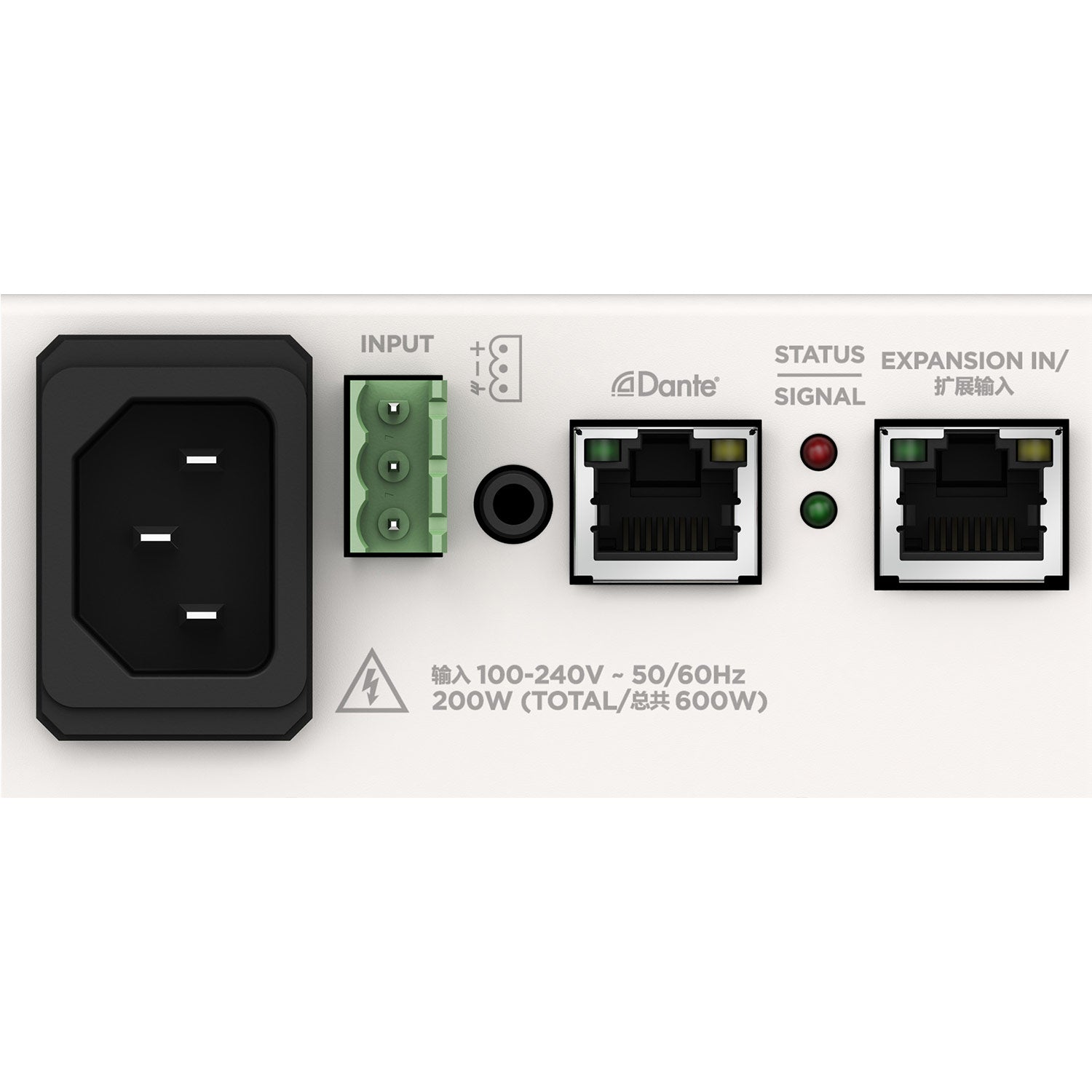

    AUDIO INPUTS
    Analog Audio Input Connector3-pin Phoenix connector (5)
    Analog Audio Maximum Input Level0dBU /+10dBu/ +24 dBU (pad engaged)
    Input Sensitivity15dBu
    Input Impedance20k ohms
    Digital Audio InputsInput: 2 channels of Dante¨ digital audio network (RJ45), Expansion: LVDS (RJ50)

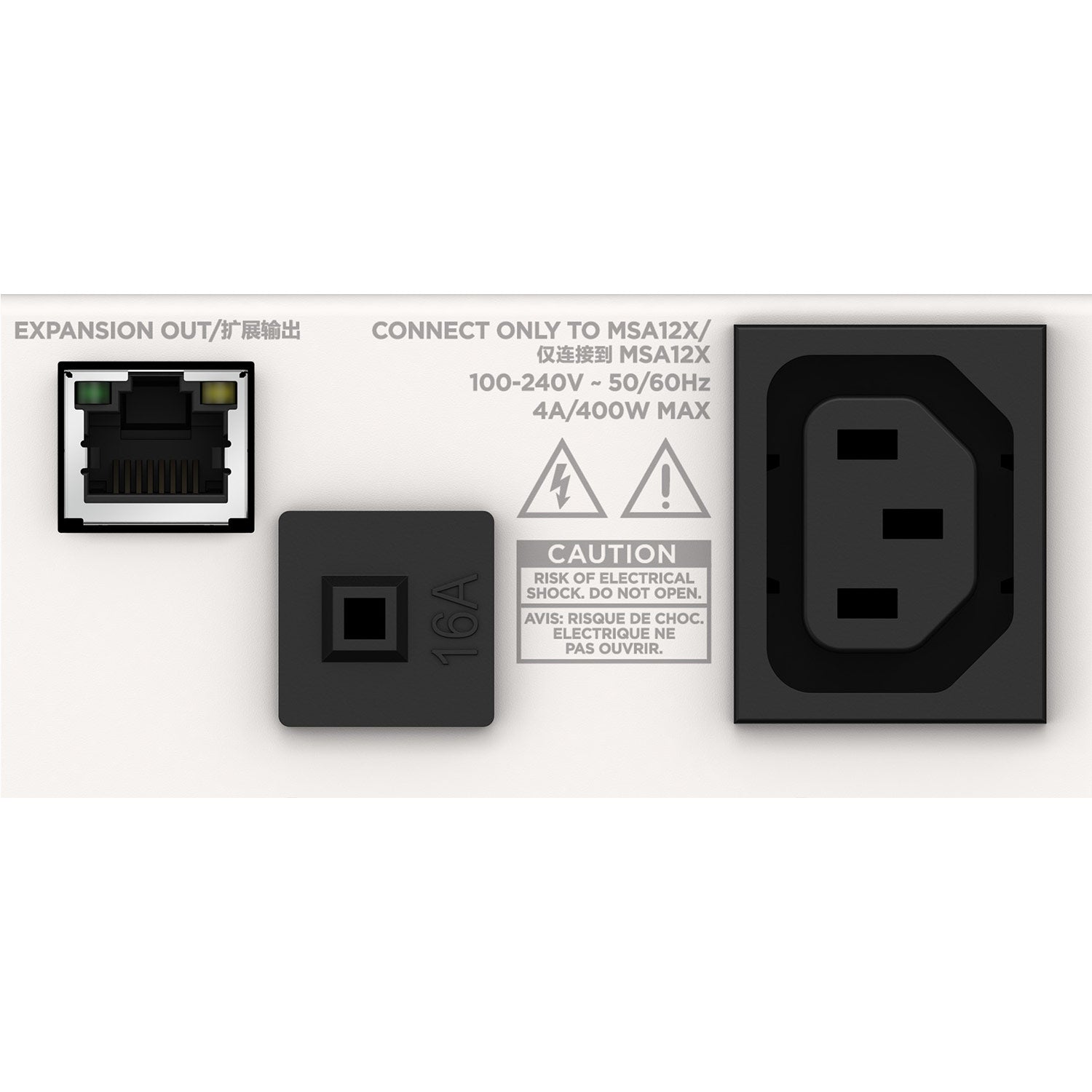

    Digital OutputExpansion: LVDS (RJ50)
    INTEGRATED DSP
    DSP platform/network supportBose ControlSpace¨
    A/D and D/A converters24-bit, 48 kHz
    Number of beams supported (5)2
    FIR filter support (local MSA12X)1024 tap @ 48 kHz
    Number user presets (local MSA12X)10
    Audio latency5.7ms
    PHYSICAL
    EnclosureExtruded aluminum sidewalls; steel end caps, all powder coated
    GrillePowder-coated alumimum
    Indicators and controlsPower, limit, fault
    Operating temperature range (ambient)32¡F to 104¡F / 0¡C to 40¡C
    Cooling systemCooling is passive only, airflow bottom to top
    EnvironmentalIndoor only
    Suspension / MountingIntegrated wall brackets; allows horizontal yaw up to 90¡ in either direction
    Dimensions (HxWxD)984 x 106 x 206mm (38.74" x 4.16" x 8.12")
    Net Weight14.5 kg (32 lbs)
    Shipping Weight19.21 kg (42.35 lbs)
    Accessories, included(1) Power Cord, (1) Power interconnect cable, (1) RJ50 Expansion Cable, (1) Phoenix connector,
    (2) Wall/Speaker-mount Bracket sets, (1) Interconnect Bracket, (12) Zip Ties, (1) Bose logo, extra (4) m6 flange nuts, (8) m6 Hex Head bolts, (1) yaw bracket

    Footnotes
    (1) Frequency response and range measured on-axis with recommended EQ in indicated anechoic environment
    (2) Sensitivity with indicated boundary, 40 -300 Hz bandpass, referenced to 2.83V
    (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
    (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
    (5) AES standard 2-hour duration with IEC system noise

    The Bose Professional Panaray® MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array® transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X's modular design allows building of vertical arrays using 1-3 units. Dante® digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks

    Features:

    • Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
    • Family sound profile with the Panaray MA12EX Loudspeaker
    • Twelve (12) x 2.25-inch full-range transducers with 58 Hz - 18 kHz frequency range
    • Dante® digital audio network interface and line-level analog input
    • Articulated Array® configuration allows wide, 160° horizontal coverage
    • Modular design allows building vertical arrays using 1-3 units
    • Multiple algorithms for beam steering control - designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
    • Supports independent level and EQ control of 2 separate beams per array
    • Integrated mounting bracket allows up 90° of horizontal yaw adjustment
    • Advanced steering and acoustic coverage prediction using Bose Modeler® software
    • System setup, control and monitoring with Bose ControlSpace® Designer™ software
    • Available in black or white finish
    SINGLE MODULE PERFORMANCE
    Frequency Response (-3 dB) (1)75 Hz - 17 kHz
    Frequency Range (-10 dB) (1)58 Hz - 18 kHz
    Horizontal Dispersion (2)160¡
    Vertical Opening AnglesSoftware Adjustable: 1 module - up to 30¡
    2-3 modules - up to 40¡ Vertical
    Vertical Beam Steering Angles+ / - 20¡
    Max SPL @ 1 m (3)112 dB
    Multiple Module Performance
    1-Module
    2-Modules
    3-Modules
    Typical Usable Throw Distance (4)
    10 m (33 ft)
    25 m (82 ft)
    35 m (115 ft)
    Distance
    10 m (33 ft)
    20 m (66 ft)
    30 m (98 ft)
    Max SPL (3) at Distance
    97 dB (103 dB Peak)
    96 dB (102 dB Peak)
    95 dB (101 dB Peak)
    Low-frequency Beam Control Limit
    500 Hz
    250 Hz
    160 Hz
    Driver Compliment, Full-range Cones
    12 x 2.25" (57 mm)
    24 x 2.25" (57 mm)
    36 x 2.25" (57 mm)
    Amplifier Channels / Rated Power
    12 x 50 W
    24 x 50 W
    36 x 50 W
    Physical Array Height
    39" (1 m)
    78" (2 m)
    117" (3 m)
    ELECTRICAL PERFORMANCE (SINGLE MODULE)
    AC Mains VoltageUniversal 85-264VAC/50/60 Hz
    AC Mains ConnectorIEC60320-C14
    AC Power Consumption120VAC /240VAC: 25 W idle, 275 W max
    AUDIO INPUTS
    Analog Audio Input Connector3-pin Phoenix connector (5)
    Analog Audio Maximum Input Level0dBU /+10dBu/ +24 dBU (pad engaged)
    Input Sensitivity15dBu
    Input Impedance20k ohms
    Digital Audio InputsInput: 2 channels of Dante¨ digital audio network (RJ45), Expansion: LVDS (RJ50)
    Digital OutputExpansion: LVDS (RJ50)
    INTEGRATED DSP
    DSP platform/network supportBose ControlSpace¨
    A/D and D/A converters24-bit, 48 kHz
    Number of beams supported (5)2
    FIR filter support (local MSA12X)1024 tap @ 48 kHz
    Number user presets (local MSA12X)10
    Audio latency5.7ms
    PHYSICAL
    EnclosureExtruded aluminum sidewalls; steel end caps, all powder coated
    GrillePowder-coated alumimum
    Indicators and controlsPower, limit, fault
    Operating temperature range (ambient)32¡F to 104¡F / 0¡C to 40¡C
    Cooling systemCooling is passive only, airflow bottom to top
    EnvironmentalIndoor only
    Suspension / MountingIntegrated wall brackets; allows horizontal yaw up to 90¡ in either direction
    Dimensions (HxWxD)984 x 106 x 206mm (38.74" x 4.16" x 8.12")
    Net Weight14.5 kg (32 lbs)
    Shipping Weight19.21 kg (42.35 lbs)
    Accessories, included(1) Power Cord, (1) Power interconnect cable, (1) RJ50 Expansion Cable, (1) Phoenix connector,
    (2) Wall/Speaker-mount Bracket sets, (1) Interconnect Bracket, (12) Zip Ties, (1) Bose logo, extra (4) m6 flange nuts, (8) m6 Hex Head bolts, (1) yaw bracket

    Footnotes
    (1) Frequency response and range measured on-axis with recommended EQ in indicated anechoic environment
    (2) Sensitivity with indicated boundary, 40 -300 Hz bandpass, referenced to 2.83V
    (3) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression
    (4) Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration
    (5) AES standard 2-hour duration with IEC system noise
