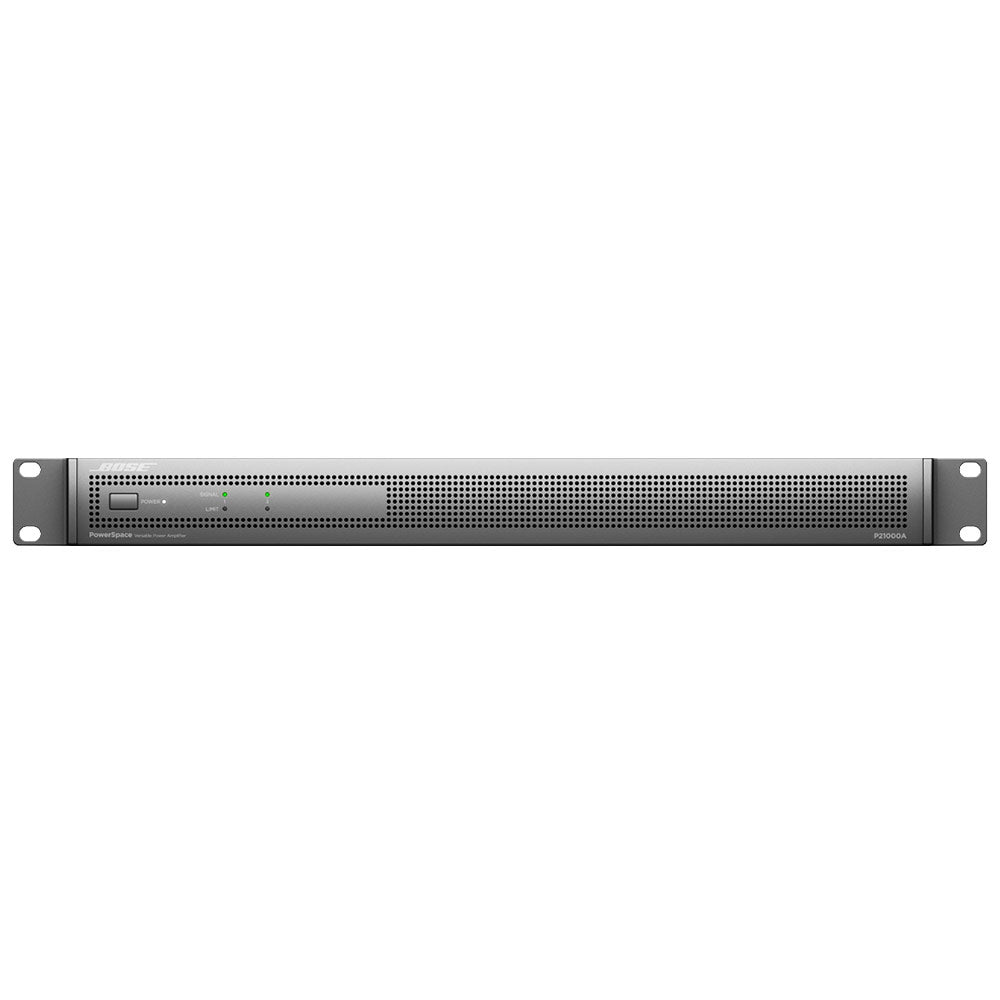

Bose PowerSpace P21000A Installation Power Amplifier


  • Dale #:

    BOSE-8032871110
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Ideal for zone-expansion applications, Bose PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power - and digital connectivity. A Bose AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose DSPs via a single Cat 5... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Ideal for zone-expansion applications, Bose PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power - and digital connectivity. A Bose AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose DSPs via a single Cat 5 cable. The PowerSpace P21000A provides 1000 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads - without bridging - and even send double power to a single zone. For premium commercial applications, Bose PowerSpace amplifiers provide the power and performance to get the job done - pure and simple.

Features:

  • 1000 watts per channel and compatible with Bose loudspeakers, DSPs, and controls to create complete commercial sound systems
  • Bose AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
  • Load-independent outputs deliver full channel power to either low-impedance (4-8 ohm) or high-impedance (70/100V) loads without bridging
  • I-Share output delivers 2x power level by combining the current of both channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns

Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones

More +

Product Specs

POWER RATING
Amplifier Power 2x 1000 W (THD+N < 0.04%, 1 kHz, 4-8 ohm, 70/100V)
I-Share Mode Power 1x 2000 W (2-4 ohm, 70/100V)
Gain (Low-Z mode) 38 dB
Gain (70V mode) 35 dB
Gain (100V mode) 38 dB
AUDIO PERFORMANCE
Frequency Response 4-8 ohm: 20 Hz - 20 kHz (+/- 1 dB @ 1 W); 70/100V: Same as 4-8 ohm with 50 Hz high-pass filter
Channel Separation (Crosstalk) > 80 dB @ 1 kHz, > 65 dB @ 20 kHz
Dynamic Range ? 100 dBA (at rated power)
Audio Latency < 1 ms (any analog or AmpLink input to loudspeaker output)
AUDIO INPUTS
Input Channels Analog: 2 balanced
AmpLink: 8 digital
Connectors Analog: 6-pin Euroblock
AmpLink: RJ-45 (Input)
Input Impedance 10 kohm
Maximum Input Level 22 dBu (at 14 dBu sensitivity setting)
Sensitivity -10 dBV / 4dBu / 14 dBu
AUDIO OUTPUTS
Outputs Speaker: 2
AmpLink: 8 digital
Connectors Speaker: 4-terminal block
AmpLink: RJ-45 (Thru)
INDICATORS AND CONTROLS
Power LED Solid white: Power is on. Blinking white: Unit is in auto standby mode. Solid red: Power supply fault.
Blinking Red: Thermal fault.
Input Signal LED Green: Signal present. Amber: Input is near clipping. Red: Input is clipping.
Output Limit LED Amber: Amplifier limiting an output. Blinking red: Amplifier muted. Solid red: Amplifier or thermal fault.
Controls, Front Panel Power On/Off
Controls, Rear Panel Amplifier mode DIP switches, input sensitivity switch, input select dial, mute, output attenuators.
ELECTRICAL
Mains Voltage 100 VAC - 240 VAC (±10%, 50/60 Hz)
AC Power Consumption 120 VAC: 25 W (Auto standby), 570 W (Max) 230 VAC: 25 W (Auto standby), 570 W (Max)
Mains Connector Standard IEC (C14)
Protections Vpeak/Vrms limiters, high temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage
PHYSICAL
Operational Temperature Range 0 deg.C to 40 deg.C
Storage Temperature Range -40 deg.C to 70 deg.C
Dimensions (H x W x D) 44 x 483 x 420 mm (1.7 x 19.0 x 16.5 in)
Net Weight 6.6 kg (14.6 lb)
Shipping Weight 8.6 kg (19.0 lb)
Cooling System Microprocessor-controlled variable-speed fans, front-to-back air flow
