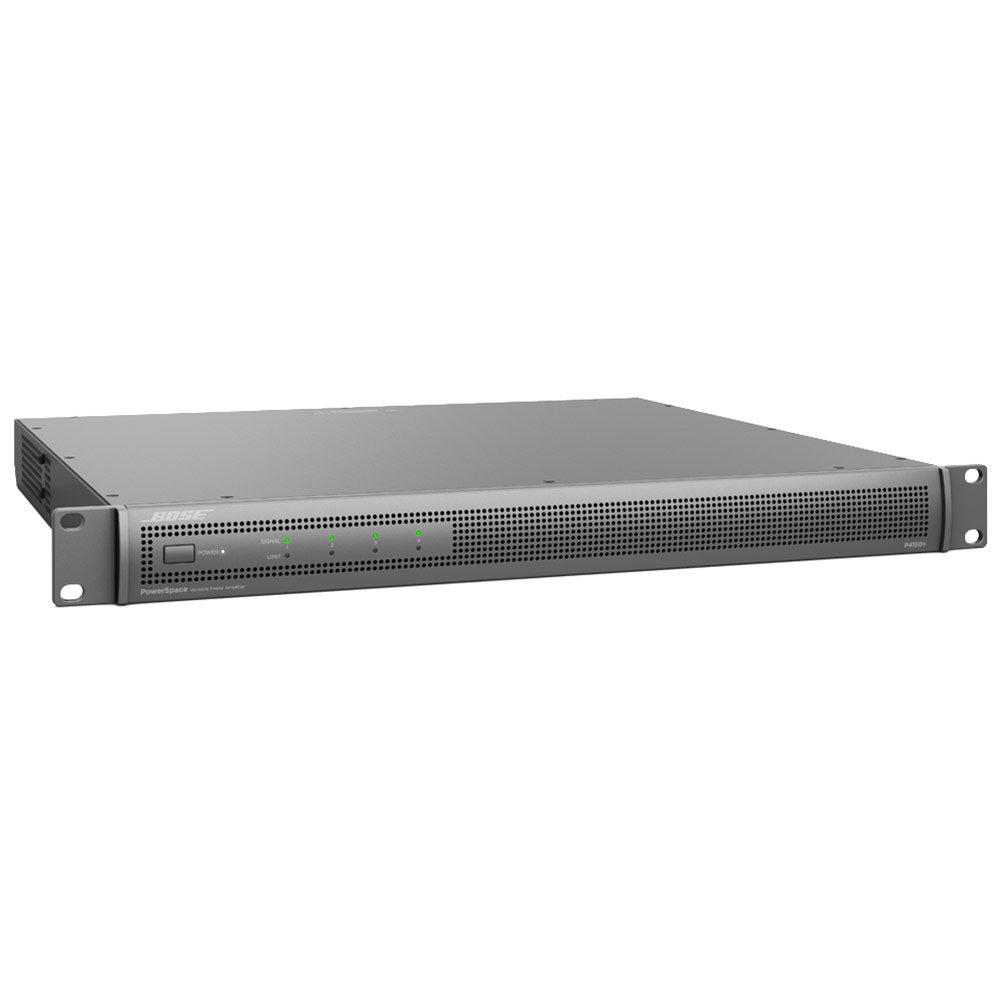

Bose PowerSpace P4150+ Installation Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

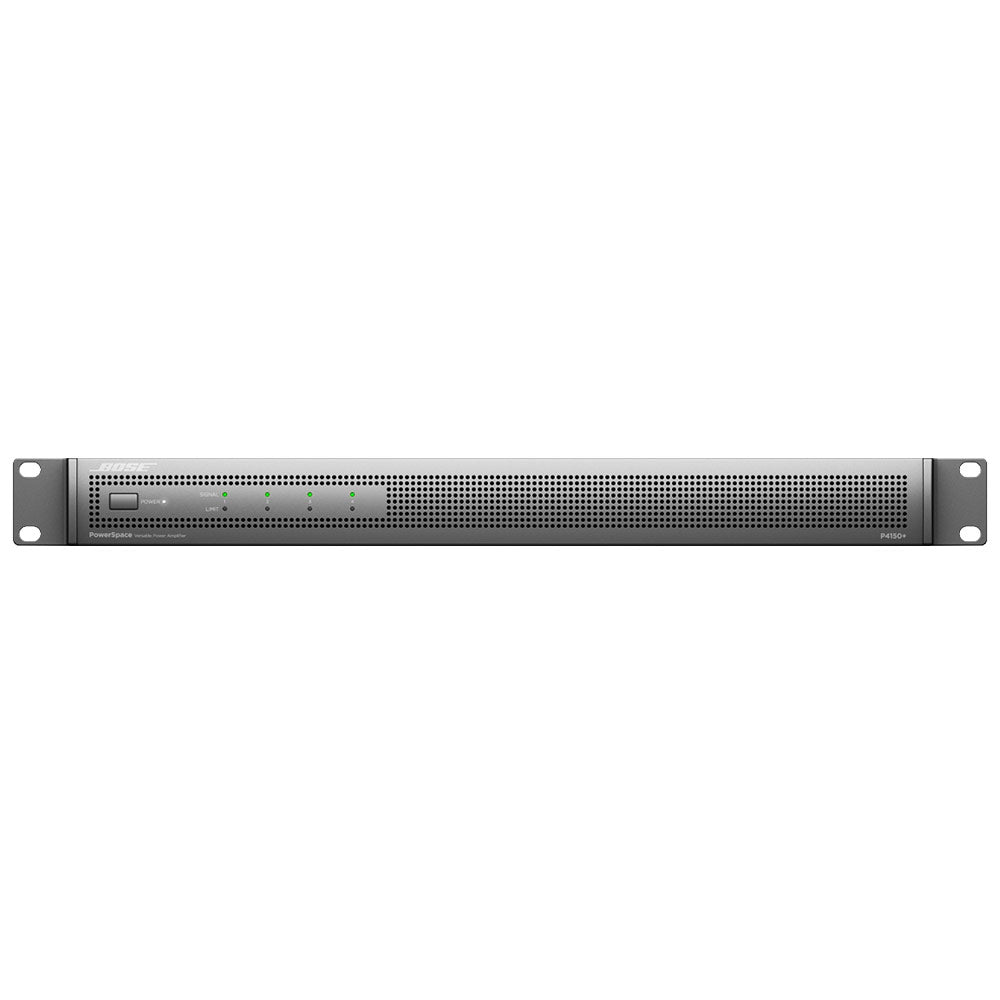

The Bose PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces - such as ControlCenter analog zone controllers - make operation easy for end users. For premium commercial applications, Bose PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.
Features:
- 150 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems
- Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs
- PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
- Opti-voice paging provides a smooth transition between music and announcements
- Integrated features to simplify commercial installations: Dedicated input for 600-ohm telephone or mic paging, independent 600-ohm music-on-hold and line-level aux outputs, and a NO/NC mute connection
- Load-independent outputs deliver full channel power to either low-impedance loads (4-8 ohm) or high-impedance (70/100V) loads without bridging
- I-Share outputs deliver 2x power level by combining the current of two channels
- Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
- Intuitive end-user operation - optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection
Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
| POWER RATING | |
| Amplifier Power | 4x 150 W (THD+N < 0.04%, 1 kHz, 4-8 ohm, 70/100V) |
| I-Share Mode Power | 2x 300 W (2-4 ohm, 70/100V) (Each channel pair can be I-Shared) |
| Gain (Low-Z mode) | 29 dB |
| Gain (70V mode) | 35 dB |
| Gain (100V mode) | 38 dB |
| AUDIO PERFORMANCE | |
| Frequency Response | 4-8 ohm: 20 Hz - 20 kHz (+/- 1 dB @ 1 W); 70/100V: Same as 4-8 ohm with 50 Hz high-pass filter |
| Channel Separation (Crosstalk) | > 80 dB @ 1 kHz,> 65 dB @ 20 kHz |
| Dynamic Range | ? 100 dBA (at rated power) |
| INTEGRATED DSP | |
| A/D and D/A Converters | 24-bit / 48 kHz |
| Processing Functions | Matrix mixer, loudspeaker EQ, Vpeak/Vrms limiters, real-time PEQ, ControlCenter configuration, mute/output polarity inversion |
| Audio Latency | < 1 ms (any analog or AmpLink input to loudspeaker output) |
| AUDIO INPUTS | |
| Input Channels | 4 balanced. 2 unbalanced |
| Connectors | 3x 3-pin Euroblock, 1x 4-pin Euroblock (supports PTT/VOX dynamic mic or 600 ohm telephone paging), 2 stereo RCA (internally mono-summed) |
| Input Impedance | 10 kohm |
| Maximum Input Level | 22 dBu (at 14 dBu sensitivity setting) |
| Sensitivity | -10 dBV / 4dBu / 14 dBu |
| AUDIO OUTPUTS | |
| Outputs | Speaker: 4 Auxiliary: 2 |
| Connectors | Speaker: 8-terminal block Auxiliary: 3-pin Euroblock (600 ohm music-on-hold, line level) |
| INDICATORS AND CONTROLS | |
| Power LED | Solid white: Power is on. Blinking white: Unit is in auto standby mode. Solid red: Power supply fault. Blinking Red: Thermal fault. |
| Input Signal LED | Green: Signal present. Amber: Input is near clipping. Red: Input is clipping. |
| Output Limit LED | Amber: Amplifier limiting an output. Blinking red: Amplifier muted. Solid red: Amplifier or thermal fault. |
| Controls, Front Panel | Power On/Off |
| Controls, Rear Panel | Amplifier mode DIP switches, input sensitivity switch, input select dial, mute, output attenuators. |
| ELECTRICAL | |
| Mains Voltage | 100 VAC - 240 VAC (±10%, 50/60 Hz) |
| AC Power Consumption | 120 VAC: 25 W (Auto standby), 570 W (Max) 230 VAC: 25 W (Auto standby), 570 W (Max) |
| Mains Connector | Standard IEC (C14) |
| Protections | Vpeak/Vrms limiters, high temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage |
| PHYSICAL | |
| Operational Temperature Range | 0 deg.C to 40 deg.C |
| Storage Temperature Range | -40 deg.C to 70 deg.C |
| Dimensions (H x W x D) | 44 x 483 x 420 mm (1.7 x 19.0 x 16.5 in) |
| Net Weight | 6.6 kg (14.6 lb) |
| Shipping Weight | 8.6 kg (19.0 lb) |
| Cooling System | Microprocessor-controlled variable-speed fans, front-to-back air flow |
The Bose PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces - such as ControlCenter analog zone controllers - make operation easy for end users. For premium commercial applications, Bose PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.
Features:
- 150 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems
- Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs
- PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
- Opti-voice paging provides a smooth transition between music and announcements
- Integrated features to simplify commercial installations: Dedicated input for 600-ohm telephone or mic paging, independent 600-ohm music-on-hold and line-level aux outputs, and a NO/NC mute connection
- Load-independent outputs deliver full channel power to either low-impedance loads (4-8 ohm) or high-impedance (70/100V) loads without bridging
- I-Share outputs deliver 2x power level by combining the current of two channels
- Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
- Intuitive end-user operation - optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection
Applications:
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
| POWER RATING | |
| Amplifier Power | 4x 150 W (THD+N < 0.04%, 1 kHz, 4-8 ohm, 70/100V) |
| I-Share Mode Power | 2x 300 W (2-4 ohm, 70/100V) (Each channel pair can be I-Shared) |
| Gain (Low-Z mode) | 29 dB |
| Gain (70V mode) | 35 dB |
| Gain (100V mode) | 38 dB |
| AUDIO PERFORMANCE | |
| Frequency Response | 4-8 ohm: 20 Hz - 20 kHz (+/- 1 dB @ 1 W); 70/100V: Same as 4-8 ohm with 50 Hz high-pass filter |
| Channel Separation (Crosstalk) | > 80 dB @ 1 kHz,> 65 dB @ 20 kHz |
| Dynamic Range | ? 100 dBA (at rated power) |
| INTEGRATED DSP | |
| A/D and D/A Converters | 24-bit / 48 kHz |
| Processing Functions | Matrix mixer, loudspeaker EQ, Vpeak/Vrms limiters, real-time PEQ, ControlCenter configuration, mute/output polarity inversion |
| Audio Latency | < 1 ms (any analog or AmpLink input to loudspeaker output) |
| AUDIO INPUTS | |
| Input Channels | 4 balanced. 2 unbalanced |
| Connectors | 3x 3-pin Euroblock, 1x 4-pin Euroblock (supports PTT/VOX dynamic mic or 600 ohm telephone paging), 2 stereo RCA (internally mono-summed) |
| Input Impedance | 10 kohm |
| Maximum Input Level | 22 dBu (at 14 dBu sensitivity setting) |
| Sensitivity | -10 dBV / 4dBu / 14 dBu |
| AUDIO OUTPUTS | |
| Outputs | Speaker: 4 Auxiliary: 2 |
| Connectors | Speaker: 8-terminal block Auxiliary: 3-pin Euroblock (600 ohm music-on-hold, line level) |
| INDICATORS AND CONTROLS | |
| Power LED | Solid white: Power is on. Blinking white: Unit is in auto standby mode. Solid red: Power supply fault. Blinking Red: Thermal fault. |
| Input Signal LED | Green: Signal present. Amber: Input is near clipping. Red: Input is clipping. |
| Output Limit LED | Amber: Amplifier limiting an output. Blinking red: Amplifier muted. Solid red: Amplifier or thermal fault. |
| Controls, Front Panel | Power On/Off |
| Controls, Rear Panel | Amplifier mode DIP switches, input sensitivity switch, input select dial, mute, output attenuators. |
| ELECTRICAL | |
| Mains Voltage | 100 VAC - 240 VAC (±10%, 50/60 Hz) |
| AC Power Consumption | 120 VAC: 25 W (Auto standby), 570 W (Max) 230 VAC: 25 W (Auto standby), 570 W (Max) |
| Mains Connector | Standard IEC (C14) |
| Protections | Vpeak/Vrms limiters, high temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage |
| PHYSICAL | |
| Operational Temperature Range | 0 deg.C to 40 deg.C |
| Storage Temperature Range | -40 deg.C to 70 deg.C |
| Dimensions (H x W x D) | 44 x 483 x 420 mm (1.7 x 19.0 x 16.5 in) |
| Net Weight | 6.6 kg (14.6 lb) |
| Shipping Weight | 8.6 kg (19.0 lb) |
| Cooling System | Microprocessor-controlled variable-speed fans, front-to-back air flow |
