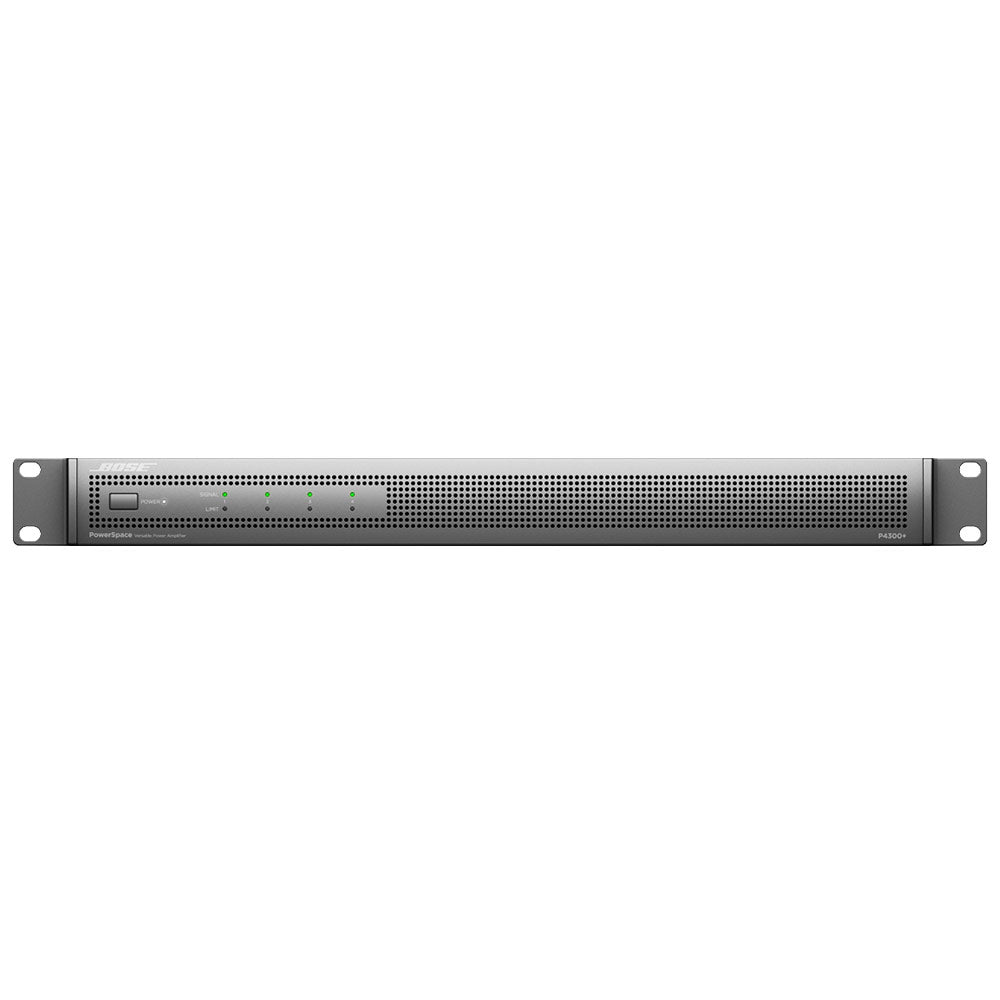

Bose PowerSpace P4300+ Installation Power Amplifier


  • Dale #:

    BOSE-8032891110
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The Bose PowerSpace P4300+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Bose PowerSpace P4300+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, Bose-proprietary algorithms offer predictable performance while optional interfaces - such as ControlCenter analog zone controllers - make operation easy for end users. For premium commercial applications, Bose PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.

Features:

  • 300 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems
  • Built-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs
  • PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
  • Opti-voice paging provides a smooth transition between music and announcements
  • Integrated features to simplify commercial installations: Dedicated input for 600-ohm telephone or mic paging, independent 600-ohm music-on-hold and line-level aux outputs, and a NO/NC mute connection
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 ohm) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
  • Intuitive end-user operation - optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection

Applications:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones

More +

Product Specs

POWER RATING
Amplifier Power 4x 300 W (THD+N < 0.04%, 1 kHz, 4-8 ohm, 70/100V)
I-Share Mode Power 2x 600 W (2-4 ohm, 70/100V) (Each channel pair can be I-Shared)
Gain (Low-Z mode) 32 dB
Gain (70V mode) 35 dB
Gain (100V mode) 38 dB
AUDIO PERFORMANCE
Frequency Response 4-8 ohm: 20 Hz - 20 kHz (+/- 1 dB @ 1 W); 70/100V: Same as 4-8 ohm with 50 Hz high-pass filter
Channel Separation (Crosstalk) > 80 dB @ 1 kHz, > 65 dB @ 20 kHz
Dynamic Range ? 100 dBA (at rated power)
INTEGRATED DSP
A/D and D/A Converters 24-bit / 48 kHz
Processing Functions Matrix mixer, loudspeaker EQ, Vpeak/Vrms limiters, real-time PEQ, ControlCenter configuration, mute/output polarity inversion
Audio Latency < 1 ms (any analog or AmpLink input to loudspeaker output)
AUDIO INPUTS
Input Channels 4 balanced. 2 unbalanced
Connectors 3x 3-pin Euroblock, 1x 4-pin Euroblock (supports PTT/VOX dynamic mic or 600 ohm telephone paging), 2 stereo RCA (internally mono-summed)
Input Impedance 10 kohm
Maximum Input Level 22 dBu (at 14 dBu sensitivity setting)
Sensitivity -10 dBV / 4dBu / 14 dBu
AUDIO OUTPUTS
Outputs Speaker: 4
Auxiliary: 2
Connectors Speaker: 8-terminal block
Auxiliary: 3-pin Euroblock (600 ohm music-on-hold, line level)
INDICATORS AND CONTROLS
Power LED Solid white: Power is on. Blinking white: Unit is in auto standby mode. Solid red: Power supply fault.
Blinking Red: Thermal fault.
Input Signal LED Green: Signal present. Amber: Input is near clipping. Red: Input is clipping.
Output Limit LED Amber: Amplifier limiting an output. Blinking red: Amplifier muted. Solid red: Amplifier or thermal fault.
Controls, Front Panel Power On/Off
Controls, Rear Panel Amplifier mode DIP switches, input sensitivity switch, input select dial, mute, output attenuators.
ELECTRICAL
Mains Voltage 100 VAC - 240 VAC (±10%, 50/60 Hz)
AC Power Consumption 120 VAC: 25 W (Auto standby), 570 W (Max) 230 VAC: 25 W (Auto standby), 570 W (Max)
Mains Connector Standard IEC (C14)
Protections Vpeak/Vrms limiters, high temperature, output short, extra high frequency (EHF), excessively low or high AC line voltage
PHYSICAL
Operational Temperature Range 0 deg.C to 40 deg.C
Storage Temperature Range -40 deg.C to 70 deg.C
Dimensions (H x W x D) 44 x 483 x 420 mm (1.7 x 19.0 x 16.5 in)
Net Weight 6.6 kg (14.6 lb)
Shipping Weight 8.6 kg (19.0 lb)
Cooling System Microprocessor-controlled variable-speed fans, front-to-back air flow
