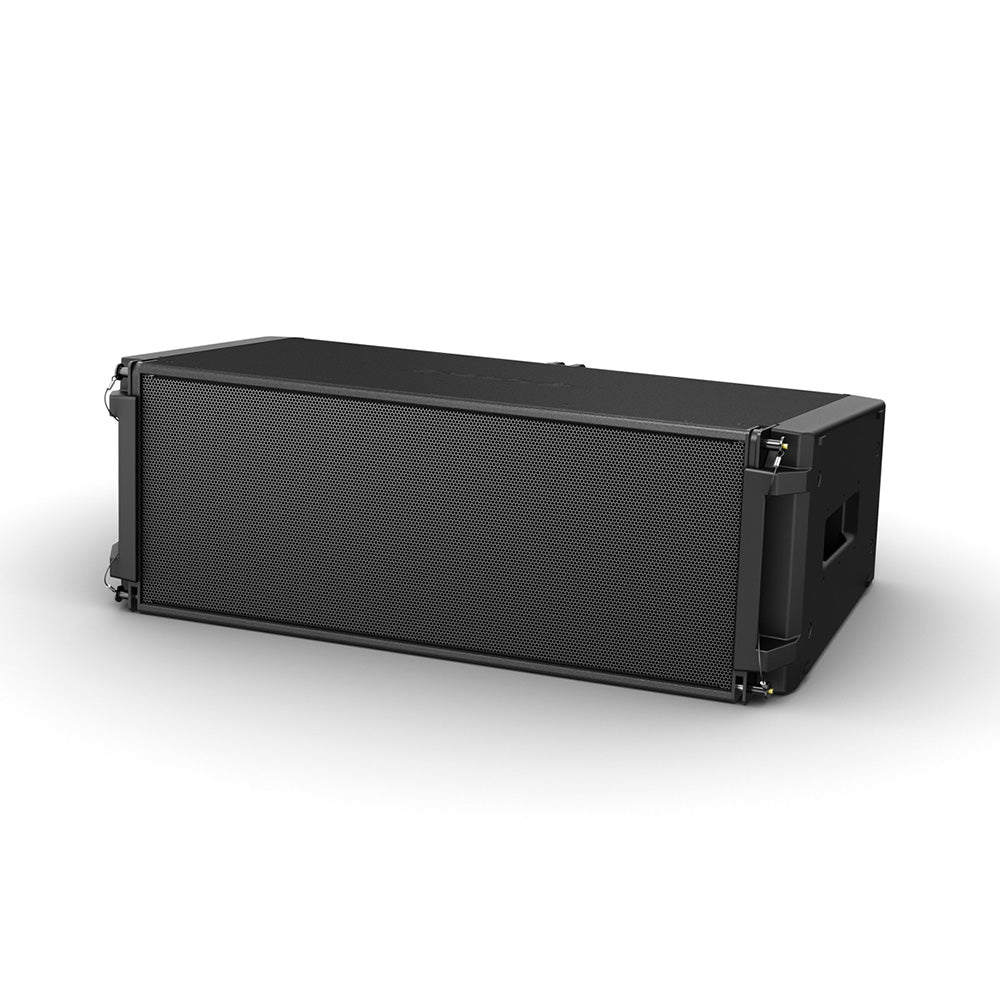

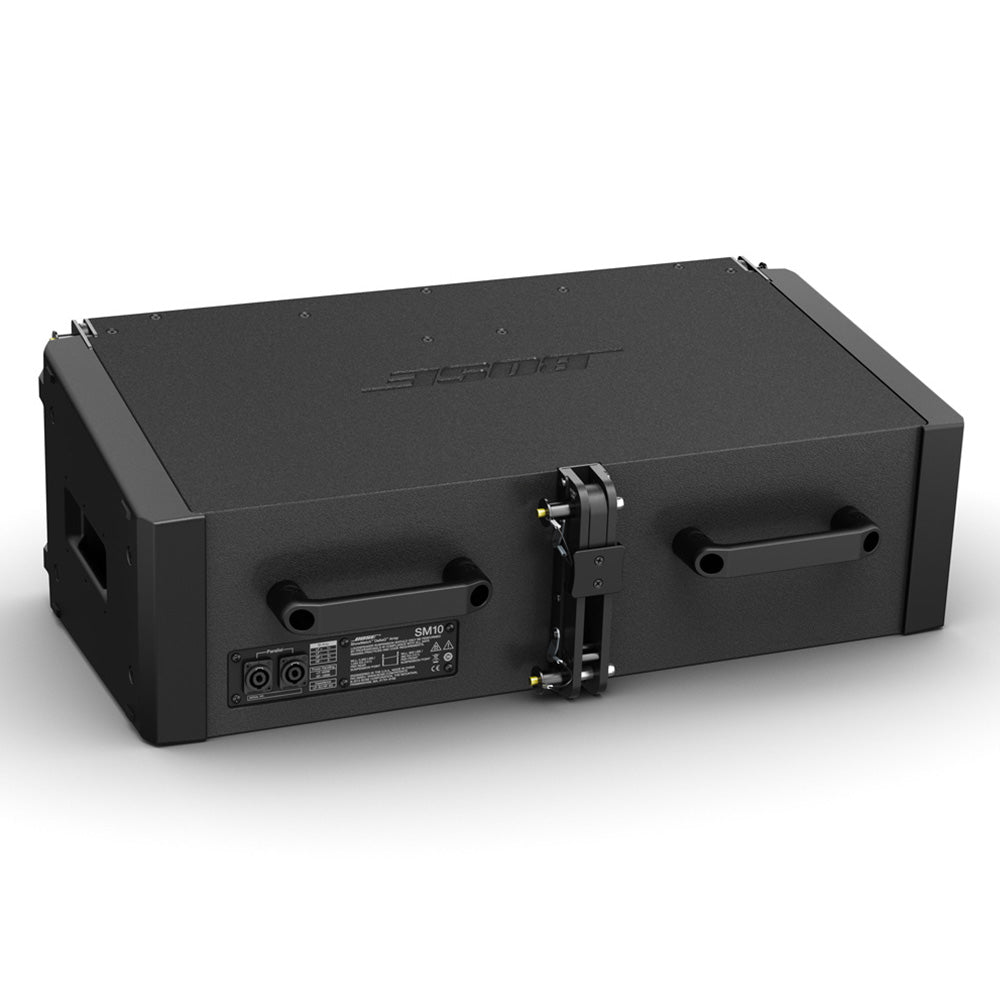

Bose ShowMatch SM10 DeltaQ Full-Range Line Array Loudspeaker
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Bose Professional ShowMatch™ DeltaQ™ SM10 full-range array modules provide 10° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 - 17,000 Hz with peak array output of up to 145 dB.
Bose Professional ShowMatch™ array loudspeakers - the newest DeltaQ™ technology design - feature replaceable waveguides that allow changing coverage and asymmetrical patterns, in compact enclosures optimized for both installation and portable applications requiring the best possible (top-class) sound quality.
Features:
- DeltaQ™ technology is the next-generation line-array design that allows "Q" (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
- Changeable waveguides -includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns.
- Compact, portable enclosure -Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
- Tour-sound output level -4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
- 3-point "quick pin" rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
Removable side rigging-guard/handles -provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
Applications:
- Theaters
- Houses of worship
- Auditoriums
- Performing arts venues
- Arenas
| Single Module Performance | |
| Frequency Response (+/- 3 dB) | 70 - 17,000 Hz |
| Frequency Range (-10 dB) | 60 - 17,000 Hz |
| Transducers | |
| Low Frequency | 2 x Bose SM8 neodymium 8-inch woofers (3-inch voice coil) |
| High Frequency | 4 x Bose EMB2S extended-HF neodymium compression driver (2-inch voice coil) |
| Nominal Impedance | 8 ohms + 6 ohms (LF/HF) |
| Recommended Crossover | 800 Hz (acoustic; requires active 2-way crossover in DSP) |
| Recommended High-Pass Protection Filter | 70 Hz with minimum 12 dB / octave filter |
| Power Handling, long-term continuous | Low Frequency: 450 W High Frequency: 100 W |
| Power Handling, Peak | Low Frequency: 1800 W High Frequency: 400 W |
| Enclosure | |
| Enclosure Material | Baltic birch plywood |
| Finish | Two-part spray polyurethane coating, black |
| Grill | 16-gauge (1.5 mm) perforated steel, powder-coated nish, black |
| Environmental | IPx4 |
| Connectors | 2 x Neutrik¨ NL4 wired parallel |
| Suspension / Mounting | Integrated 3-point quick-pin rigging |
| Nominal Coverage Pattern | 100¡H x 10¡V (or 70¡H) |
| Sensitivity (SPL / 1W @ 1m) | Low Frequency: 94 dB High Frequency: 105 dB |
| Calculated Maximum SPL @ 1 m | Low Frequency: 121 dB High Frequency: 125 dB |
| Calculated Maximum SPL @ 1 m, peak | Low Frequency: 127 dB High Frequency: 131 dB |
| Dimensions (H x W x D) - inches | 11.1 x 31.2 x 18.3Ó / W: 29.8Ó |
| Net Weight | 29.7 kg (65.5 lbs) |
Bose Professional ShowMatch™ DeltaQ™ SM10 full-range array modules provide 10° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 - 17,000 Hz with peak array output of up to 145 dB.
Bose Professional ShowMatch™ array loudspeakers - the newest DeltaQ™ technology design - feature replaceable waveguides that allow changing coverage and asymmetrical patterns, in compact enclosures optimized for both installation and portable applications requiring the best possible (top-class) sound quality.
Features:
- DeltaQ™ technology is the next-generation line-array design that allows "Q" (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
- Changeable waveguides -includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns.
- Compact, portable enclosure -Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
- Tour-sound output level -4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
- 3-point "quick pin" rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
Removable side rigging-guard/handles -provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
Applications:
- Theaters
- Houses of worship
- Auditoriums
- Performing arts venues
- Arenas
| Single Module Performance | |
| Frequency Response (+/- 3 dB) | 70 - 17,000 Hz |
| Frequency Range (-10 dB) | 60 - 17,000 Hz |
| Transducers | |
| Low Frequency | 2 x Bose SM8 neodymium 8-inch woofers (3-inch voice coil) |
| High Frequency | 4 x Bose EMB2S extended-HF neodymium compression driver (2-inch voice coil) |
| Nominal Impedance | 8 ohms + 6 ohms (LF/HF) |
| Recommended Crossover | 800 Hz (acoustic; requires active 2-way crossover in DSP) |
| Recommended High-Pass Protection Filter | 70 Hz with minimum 12 dB / octave filter |
| Power Handling, long-term continuous | Low Frequency: 450 W High Frequency: 100 W |
| Power Handling, Peak | Low Frequency: 1800 W High Frequency: 400 W |
| Enclosure | |
| Enclosure Material | Baltic birch plywood |
| Finish | Two-part spray polyurethane coating, black |
| Grill | 16-gauge (1.5 mm) perforated steel, powder-coated nish, black |
| Environmental | IPx4 |
| Connectors | 2 x Neutrik¨ NL4 wired parallel |
| Suspension / Mounting | Integrated 3-point quick-pin rigging |
| Nominal Coverage Pattern | 100¡H x 10¡V (or 70¡H) |
| Sensitivity (SPL / 1W @ 1m) | Low Frequency: 94 dB High Frequency: 105 dB |
| Calculated Maximum SPL @ 1 m | Low Frequency: 121 dB High Frequency: 125 dB |
| Calculated Maximum SPL @ 1 m, peak | Low Frequency: 127 dB High Frequency: 131 dB |
| Dimensions (H x W x D) - inches | 11.1 x 31.2 x 18.3Ó / W: 29.8Ó |
| Net Weight | 29.7 kg (65.5 lbs) |
