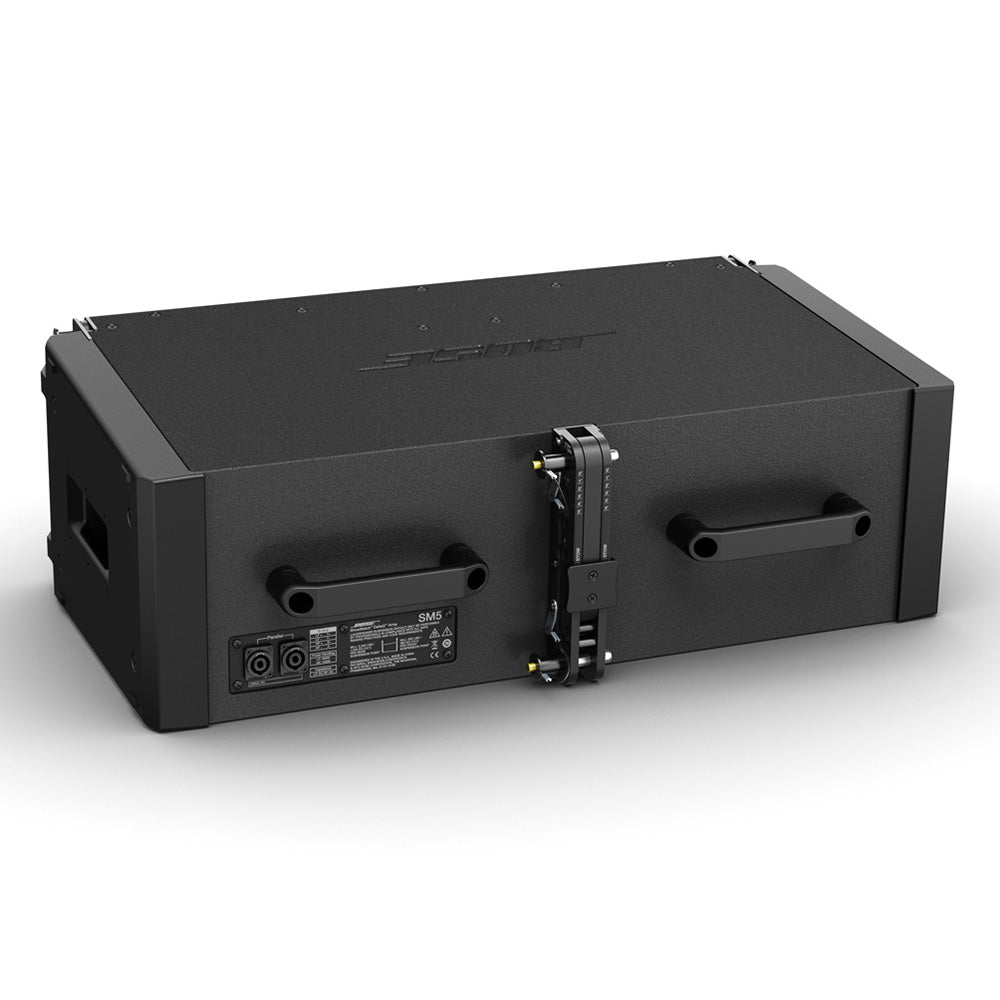

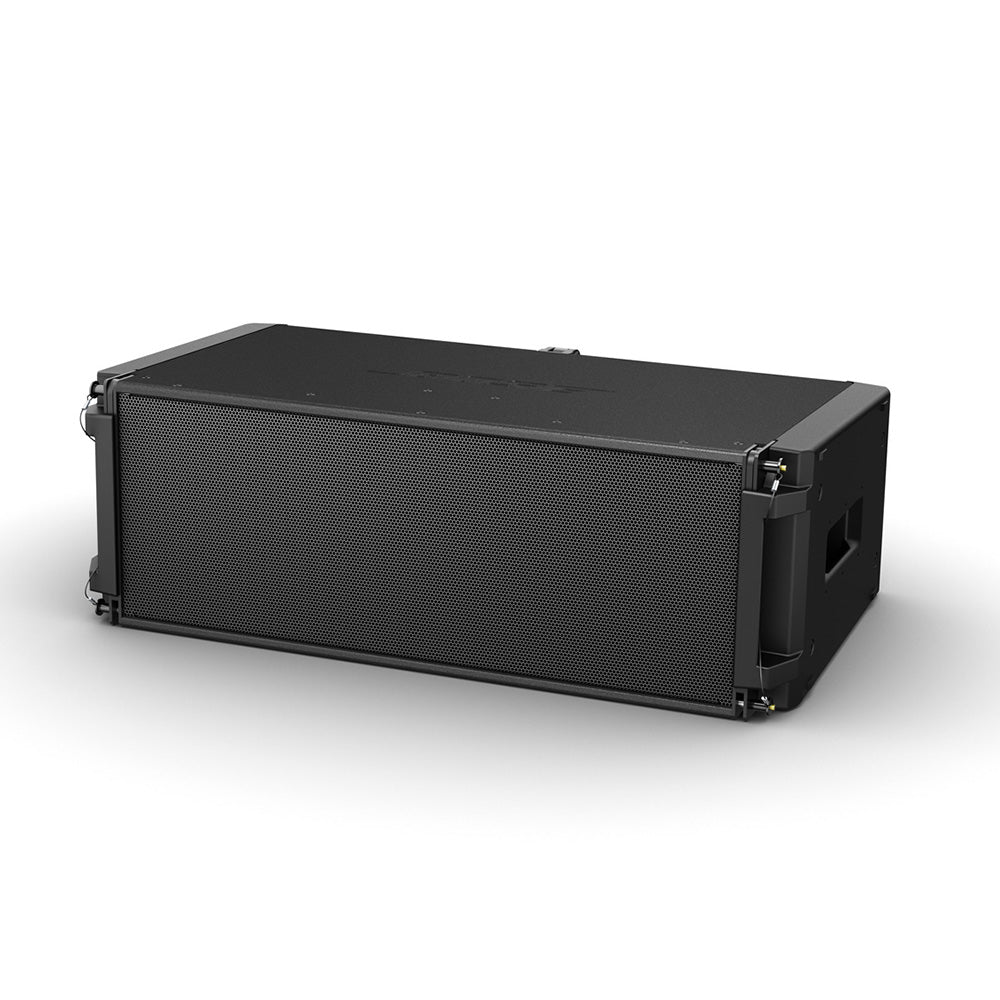

Bose ShowMatch SM5 DeltaQ Full-Range Line Array Loudspeaker

  • Dale #:

    BOSE-7309995540
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Bose Professional ShowMatch™ DeltaQ™ SM5 full-range array modules provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides.  Replace single waveguide panel to form horizontal asymmetric... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Bose Professional ShowMatch™ DeltaQ™ SM5 full-range array modules provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides.  Replace single waveguide panel to form horizontal asymmetrical patterns.   The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 17,000 Hz with peak array output of up to 145 dB.

Bose Professional ShowMatch™ array loudspeakers - the newest DeltaQ™ technology design - feature replaceable waveguides that allow changing coverage and asymmetrical patterns, in compact enclosures optimized for both installation and portable applications requiring the best possible (top-class) sound quality.

Features:

  • DeltaQ™ technology is the next-generation line-array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
  • Changeable waveguides –includes both 70°and 100°waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55°waveguides for SM5.
  • Compact, portable enclosure –Versatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
  • Tour-sound output level –4x Bose EMB2S compression drivers, improved with more HF output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
  • 3-point “quick pin” rigging -Fast, easy setup with up to 24 full-range modules and 10:1 safety factor.
  • Removable side rigging-guard/handles –provides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
  • Rigging overlap angle adjustment -only on SM5 modules, coverage overlap or “splay” can be adjusted from 0 to 5°, in 1°increments, to provide long throw distance and high SPL.

Applications:

  • Theaters
  • Houses of worship
  • Auditoriums
  • Performing arts venues
  • Arenas

More +

Product Specs

Single Module Performance
Frequency Response (+/- 3 dB) 69 Hz - 17 kHz
Frequency Range (-10 dB) 59 Hz - 17 kHz
Transducers
Low Frequency 2 x Bose SM8 neodymium 8-inch woofers (3-inch voice coil)
High Frequency 4 x Bose EMB2S extended-HF neodymium compression driver (2-inch voice coil)
Nominal Impedance 8 ohms + 6 ohms (LF/HF)
Recommended Crossover 800 Hz (acoustic; requires active 2-way crossover in DSP)
Recommended High-Pass Protection Filter 70 Hz with minimum 12 dB / octave filter
Power Handling, long-term continuous Low Frequency: 450 W
High Frequency: 100 W
Power Handling, Peak Low Frequency: 1800 W
High Frequency: 400 W
Enclosure
Enclosure Material Baltic birch plywood
Finish Two-part spray polyurethane coating, black
Grill 16-gauge (1.5 mm) perforated steel, powder-coated nish, black
Environmental IPx4
Connectors 2 x Neutrik® NL4 wired parallel
Suspension / Mounting Integrated 3-point quick-pin rigging
Nominal Coverage Pattern 70°H x 5°V (or 100°H; optional 55°H)
Sensitivity (SPL / 1W @ 1m) Low Frequency: 94 dB
High Frequency: 106 dB
Calculated Maximum SPL @ 1 m Low Frequency: 121 dB
High Frequency: 125 dB
Calculated Maximum SPL @ 1 m, peak Low Frequency: 127 dB
High Frequency: 132 dB
Dimensions (H x W x D) - inches 10.6 x 31.2 x 18.4” / W: 29.8”
Net Weight 30.6 kg (67.5 lbs)
