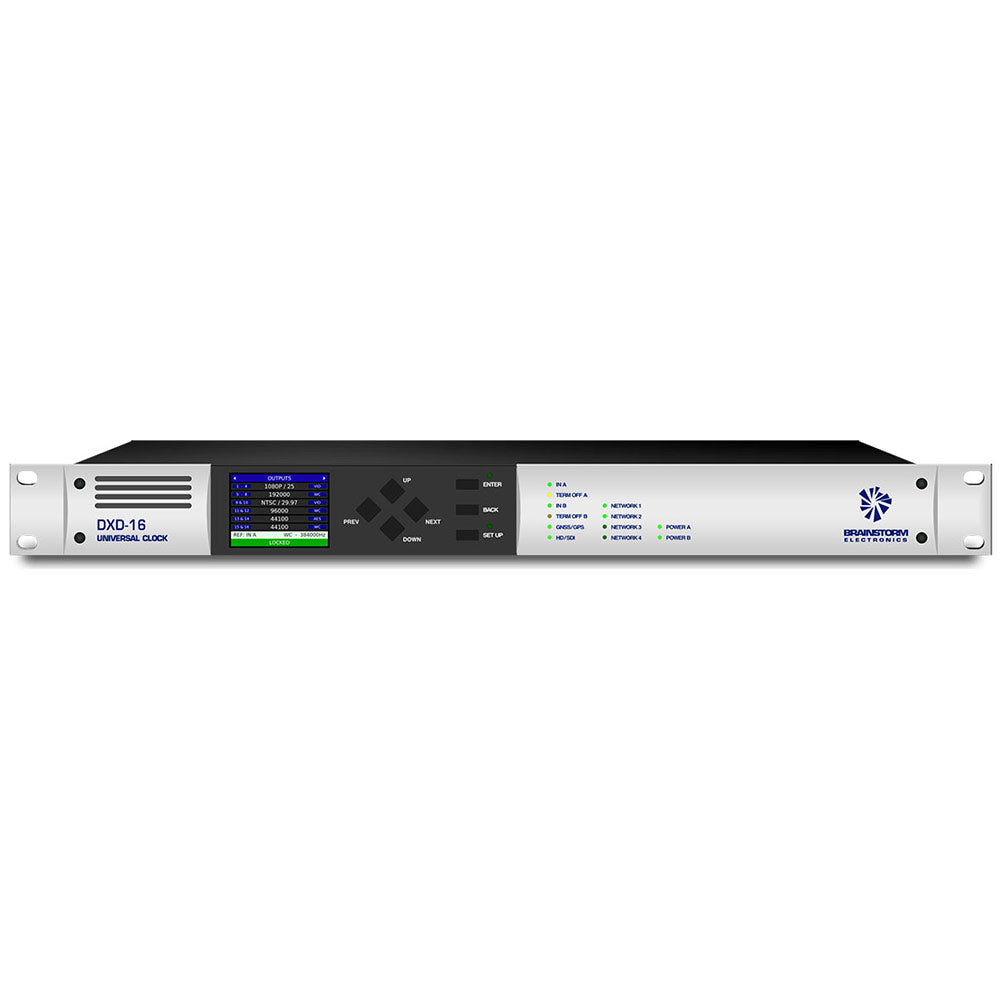

Brainstorm DXD-16 Universal Clock


  • Dale #:

    BRAI-DXD16
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

DXD-16 Universal Clock combines PTP, GPS and legacy Sync to provide the Audio/ Video equipment and the IP network in perfect sync, making the DXD truly UniversalFeatures: Flexibility and easy integration PTP Grandmaster 4 independant Ethernet ports Can synchronize to a PTP network, a GPS clock or... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

DXD-16 Universal Clock combines PTP, GPS and legacy Sync to provide the Audio/ Video equipment and the IP network in perfect sync, making the DXD truly Universal

Features:

  • Flexibility and easy integration
  • PTP Grandmaster
  • 4 independant Ethernet ports
  • Can synchronize to a PTP network, a GPS clock or a legacy reference
  • 6 legacy reference generators
  • 16 universal outputs (WC, AES, VID SYNC, 10MHz)
  • 2 external reference inputs with failover for redundancy
  • Remote control via web browser
  • Multiple options: GPS receiver, OCXO, SDI

IEEE 1588 Network Sync
Brainstorm's DXD-16 can be either a PTP Grandmaster, slave or Boundary Clock. PTP (Precision Time Protocol), defined in IEEE 1588, has been broadly adopted by manufacturers as a network synchronizing standard, which means that the DXD-16 can work in a number of systems. PTP profiles supported by the DXD-16 include AES67 and SMPTE 2059.

As a Boundary Clock, the DXD-16 can be a slave to a Grandmaster on one of its attached networks, synchronize its internal clocks to that Grandmaster, and distribute the same Grandmaster time in its role as PTP master to the remaining attached networks. Alternatively it can itself fulfill the function of Grandmaster and be PTP master on all attached networks.

Four Gigabit Ethernet ports (RJ45) are available on the DXD-16. The different ports can be used independently or as primary and secondary pairs. Each network connector supports an electrically and logically independent network, with the DXD-16 acting as a PTP timing bridge. The DXD-16 is not a network switch, and for security reasons no information flows from any network port to any other.

Customize Your Units with Universal Outputs
6 independent sync pulses and clocks are generated simultaneously by the DXD-16 and are routed to the 16 BNC universal outputs. Universal Outputs offer great flexibility compared to dedicated outputs as they can be configured for any of the generated legacy reference signals. This includes all standard SD and HD video sync formats (Black Burst and HD tri-level sync), word clock and AES-3id (at rates from 32 to 384 KHz, plus all the necessary pull-up/down, including 24:25 conversions, even VSO) and 10MHz.

Accurate and Versatile Clock Generator
A high-accuracy internal crystal oscillator (TCXO) provides a very stable frequency reference (+/- 1ppm). An optional oven-controlled oscillator (OCXO) can be installed. External legacy signals can also be used as reference, such as Word Clock, AES, Video Sync (SD & HD) or a 10MHz tone. The generated outputs have extremely low jitter. The output rates are independent from the reference rate which means that any rate can be extracted from any reference such as 59.97 from 25FPS for example.

DXD as a PTP Slave or PTP Grandmaster

  • It has the capability of being a PTP slave or a PTP Grandmaster and gives the operator exceptional flexibility:
  • As a stand-alone Master locked to its internal oscillator or GPS, it will provide sync to the network via PTP ports and to the legacy equipment via the The Brainstorm Unique Universal Outputs, simultaneously.
  • As a PTP master, the DXD can lock to an external sync source such as 10 MHz sine wave, Word Clock, AES or any standard Video Sync so the IP network locks to the existing sync sources.
  • As a PTP slave, it can generate legacy sync to keep the legacy equipment locked to the network.

GNSS / GPS
A GPS receiver can be installed in either unit. GPS not only provides an extremely accurate timing source, it also enables DXD's in remote locations to be locked and in phase with one another. Additionally, with the GPS option, the DXD will have a higher priority as a PTP Grandmaster.

GNSS / GPS
A GPS receiver can be installed in either unit. GPS not only provides an extremely accurate timing source, it also enables DXD's in remote locations to be locked and in phase with one another. Additionally, with the GPS option, the DXD will have a higher priority as a PTP Grandmaster.

Power Redundancy
An internal 100-240 VAC power supply is provided as is a DC input for an external 12VDC source. The unit can operate with either of these power sources and either can act as a back-up for the other with auto switch-over in the event of a failure.

Alarm and Remote
GPIO inputs (3) and outputs (3) are included. All functions and settings can be monitored and altered via a web browser. Here you can create the content that will be used within the module.

Remote Control - Coming Soon

  • Embedded web server
    • The DXD is accessed with a browser
      • Monitor the unit
      • Change settings
      • Upload firmware
  • Web page header includes:
    • Device info (name, serial no...)
    • REF info,
    • LOCK status
    • System Time (TOD)
    • GPS status
  • Unit is monitored via the Status page
  • Settings are changed via Configuration pages

More +

Product Specs

PTP4 independant Gigabit Ethernet ports (RJ-45)
Configurable as a Grandmaster, slave or Boundary clock
Complies with IEEE-1588 V2
Unicast / Multicast operation
Reference Generator
Generates simultaneously up to 6 different rates in any of these formats
Word clockrates from 32 to 384 KHz
AESrates from 32 to 96 KHz
Video sync
NTSC/PAL black burst525/29.97/30i
625/23.98/24/25i
HD tri-level sync720/23.98/24/25/29.97/30/50/59.94/60P
1080/25/29.97/30i
1080/23.98/24/25/29.97/30sF
1080/23.98/24/25/29.97/30/50/59.94/60p
10MHz
Universal Outputs
16 outputsin 6 different groups
BNC75?
Output signalany of the generated legacy references
Oscillators
TCXO+/- 1ppm
OCXO+/-10ppb (option)
External Sync SourcesWord clock
AES
Video sync (Black Burst or HD tri-level sync)
10MHz
GPS (option)
PTP
Universal Inputs
2 BNC input connectors w/ 75? termination switch
Accepts the following input signalsWord clock
AES
Video sync (Black Burst or HD tri-level sync)
10 MHz
Remote controlWeb browser
3 GPIO inputs (DB-25)
Alarm3 GPIO outputs (DB-25)
Battery backupAn on-board battery keeps the internal time-of-day clock running while power is off
Presets10 presets can be programmed for quick recall
Display2.4" TFT LCD – 240 x 320 resolution
Power
AC100-240 VAC – Internal power supply with IEC inlet
DC12 VDC @ 5A – 4 pin circular input connector for external DC power source
Dual power sources with auto switch-over in case of failure for redundancy
Dimensions19" x 1.75" x 8"
GNSS/GPS Internal Receiver (option)The DXD-16 can be fitted with an Internal GNSS/GPS receiver.
The option includes an SMA antenna input connector. An antenna is required (not included).
