Description

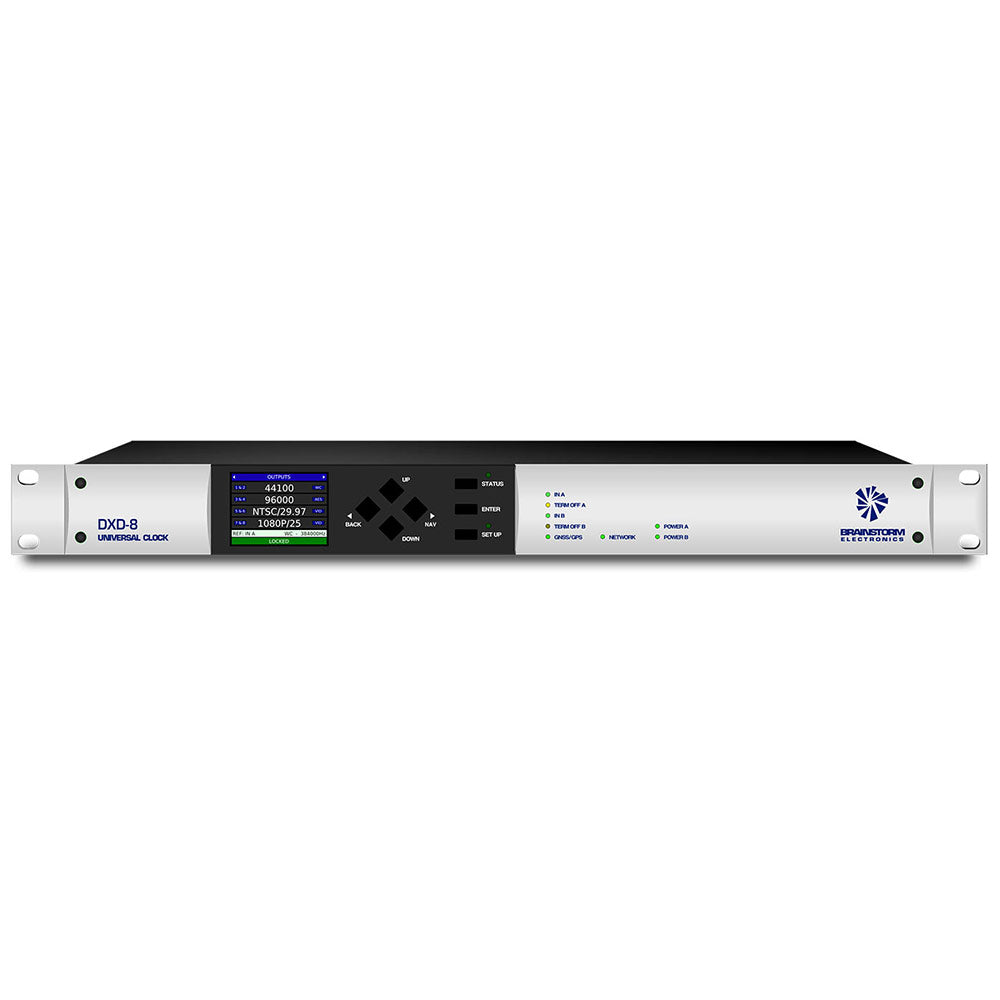

The DXD series from Brainstorm is designed to ease the transition to IP. The DXD-8 Universal Clock, a precision multiformat reference generator generates up to 4 independent video syncs and audio clocks simultaneously. With the PTP option, it acts as a bridge between an IP infrastructure and legacy A/V equipment.
Features:
IEEE 1588 Network Sync
Optional firmware can be installed to give PTP capabilities to the DXD-8, compliant with IEEE 1588 PTP V2. The DXD- 8 can be either a PTP master or slave Clock. PTP (Precision Time Protocol), defined in IEEE 1588, has been broadly adopted by manufacturers as a network synchronizing standard, which means that the DXD-8 can work in a number of systems. PTP profiles supported by the DXD-8 include AES67 and SMPTE 2059.
As a PTP slave, the DXD-8 would synchronize its internal clocks to the PTP Grandmaster while generating the different sync pulses and clocks. Alternatively it can itself fulfill the function of Grandmaster either locked to the GPS signal (option) or to it's internal oscillator. The DXD-8 has one Gigabit Ethernet port (RJ45).nd for security reasons no information flows from any network port to any other.
Customize Your Units with Universal Outputs
6 independent sync pulses and clocks are generated simultaneously by the DXD-16 and are routed to the 16 BNC universal outputs. Universal Outputs offer great flexibility compared to dedicated outputs as they can be configured for any of the generated legacy reference signals. This includes all standard SD and HD video sync formats (Black Burst and HD tri-level sync), word clock and AES-3id (at rates from 32 o 384 KHz, plus all the necessary pull-up/down, including 24:25 conversions, even VSO) and 10MHz.
Accurate and Versatile Clock Generator
The DXD-8 generates up to 4 independent sync pulses and clocks simultaneously and routes them to the 8 BNC universal outputs. Universal Outputs give the DXD-8 great exibility as they can output any of the generated legacy reference signals. Included are all standard SD and HD video sync formats (Black Burst and HD tri-level sync), word clock and AES11 DARS (standard rates up to 384 KHz and all the necessary pull-up/down, including 24:25 conversions, even VSO) and 10MHz.
Accurate and Versatile Clock Generator
A high-accuracy internal crystal oscillator (TCXO) provides a very stable frequency reference (+/- 1ppm). An optional oven-controlled oscillator (OCXO) can be installed. External legacy signals can also be used as reference, such as Word Clock, AES, Video Sync (SD & HD) or a 10MHz tone. The generated outputs have extremely low jitter. The output rates are independent from the reference rate which means that any rate can be extracted from any reference such as 59.97 from 25FPS for example
DXD as a PTP Slave or PTP Grandmaster
GNSS / GPS
A GPS receiver can be installed in either unit. GPS not only provides an extremely accurate timing source, it also enables DXD's in remote locations to be locked and in phase with one another. Additionally, with the GPS option, the DXD will have a higher priority as a PTP Grandmaster.
Resilience and Redundancy
When using an external reference, a second source can be connected as fallback in case of failure. If the external reference becomes unusable, the DXD-8 continues generating, locked either to the alternate source or to the internal oscillator and re-locks to the reference when it reappears. These transitions occur smoothly and gradually with no sync shock to the system.
Two external 12VDC power supply can be connected to the DXD-8. It can operate with either of these power sources and they can both act as a back-up for the other with auto switch-over in the event of a failure.
Remote Control - Coming Soon
More +
Product Specs
Reference Generator | |
Generates simultaneously up to 4 different rates in any of these formats | |
Word clock | rates from 32 to 384 KHz |
AES | rates from 32 to 96 KHz |
Video sync | |
NTSC/PAL black burst | 525/29.97/30i 625/23.98/24/25i |
HD tri-level sync | 720/23.98/24/25/29.97/30/50/59.94/60P 1080/25/29.97/30i 1080/23.98/24/25/29.97/30sF 1080/23.98/24/25/29.97/30/50/59.94/60p |
10MHz | |
Universal Outputs | |
8 outputs | in 4 pairs |
BNC | 75? |
Output signal | any of the generated legacy references |
Oscillators | |
TCXO | +/- 1ppm |
OCXO | +/-10ppb (option) |
External Sync Sources | Word clock AES Video sync (Black Burst or HD tri-level sync) 10MHz GPS (option) PTP (option) |
Universal Inputs | |
2 BNC input connectors w/ 75? termination switch | |
Accepts the following input signals | Word clock AES Video sync (Black Burst or HD tri-level sync) 10 MHz |
Remote control | Web browser |
Battery backup | An on-board battery keeps the internal time-of-day clock running while power is off |
Presets | 10 presets can be programmed for quick recall |
Display | 2.4" TFT LCD – 240 x 320 resolution |
Power | 12 VDC @ 5A – External, switching power supply Dual inputs with auto switch-over for redundancy |
Dimensions | 19" x 1.75" x 8" |
PTP (option) | Complies with IEEE-1588 V2 Unicast / Multicast operation Configurable as a Grandmaster, slave or Boundary clock 1 Gigabit Ethernet port (RJ-45) |
GNSS/GPS (option) | The DXD-8 can be fitted with an Internal GPS receiver. The option includes an SMA antenna input connector. An antenna is required (not included) |
