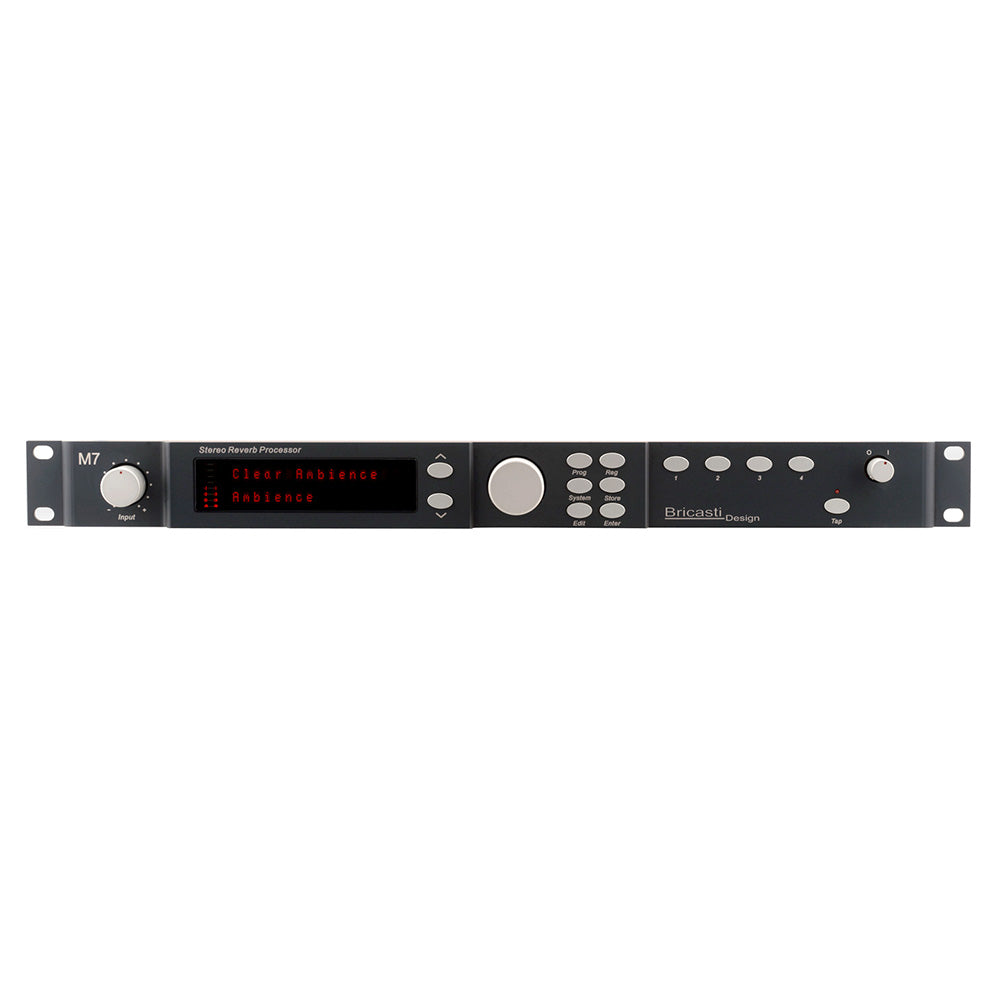

Bricasti Design Model 7 Digital Reverb Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Bricasti Design Model 7 provides the highest level of musicality and ease of control imaginable in a processor dedicated to the task of reverberation. A modern high resolution digital design, utilizing a stunning array of the latest DSP processors, provides a platform for the long overdue next step in reverb processing algorithms. A separate fully differential analog section and dedicated transformer based linear power supply provide the finest analog specifications of any product of it's kind. An exceptionally strong stainless steel chassis, and a tooled aluminum front panel, combine with a classic high visibility display and straight forward human interface, to complete an enduring design that is intended to fulfill its role, now and into the future.
With a deep appreciation of the best designs which precede it, and a passion for moving the science of reverberation forward, the Model 7 provides a palette of sounds that encompass the familiar as well as new expressions in the art. Listen to the new reference in reverb processing; it will bring new life to your art, in a way unimagined by any process before it.
Features:
- More than 200 Unique reverb presets
- Revolutionary new reverb algorithm True Stereo Reverb Process
- Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
- 12 Parametric Program Parameters
- 100 User Registers
- 4 Front panel "Favorites" for quick saves and compares
- Dual Dedicated Power Supplies
- Custom design toroidal transformer linear supply for analog
- High performance switching supply for digital
- Separate Digital and Analog modules
- non corrosive Stainless Steel chassis and top cover
- Milled anodized aluminum front panel, knobs and button caps
- Positive feel 2 db stepped analog input level control
- MIDI I/O
- Hand Crafted in the USA
| Digital Section | |
| Format | AES 24 Bit Digital I/O |
| Note | AES single wire 192k supported |
| Rates | Self-clocking to incoming sample rates 44.1k to 192k |
| Processing | 6 State of the art dual core Analog Devices DSPs |
| Analog Section Design Features and Performance | < 20 Picoseconds Jitter Input level adjustable in 2 dB steps Balanced XLR analog I/O 24-bit conversion Dual D/A Fully-balanced, DC-coupled analog input and output circuits |
| Analog Input A/D | |
| Dynamic Range | >116 db, A-Weighted |
| THD+N | <.001 % |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| CMRR | > 100 dB @ <= 1 kHz |
| Maximum Input Level | +24 dBu |
| Minimum Input Level for 0 dBFS | +4 dBu |
| Analog Output D/A | |
| Dynamic Range | > 116 dB, A-Weighted |
| THD+N | < 0.001% |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| Maximum Output Level | +24 dBu |
