Bricasti Design Model 7M Digital Reverb Processor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

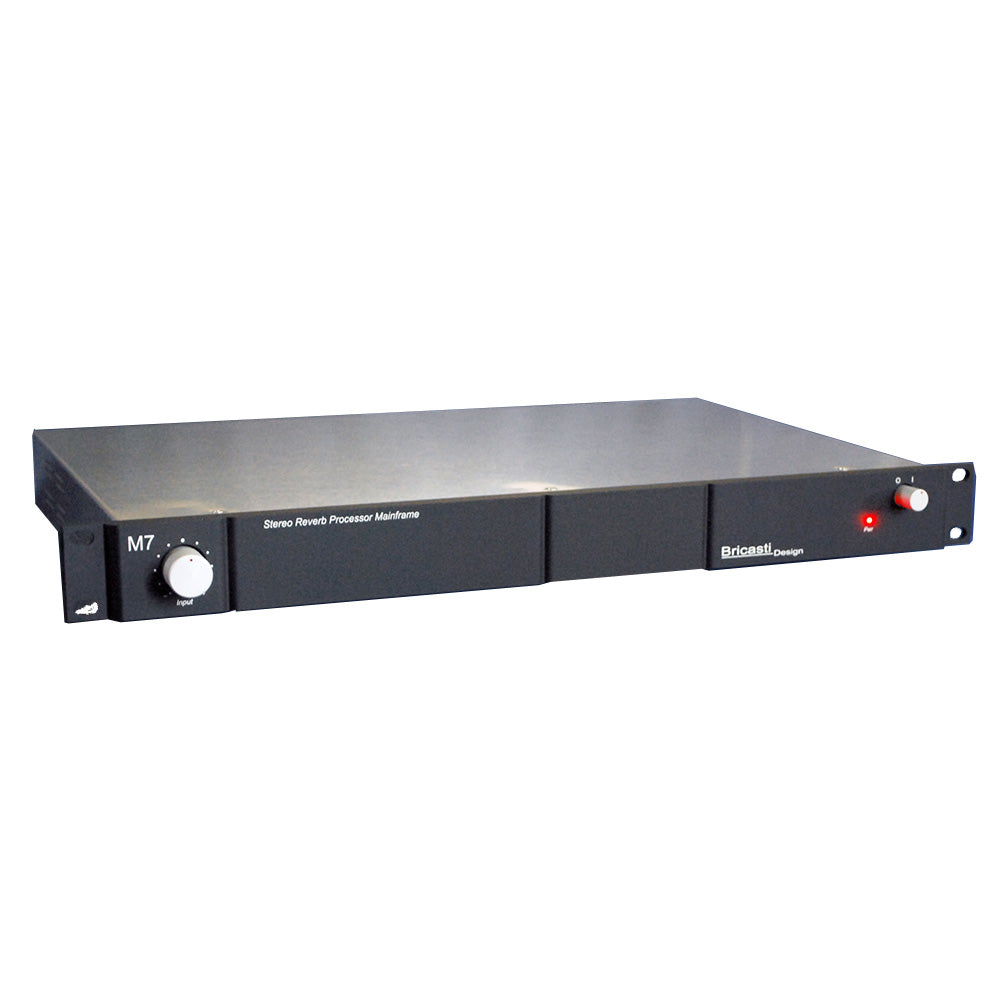

The Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console. As it is necessary to have an M10 for control, the M7M is also made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls.
Features:
- More than 200 Unique reverb presents
- Revolutionary new reverb algorithm True Stereo Reverb Process
- Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
- 12 Parametric Program Parameters
- 100 User Registers
- 4 Front panel "Favorites" for quick saves and compares
- Dual Dedicated Power Supplies
- Custom design toroidal transformer linear supply for analog
- High performance switching supply for digital
- Separate Digital and Analog modules
- non corrosive Stainless Steel chassis and top cover
- Milled anodized aluminum front panel, knobs and button caps
- Positive feel 2 db stepped analog input level control
- MIDI I/O
- Hand Crafted in the USA
| Digital Section | |
| Format | AES 24 Bit Digital I/O |
| Note | AES single wire 192k supported |
| Rates | Self-clocking to incoming sample rates 44.1k to 192k |
| Processing | 6 State of the art dual core Analog Devices DSPs |
| Analog Section Design Features and Performance | < 20 Picoseconds Jitter Input level adjustable in 2 dB steps Balanced XLR analog I/O 24-bit conversion Dual D/A Fully-balanced, DC-coupled analog input and output circuits |
| Analog Input A/D | |
| Dynamic Range | >116 db, A-Weighted |
| THD+N | <.001 % |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| CMRR | > 100 dB @ <= 1 kHz |
| Maximum Input Level | +24 dBu |
| Minimum Input Level for 0 dBFS | +4 dBu |
| Analog Output D/A | |
| Dynamic Range | > 116 dB, A-Weighted |
| THD+N | < 0.001% |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| Maximum Output Level | +24 dBu |
The Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console. As it is necessary to have an M10 for control, the M7M is also made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls.
Features:
- More than 200 Unique reverb presents
- Revolutionary new reverb algorithm True Stereo Reverb Process
- Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
- 12 Parametric Program Parameters
- 100 User Registers
- 4 Front panel "Favorites" for quick saves and compares
- Dual Dedicated Power Supplies
- Custom design toroidal transformer linear supply for analog
- High performance switching supply for digital
- Separate Digital and Analog modules
- non corrosive Stainless Steel chassis and top cover
- Milled anodized aluminum front panel, knobs and button caps
- Positive feel 2 db stepped analog input level control
- MIDI I/O
- Hand Crafted in the USA
| Digital Section | |
| Format | AES 24 Bit Digital I/O |
| Note | AES single wire 192k supported |
| Rates | Self-clocking to incoming sample rates 44.1k to 192k |
| Processing | 6 State of the art dual core Analog Devices DSPs |
| Analog Section Design Features and Performance | < 20 Picoseconds Jitter Input level adjustable in 2 dB steps Balanced XLR analog I/O 24-bit conversion Dual D/A Fully-balanced, DC-coupled analog input and output circuits |
| Analog Input A/D | |
| Dynamic Range | >116 db, A-Weighted |
| THD+N | <.001 % |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| CMRR | > 100 dB @ <= 1 kHz |
| Maximum Input Level | +24 dBu |
| Minimum Input Level for 0 dBFS | +4 dBu |
| Analog Output D/A | |
| Dynamic Range | > 116 dB, A-Weighted |
| THD+N | < 0.001% |
| Frequency Response | 10 Hz - 20 kHz ± < 0.05 dB |
| Maximum Output Level | +24 dBu |
