Broadcast Devices 8/16-16D 16 Channel A/B Switcher w/Dual PS Opt
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

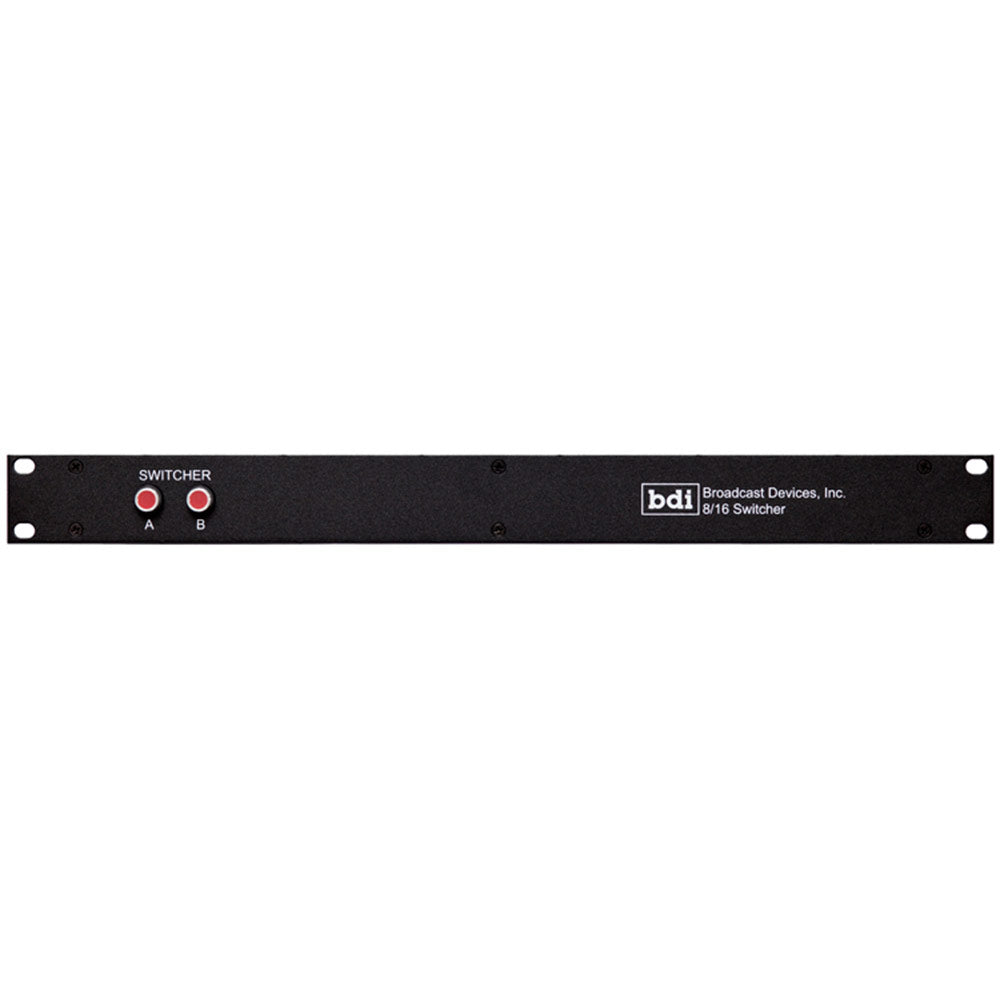

The 8/16 Channel A/B Switcher is a passive relay based broadcast switcher that accepts two sets of 8 or 16 channels that can be switched between; available in two models: either an 8- or 16-channel configuration. Use in any application where multiple switch connections are needed, such as studio switching, emergency switching or multi-channel audio switching. Simple ground start remote control and status are available from the rear panel. Front panel command and status buttons are standard. All connections are via DB-25 connectors. Signal connections conform to the Tascam D-88 standard for use with standard DB-25 to XLR break out cables, which are also available as an option from Broadcast Devices, Inc.
Features:
- 8 or 16 A/B Balanced Inputs
- 8 or 16 Common Outputs
- Passive Relays for Reliability
- Emergency Multi Pair Backup Switcher
- 7/5.1 Audio Monitor Selector
- Emergency Studio Switcher
- Emergency Router Bypass Switcher
- Emergency Digital Console Switchover
The 8/16-8 and 8/16-16 Passive Audio Switchers from BDI are a solid solution to emergency backup of analog and digital audio systems and for control lines. Uses include studio changeover where multiple pairs need to be switched over. Also can be used as an emergency backup to any digital audio system. Great for remote trucks where live shoots require ultra reliability in all systems. The 8/16 series switchers provide a simple, reliable way to switch over multiple pairs. Because the 8/16 is passive in its switching function signals can be mixed in one switcher to include analog or digital audio and control signals. Use as an emergency switcher for bypass to eliminate single points of failure.
If your requirement is for more than 16 pairs simply stack additional 8/16 switchers and slave the remote control function.
Constructed from steel providing superior shielding against 50/60 Hertz hum pickup in analog applications. Through the use of a rugged switching power supply the 8/16 series switchers can endure harsh electrical environments and are compatible with most power distribution systems worldwide.
| Number of Inputs | 8 or 16 Model Specific 8/16-8 8 inputs, 8/16-16 16 Inputs |
| Number of Outputs | 8 or 16 Model Specific as Above |
| Connector Style | DB25 FemaleÑTascamª Pin Configuration Standard |
| Remote Control | Momentary or Maintained Latch Closure Using Contact Closure |
| Status | Dry Relay Contact NO/C/NC for Position Status |
| Front Panel Controls | Pushbutton Selection of A/B Inputs |
| Front Panel Status | Lighted Button of Selected Position |
| Other Features | Programmable Momentary or Latched Control From Rear Panel |
| Power Recovery State | Jumper Selectable Recover to Last Position or A position upon Recovery of Power Loss |
| Power Requirements | 100-240 VAC 50-60 Hertz @ 1 A. |
| Mechanical Specifications | 19" W X 10"D X 1.75" HÑStandard EIA Steel Rack Unit Enclosure |
| Environmental | 0-60 Degrees Celsius Non Condensing Atmosphere |
| Shipping Weight | 15 lbs. Including Carton. Carton Size 22" W X 14" D X 7" H |
| Accessories Available | AIP-100 DB25 to XLR Breakout 19" Rack Panel DIP-100-75 DB25 5o 75 Ohm BNC Connector Rack Panel |
The 8/16 Channel A/B Switcher is a passive relay based broadcast switcher that accepts two sets of 8 or 16 channels that can be switched between; available in two models: either an 8- or 16-channel configuration. Use in any application where multiple switch connections are needed, such as studio switching, emergency switching or multi-channel audio switching. Simple ground start remote control and status are available from the rear panel. Front panel command and status buttons are standard. All connections are via DB-25 connectors. Signal connections conform to the Tascam D-88 standard for use with standard DB-25 to XLR break out cables, which are also available as an option from Broadcast Devices, Inc.
Features:
- 8 or 16 A/B Balanced Inputs
- 8 or 16 Common Outputs
- Passive Relays for Reliability
- Emergency Multi Pair Backup Switcher
- 7/5.1 Audio Monitor Selector
- Emergency Studio Switcher
- Emergency Router Bypass Switcher
- Emergency Digital Console Switchover
The 8/16-8 and 8/16-16 Passive Audio Switchers from BDI are a solid solution to emergency backup of analog and digital audio systems and for control lines. Uses include studio changeover where multiple pairs need to be switched over. Also can be used as an emergency backup to any digital audio system. Great for remote trucks where live shoots require ultra reliability in all systems. The 8/16 series switchers provide a simple, reliable way to switch over multiple pairs. Because the 8/16 is passive in its switching function signals can be mixed in one switcher to include analog or digital audio and control signals. Use as an emergency switcher for bypass to eliminate single points of failure.
If your requirement is for more than 16 pairs simply stack additional 8/16 switchers and slave the remote control function.
Constructed from steel providing superior shielding against 50/60 Hertz hum pickup in analog applications. Through the use of a rugged switching power supply the 8/16 series switchers can endure harsh electrical environments and are compatible with most power distribution systems worldwide.
| Number of Inputs | 8 or 16 Model Specific 8/16-8 8 inputs, 8/16-16 16 Inputs |
| Number of Outputs | 8 or 16 Model Specific as Above |
| Connector Style | DB25 FemaleÑTascamª Pin Configuration Standard |
| Remote Control | Momentary or Maintained Latch Closure Using Contact Closure |
| Status | Dry Relay Contact NO/C/NC for Position Status |
| Front Panel Controls | Pushbutton Selection of A/B Inputs |
| Front Panel Status | Lighted Button of Selected Position |
| Other Features | Programmable Momentary or Latched Control From Rear Panel |
| Power Recovery State | Jumper Selectable Recover to Last Position or A position upon Recovery of Power Loss |
| Power Requirements | 100-240 VAC 50-60 Hertz @ 1 A. |
| Mechanical Specifications | 19" W X 10"D X 1.75" HÑStandard EIA Steel Rack Unit Enclosure |
| Environmental | 0-60 Degrees Celsius Non Condensing Atmosphere |
| Shipping Weight | 15 lbs. Including Carton. Carton Size 22" W X 14" D X 7" H |
| Accessories Available | AIP-100 DB25 to XLR Breakout 19" Rack Panel DIP-100-75 DB25 5o 75 Ohm BNC Connector Rack Panel |
