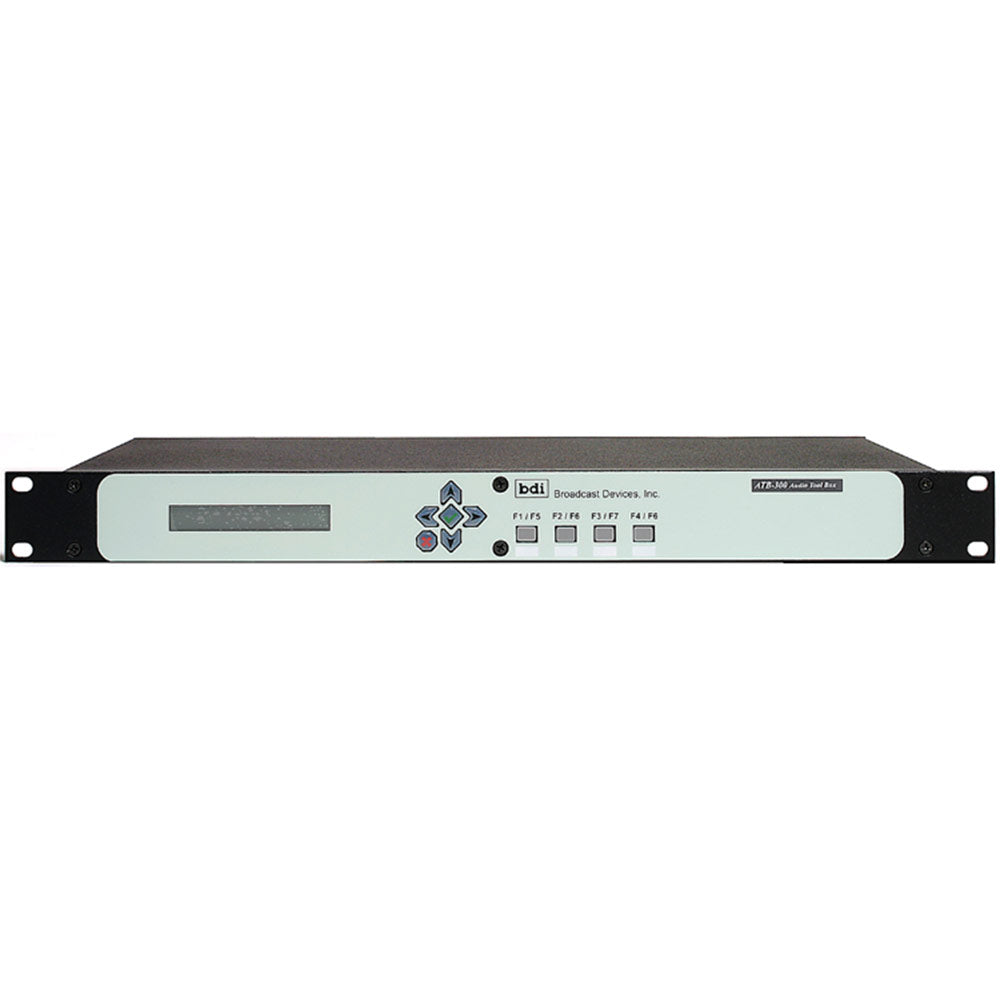

Broadcast Devices ATB-300-6 Audio Toolbox AES Synchronous Audio Switcher


  • Dale #:

    BRDE-ATB3006
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ATB-300 Series Audio Switcher/DA products are a versatile way to manage AES3 and/or analog audio in one package. With over 10 models to choose from the ATB-300 series make audio switching and distribution over different platforms easy. These products also feature automatic operation with sile... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ATB-300 Series Audio Switcher/DA products are a versatile way to manage AES3 and/or analog audio in one package. With over 10 models to choose from the ATB-300 series make audio switching and distribution over different platforms easy. These products also feature automatic operation with silence detection which is programmable. User defined level threshold, time delay and auto revert time are available from the simple front panel setup menu. The ATB series can be operated from the front panel, GPIO or from an Ethernet connection using SNMP and/or the BDI Stack Graphical User Interface available for Windows and Android devices. The GUI also provides a means of naming inputs and outputs for convenience.

Features:

  • Up to 8 I/O Analog, AES3 or a 4 of Each
    • See product specifications in next tab
  • Composite FM Stereo I/O module - 4 Composite Output DA and Composite to AES3 Conversion
  • Programmable Silence detection including threshold, time delay, auto revert time
  • Programmable Silence Switching channel priority. Custom programmable sequence of channels
  • Sample Rate Conversion on every AES3 input
  • Synchronous AES3 switching for silent, glitch free switching
  • 24 bit resolution throughout
  • Tascam™ Standard Interface
  • Ethernet connection for use with SNMPv2 and/or BDI Stack GUI
  • RS232/485 Compatible for use with most automation systems

The ATB-300 Audio Toolbox from BDI is a rack mounted solution to switching and routing in the digital or analog domain. The ATB-300 can be ordered in eight different configurations. The basic configuration is the ATB-300-1 that accepts four AES3 inputs, that can be switched and routed to four AES3 outputs. If analog input is required in addition to AES3, the ATB-300-2 has four analog balanced stereo inputs in addition to the four AES3 inputs. The ATB-300-3 has AES3 I/O and analog output, if AES3 and analog I/0 are required. The ATB-300-4 is analog only L/R I/O and the ATB-300-5 provides four AES3 I/O and four balanced stereo I/O.

More +

Product Specs

I/O Types AvailableAES3 8-96 KHz, Analog balanced +4 dBm, Composite FM Stereo Base band
Number of I/OUp to 8-Model Specific-See Model Chart below
Sample Rate Converted AES3 Output Sample Rates32, 44.1 or 48 KHz-User Definable
Analog Inputs+4 dBm Balanced L/R +24 dBm Max. input level
Analog Outputs+ 4 dBm Balanced L/R + 18 dBm Max output level
Frequency Response* +/- 0.25 dB from 20 Hertz to 20 KHz
Total Harmonic Distortion* Less than 0.05% at headroom level
Dynamic Range90 dB or greater
Remote ControlParallel GPIO, Ethernet SNMPv2 and RS-232/485 Serial
Power Requirements100-240 VAC 50-60 Hertz @0.5A
Environmental0-60 degrees C. Non Condensing Atmosphere
Mechanical19" X 10" D X 1.75" H-Standard 1 RU EIA Rack enclosure
Shipping Weight/Dimensions including Carton 15 lbs., 22" LX 14" W X 7" H
Model ChartAES3 I/OAnalog InputAnalog OutputComposite Base Band I/O
ATB-300-14000
ATB-300-24400
ATB-300-34040
ATB-300-40440
ATB-300-54440
ATB-300-68000
ATB-300-70840
ATB-300-80880
ATB-300-9*4004
ATB-300-10*0444

*Note ATB-300-9 & 10 versions can be configured to convert composite base band to AES3 stereo outputs
