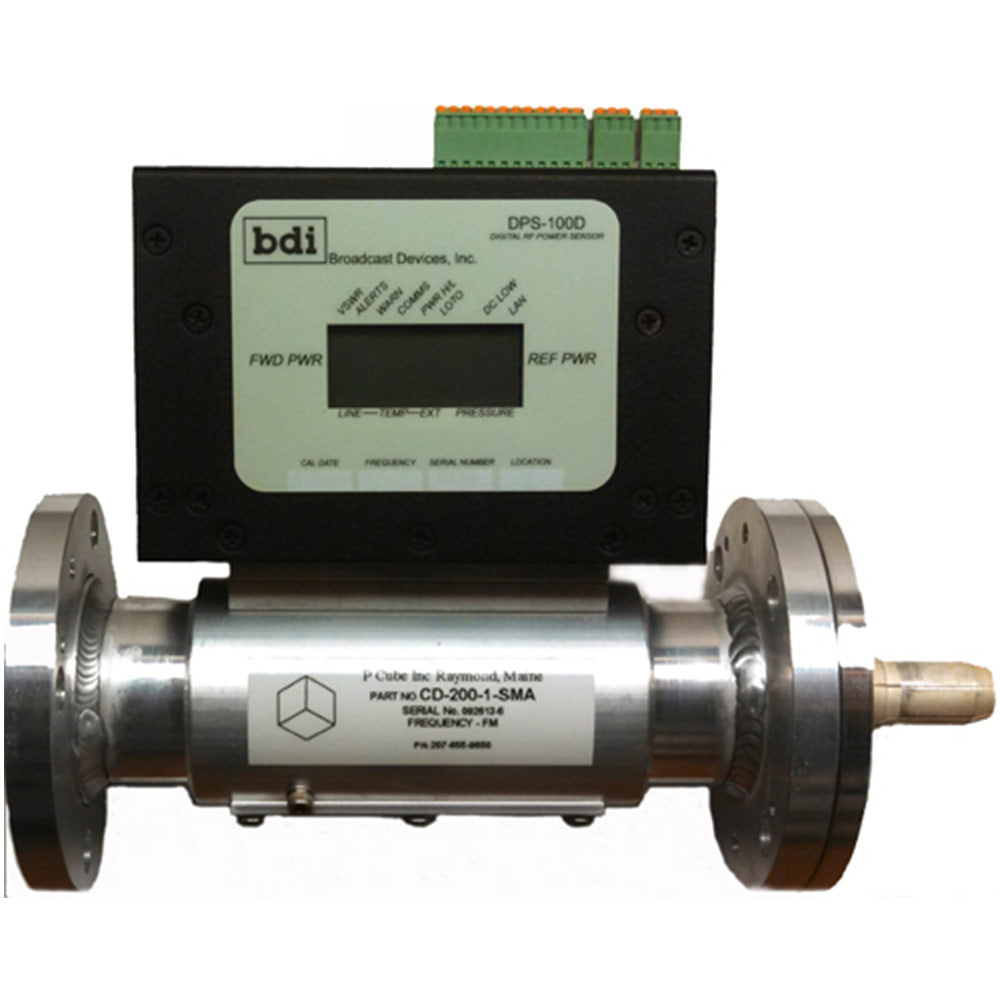

Broadcast Devices DPS-100D-7/16 DIN Digital RF Power Measurement System with 7/16 DIN Precision Coupler

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.

Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.

Features:

• Simultaneous Forward/Reflected Power Indication
• Onboard Backlit LCD Display with proprietary 3 strike protection system for sustained high VSWR conditions
• Onboard Web Server for remote interrogation of parameters
• Transmission Line Surface
• Temperature Indication - Second Temperature Sensor input available*
  • Transmission Line
  • Pressure indication**
• Phantom Powered RS-485 Communications bus for easy interconnection of other sensors using industry standard category 5 cabling or SWP series supervisory chassis available from BDI
  • Operate standalone or part of a larger system with up to 255 additional DPS-100D sensors
• Analog 0-5 VDC scaled outputs of power indication for remote control input, 8 Programmable General
• Purpose inputs for interlock lock out tag out status, remote reset etc.
• 2 - Form C programmable relays for interlock and alarm indication

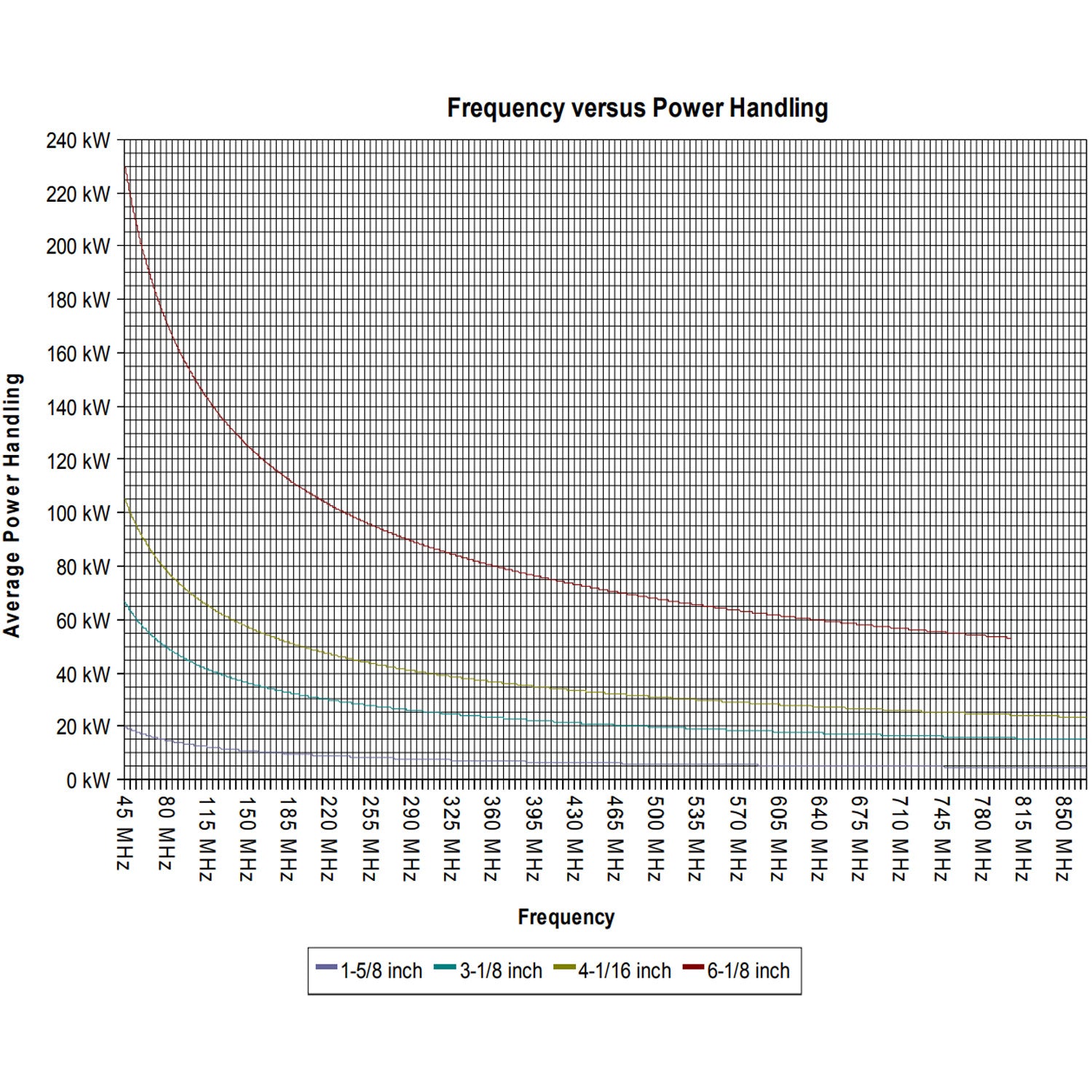

• DPS-100D Digital RF Power Measurement System is available in all EIA standard transmission line sizes and includes 4-1/16", N and DIN -7/16
  • Flange to Flange Coupler Lengths:
    • 7/8" - 6.25"
    • 1-5/8" - 6.50"
    • 3-1/8" - 7.00"
    • 4-1/16" - 7.00"
    • 6-1/8" - 10.50"

* Second temperature indication requires the use of BDI P/N TMP-100 temperature sensor
** Requires use of the BDI P/N PSW-100 pressure sensor and requires a suitable gas termination such as the ERI gas barrier assemblies. These gas barrier assemblies are available in many line sizes including 1-5/8", 3-1/8", 4-1/6", 6-1/8", 8-3/16" and 9" EIA transmission line sizes.

The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading. Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create a monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc.
