Broadcast Devices SWP-206-D Digi Monitor


  • Dale #:

    BRDE-SWP206D
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SWP-206-D Digi Monitor is designed to interface to up to eight BDI DPS-100D power measurement systems and is suited for the monitor and protection of radio and television master antenna/combiner systems. The SWP-206 is a convenient single rack display of eight sets of forward and reflected po... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SWP-206-D Digi Monitor is designed to interface to up to eight BDI DPS-100D power measurement systems and is suited for the monitor and protection of radio and television master antenna/combiner systems. The SWP-206 is a convenient single rack display of eight sets of forward and reflected power, temperature and transmission line pressure. The SWP-206 system is designed to distribute transmitter interlock control to up to eight transmitters utilizing BDI's exclusive 3-Strike VSWR protection algorithm. The SWP-206 is web-enabled for remote display of all parameters and remote control of fault reset. Monitor and protection of RF transmission systems is made simple and reliable with BDI's SWP-206 system in conjunction with BDI DPS-100D power measurement systems. BDI is the industry leader in providing totally integrated RF transmission system monitor/protection equipment. Call or email us today and allow us to help with your next antenna project.

Features:

  • Local/Remote display of all critical parameters through a single Internet connection
  • Supports SNMPv2 for interface to SNMP based remote controls and software
  • Supports up to 8 DPS-100D Calibrated RF Power Meters
  • Simple Plug and Play Connections via a Standard STP CAT 5 Cable
  • Monitor all critical RF parameters of any master antenna system
  • Accurate broad-band multi carrier RF power measurement
  • Proprietary 3 Strike reflected power protection algorithm
  • Programmable interlock suitable for broad-band and narrow band 3 strike conditions
  • Programmable Interlock Control for broad band and narrow band fault events - for use in RF combiner systems

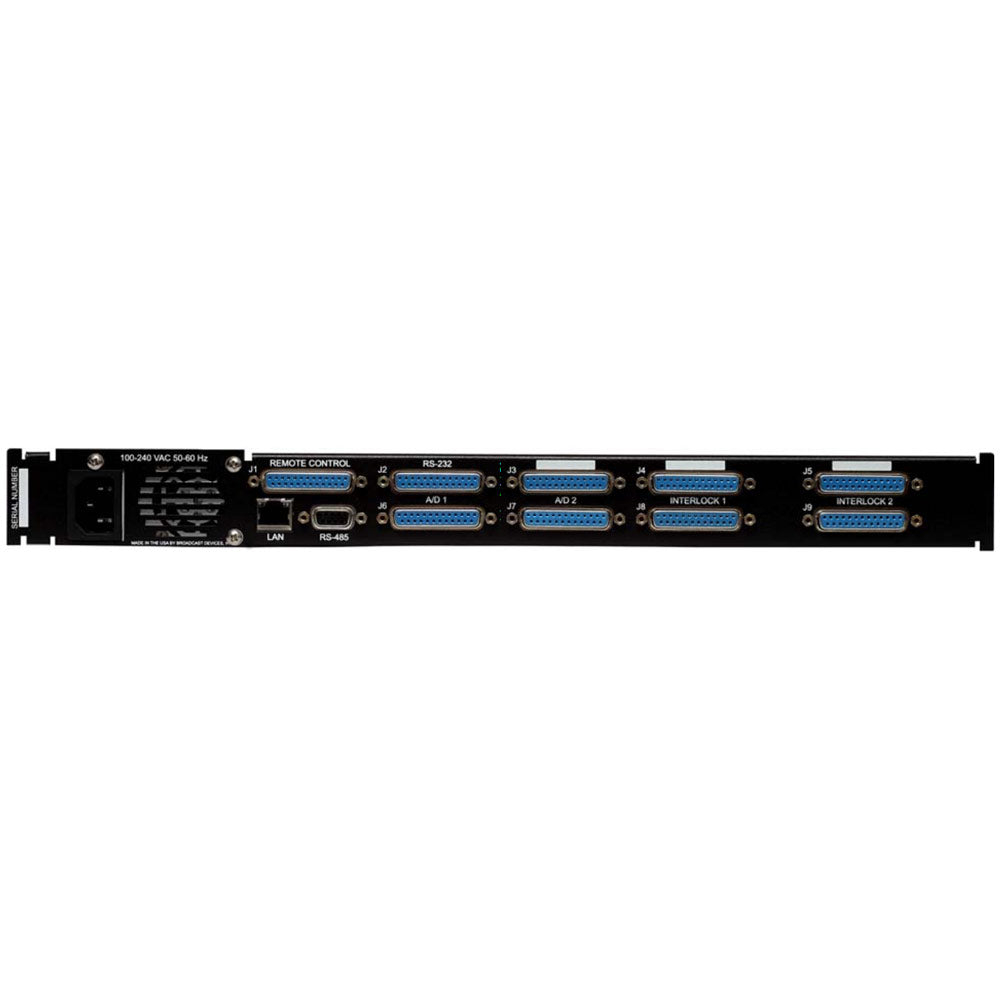

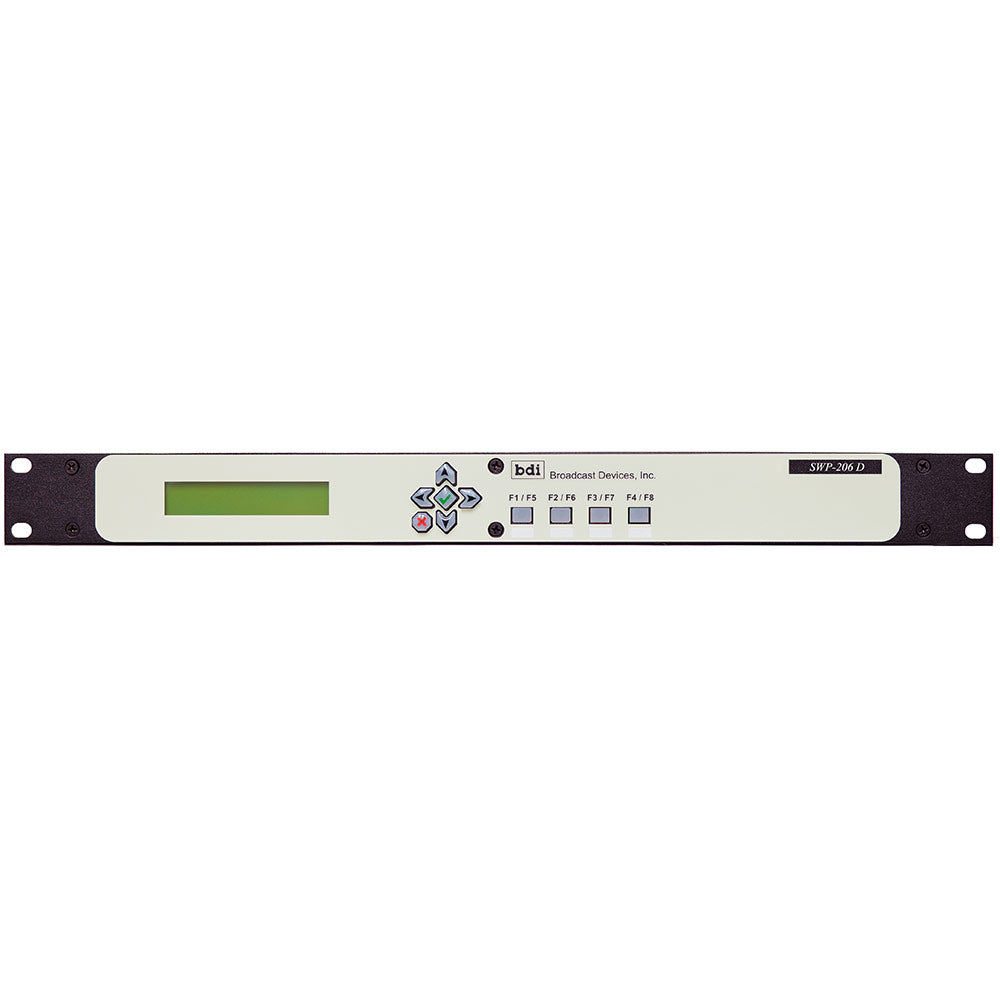

The SWP-206 Digi Monitor was developed by BDI to display data from up to 8 BDI DPS-100D True RMS Digital Power Sensors in a single rack unit display. The SWP-206 can measure up to 8 directional coupler forward/ reflected outputs simultaneously providing interlock control to safeguard against damage caused by high reflected power. The SWP-206 accurately displays forward/reflected power, temperature and line pressure measurements can be performed by the addition of optional BDI TMP-100 temperature and PSW-100 pressure sensors connected to accompanying DPS-100D True RMS power sensor systems. Simple RS-485 serial connection via standard Category 5/6 cabling is used to connect the various DPS-100D power sensors to the SWP-206 chassis. The SWP-206 powers provides D.C. power for up 8 - DPS-100D sensors. SWP-206 systems are offered as complete systems with CALIBRATED RF Watt meters. There is nothing else to buy to accurately monitor digital TV, FM, IBOC or DAB antenna/combiner system.

More +

Product Specs

Number of RF Monitor Channels SupportedUp to 8 - Forward/reflected power, temperature, line pressure
Number of Interlock Relays Available8 - Form C Relays - contact rating : 2A. @ 120VAC/2A 24.
Relays can be programmed for broad band /narrow band faults to provide station specific interlock protection
Remote Control/StatusGPIO Status of Interlock, Fault, Fault Reset, RS232 Status, TCP/IP - SNMPv2 Agent
Electrical Requirements100-240 VAC 50-60 Hertz @ 2A. EIC Power Entry Cord
Physical Specifications19" W X 10" D X 1.75" H - Standard EIA Rack Enclosure Mount
Environmental Requirements0-55 degrees C non condensing atmosphere
Shipping Carton Dimensions/Weight22" L X 14" W X 7" H, 15 lbs.
