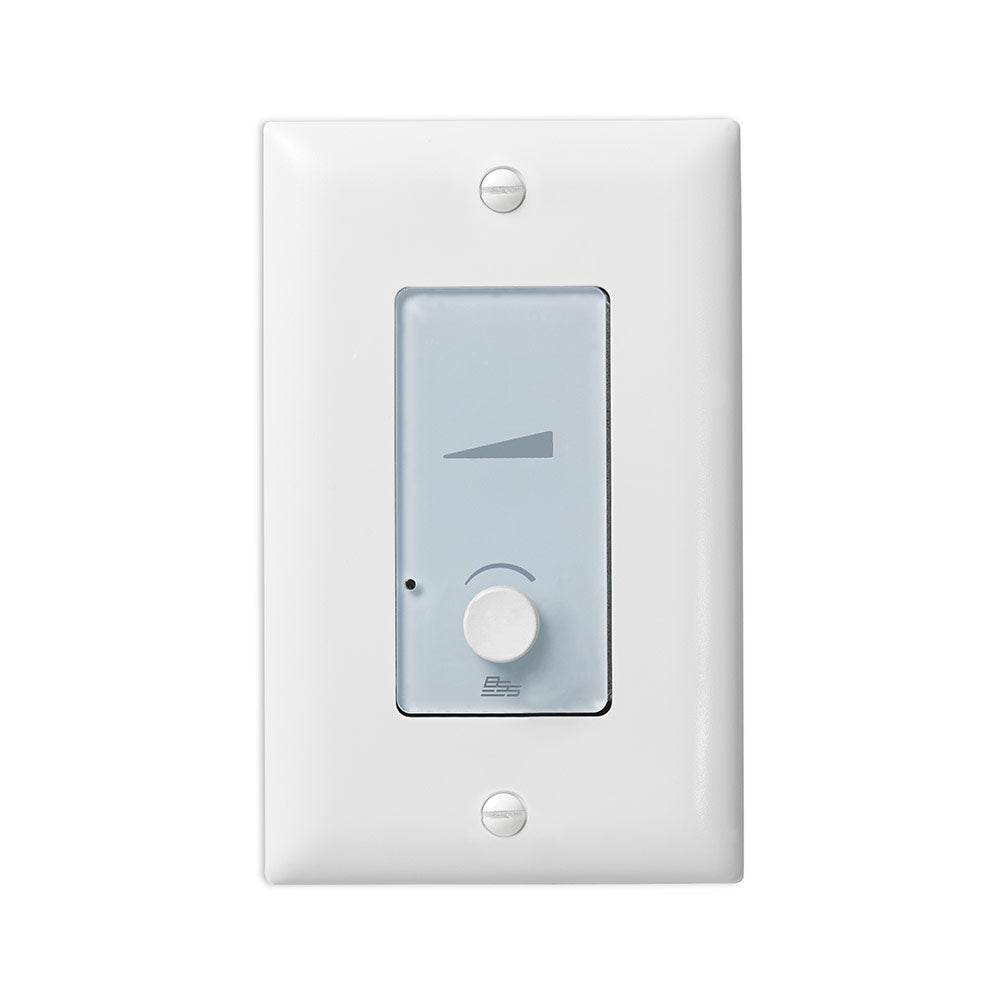

BSS AC-V-WHT-US Decora Plate Analog Volume Controller (White)

The Soundweb Contrio AC-V is a simple analog wall controllers designed for use with BSS Audio Soundweb London devices. The AC-V is designed to connect to General Purpose Inputs (GPI) (also known as "Control Inputs") found on Soundweb London devices. Most Soundweb London devices contain 12 GPI. The Soundweb London BLU-GPX contains 36 GPI.

The AC-V contains a single 47k Ohm logarithmic potentiometer which is useful for volume control. The AC-V requires one GPI. Therefore, up to 12 AC-V controllers can connect to a single Soundweb London device, and up to 36 AC-V controllers can connect to a single BLU-GPX.

The AC-V is configured using HiQnet London Architect or HiQnet Audio Architect via simple drag and drop operations. While almost any parameter can be mapped to the physical controls, the AC-5S is most commonly used for source selection or preset recall.

Features:

• Analog Wall Controller
• Cost-Effective Control Solution
• AC-V for Volume Control
• Compatible with BSS Audio Soundweb London devices
• Available in Black or White
• US Decora wall plate
• Single-Gang Size
• Configured in London Architect or Audio Architect via Drag-and-Drop
