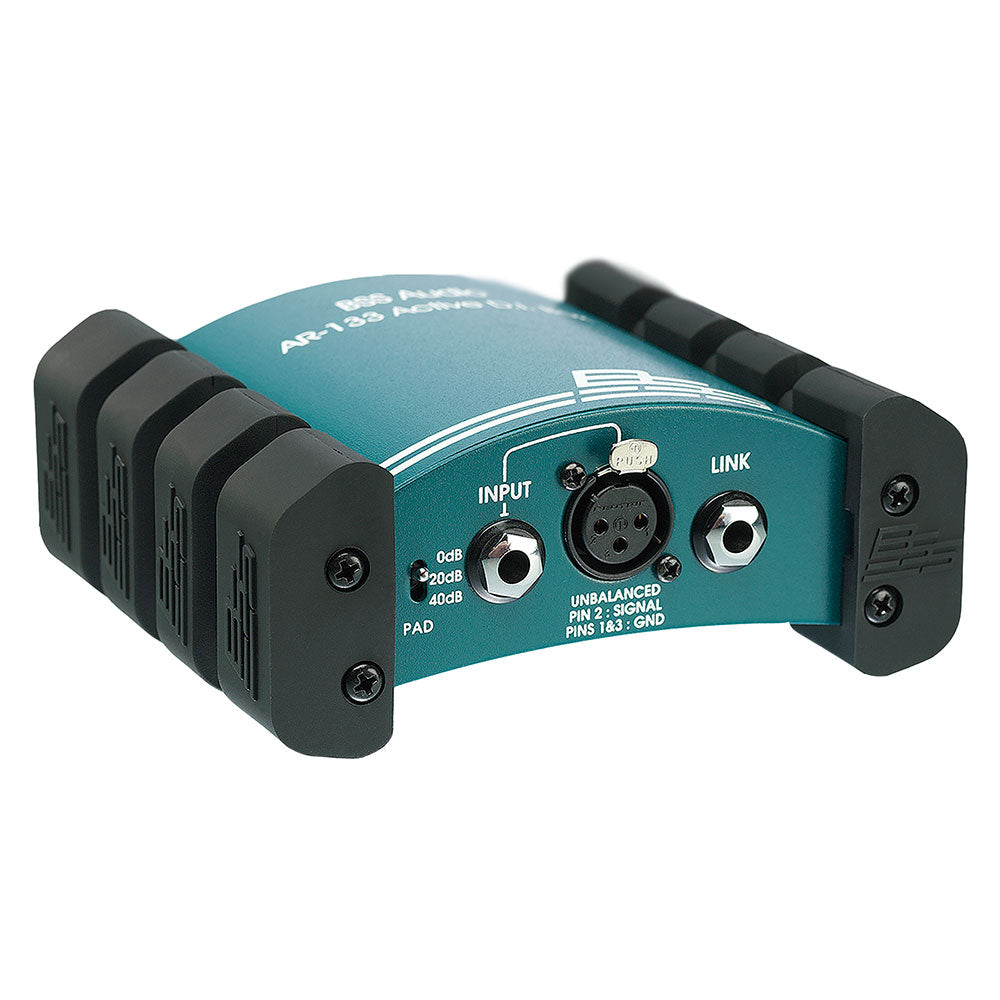

BSS AR-133 Active Direct Box / Line Balancer


  • Dale #:

    BSS-AR133
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Durability and sound quality: the AR-133 direct box is without peer in both categories. The AR-133's metal casing could hold up under a buffalo stampede, and its strong rubber grips ensure it can't be kicked around easily. The sound is low-impedance bliss-clear, powerful and incredibly transparen... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Durability and sound quality: the AR-133 direct box is without peer in both categories. The AR-133's metal casing could hold up under a buffalo stampede, and its strong rubber grips ensure it can't be kicked around easily. The sound is low-impedance bliss-clear, powerful and incredibly transparent. The AR-133 will be part of your gear for a long time to come.

The AR-133 Active DI Box from BSS Audio uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars. Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources. An additional bonus is the ability to use the AR-133 as an active balancing device.

Input connectors are both 1/4 jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout. The arched case allows cables to run back underneath the unit from the end for neat cable management. Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.

The BSS AR-133 includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use. This unit is housed in a rugged aluminum extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

More +

Product Specs

Input Impedance 1 MOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB)
Max Input +9dBu (pad at 0dB), +29dBu (pad at -20dB), +49dBu (pad at -40dB)
Input Connectors Two Parallel 1/4" jack connectors (Tip Hot +ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot +ve, Pin 1 & 3 ground)
Output Transformer Balanced
Max Output +8dBu into 600 Ohms or greater
Output Connectors XLR3-32 or equivalent
THD < 0.005% at 1khz, 0dbu output
Noise < -105db unweighted, 22hz-22khz, rms*
Frequency Response 30Hz to 20kHz, +0dB/-1dB
Main/Standby battery 9 volt PP3 type, preferably alkaline
Power Consumption on phantom: less than 7.5mA, on battery: less than 2mA.
Phantom Power +20 volts DC to +48 volts DC
Unit Weight 650 gms, excluding batteries
Dimensions 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6")
